Red panel mount digital voltmeter and ammeter 4.5-100V 0-10A
Brand: satkit
6.15€
VAT included (Ex VAT: 5.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 5.54 € | -10% |
Limited stock
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The red panel mount digital voltmeter and ammeter is an essential instrument for accurate measurement of voltage and current in DC electrical systems, especially in ranges from 4.5 to 100 volts and up to 10 amperes. This device combines two functions in one unit, allowing you to monitor both voltage and electrical consumption with a clear, visible LED display.
Designed for 12 and 24V DC systems, this meter is powered directly from the source it measures, eliminating the need for external batteries. Its compact design makes panel mounting easy, with a mounting hole of 45,5 x 26,5 mm, ideal for applications in vehicles, battery systems and electronic projects where reliable and continuous monitoring is required.
Main features
- Voltage range: 0 to 100V DC with 0.1V resolution.
- Current range: 0 to 10 amperes with 0.01A resolution.
- Accuracy: 1% measurement accuracy ± 1 digit.
- Power supply: 4.5 to 30V DC, taken directly from the measured source.

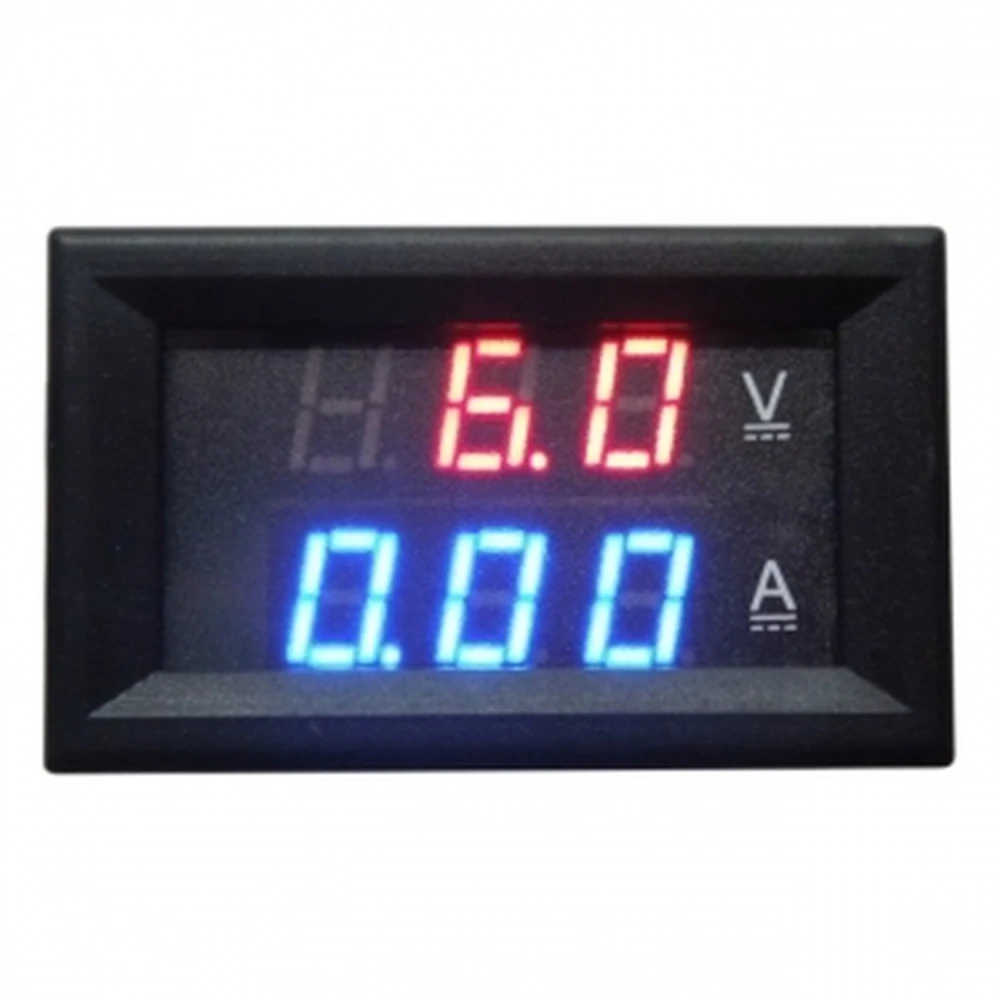

- Indicator colours: red for voltage and blue for amperage, making quick reading easier.

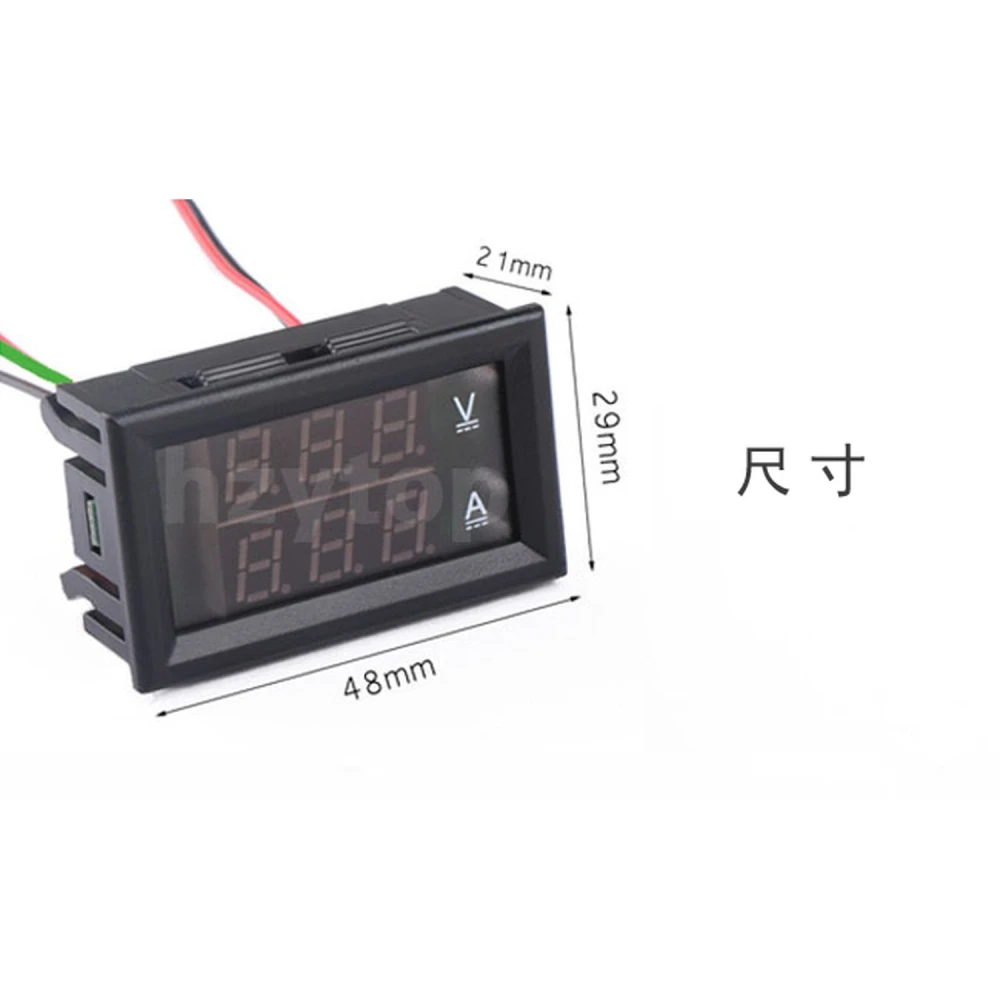

- Compact dimensions: 48 mm wide x 29 mm high x 21 mm deep, lightweight at 20 grams.
- Operating conditions: temperature from -10°C to 65°C and humidity from 10-80% non-condensing.

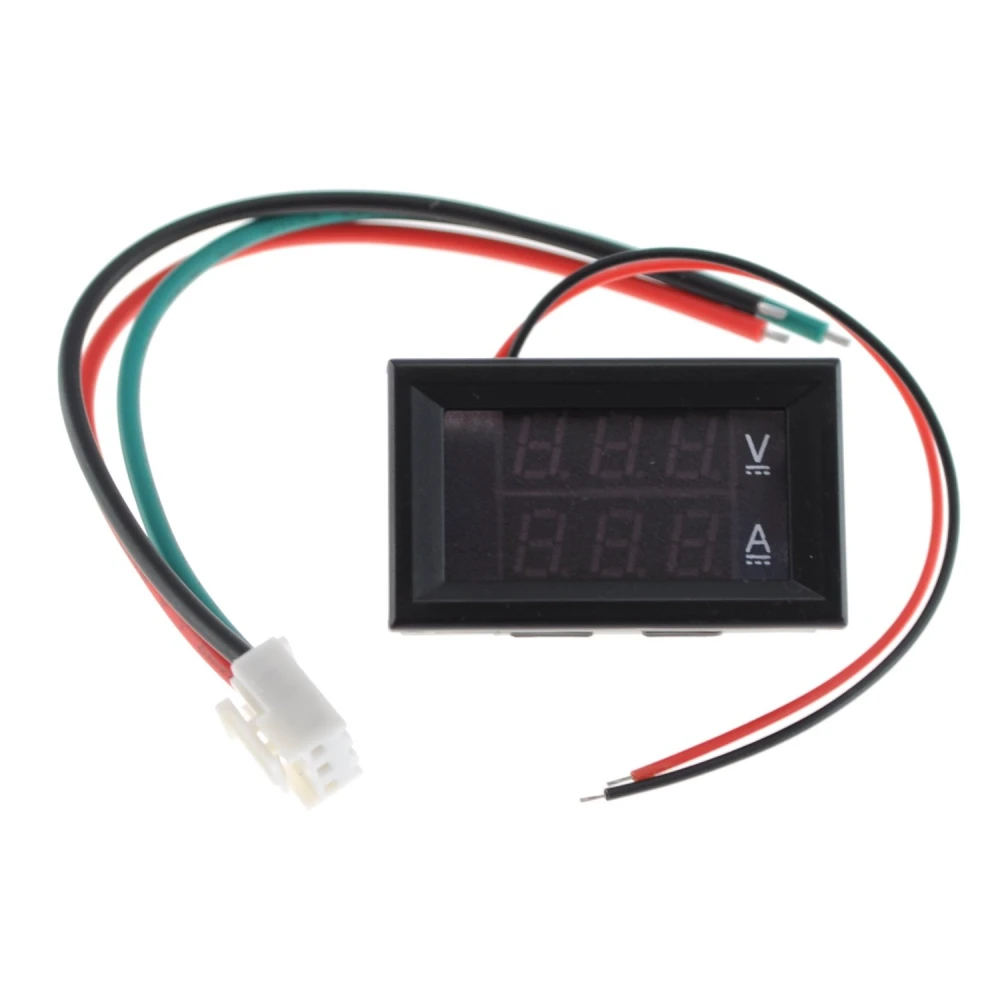

- Easy installation: connection via two 150 mm wires, positive and negative.
Typical uses and compatibility
This digital voltmeter and ammeter is ideal for monitoring battery status in vehicles, solar systems, and other electronic devices operating on direct current. It allows you to check charge status and electrical consumption, helping prevent faults caused by overload or excessive discharge.
Thanks to its panel-mount, compact design, it is perfect for integration into control panels, electrical switchboards or instrument enclosures, offering a professional and neat solution for electrical measurement.
Installation and maintenance
Installation is simple and quick, requiring only panel mounting with the correct hole and connection of the positive and negative wires to the power supply and the circuit to be measured. It does not require batteries or special maintenance, ensuring a long service life and reliable use.
This unit is an indispensable tool for technicians, electricians and electronics enthusiasts looking for a reliable and accurate meter for their projects or electrical maintenance.
- Measures 0 to 100V DC with 0.1V resolution
- Measures 0 to 10 amperes with 0.01A resolution
- LED display with red (voltage) and blue (current) indicators
- Direct 4.5 to 30V DC power supply with no battery required
- Compact dimensions: 48x29x21 mm, lightweight at 20 grams
- Operating temperature range from -10°C to 65°C
- Panel mount installation with 45.5 x 26.5 mm hole
- Simple connection with 150 mm positive and negative wires
Customer Questions & Answers
What are the exact dimensions of the unit and what is included in the box when purchasing the product?
The device measures 48 mm wide, 29 mm high and 21 mm deep. The box includes the panel-mount digital voltmeter/ammeter, ready to install, and the connection cables. No printed manual or extra accessories are included, so fixing it to a panel may require screws or adhesive tape depending on the installation.
What precautions should I consider for installation and what are the operating limits for voltage and current measurement?
The measurement range is 0–100 V DC for voltage and up to 10 A for current. Internal supply is 4.5–30 V DC; outside this range there may be failures or irreversible damage. It is essential to install it with the correct polarity and within the specified limits to ensure accuracy and avoid overheating or short circuits.
What safety certifications or standards does this digital voltmeter and ammeter comply with?
No international certifications (such as CE or UL) are specified for this model in the description, so its use is recommended in non-critical applications or those with low regulatory requirements. It is important to limit use to environments with low exposure to dust and moisture, and not to use it in regulated installations without confirming the applicable standards.
What is the panel mount digital voltmeter and ammeter used for?
It is used to accurately measure voltage and current in DC electrical systems, making it easier to monitor battery status and electrical consumption.
What voltage and current range does this device measure?
It measures voltages from 0 to 100V DC and currents from 0 to 10 amperes with high accuracy.
Does it need batteries to work?
No, it is powered directly from the voltage source it is measuring, so it does not require batteries.
Is it easy to install?
Yes, its compact design and two-wire connection make it easy to panel mount in panels or switchboards.
What applications can I use this meter for?
It is ideal for vehicles, solar systems, and other DC electrical projects where voltage and consumption need to be monitored.
