Test Clip SOP16 SOIC16 - Test Clip for SOIC16 IC Programmers

Name: Test Clip SOP16 SOIC16 - Test Clip for SOIC16 IC Programmers
Brand: satkit
SKU: H0X0201-TEST-CLIP-sop16
Price: 7.38 EUR
Availability: InStock

Brand: satkit

Be the first to review this product

7.38€

VAT included (Ex VAT: 6.00 €)

Volume Discounts

Quantity	Price	Save
2+	7.08 €	-4%
10+	6.52 €	-12%
20+	6.05 €	-18%

Limited stock

Standard delivery Wed, Apr 29 - Fri, May 1

Express delivery Mon, Apr 27 - Tue, Apr 28

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

Product description:

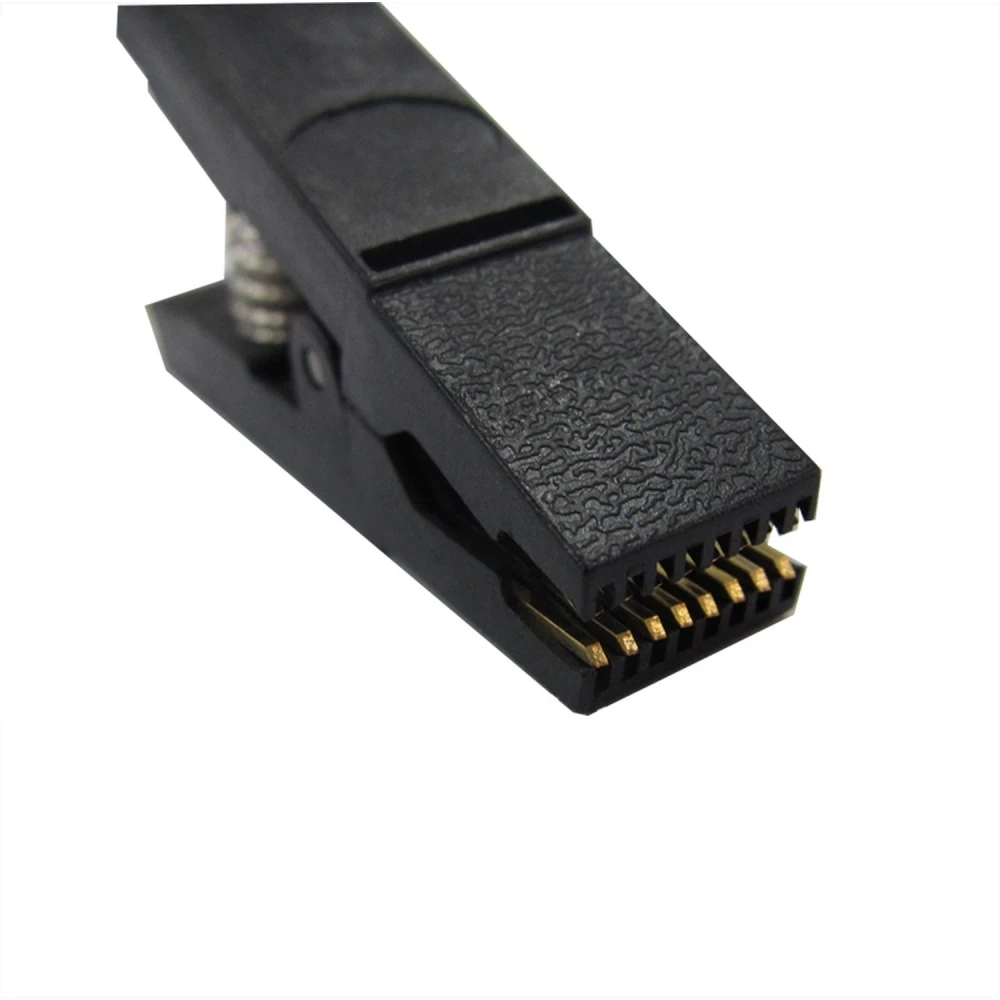

The Test Clip Sop16 Soic16 is an essential tool for technicians and electronics enthusiasts who need a reliable, fast connection to integrated circuits with a 16-pin SOIC package. This test clip allows temporary connections without soldering, making IC programming and diagnostics easier.

Main features:

Connector type: Test Clip for SOIC packages
Number of contacts: 16
Contact plating: gold-plated for greater conductivity and corrosion resistance
Connector colour: black
Pin pitch: 1.27 mm (IC Lead Pitch)
Lead spacing: 2.54 mm (Lead Spacing)
Row spacing: 3.81 mm (Row Pitch)

Typical uses:

Programming and testing SOIC16 integrated circuits
Fault diagnosis on electronic boards
Temporary connection for measurements and tests without soldering
Compatible with IC programmers that support SOIC packages

Compatibility:

This test clip is compatible with any integrated circuit that uses a 16-pin SOIC package, making it a versatile tool for repair, programming and electronics development work.

Additional advantages:

Easy to use and connect
Gold-plated contacts ensure a stable and long-lasting connection
Compact and lightweight design for easy handling

In short, the Test Clip Sop16 Soic16 from satkit is a reliable and practical tool for anyone working with SOIC16 integrated circuits, offering an efficient solution for temporary connections in programming and diagnostics.

Test clip for 16-pin SOIC packages
Gold-plated contacts for better conductivity and durability
Durable, compact black design
1.27 mm pin pitch and 2.54 mm spacing
Ideal for programming and diagnosing SOIC16 integrated circuits

Customer Questions & Answers

Is special tooling or technical experience required to install the Test Clip Sop16 on a SOIC chip?

Installation is manual and does not require special tools, but the use of anti-static tweezers and a minimum level of experience is recommended to avoid damaging the IC pins or the clip contacts.

What are the main risks or limitations when using this test clip at typical microcontroller programming voltages?

The test clip is designed for low-voltage signals, normally up to 50 V; exceeding that limit may cause failure or damage due to electrical arcing. The plastic is not flame-retardant, so it is not recommended for use in environments with a high electrical risk.

What service life cycle (in number of insertions) does the Test Clip Sop16 Soic16 offer, and how does it compare with professional laboratory alternatives?

This clip offers an estimated service life of 200-500 insertions, suitable for development tasks and occasional servicing. Higher-cost professional alternatives can offer up to 1,000-2,000 insertions thanks to reinforced contacts.

What is the Test Clip Sop16 Soic16 used for?

It is used to temporarily connect 16-pin SOIC integrated circuits for programming, testing and diagnostics without soldering.

Is it compatible with all SOIC16 integrated circuits?

Yes, it is compatible with any IC that uses a 16-pin SOIC package.

What are the advantages of gold plating on the contacts?

Gold plating improves electrical conductivity and protects against corrosion, ensuring a stable and long-lasting connection.

How do you use the test clip?

The clip is attached over the SOIC16 package, making sure the pins are properly connected for testing or programming.

Is this test clip suitable for IC programmers?

Yes, it is specifically designed to make connection to IC programmers that support 16-pin SOIC packages easier.
