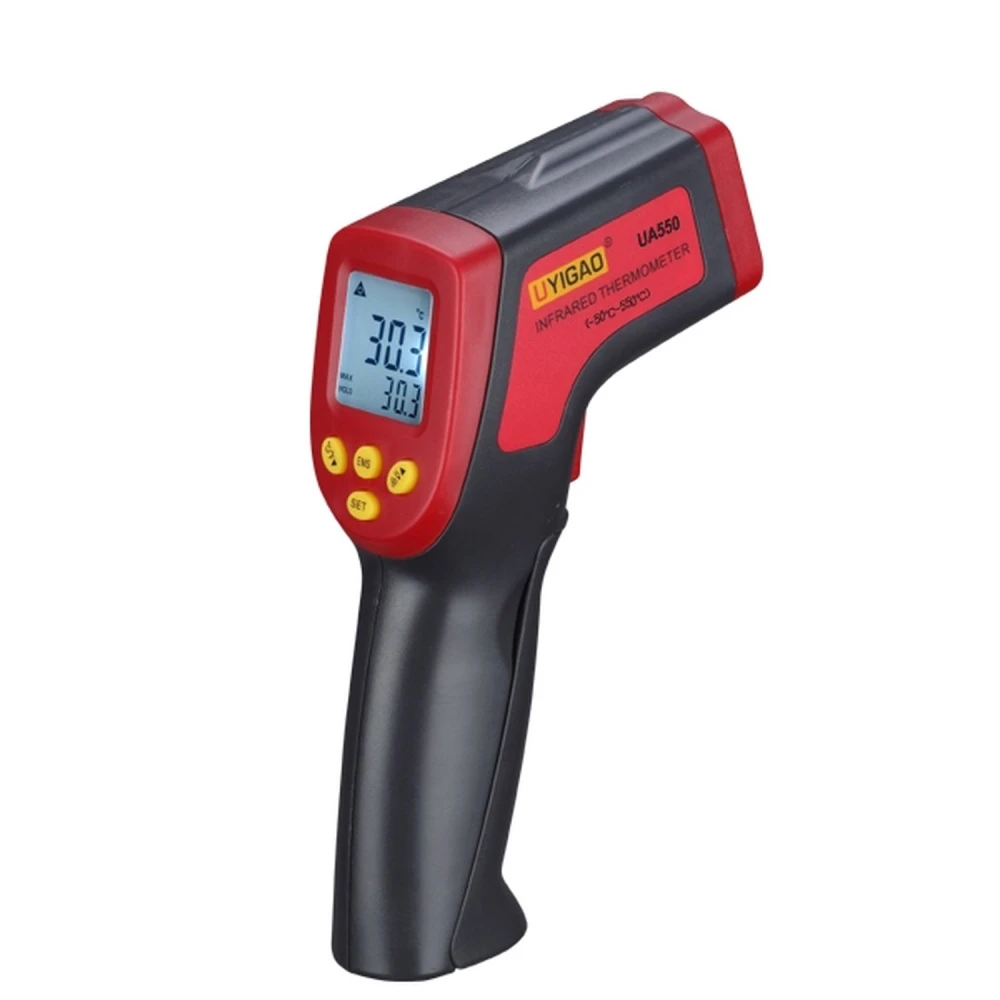

UA550 Industrial Infrared Thermometer with Laser Pointer -32°C to +550°C

Name: UA550 Industrial Infrared Thermometer with Laser Pointer -32°C to +550°C
Brand: Uyigao
SKU: P020106-UA550
Price: 23.37 EUR
Availability: InStock

Brand: Uyigao

Be the first to review this product

23.37€

VAT included (Ex VAT: 19.00 €)

Volume Discounts

Quantity	Price	Save
2+	15.94 €	-32%
10+	15.44 €	-34%
20+	13.78 €	-41%

Limited stock

Standard delivery Wed, Apr 29 - Fri, May 1

Express delivery Mon, Apr 27 - Tue, Apr 28

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

The UA550 industrial infrared thermometer is a precise tool designed to measure surface temperature from a distance, with a wide measuring range from -32ºC to +550ºC. Equipped with a laser pointer, it makes it easy to identify the exact measuring point, ideal for industrial and technical applications.

Key features:

Measuring range: -32ºC to 550ºC, suitable for a variety of surfaces and materials.
Accuracy: ±1.5% of the reading value, with 0,1ºC resolution for detailed results.
Measurement units: Degrees Celsius (ºC) or Fahrenheit (ºF), selectable as needed.
Response time: Fast, with 500 ms for immediate readings.
Measuring distance: 12:1 distance-to-spot ratio, allowing safe measurement from a distance.
Operating conditions: Ambient temperature from 0ºC to 50ºC and relative humidity between 10-95% non-condensing.
Power supply: 9V battery included for portable, convenient use.
Dimensions and weight: Compact and lightweight, measuring 152x130x38 mm and weighing 145 grams.

Typical uses:

Temperature measurement in industrial processes and machinery maintenance.
Thermal control in welding and electronic equipment.
Monitoring hot or cold surfaces in production environments.

Compatibility and warnings:

This thermometer is designed exclusively for surface measurement and is not suitable for measuring human body temperature due to its margin of error of up to 2ºC. Incorrect use may produce inaccurate results in medical applications.

The UA550 thermometer is compatible with a range of industrial and technical applications where fast, accurate surface temperature measurement is required.

Its portable, lightweight design makes it easy to handle in different work environments, ensuring comfort and efficiency.

Measuring range from -32ºC to +550ºC for multiple surfaces.
Integrated laser pointer for accurate distance measurement.
±1.5% accuracy and 0,1ºC resolution for detailed results.
Fast 500 ms response time for immediate readings.
12:1 distance-to-spot ratio for safe measurement from a distance.
Runs on an included 9V battery, portable and easy to use.
Not suitable for measuring human body temperature.
Compact and lightweight: 152x130x38 mm and 145 grams.

Customer Questions & Answers

Can I use the UA550 thermometer in harsh industrial environments or dusty conditions, and what is the optimum operating temperature and humidity range?

The UA550 operates optimally between 0°C and 50°C, and in relative humidity conditions from 10% to 95% (non-condensing). In environments with fine dust or vapours, the optical sensor may require additional cleaning. It does not have an IP rating for dust or liquids, so it should be protected from direct exposure.

What are the UA550’s error margins and resolution when measuring, and in what situations could uncertainty increase?

The error margin is ±1.5% of the reading (up to ±2°C), with a resolution of 0.1°C. Factors such as reflections, incorrect emissivity or measuring polished materials can increase uncertainty. For shiny surfaces, it is recommended to apply matt black adhesive tape as a reference.

Is there a warranty or availability of spare parts such as sensors or laser tips in the event of a fault, and what is the usual after-sales policy?

The UA550 usually includes a standard 12-month warranty against manufacturing defects. Original spare parts such as the sensor or laser are not available for user repair; in the event of a fault, it is recommended to arrange warranty service or the distributor’s technical support. The battery can be replaced easily by the user.

What benefits does the D:12:1 optical ratio offer when using this infrared thermometer compared with models with lower ratios?

The D:12:1 optical ratio means that at a distance of 12 cm, an area of 1 cm in diameter is measured, allowing you to measure smaller objects or reach awkward areas without getting too close. Compared with models with lower ratios (for example D:8:1), it offers greater accuracy by avoiding thermal influence from adjacent surfaces, although it requires a steadier hand to aim correctly.

What materials and accessories are included in the box and what are the exact dimensions of the unit?

The box includes the UA550 thermometer and a 9 V battery for power. The device measures 152 mm long, 130 mm high and 38 mm wide; it weighs 145 g, optimised for prolonged handheld use. No case or additional accessories are included.

Is the UA550 thermometer suitable for measuring body temperature?

No, the UA550 thermometer is not suitable for measuring people’s temperature due to its margin of error of up to 2ºC.

What temperature range can this thermometer measure?

It can measure temperatures from -32ºC to +550ºC.

What power source does the UA550 thermometer use?

It runs on a 9V battery, which is included with the product.

What type of applications is this thermometer recommended for?

It is ideal for industrial and technical surface measurements, such as machinery checks, welding and electronic equipment.

How quickly does the thermometer respond to temperature changes?

It has a response time of 500 milliseconds for fast and accurate readings.
