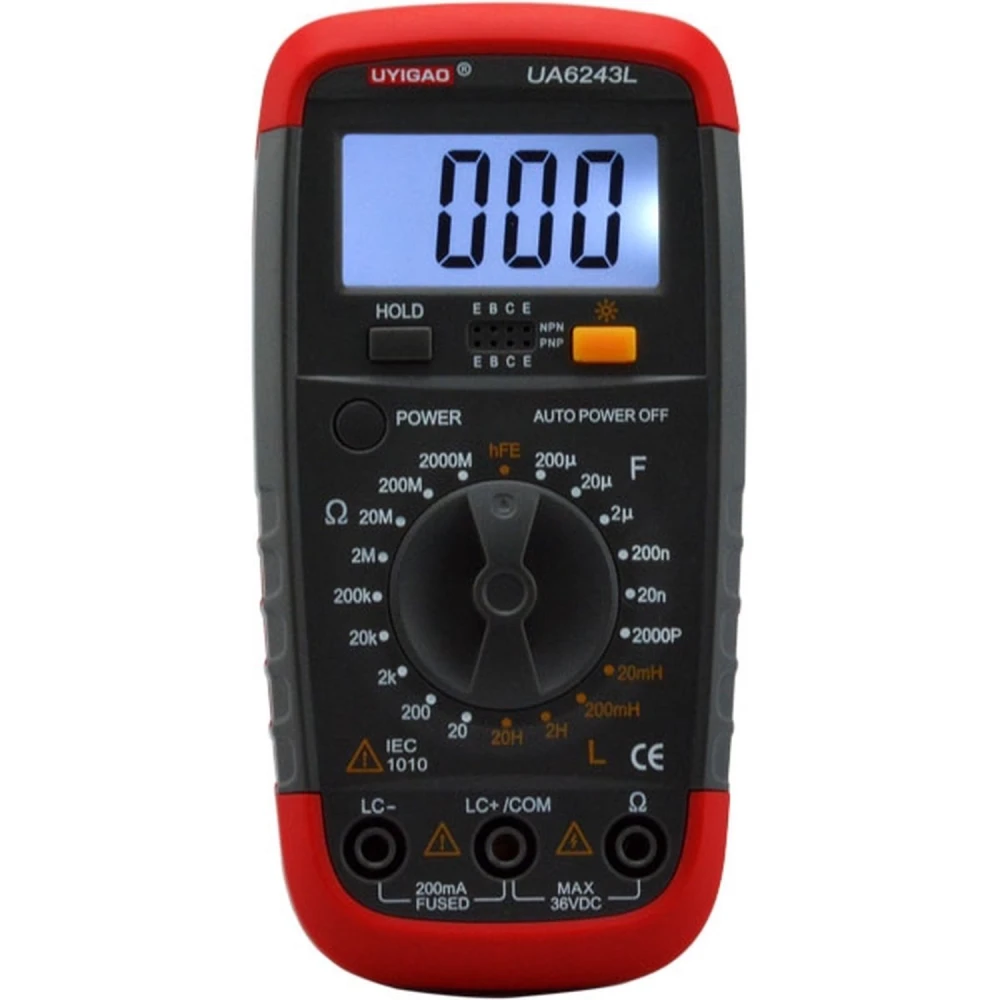

UA6243L Digital LCR Meter for Impedance, Capacitance and Resistance
Brand: Uyigao
Save 2% Was: 19.68 €
19.20€
VAT included (Ex VAT: 15.61 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 18.89 € | -4% |
| 10+ | 18.30 € | -7% |
| 20+ | 16.33 € | -17% |
Limited stock
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The UA6243L Digital LCR Meter from Uyigao is a portable device designed to provide accurate and reliable measurements of capacitance, inductance and resistance. Its stable performance and compact design make it an essential tool for electronics technicians and hobbyists who need a versatile and easy-to-use instrument.
This meter features a 3 1/2-digit digital display and a manual selection dial that lets you choose the desired measurement mode. It can measure a wide range of values, from very low resistances to significant capacitances and inductances, as well as perform diode and transistor checks.
- Resistance: from 20 Ω to 2000 MΩ
- Capacitance: from 2000 pF to 200 µF
- Inductance: from 20 mH to 20 H
- Maximum digits: 1999
- Selection modes: manual
- Special functions: diode and transistor testing, auto power off, Data Hold function and backlight
- Power supply: 1 9V battery (6F22)
- Dimensions: 143 × 74 × 35 mm
- Weight: 176 g
This digital LCR meter is ideal for use in electronics workshops, repair labs and educational settings. Its ability to measure different electrical parameters and check semiconductor components makes it highly versatile.
In addition, its ergonomic and lightweight design makes it easy to carry and handle in any working environment. The auto power off function helps conserve battery life, while the backlight allows clear reading in low-light conditions.
Compatible with standard electronic components, the UA6243L is a reliable tool for measuring impedance, capacitance and resistance accurately and quickly.
- High-precision portable meter for capacitance, inductance and resistance
- 3 1/2-digit digital display with manual selection
- Resistance range: 20 Ω to 2000 MΩ
- Capacitance range: 2000 pF to 200 µF
- Inductance range: 20 mH to 20 H
- Functions for diode and transistor testing
- Auto power off to save battery
- Data Hold function to freeze readings
- Backlight for use in low-light conditions
- Powered by a 9V battery (6F22)
- Compact dimensions: 143×74×35 mm and lightweight at 176 g
Customer Questions & Answers
What advantages does the UA6243L offer over a traditional digital multimeter for measuring passive components?
The UA6243L is specialised in the accurate measurement of inductance, capacitance and resistance across a wide range (capacitance 2000 pF to 200 μF, inductance 20 mH to 20 H, resistance 20 Ω to 2000 MΩ). It outperforms standard multimeters, which are usually less accurate and offer fewer ranges for L and C. It also includes transistor and diode testing, plus functions such as data hold and backlight, making it easier to use on electronics workbenches.
What accuracy does the instrument have for each measurement, and what are its practical operating limits?
The UA6243L provides a maximum resolution of 1999 (3 1/2 digits). In general, its accuracy varies by function, typically ±(0.8%+2) for resistance, ±(2.5%+5) for capacitance and ±(2.5%+10) for inductance, although you should consult the exact technical manual. The recommended operating limit is 0 to 40 °C, humidity <80% RH, and components with no polarity or fully discharged.
What is included in the package and what are the physical dimensions of the meter?
The package includes the UA6243L meter, banana test leads, user manual and a 9 V battery (type 6F22). The dimensions are 143 mm x 74 mm x 35 mm; it weighs 176 g, making it portable for field or laboratory work.
What power requirements and safety guidelines should I follow when using it?
It runs on a 9 V battery (6F22). Measuring connected or live components should be avoided, especially active circuits. Measurement is safe for desoldered components; always discharge large capacitors before measuring. It complies with CE regulations and basic low-voltage protection; do not use it on mains installations without specific protection.
Are spare parts available and what is the warranty policy?
The probes and 6F22 battery are easily replaceable spares available on the market. The manufacturer and most distributors offer a 12-month limited warranty against manufacturing defects, but this does not cover wear and tear or damage caused by misuse.
What types of components can the UA6243L digital LCR meter measure?
It can measure capacitance, inductance and resistance, and also perform diode and transistor checks.
What is the resistance measurement range of the UA6243L?
The resistance range is from 20 ohms to 2000 megaohms.
What type of power supply does this meter use?
It runs on a 9V battery type 6F22.
Does it have any function to make readings easier to see?
Yes, it has a Data Hold function to keep the reading on screen and a backlight for low-light conditions.
Is it portable and easy to use?
Yes, it is a portable meter with a compact design and manual selection that makes it easy to use in different environments.
