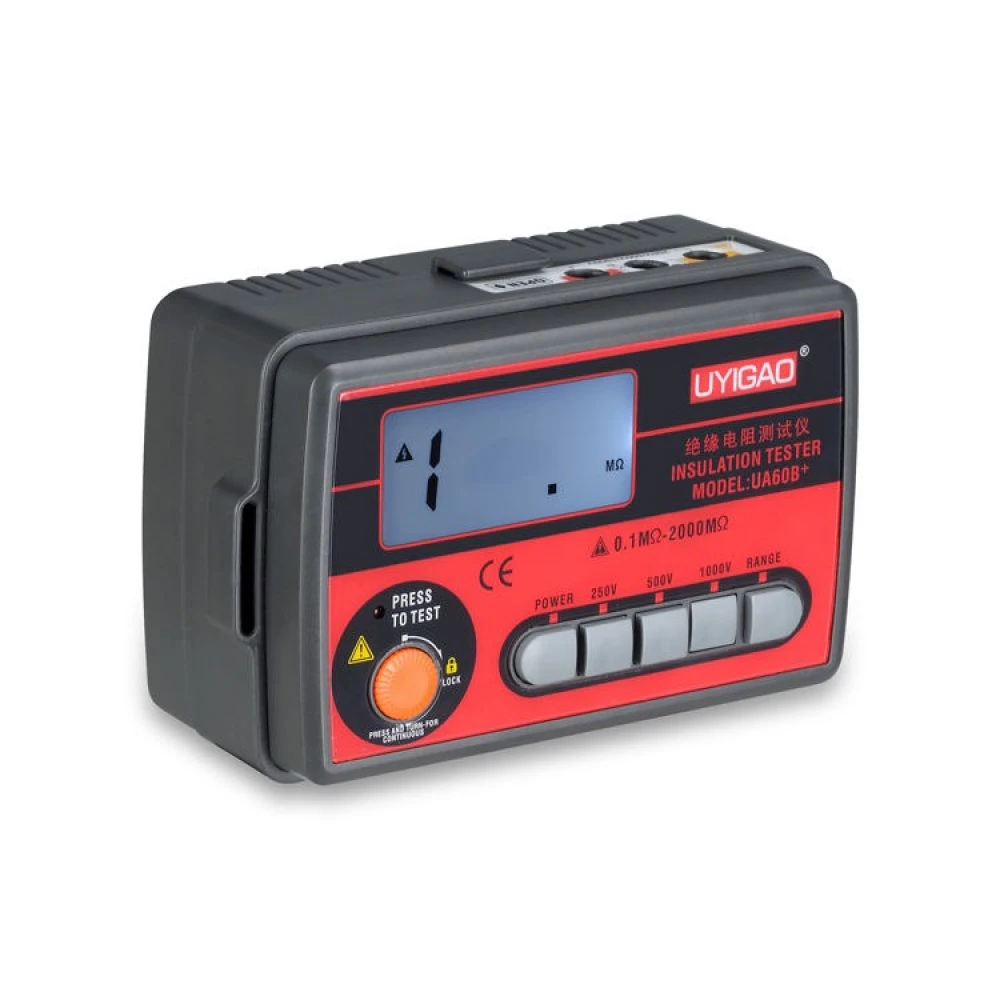

Uyigao UA60B+ insulation tester CAT III 1000 V for resistances up to 2000 MΩ
Brand: Uyigao
41.88€
VAT included (Ex VAT: 34.05 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 33.06 € | -21% |
| 10+ | 32.03 € | -24% |
| 20+ | 28.59 € | -32% |
Only 2 left in stock - order soon!
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The Uyigao UA60B+ insulation tester is an essential tool for technicians and professionals who need to measure insulation resistance in electrical installations with high accuracy and safety. This device is certified to CAT III 1000 V, ensuring safe use in industrial and high-voltage electrical environments.

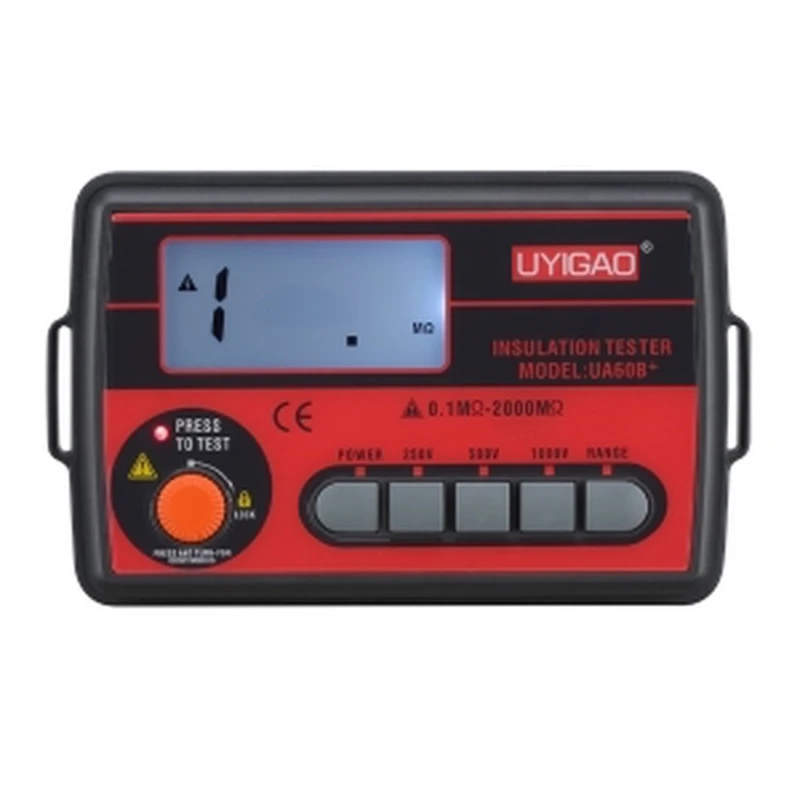

Among its standout features, it has a large backlit display that makes reading easier in low-light conditions. It also allows point or extended measurements thanks to its "LOCK" function, ideal for detailed analysis. It includes indicators to warn of overrange and battery status, and has automatic shut-off to help preserve battery life.
Technical specifications:
| Measurement ranges | AC voltage: 0-750 V DC voltage: 0-1000 V Resistance: 0-200 Ω / 200-2000 Ω Insulation resistance: 0-200 MΩ / 200-2000 MΩ |
| Resolution | AC/DC voltage: 1 V Resistance: 0,1 Ω / 1 Ω Insulation resistance: 100 kΩ to 1 MΩ |
| Accuracy | AC voltage: ±1,2 % ±10 digits DC voltage: ±0,8 % ±3 digits Resistance: ±1,0 % ±2 digits Insulation resistance: ±3,5 % ±5 digits |
| Test voltages | 250 V - 200 MΩ 500 V - 200 MΩ 1000 V - 2000 MΩ |
| Continuity test | Buzzer for ≤ 40 Ω, test current ≤ 200 mA |
| Power supply | 6 x 1,5 V AA batteries |
| Environmental conditions | 0 to 40 °C / relative humidity < 80 % |
| Dimensions | 200 mm x 92 mm x 50 mm |
| Weight | 700 g |
| Standards | IEC10101, CAT III 1000 V |
Typical uses:
- Insulation testing in residential, commercial and industrial electrical installations.
- Checking the integrity of cables and electrical equipment to prevent faults and short circuits.
- Inspection and preventive maintenance in high-voltage electrical systems.
Compatibility: This tester is compatible with electrical systems that require insulation testing up to 1000 V and insulation resistances up to 2000 MΩ, suitable for a wide range of professional applications.
What's included:
- 1 x Uyigao UA60B+ insulation tester
- 1 x test leads
- 6 x AA batteries
- Carry case for the tester
- Large backlit display for easy reading
- Point and extended measurements with LOCK function
- Overrange and battery status indicator
- Automatic shut-off to help preserve battery life
- Measurement ranges: AC voltage up to 750 V, DC up to 1000 V
- Insulation resistance up to 2000 MΩ
- Accuracy certified to IEC10101, CAT III 1000 V
- Powered by 6 x 1,5 V AA batteries
- Compact size: 200 x 92 x 50 mm and weight of 700 g
- Includes test leads and protective carry case
Customer Questions & Answers
What insulation resistance range can the Uyigao UA60B+ measure?
It can measure insulation resistance from 0 to 2000 MΩ.
What safety certification does this tester have?
It is certified to CAT III 1000 V according to IEC10101.
What type of power supply does the tester use?
It runs on 6 x 1,5 V AA batteries.
Does the package include accessories?
Yes, it includes test leads, 6 AA batteries and a carry case for the tester.
What type of applications is this tester suitable for?
It is ideal for insulation testing in residential, commercial and industrial electrical installations.
