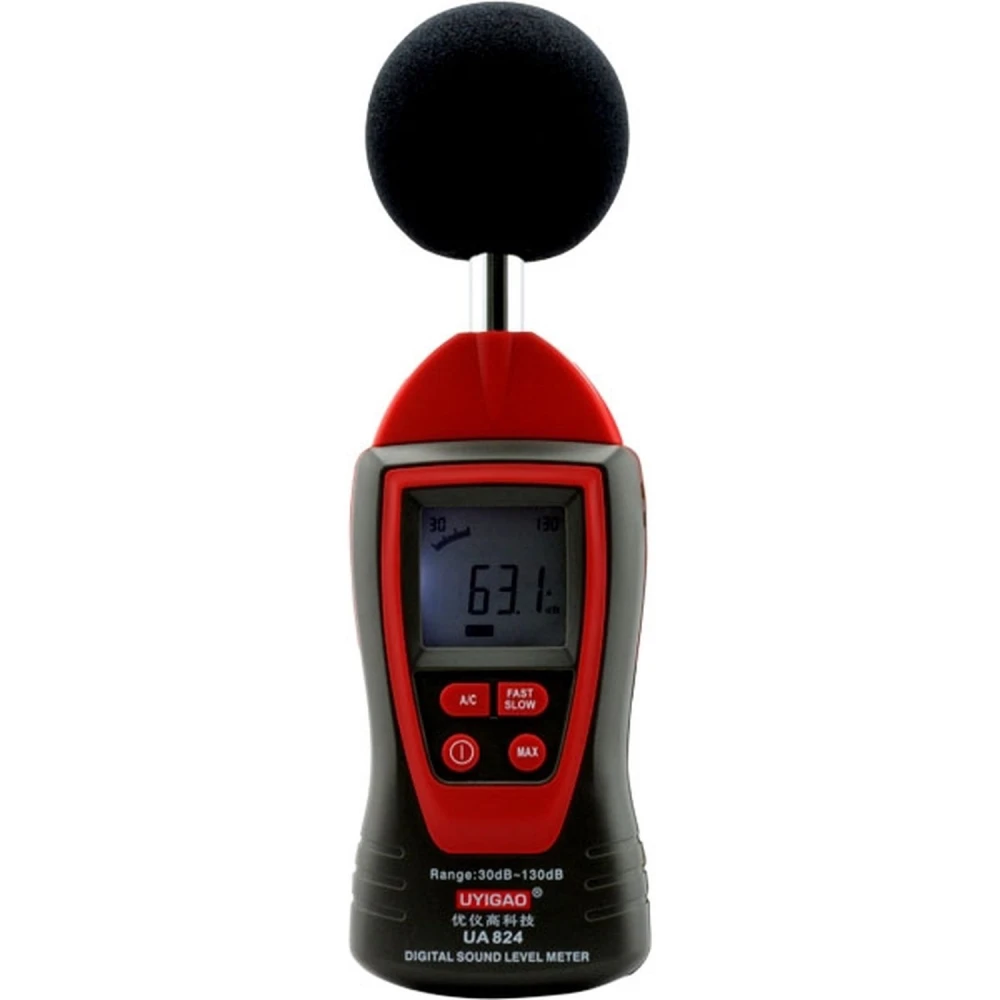

Uyigao UA824 digital sound level meter with high accuracy and advanced functions
Brand: Uyigao
36.49€
VAT included (Ex VAT: 29.67 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 30.70 € | -16% |
| 10+ | 29.74 € | -19% |
| 20+ | 26.54 € | -27% |
Limited stock
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The Uyigao UA824 high-accuracy digital sound level meter is an essential tool for anyone who needs to measure noise levels accurately and quickly. Designed to deliver reliable results, this digital sound level meter is perfect for professional use in industrial, educational, and research environments, as well as for domestic applications.
Key features:
- Measurement range: 30 to 130 dBA, suitable for a wide variety of sound environments.
- Resolution: 0.1 dB, allowing precise and detailed readings.
- Maximum value function: Automatically stores the maximum measured sound level for later analysis.
- Accuracy: ± 1.5 dB, ensuring reliable measurements.
- Display: 4-digit display with 0.1 dB resolution and backlit panel for easy reading in low-light conditions.
- Frequency response: 31.5 Hz to 8 KHz, covering the audible range for most applications.
- Sampling modes: Fast and slow dynamic modes to suit different types of measurement.
- Frequency weighting: A and C modes to match different sound measurement standards.
- Auto-ranging mode: Makes operation easier with no need for constant manual adjustments.
- Power supply: Runs on a 9V battery, easy to replace and widely available.
- Dimensions and weight: Compact and lightweight (57 x 26 x 149 mm, 144 g with battery), ideal for portable use.
Typical uses:
- Measuring noise levels in workplaces to meet regulations.
- Acoustic evaluation in auditoriums, concert halls and recording studios.
- Noise control in residential and urban areas.
- Research and development in laboratories and educational centres.
Compatibility and operating environment:
- Designed to operate in environments with temperatures between 0 and 40ºC and relative humidity from 10 to 80%.
- Can be stored in conditions from -10 to 60ºC and relative humidity from 10 to 70%.
- 1/2-inch polarised capacitance microphone for accurate response.
This Uyigao UA824 digital sound level meter combines accuracy, ease of use and portability, making it an excellent choice for anyone looking for a reliable and affordable decibel meter. It also offers fast delivery and immediate availability so you can start measuring as soon as possible.
- 30 to 130 dBA measurement range for broad sound coverage
- 0.1 dB resolution for detailed readings
- Function to store the maximum measured value
- ± 1.5 dB accuracy for reliable results
- Backlit 4-digit display and auto-ranging mode
- Frequency response from 31.5 Hz to 8 KHz
- Fast and slow dynamic sampling modes
- A and C frequency weighting for different standards
- Runs on a 9V battery, easy to replace
- Compact dimensions and lightweight design for portability
Customer Questions & Answers
What are the exact dimensions and weight of the device, and what is included in the box?
The Uyigao UA824 measures 149 mm high, 57 mm wide and 26 mm thick, with a total weight of 144 g including the battery. The box includes the meter, a 9V battery and the user manual.
What temperature and humidity ranges are safe for using this sound meter?
The recommended operating environment is 0 to 40 °C and 10-80% relative humidity. Outside these parameters, accuracy and operation may be affected.
What exact accuracy does the device offer, and what is the sampling rate during measurements?
The UA824 has a specified accuracy of ±1.5 dB, with a resolution of 0.1 dB. Its sampling rate is 2 times per second, ensuring smooth real-time updates.
Are there any limitations when measuring continuous or impulsive sounds, and what common issues may arise?
The meter can distinguish between fast and slow measurements to capture impulsive or continuous sounds. However, in very noisy environments or where there is vibration, slight fluctuations may occur. The capacitance microphone can collect dust, so it is recommended to clean it regularly to avoid incorrect readings.
What is the measurement range of the Uyigao UA824 digital sound level meter?
The measurement range is 30 to 130 dBA, suitable for measuring noise levels in different environments.
What type of power supply does this sound level meter use?
It runs on a 9V battery, which is easy to find and replace.
Does the meter have a function to store maximum values?
Yes, it has a function that allows the maximum measured value to be stored for later analysis.
What environments can the Uyigao UA824 be used in?
It is designed to work in environments with temperatures between 0 and 40ºC and relative humidity from 10 to 80%.
What sampling modes does this sound level meter offer?
It offers fast and slow dynamic sampling modes to suit different types of measurement.
