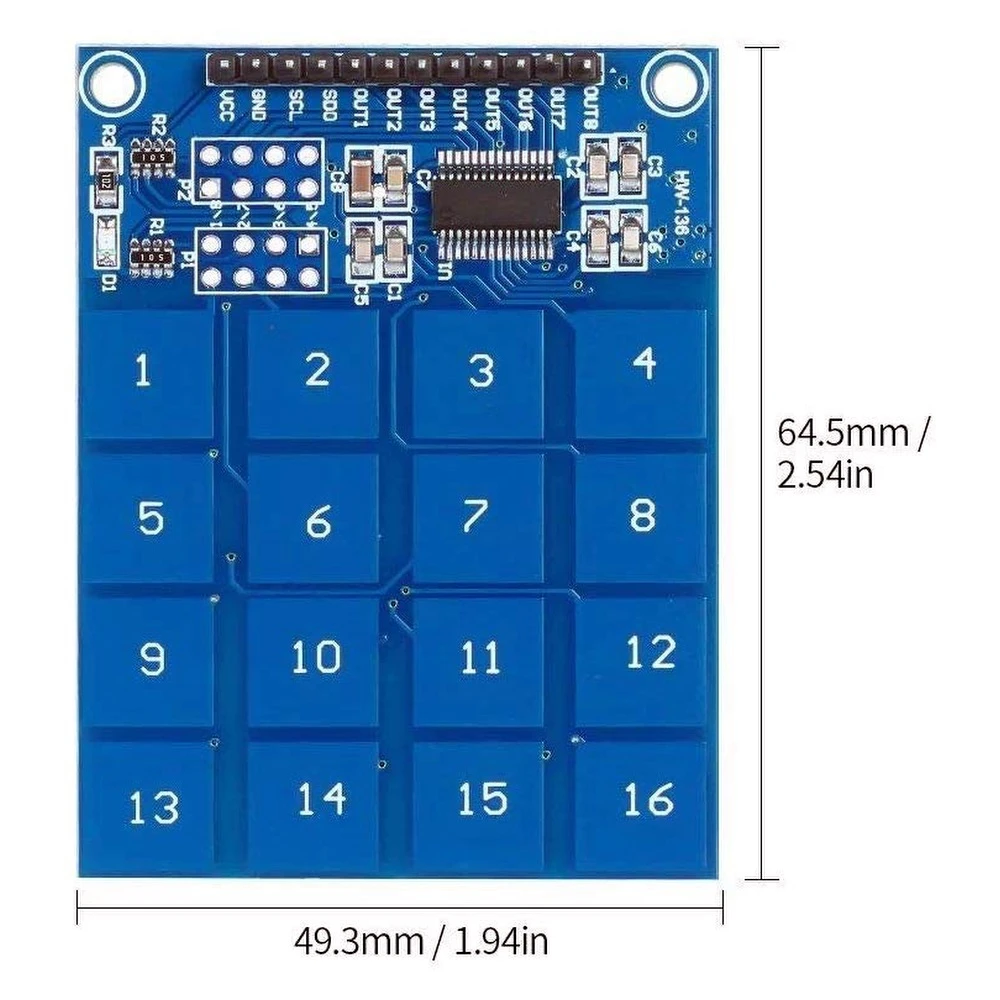

TTP229 16-Channel Capacitive Touch Switch Module for Arduino

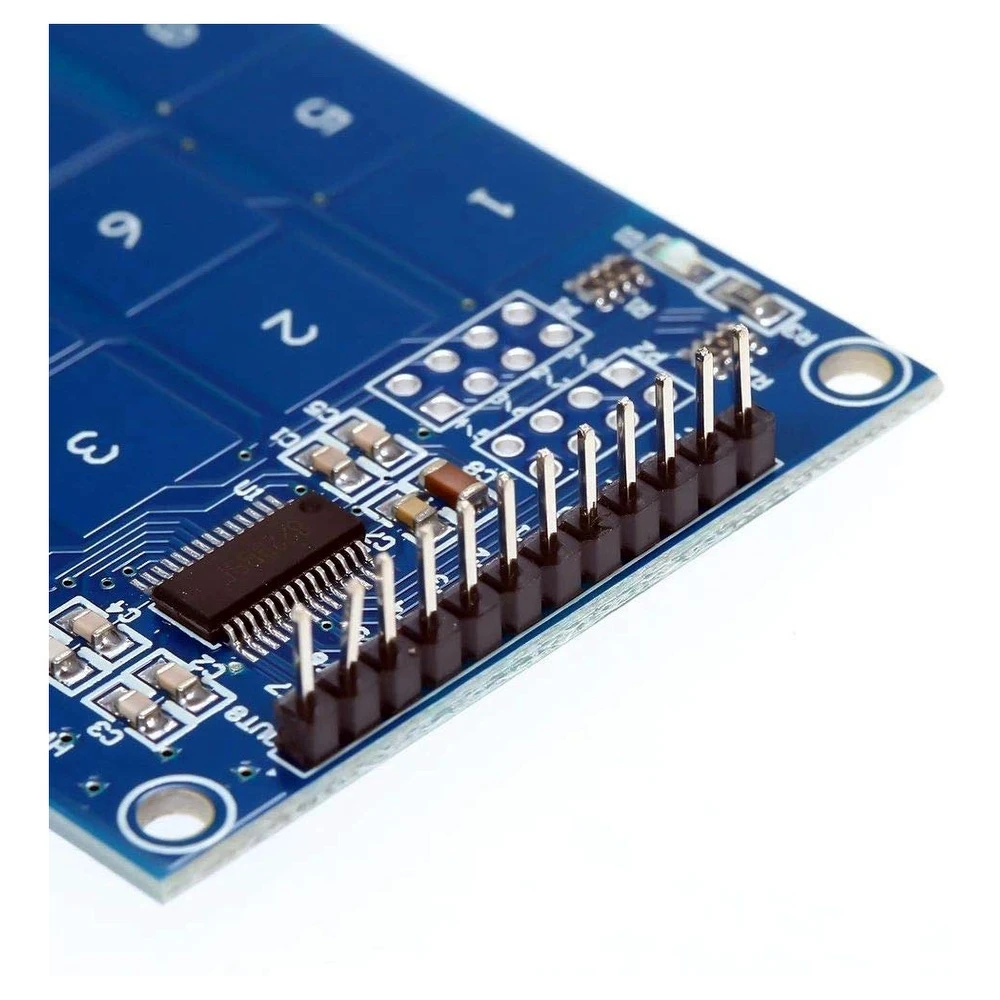

Vista lateral del TTP229 módulo sensor táctil digital capacitivo para Arduino

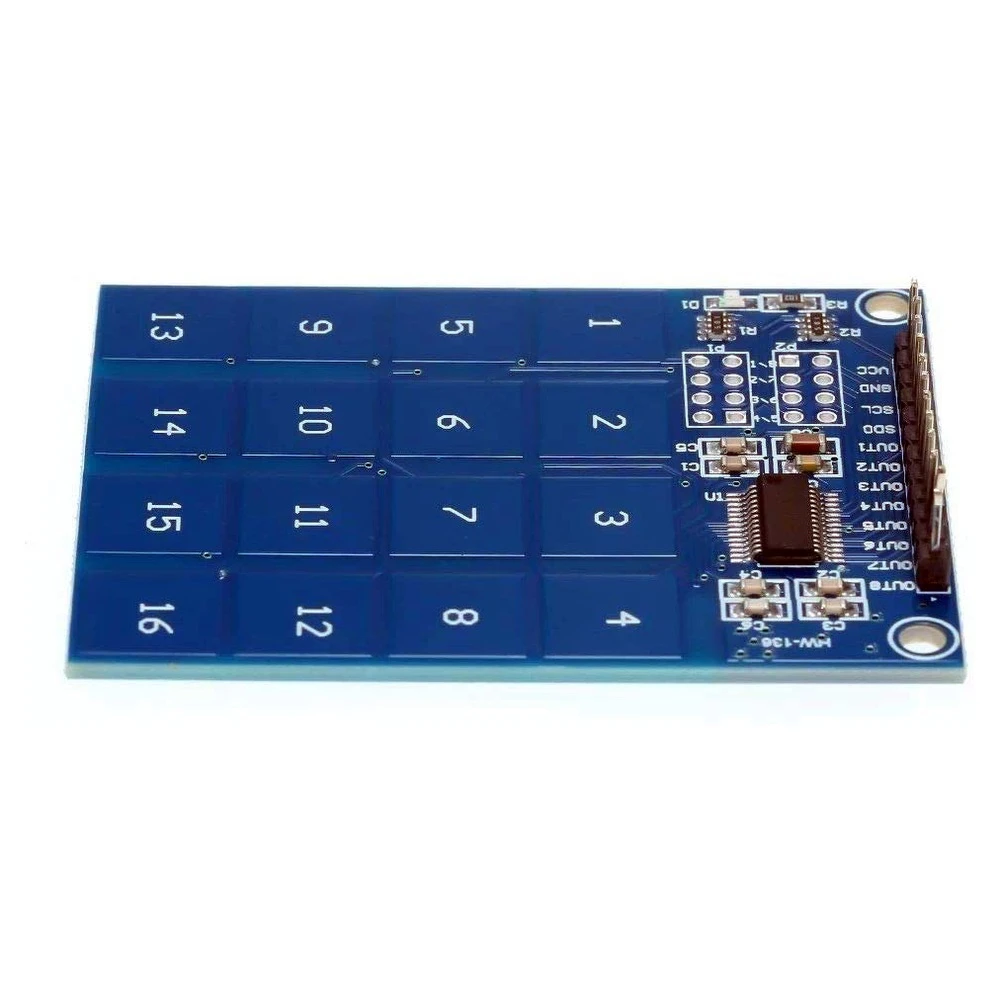

Detalle de las 16 teclas capacitivas del módulo TTP229 para Arduino

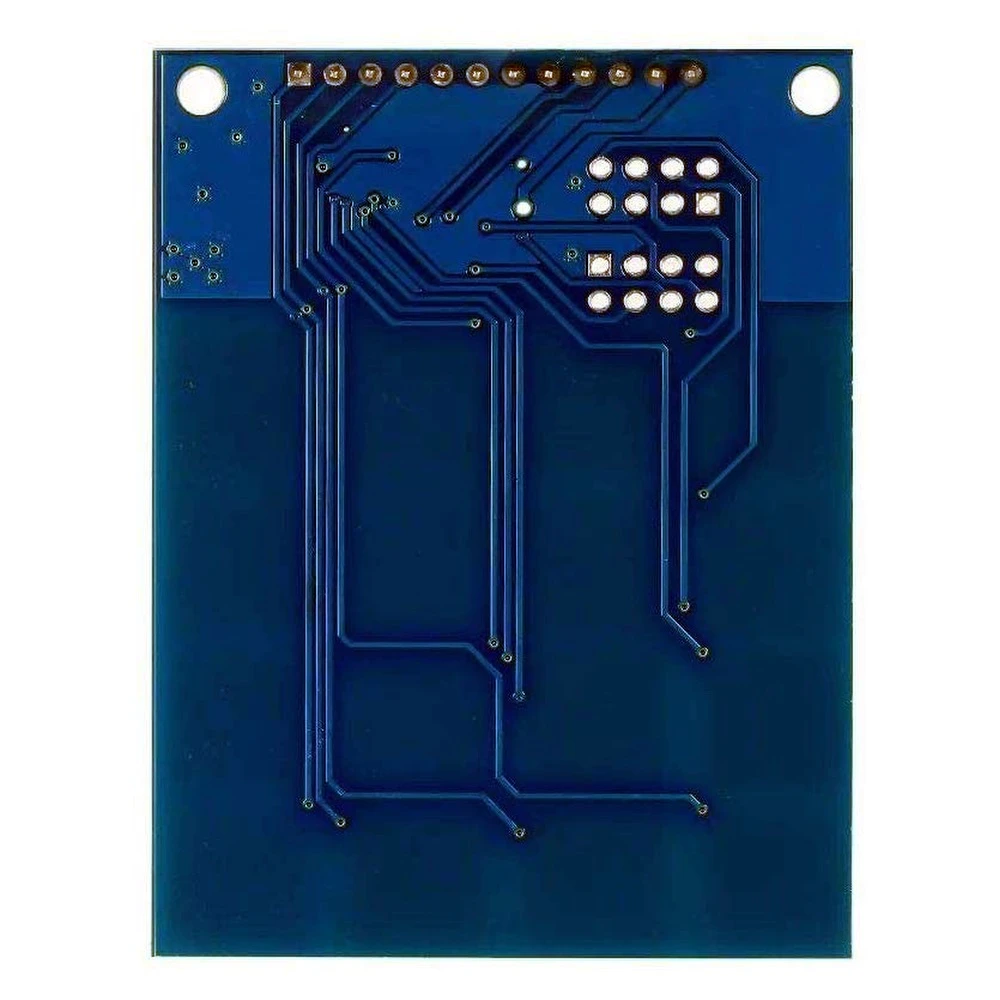

Módulo TTP229 sensor táctil digital con indicador de alimentación integrado

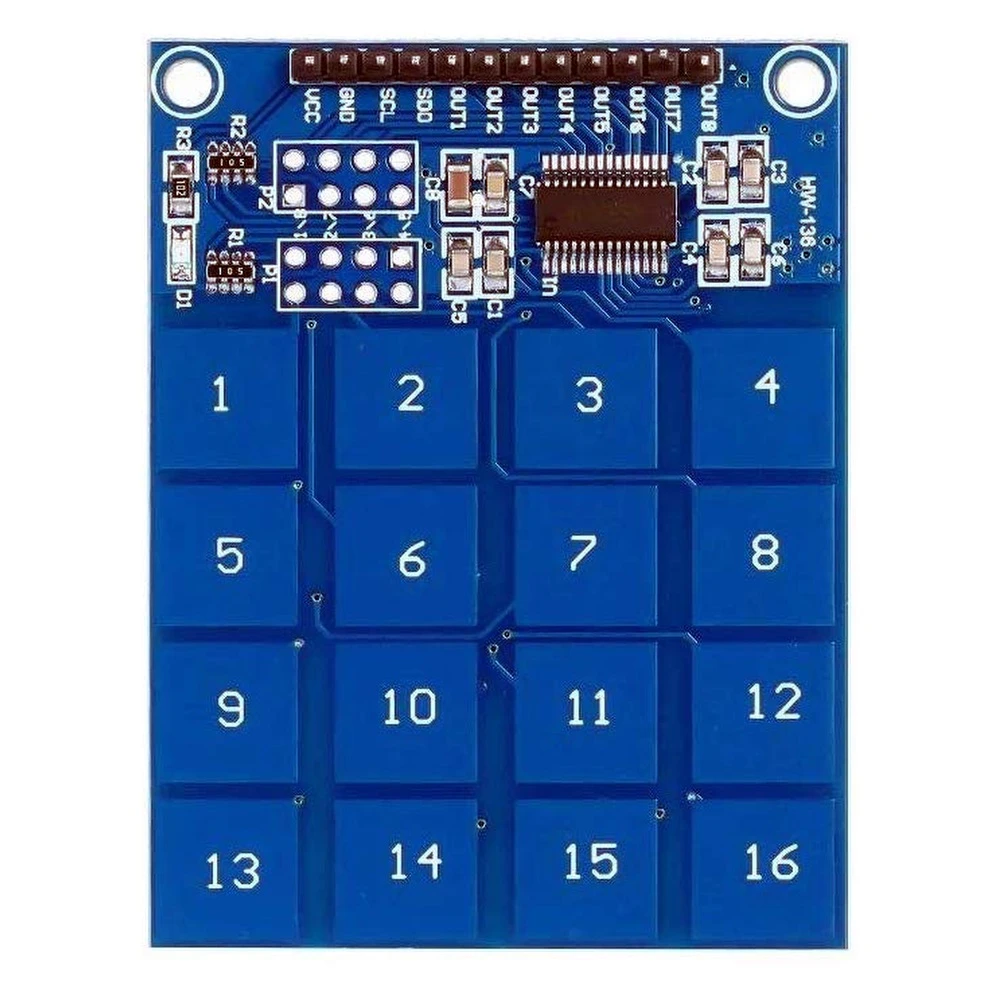

Conexiones y pines del módulo TTP229 para proyectos Arduino

TTP229 16-Channel Capacitive Touch Switch Module for Arduino

Name: TTP229 16-Channel Capacitive Touch Switch Module for Arduino
Brand: satkit
SKU: 1c080101
Price: 3.20 EUR
Availability: InStock

Brand: satkit

Be the first to review this product

Save 13% Was: 3.69 €

3.20€

VAT included (Ex VAT: 2.60 €)

Limited stock

Standard delivery Fri, May 1 - Tue, May 5

Express delivery Wed, Apr 29 - Thu, Apr 30

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

The TTP229 16-channel capacitive touch switch module for Arduino is an electronic component designed to make it easier to integrate touch controls into Arduino projects. This module features an integrated 16-key capacitive touch sensor IC, allowing touch detection with high sensitivity and precision.

Its main features include:

Operating voltage: 2.4V to 5.5V, compatible with most Arduino boards.
Current consumption: extremely low, only 2.5 µA, ideal for low-power projects.
Compact size: 65 x 50 mm, easy to integrate into different designs and projects.
Interfaces: Serial communication with 8 digital outputs, making data connection and reading easier.
Power indicator: built into the module for easy monitoring of the device status.

This module is perfect for applications that require multiple touch control points, such as digital keypads, remote control systems, user interfaces and DIY Arduino projects. Its compatibility with standard voltages and low power consumption make it suitable for portable devices and embedded systems.

The TTP229 allows easy integration with Arduino, making it easier to program and develop interactive projects. In addition, its PCB board design ensures durability and stable connection.

In summary, the TTP229 is an efficient and compact solution for adding capacitive touch sensors to electronic projects, offering 16 digital touch detection channels with low power consumption and high precision.

Integrated TTP229 capacitive touch sensor with 16 keys
Operating voltage: 2.4V - 5.5V, compatible with Arduino
Very low current consumption: 2.5 µA
Compact size: 65 x 50 mm
Serial interface with 8 digital outputs
Built-in power indicator on the module

Customer Questions & Answers

What are the exact dimensions, weight and included contents when purchasing this module?

The module measures 65 mm x 50 mm and typically weighs around 20 g. In a standard purchase, only the assembled board is included; cables or brackets are not usually supplied, so you should allow for these extras depending on the installation.

What are the best practices for installing this module and avoiding unwanted capacitive interference?

It is recommended to mount the TTP229 on non-metallic surfaces and keep at least 2 mm clearance from conductive objects. It is crucial to avoid long unshielded cables and to use a common GND. In industrial environments, additional enclosure or filtering may be required.

What kinds of sensitivity issues or false touches can occur, and how are they resolved?

The module’s sensitivity can be affected by humidity, high static electricity or proximity to conductive objects. To solve this, keep the surface dry, move the module away from RF sources, and adjust sensitivity in hardware or software if the system design allows it.

What voltage does the TTP229 module work with?

The TTP229 module works with an operating voltage between 2.4V and 5.5V.

How many touch keys does the TTP229 module have?

The module has 16 integrated capacitive touch keys.

Is the TTP229 compatible with Arduino?

Yes, the module is designed to be compatible with Arduino boards and makes integration into projects easier.

What is the module's current consumption?

The current consumption is very low, approximately 2.5 µA.

What type of interface does the module use to communicate?

It uses a serial interface with 8 digital outputs for data communication.
