Universal OBD2 OBDII Female Connector

This connector is designed to repair or replace OBD2 diagnostic connectors that have broken or been damaged. It is an essential component for workshops and enthusiasts who need to maintain or create reliable automotive diagnostic tools.

Main features:

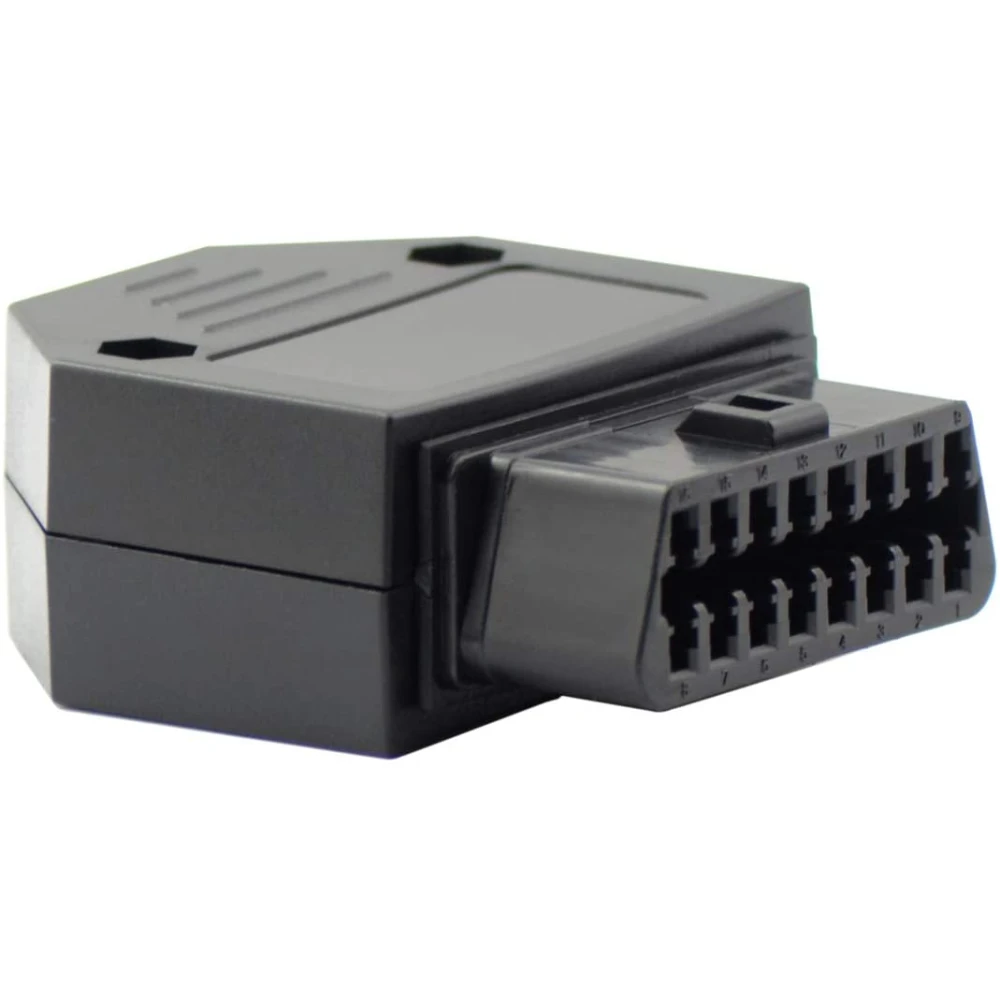

Universal standard 16-pin OBD2 female connector.
Made with durable steel pins to ensure durability and a secure connection.
Includes clips with retaining pin for a firm fit.
Compatible with all standard OBD2 diagnostic tools.
Designed to repair, replace, create or convert OBD diagnostic tools.

Pin and signal specifications:

Pin 2: J1850 Bus +
Pin 4: CGND chassis ground
Pin 5: SGND signal ground
Pin 6: CAN High J-2284
Pin 7: K-LINE (ISO 9141-2 and ISO/DIS 14230-4)
Pin 10: J1850 Bus-
Pin 14: CAN Low J-2284
Pin 15: ISO 9141-2 L-LINE (ISO 9141-2 and ISO/DIS 14230-4)
Pin 16: +12 V battery

Typical use and compatibility:

This connector is ideal for any workshop or user who needs to repair or replace a vehicle's OBD2 diagnostic connector. Its universal 16-pin design makes it compatible with all standard OBD2 diagnostic tools, making it easier to read and analyse vehicle data.

Package contents:

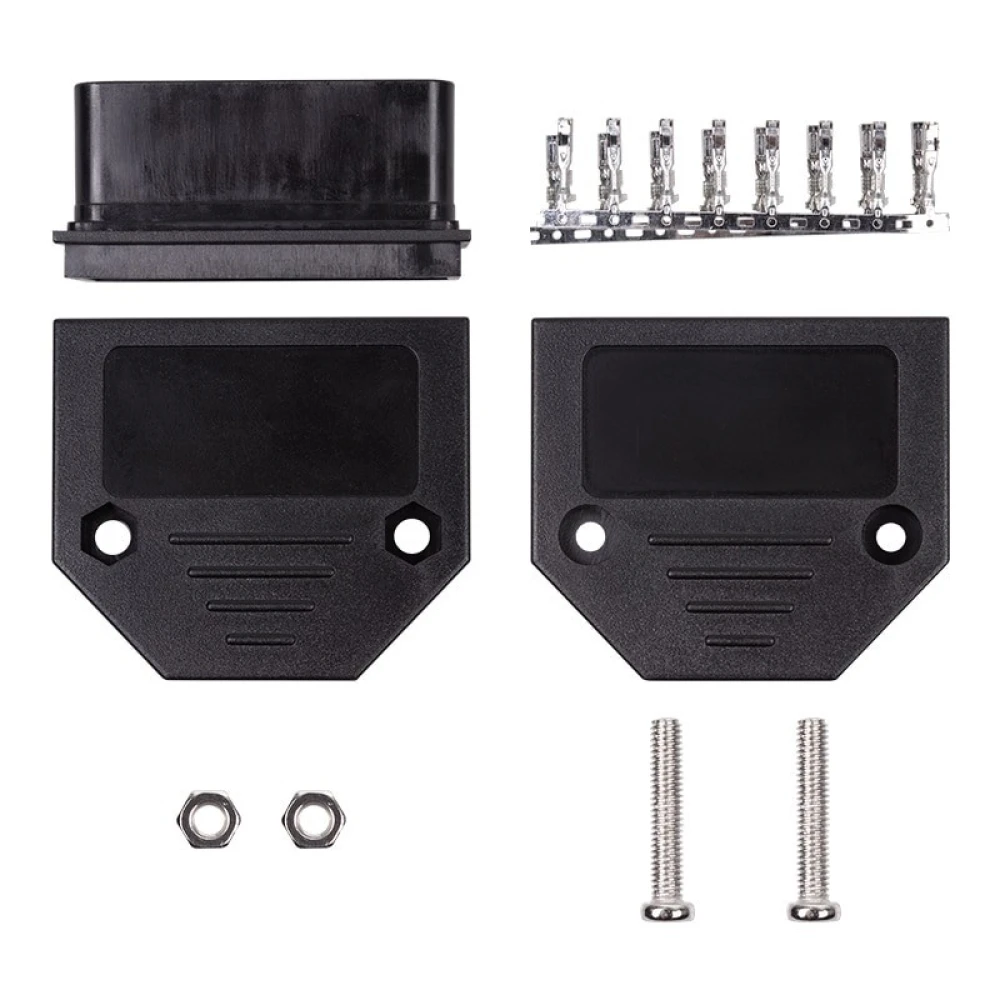

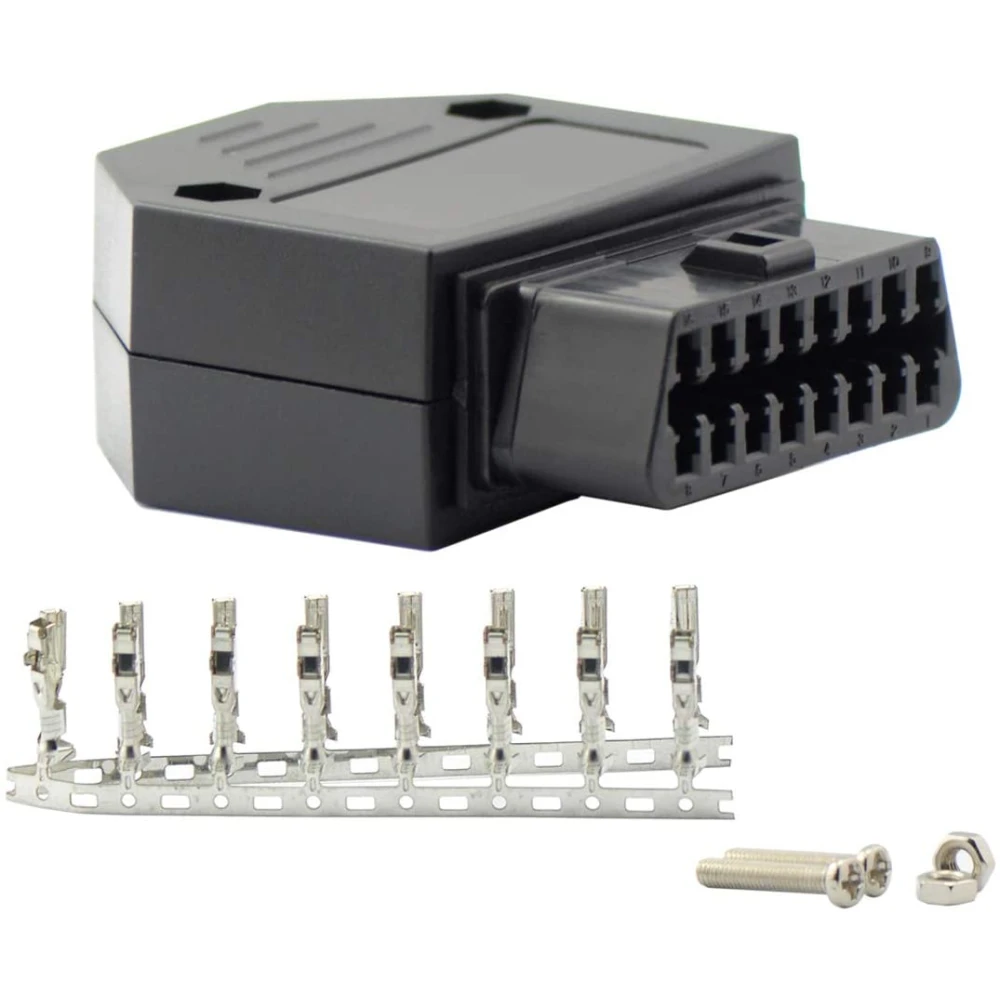

1 x 16-pin OBD2 female connector
1 x top and bottom housing
2 x fixing screws

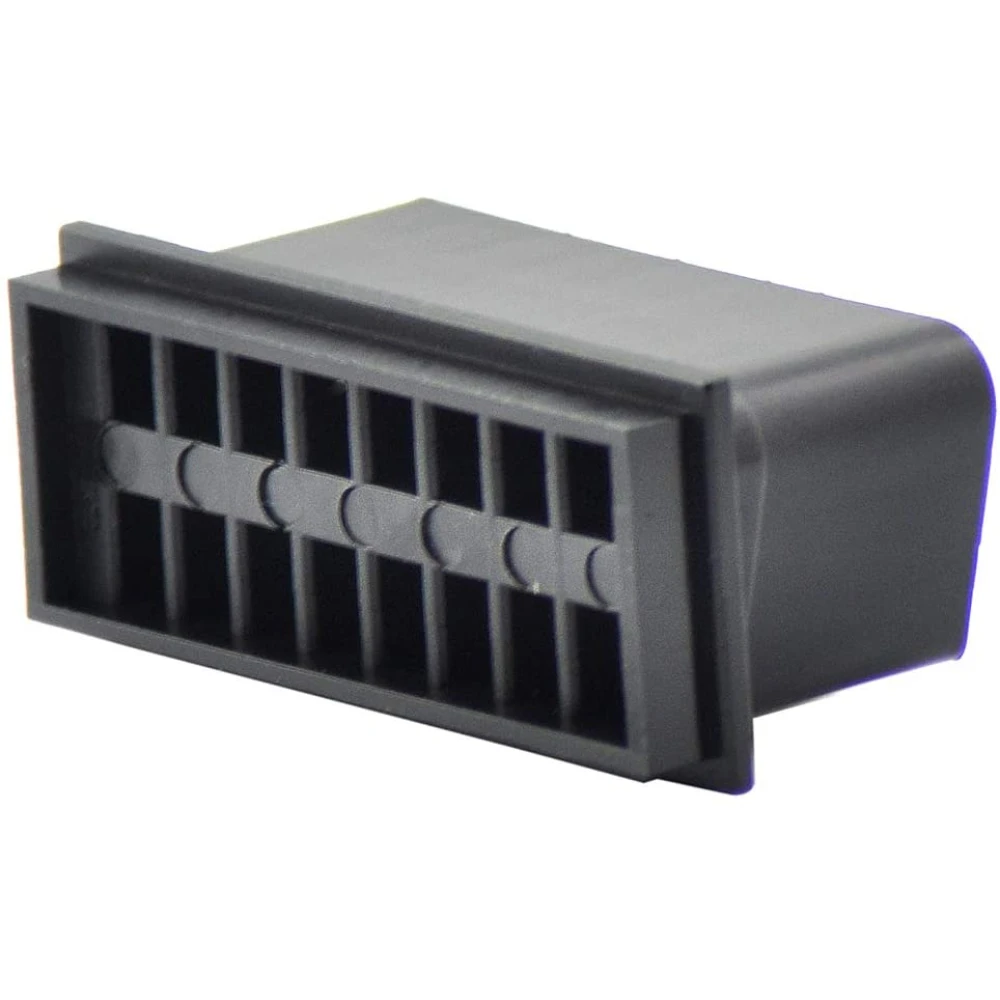

1 x 16-pin terminal

Important note:

This connector is only a hardware component and does not include additional accessories or software. It is the standard universal interface for OBD2 diagnostics and does not modify or add functionality to the vehicle.

Universal 16-pin OBD2 female connector for vehicle diagnostics.
Steel pins with retaining clips for a secure, durable connection.
Compatible with all standard OBD2 diagnostic tools.
Ideal for repairing, replacing or creating OBD diagnostic tools.
Includes housing, screws and terminal for complete installation.
