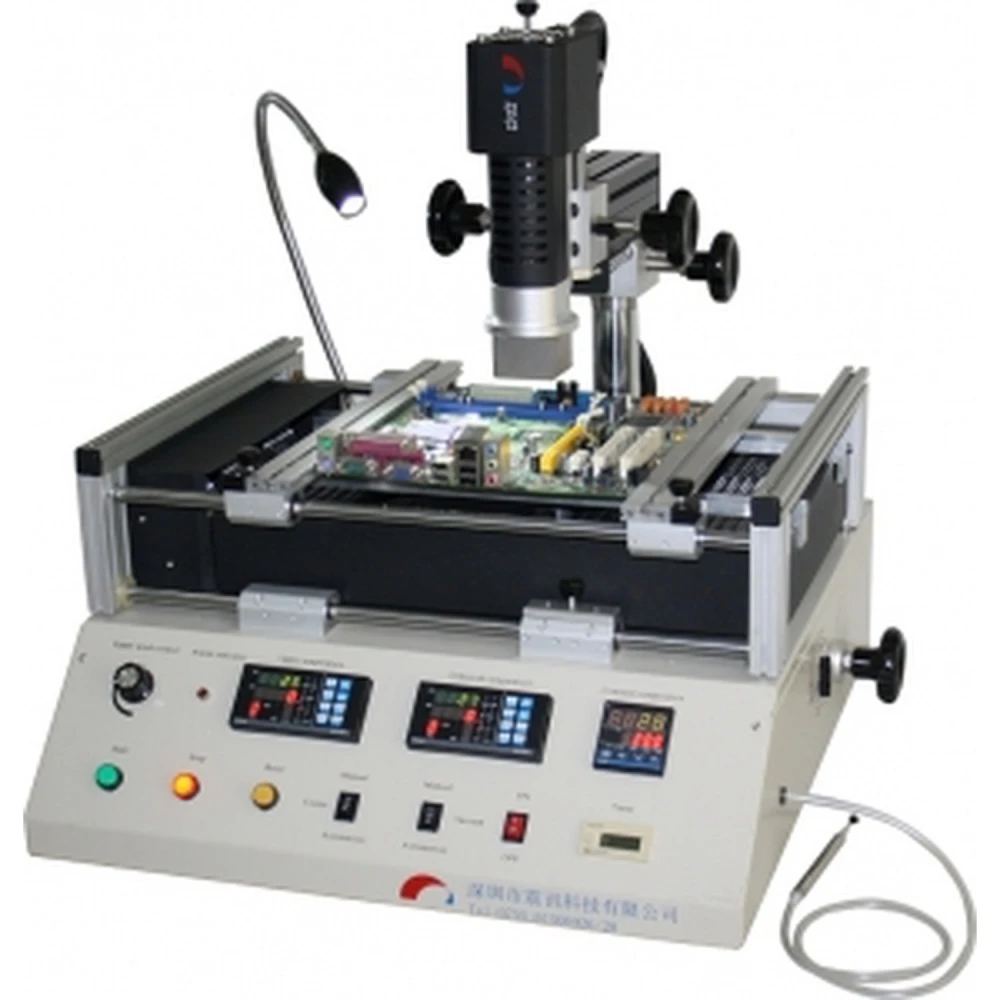

Zhenxun ZX-C2 Reballing Station: professional BGA precision
Brand: ZHENXUN
VAT included (Ex VAT: 1,200.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 1,416.96 € | -4% |
| 10+ | 1,387.44 € | -6% |
| 20+ | 1,328.40 € | -10% |
The Zhenxun ZX-C2 Reballing Station is a professional tool designed for reballing and repairing BGA components on PCB boards. Its advanced independent thermal control system across three zones ensures exceptional precision during soldering and desoldering, delivering reliable, high-quality results.
Key features:
- Independent temperature control in three zones for more precise adjustment.
- Upper and lower heaters made from high-quality materials that accurately regulate hot air flow and temperature.

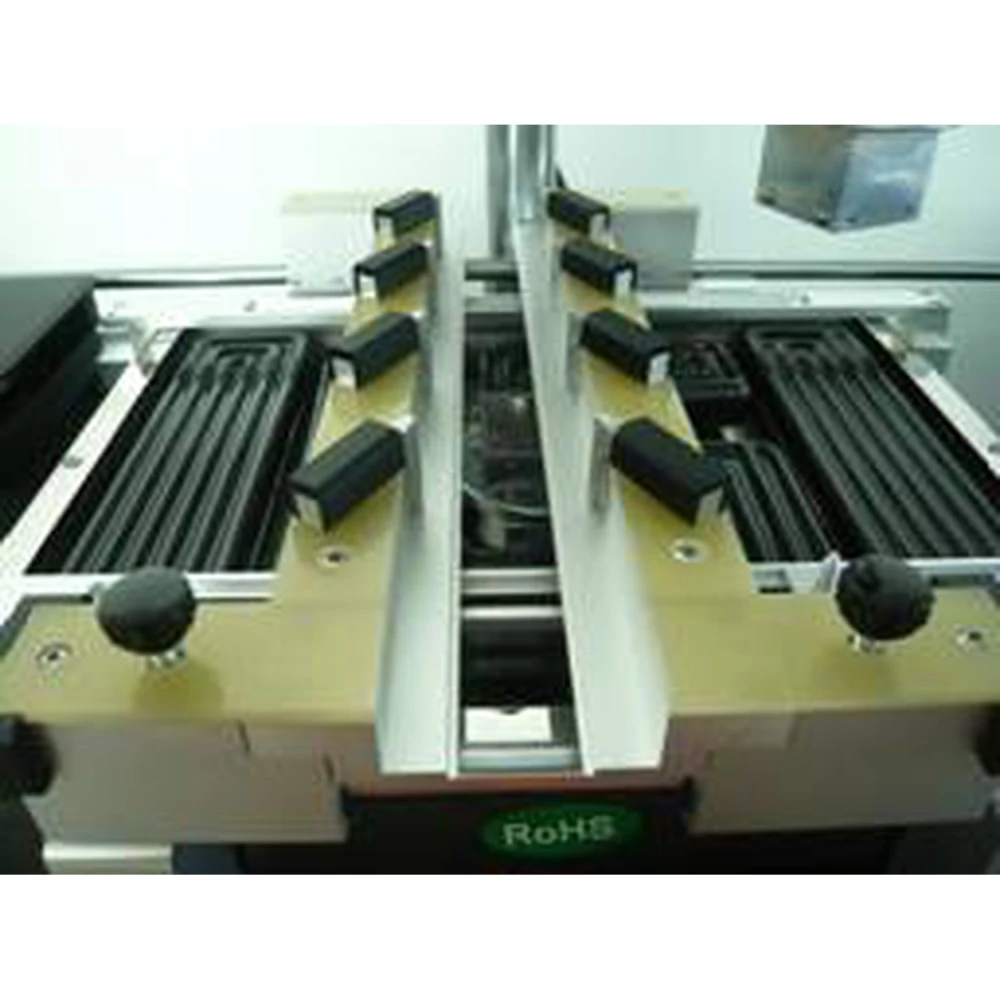

- Infrared heating plate for efficient preheating.
- Segmented temperature control in 8 levels for heating up and cooling down, with the ability to store up to 10 custom temperature curves.
- Overtemperature protection in the first two zones to prevent damage to the board.
- High-volume fan for rapid cooling after soldering, helping prevent PCB deformation.
- Adjustable temperature zone with multi-directional movement and 360-degree rotation for easier operation.

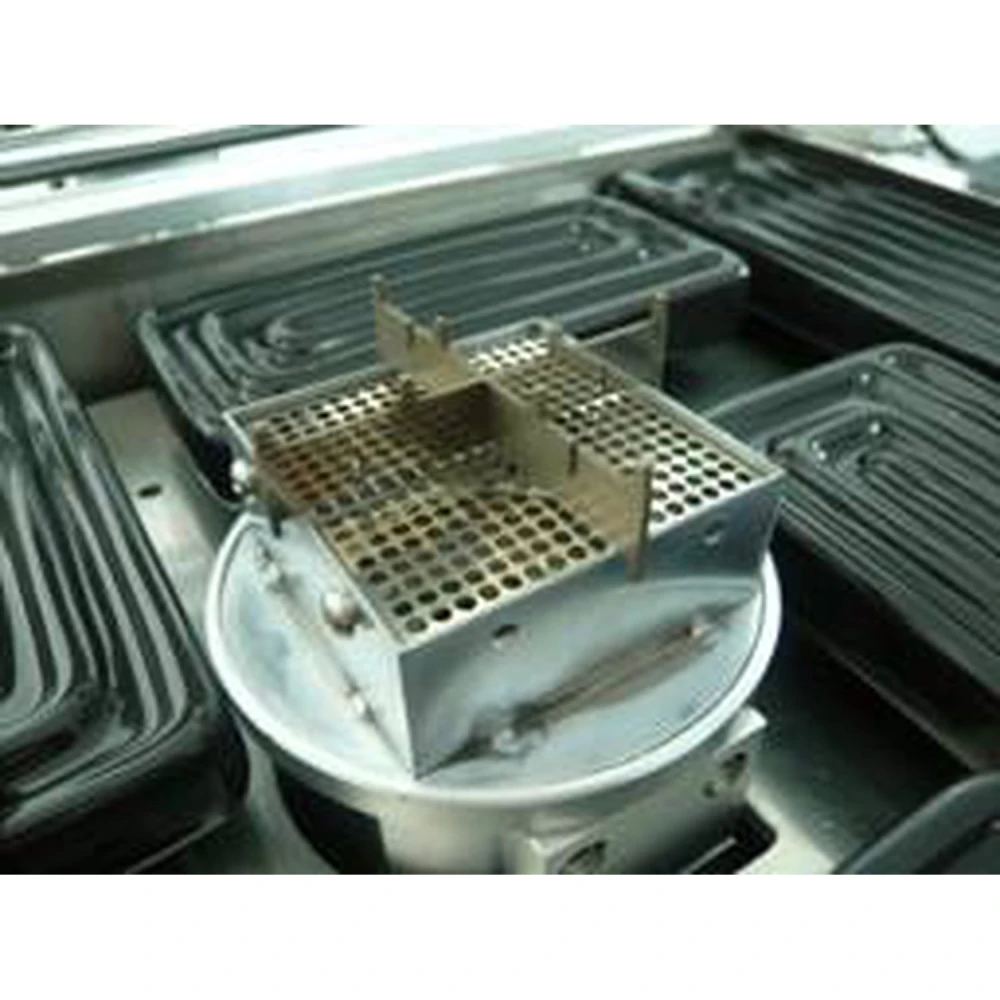

- Interchangeable and rotating hot air nozzles to suit different component sizes and types.

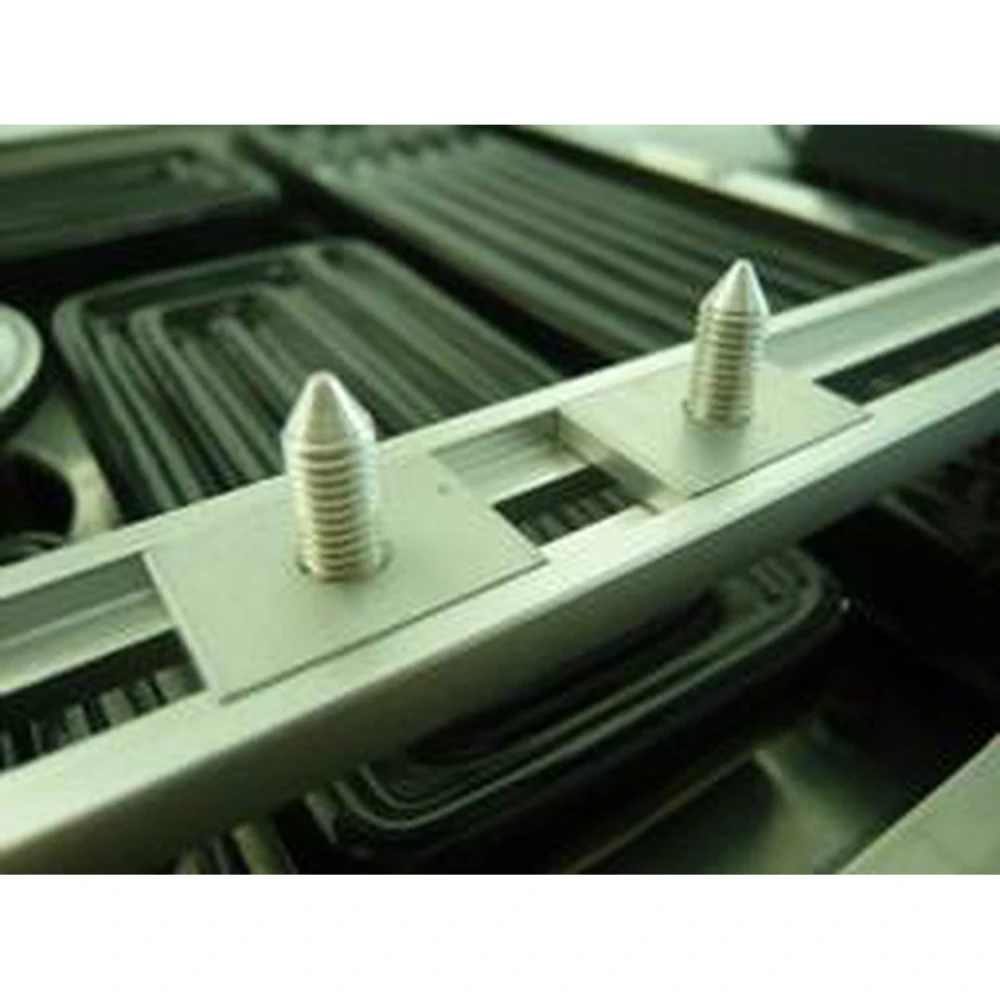

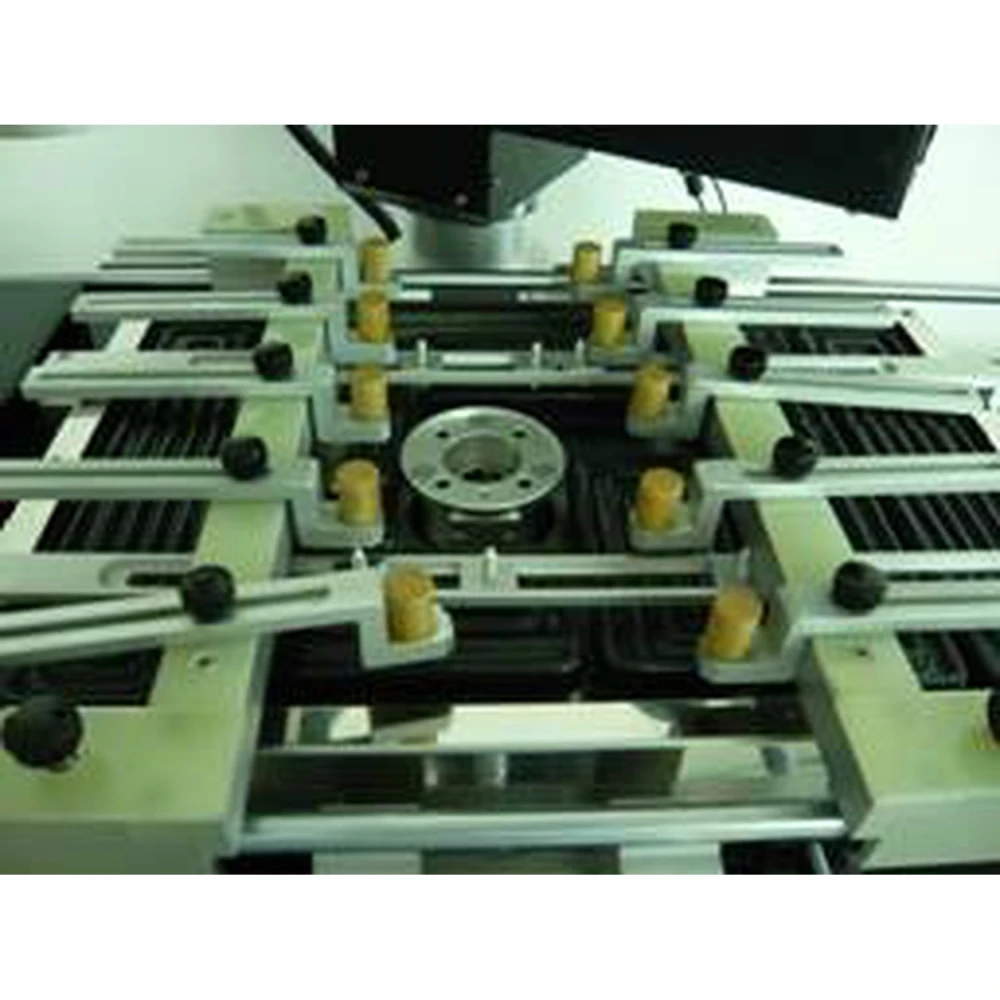

- Adjustable jaws to avoid collisions with components during the process.
- High-temperature-resistant support to protect the work position.
- Audible alarm after the soldering or desoldering process is complete.
- Manual vacuum suction pen for safe and comfortable handling of BGA components.
Technical specifications:
- Maximum PCB size: 330 × 320 mm
- PCB thickness: 0.1 to 5 mm
- Temperature control: K-type thermocouple with closed-loop PID control
- PCB positioning mode: External
- Bottom preheating: 2400W infrared
- Main heaters (upper + lower): 800W + 800W hot air
- Power supply: Single-phase 220V, 50/60Hz, 4.0KVA
- Dimensions: 550 × 530 × 550 mm
- Approximate weight: 37 kg
Typical uses: This station is ideal for technicians and professionals carrying out repairs and maintenance on electronic boards with BGA, CBGA and other package types. Its design makes it suitable for working with boards of different sizes and thicknesses, making repairs easier in sectors such as telecommunications, computing and industrial electronics.
Compatibility: Compatible with a wide range of PCBs and BGA components, including large BGA and CBGA. Its adjustment system and interchangeable nozzles allow it to adapt to different job requirements.
The product is currently out of stock. We recommend checking alternatives or contacting our team for personalised advice.
- Independent thermal control across three zones for maximum precision
- Upper and lower heaters with precise temperature and airflow regulation
- Infrared heating plate for efficient preheating
- Stores up to 10 custom temperature curves
- Overtemperature protection in the main zones
- High-capacity fan for fast, safe PCB cooling
- Adjustable 360° rotating temperature zone for greater convenience
- Interchangeable and rotating hot air nozzles
- Adjustable jaws to help prevent component damage
- Manual suction pen for safe BGA handling
Customer Questions & Answers
What benefits does the three independent temperature zone control system in the Zhenxun ZX-C2 reballing station offer compared with one-zone stations?
The three independent zones allow more precise and gradual heating across different areas of the PCB, reducing the risk of substrate warping and overheating sensitive components. This results in higher-quality BGA rework and a lower likelihood of temperature-related damage, compared with one-zone systems where heat is less directed.
What are the dimensions and weight of the station, and what is the maximum PCB size it supports?
The Zhenxun ZX-C2 supports PCBs up to L330 × W320 mm and thicknesses from 0.1 to 5 mm. The weight and external dimensions of the station are not specified in the main documentation, but they are usually around 30-40 kg and approximately 60 × 50 × 50 cm. It is recommended to consult the manufacturer’s detailed manual if size is critical for your workspace.
Does the Zhenxun ZX-C2 station require any special electrical setup, or is it compatible with standard voltages?
This model normally operates at 220 V~240 V AC, 50/60 Hz, which is standard for most European and Latin American workshops. Typical power consumption is between 3,000 and 4,000 W. It is essential to check voltage compatibility before connection, especially in regions with 110 V mains, where a suitable transformer would be required.
What maintenance procedures are recommended to ensure the station’s durability and thermal accuracy?
Regular cleaning of nozzles and ventilation areas, periodic calibration of K thermocouples and annual inspection of the control electronics are recommended. It is important to prevent dust build-up that could affect the fans and to check for any heat leaks. These actions maintain thermal accuracy and extend the equipment’s service life.
How does the thermal accuracy and programmable profile of the ZX-C2 compare with similar stations from other brands?
The ZX-C2 stands out by offering 8 ramp segments and 8 soak segments per zone, with storage for up to 10 thermal profiles, thanks to its K thermocouple PID control. This is competitive within the mid-to-high range of stations. Compared with competitors such as ACHI or Quick, the ZX-C2 offers comparable control, although some very high-end alternatives may include more sensor zones or advanced PC monitoring software.
What is the maximum PCB size the Zhenxun ZX-C2 reballing station can handle?
It can handle PCBs up to 330 mm long by 320 mm wide.
What type of temperature control does this station use?
It uses closed-loop PID control with a K-type thermocouple for precise regulation.
Does the station have overtemperature protection?
Yes, it has overtemperature protection in the first two heating zones.
What accessories are included for handling BGA components?
It includes a manual suction pen for picking up and handling BGA components safely and comfortably.
Is it currently available to buy?
The product is currently out of stock. We recommend contacting us to check alternatives or restock times.
