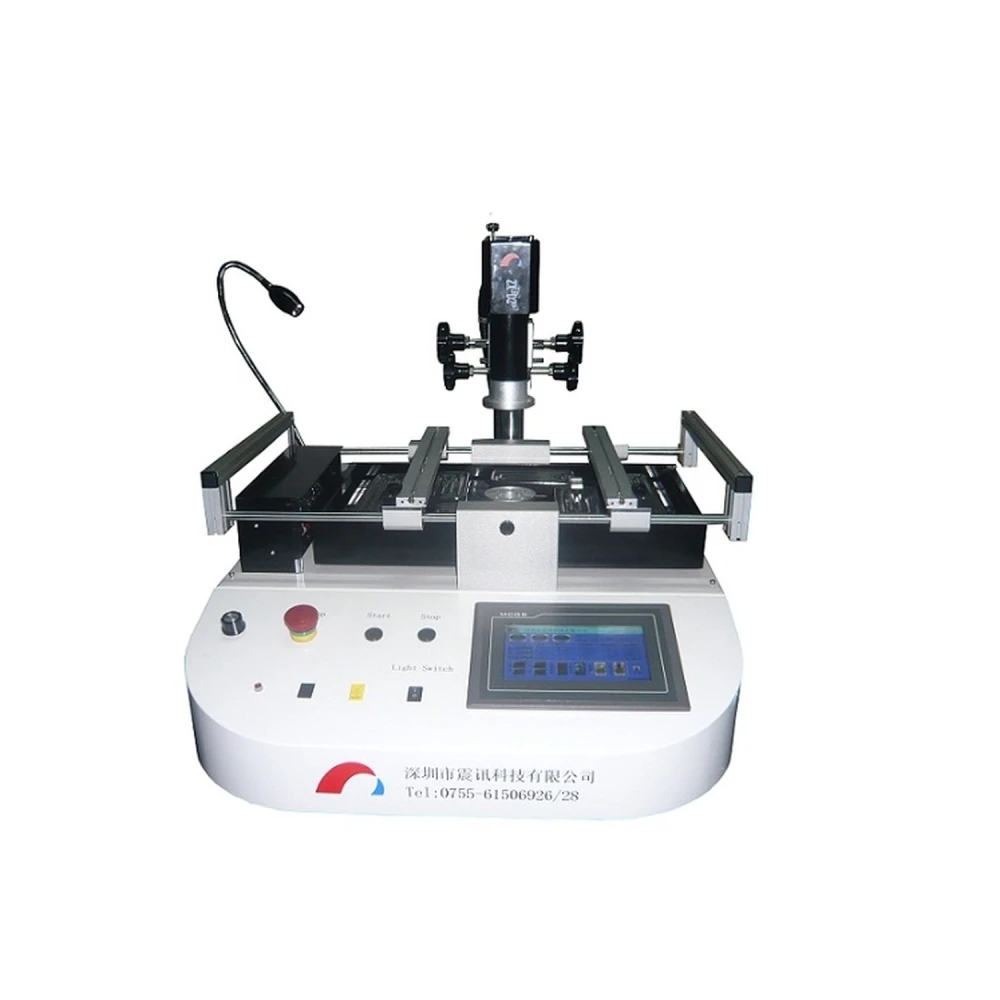

Zhenxun ZX-D2 reballing station for professional BGA soldering
Brand: ZHENXUN
VAT included (Ex VAT: 1,450.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 1,712.16 € | -4% |
| 10+ | 1,676.49 € | -6% |
| 20+ | 1,605.15 € | -10% |
The Zhenxun ZX-D2 reballing station is a professional tool designed for reballing and repairing BGA components on printed circuit boards (PCB). This station stands out for its advanced temperature control system and robust design, which ensures precision and stability during the soldering process.
Main features:
- PLC user interface that displays the real temperature of three zones and allows temperature profiles to be exported.
- Three independent temperature zones: upper and lower hot air heaters, and an infrared preheating zone.
- Temperature control in 9 ascending and descending segments, with the capacity to store up to 40 temperature profiles.
- Independent PID system for each zone, ensuring more stable and precise control of the heating process.
- Support in the lower heating and infrared zone to prevent deformation of the soldering area.
- Cooling fan after soldering to ensure an optimal finish on the PCB board.
- Password protection for temperature profile parameters, ensuring security and control.
- Includes various hot air nozzles in several sizes, with customisation available according to specific requirements.
- Integrated vacuum pump, eliminating the need for external gas sources.
Technical specifications:
- Maximum PCB size: 500 × 300 mm
- PCB thickness: 0.1 to 5 mm
- Temperature control: K-type thermocouple with closed-loop PID control
- PCB positioning mode: External
- Lower preheating: 2400W infrared
- Main heaters (upper and lower): 800W + 800W hot air
- Power supply: Single-phase 220V, 50/60Hz, 4.0KVA
- Dimensions: 650 × 700 × 550 mm
- Approximate weight: 47 kg
Typical uses:
This station is ideal for technicians and professionals working on the repair and maintenance of electronic boards with BGA components. Its ability to precisely control temperature across multiple zones makes it suitable for reballing, soldering and desoldering processes, delivering high-quality results and minimising the risk of damage to boards.
Compatibility:
Compatible with PCB boards of the specified size and thickness, and suitable for a wide range of BGA components. The integrated vacuum pump makes handling easier without the need for additional gas equipment.
- PLC interface with temperature control and display across three zones
- Three independent heating zones: hot air and infrared preheating
- Stores up to 40 temperature profiles with PID control
- Support to help prevent deformation in the soldering area
- Cooling fan to improve soldering finish
- Integrated vacuum pump, with no need for external gas sources
- Includes multiple hot air nozzles, customisable
- Suitable for PCB boards up to 500×300 mm and 0.1 to 5 mm thick
- Single-phase 220V power supply, 4.0KVA
- Compact dimensions and approximate weight of 47 kg
Customer Questions & Answers
What advantages does independent three-zone control offer compared with one-zone reballing stations?
Independent three-zone control (top, bottom and IR preheating) allows more precise and even heating, reducing thermal stress on the PCB and minimising the risk of damage or component warping. By comparison, one-zone stations usually have greater thermal variation and less adaptability for complex or multilayer parts.
What are the exact dimensions and weight of the Zhenxun ZX-D2, and what exactly is included in the box?
The Zhenxun ZX-D2 measures 650 mm long, 700 mm wide and 550 mm high; its approximate weight is 47 kg. It normally includes the station, a set of hot air nozzles in different sizes, PCB supports and a user manual. The availability of specific accessories may vary by distribution.
What electrical requirements does the station need to operate correctly, and what tolerances does it offer in terms of voltage and frequency?
The station operates on single-phase 220 V AC supply, accepts 50/60 Hz frequencies and requires a maximum power of 4.0 kVA. Its components tolerate small typical mains variations (±10% voltage), but a stable supply is recommended to avoid heating errors.
What regular maintenance is recommended to ensure thermal stability and reliable operation of the station?
It is recommended to clean the air nozzles regularly, check the filter and fan condition, and carry out K-type sensor calibrations according to usage. Checking cable connections and ensuring there are no obstructions in the ventilation areas guarantees stable thermal ramps and extends the equipment’s service life.
Is there compatibility or any limitations when working with PCBs of different thicknesses, and what ranges are supported?
The ZX-D2 can work with PCBs between 0.1 mm and 5 mm thick, covering most consumer and professional boards. The supports and thermal curve need to be adjusted for extreme thicknesses, and you should make sure the dimensions (up to 500 × 300 mm) do not exceed the usable area.
What is the maximum PCB size supported by the Zhenxun ZX-D2 reballing station?
It supports PCB boards up to 500×300 mm in size.
What type of temperature control does this station use?
It uses closed-loop PID control with a K-type thermocouple for precise control.
Does the station require an external gas supply?
No, it has an integrated vacuum pump, so it does not need external gas sources.
How many temperature profiles can the station store?
It can store up to 40 different temperature profiles.
What heating methods does the station use?
It uses hot air for the main upper and lower heating and infrared heating for lower preheating.
