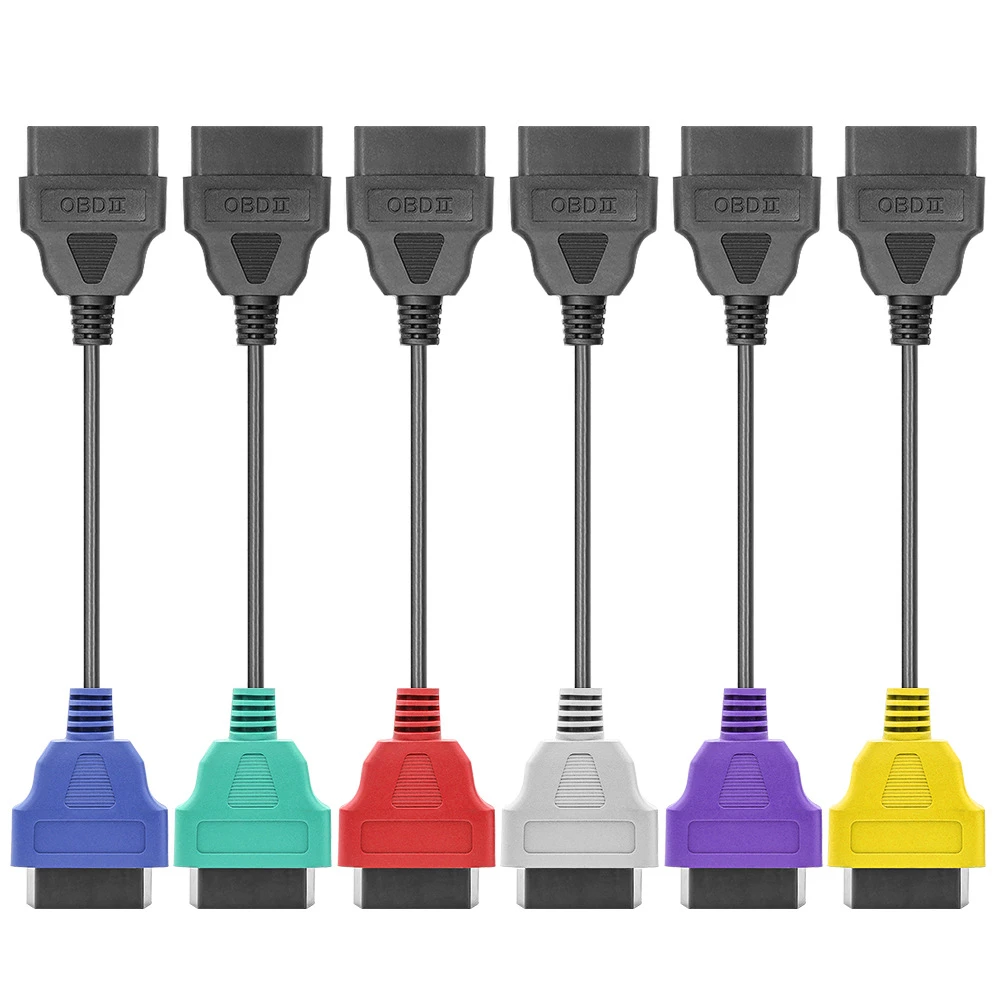

Fiat MultiECUScan OBD Adapter Cable - Complete Specialist Diagnostics Set

The 6-colour adapter cable set for Fiat MultiECUScan is designed to provide access to a wide range of diagnostic systems in FCA group vehicles (Fiat, Alfa Romeo, Lancia, Chrysler, Dodge and Jeep). These cables are compatible with MultiECUScan and ALFAobd software, enabling specific diagnostics on modules such as the ABS braking system, power steering, airbag, low and high speed CAN, Xenon lights, and more.

Each adapter cable is colour-coded for quick and easy identification, removing the need to manually modify the OBDII connector pins. These cables provide a secure and stable connection for a professional diagnostic experience.

Key Features

• Access to Multiple Systems: The cables allow access to specific systems such as ABS, power steering, airbag, low speed CAN, high speed CAN, and other modules depending on the vehicle and system.
• Secure, No-Modification Connection: No soldering or modifications to the interface cables are required, making compatibility with other vehicles easier without risk of damage or malfunction.

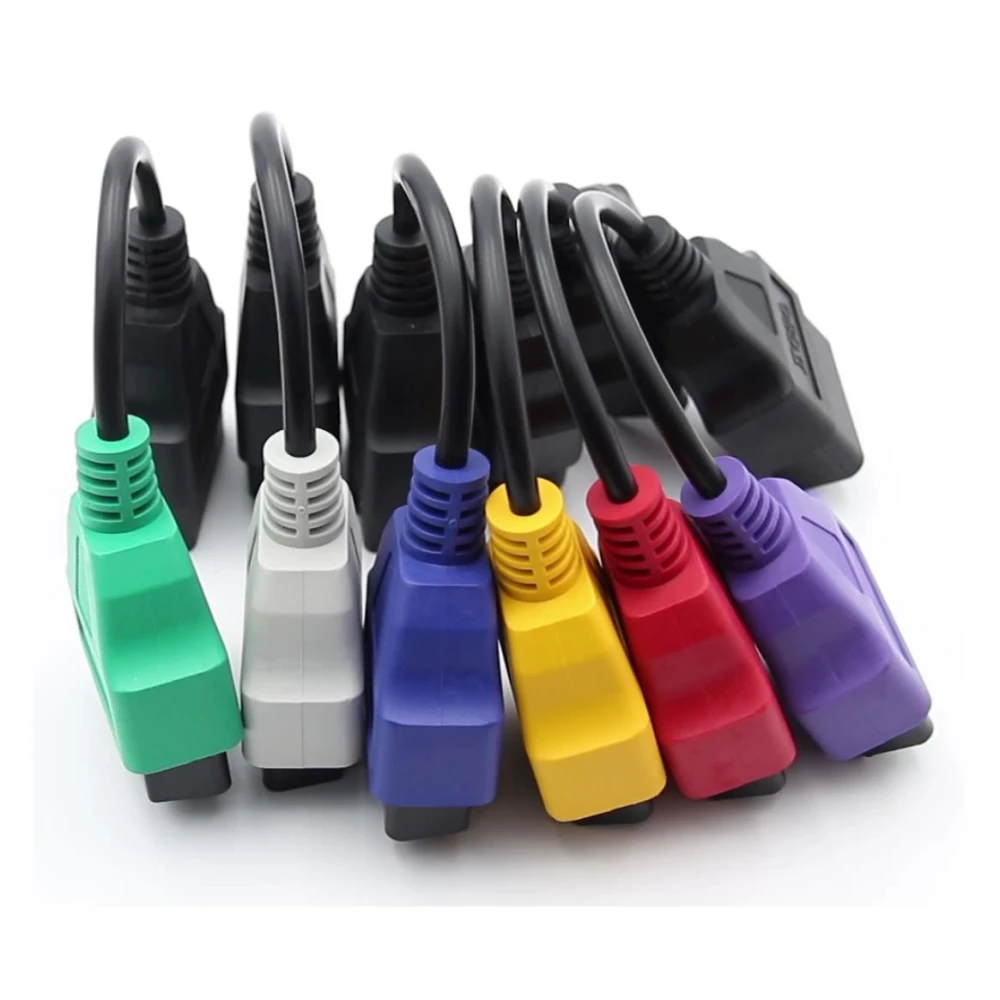

• Quick Colour Identification: Each adapter has a distinctive colour (green, red, yellow, purple, blue, and grey) for easy selection and use.
• Compatibility: Designed to work with MultiECUScan and ALFAobd on Fiat, Alfa Romeo, Lancia, and FCA group vehicles.

Functions of Each Adapter

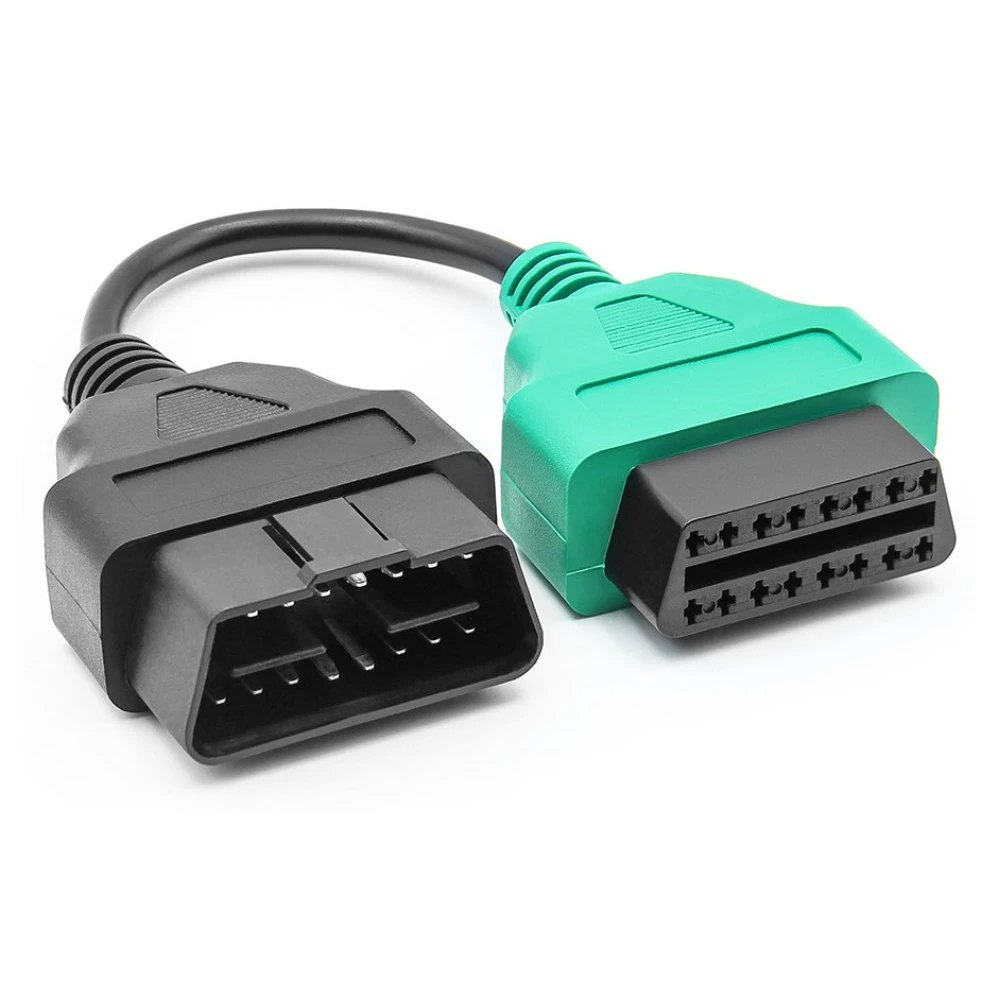

1. Green Cable - Adapter 1 (ABS and Power Steering):

   • Allows diagnosis of ABS and power steering systems.
   • Connections: Pin 7 of the diagnostic tool connects to pins 1, 7, 9 and 12 of the vehicle.

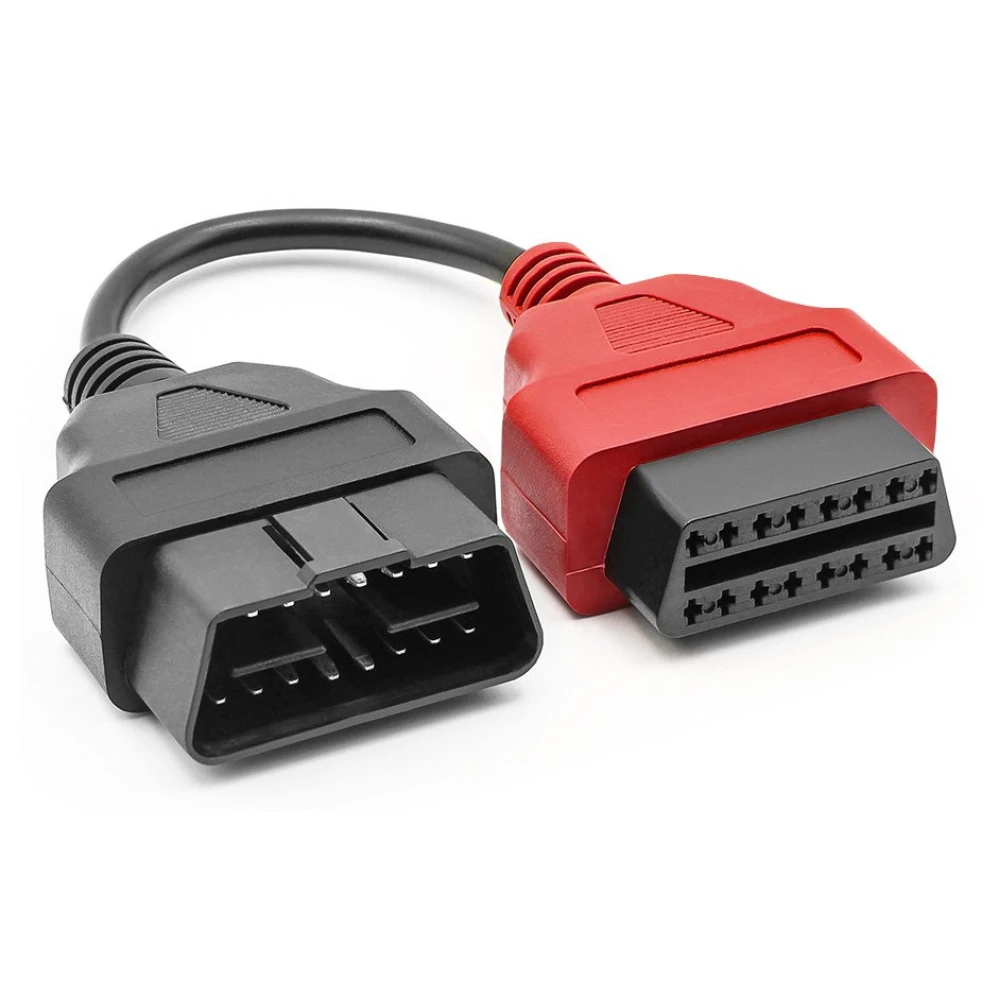

2. Red Cable - Adapter 2 (Airbag):

   • Specifically designed to access the airbag system.
   • Connections: Pin 7 of the diagnostic tool connects to pin 3 of the vehicle.

3. Yellow Cable - Adapter 3 (Low Speed CAN and Xenon Lights):

   • Allows access to the low speed CAN system in vehicles such as the Fiat 500.
   • Connections: Pins 6 and 14 of the tool connect to pins 1 and 9 of the vehicle, and pin 7 connects to pin 12 for Xenon light diagnostics.

4. Purple Cable - Adapter 4 (Electric Hood):

   • Access to the electric hood system in compatible vehicles.
   • Quick identification via the purple connector.

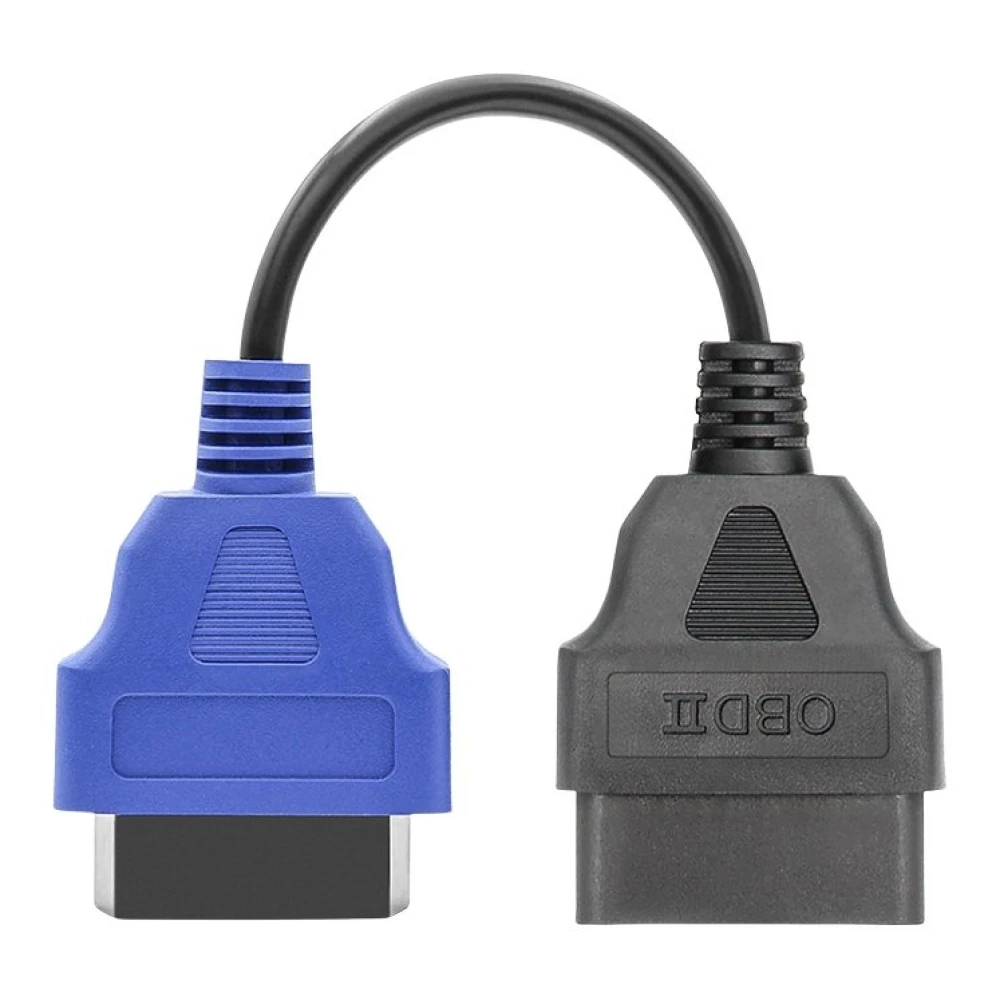

5. Blue Cable - Adapter 5 (125kbps MS-CAN/BHCAN):

   • Designed for 125kbps MS-CAN systems.
   • Specific connections for vehicles with MS-CAN systems.

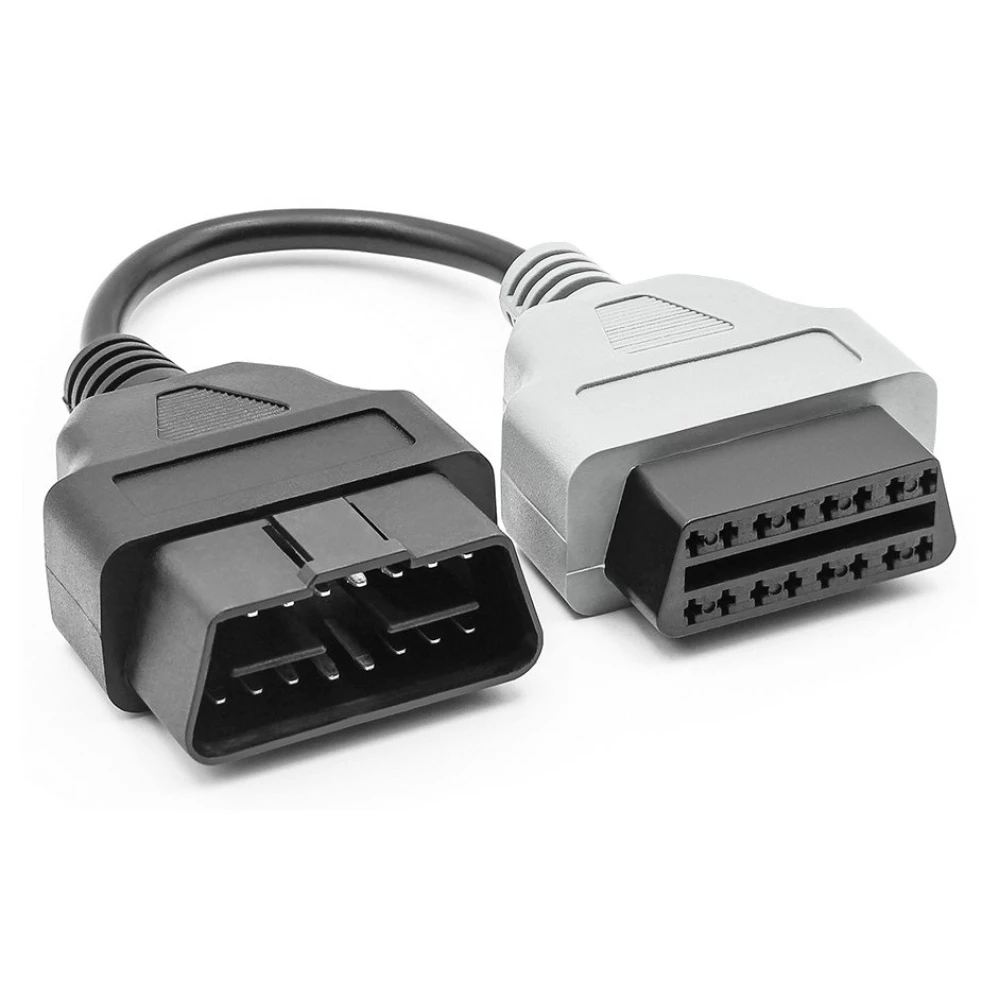

6. Grey Cable - Adapter 6 (High Speed CAN):

   • Ideal for diagnosing high speed CAN in models such as the Fiat 500X.
   • Grey connector for easy identification.

Technical Specifications

• Compatibility: Compatible with MultiECUScan, ALFAobd and other FCA group compatible programs.
• High Quality Material: Thick, durable cables that provide safety and stability in the connection.
• Dimensions: 20 x 15 x 4 cm.
• Package Weight: 0.6 kg.

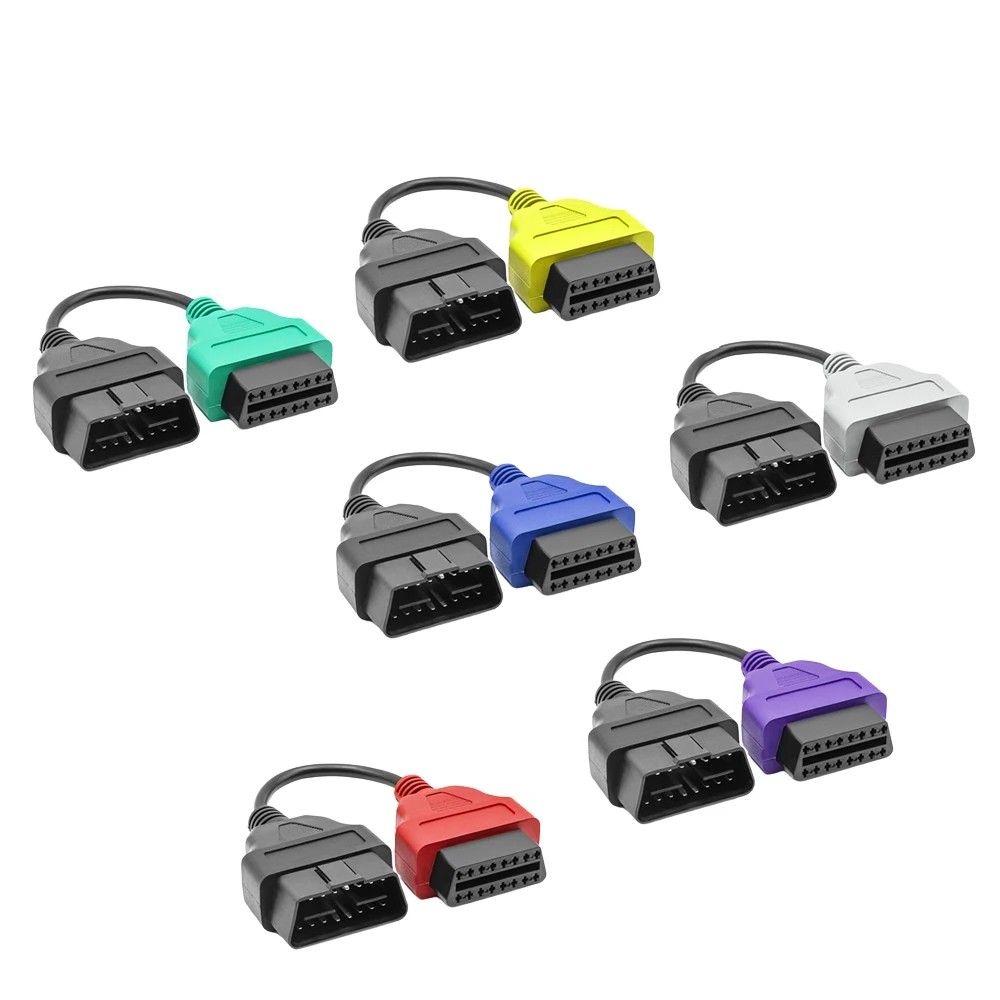

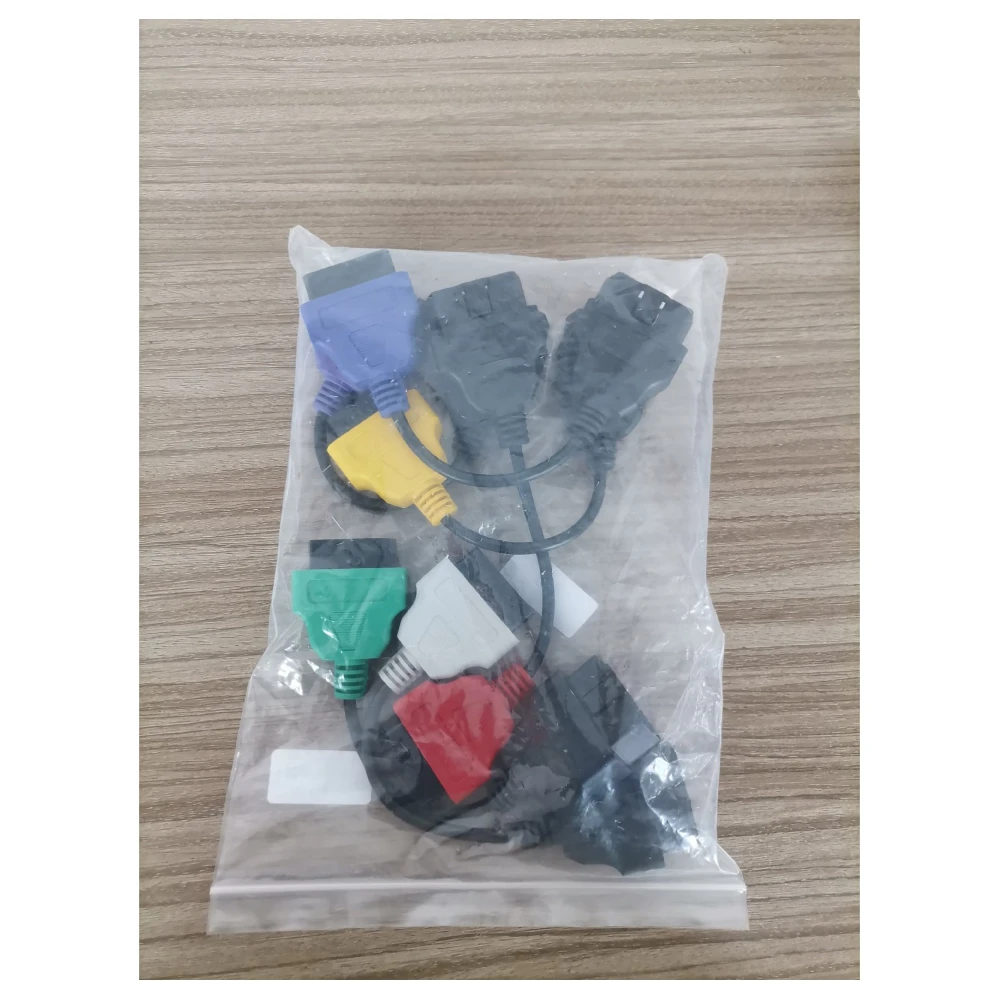

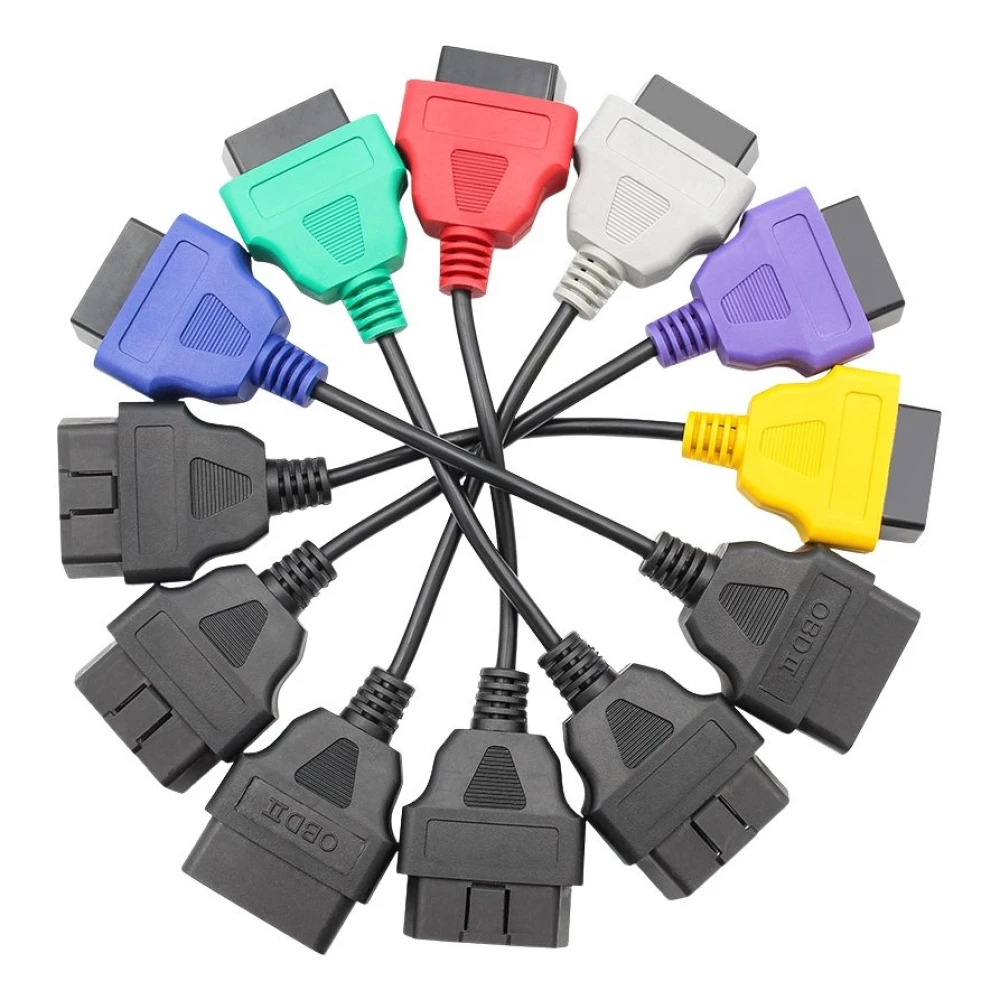

Package Contents

• 1 x Green Adapter (ABS / Power Steering)
• 1 x Red Adapter (Airbag)
• 1 x Yellow Adapter (Low Speed CAN)
• 1 x Purple Adapter (Electric Hood)
• 1 x Blue Adapter (125kbps MS-CAN)
• 1 x Grey Adapter (High Speed CAN)

Important Note

This package includes adapter cables only and does not contain diagnostic interface cables or diagnostic software. The adapters are only used to connect the diagnostic tool to the vehicle and are compatible with MultiECUScan and ALFAobd programs. Obtaining and using the required software is the user's responsibility.

Use Cases

• Workshop Diagnostics: Perfect for technicians and mechanics who need access to advanced modules in Fiat and other FCA group vehicles.
• Vehicle Owners: Useful for owners who want to carry out diagnostics and service resets on their vehicles safely and without modifications.
• Dealer Support: Ideal for dealerships offering support and diagnostics on vehicles with multiple control systems.

With this 6-colour adapter set, you can carry out advanced diagnostics on specific modules easily and effectively, keeping your diagnostic tools ready for different vehicles without the need for modifications.

• Access ABS, airbag, low and high speed CAN, power steering and more systems.
• Secure connection with no modifications or soldering required.
• Quick colour identification: green, red, yellow, purple, blue and grey.
• Compatible with MultiECUScan and ALFAobd for FCA group vehicles.
• High-quality material for greater durability and stability.
• Includes 6 specific adapters for different systems and models.
