5-in-1 PCI Laptop Diagnostic Card mini pci/minipcie/lpc/elpc/i2c
Brand: satkit
VAT included (Ex VAT: 19.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 22.44 € | -4% |
| 10+ | 21.73 € | -7% |
| 20+ | 19.40 € | -17% |
The 5-in-1 PCI laptop diagnostic card mini pci/minipcie/lpc/elpc/i2c is an essential tool for technicians and users who need to quickly identify faults in notebooks, netbooks and mini PCs. Its compact, multifunctional design allows connection to various interfaces, making diagnosis possible across a wide range of models and brands.

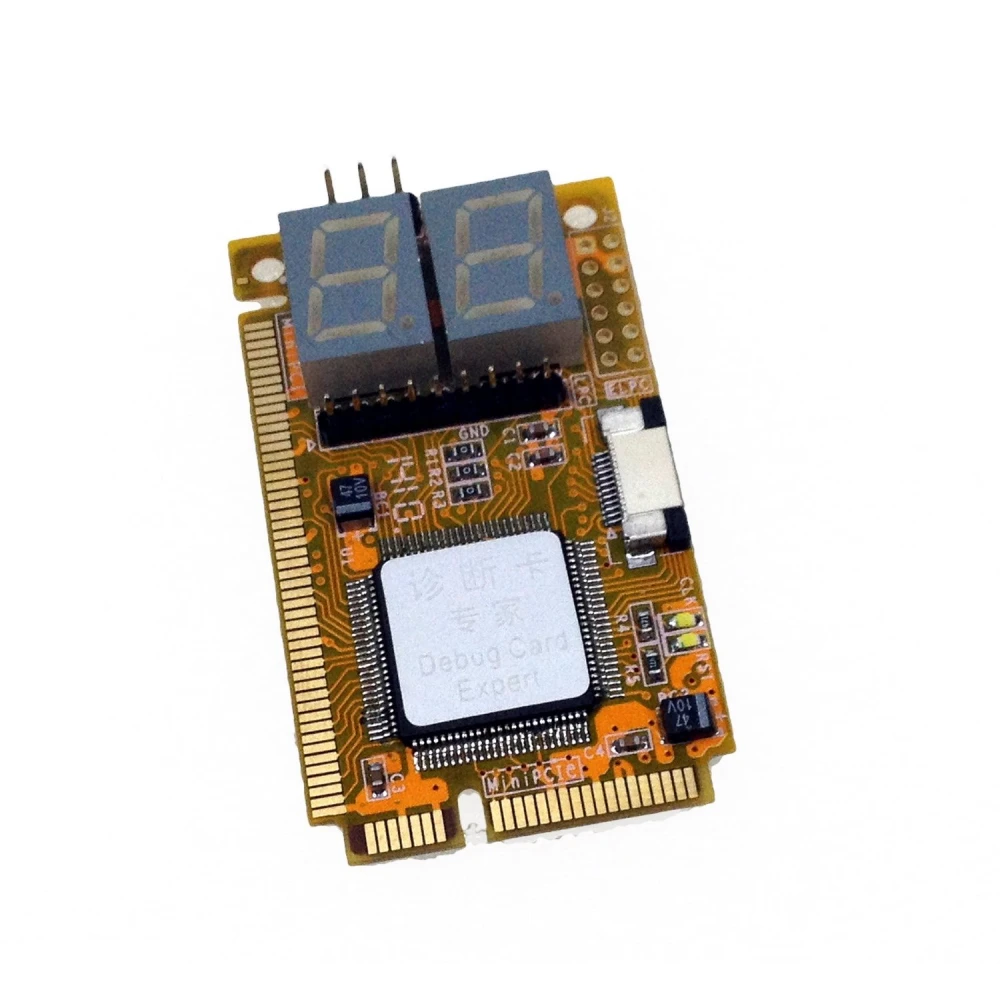

This card combines five interfaces in a single device: Mini PCI, Mini PCI-E, LPC, ELPC and I2C/SMB, covering the most common protocols used in modern laptops. It is especially useful for diagnosing BIOS errors in AMI BIOS 8.0, AWARD BIOS 6.0 and PHOENIX BIOS 6.0.
Key features and specifications:

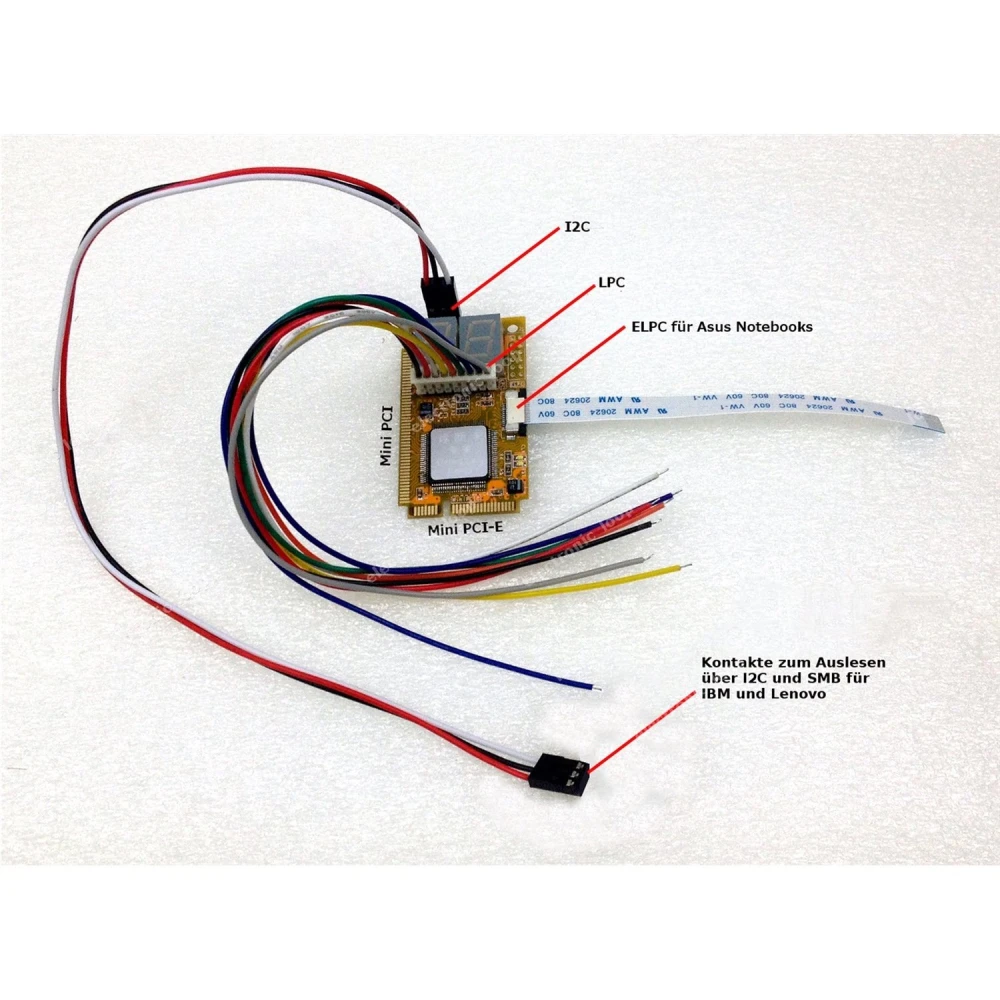

- Compatibility with multiple buses and protocols: I2C/SMB, LPC, ELPC, Mini PCI and Mini PCI-E.
- Specially designed for IBM/Lenovo laptops (I2C/SMB) and Asus (ELPC).
- Support for the latest common BIOS versions in laptops.
- Compact size: 51mm x 30mm x 9mm, ideal for field use and workshops.
- Includes specific cables for each interface, making connection and diagnosis easier.
Typical uses:
- Diagnosis of faults and defects in laptops, netbooks and mini PCs.
- Reading error codes to identify hardware and BIOS faults.
- Support for fast and effective repair of portable equipment.
- Flexible tool for repair and electronics maintenance technicians.
Compatibility: Works with a wide variety of laptop manufacturers and models, thanks to support for multiple protocols and buses. It is especially compatible with IBM, Lenovo, Asus and other manufacturers that use the protocols mentioned.
Package contents:

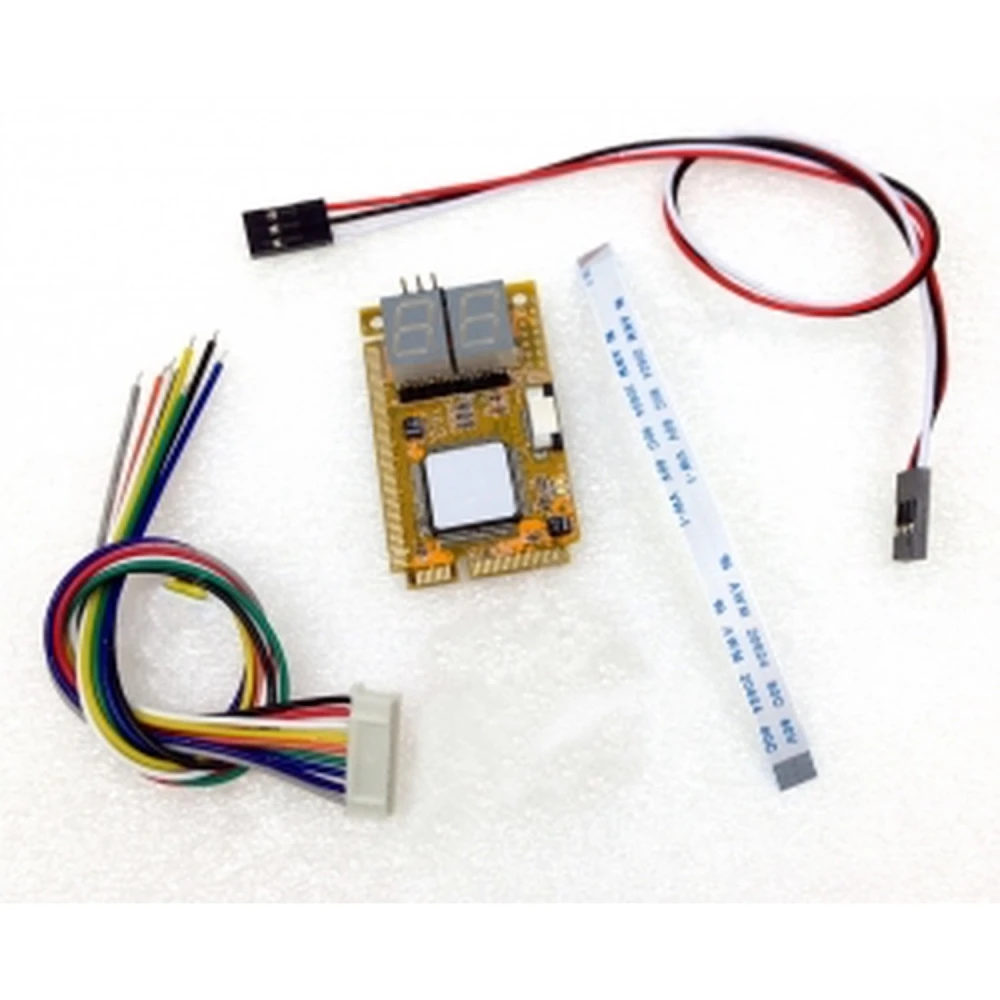

- 5-in-1 Mini Combo debugging diagnostic card.
- English manual.
- ELPC flat cable for Asus laptops.
- LPC cable.
- Cable for reading error codes on the I2C interface (IBM/Lenovo).
This card is a valuable investment for any professional looking to improve efficiency in fault detection and repair on laptops. Its ability to display error codes makes it easier to pinpoint the problem, reducing diagnosis time and increasing repair success rates.
- Compatible with Mini PCI, Mini PCI-E, LPC, ELPC and I2C/SMB interfaces.
- Especially useful for IBM, Lenovo and Asus laptops.
- Supports AMI 8.0, AWARD 6.0 and PHOENIX 6.0 BIOS.
- Includes cables for each interface to make diagnosis easier.
- Compact and portable: 51mm x 30mm x 9mm.
Customer Questions & Answers
What is the exact contents of the package and the board dimensions to ensure physical compatibility?
The package includes: the 5-in-1 diagnostic card, an English manual, an ELPC flat cable (for Asus), an LPC cable and an I2C cable (for IBM/Lenovo). The card measures 51 mm x 30 mm x 9 mm, so it fits easily into most internal Mini PCI/PCI-E laptop slots.
What maintenance procedures does the card require to ensure durability and proper operation?
Basic maintenance is required: store it in a dry environment, clean it periodically with compressed air to prevent dust build-up, and check the pins/connectors before each use to avoid contact failures. No electronic calibration is needed.
Are there any electrical risks or regulatory limitations when using the card in current equipment?
The product operates without its own power supply, using the laptop buses, so it does not introduce significant electrical risks if connected according to the manual. However, it should be used with the equipment switched off and electrically discharged. It complies with CE regulations. It is not suitable for Mac or ARM-based equipment.
What is the 5-in-1 PCI laptop diagnostic card used for?
It is used to detect and diagnose faults and defects in notebooks, netbooks and mini PCs, helping to speed up effective repairs.
Which interfaces is this diagnostic card compatible with?
It is compatible with Mini PCI, Mini PCI-E, LPC, ELPC and I2C/SMB, covering most protocols used in laptops.
Which laptop brands are compatible with this card?
It works especially well with IBM, Lenovo and Asus laptops, but is compatible with a wide range of manufacturers thanks to its multiple interfaces.
Does it include cables to connect the card to the different ports?
Yes, it includes cables for ELPC, LPC and for reading error codes on the I2C interface.
Does this card support the latest BIOS versions?
Yes, it supports AMI BIOS 8.0, AWARD BIOS 6.0 and PHOENIX BIOS 6.0.
