PTI-8 PCI Diagnostic Card with LCD Screen
Brand: satkit
VAT included (Ex VAT: 17.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 20.07 € | -4% |
| 10+ | 19.45 € | -7% |
| 20+ | 17.36 € | -17% |
The PTI-8 PCI diagnostic card with LCD screen is an advanced tool designed to make computer repair and diagnostics easier, for both desktop and laptop computers. This professional card, launched in 2011, includes significant improvements over earlier versions, offering greater accuracy and expanded functionality for technicians and advanced users.
Main features:
- Compatible with desktop PCI, Mini PCI-E, Mini PCI and LPC interfaces, adapting to most current motherboards and laptops.
- Includes two LCD screens for more convenient and detailed viewing of diagnostic codes.
- Real-time voltage and key signal monitoring using MultiPost technology, making more precise diagnostics easier.
- Wide diagnostic code support, with hundreds of recognised codes to identify specific faults.
- Proven compatibility with motherboards from popular brands and chipsets such as Asus, Intel (815, 845, 865, 915, 945, 965), ATI and AMD.
Typical uses:
This card is ideal for computer repair technicians, tech enthusiasts and professionals who need to diagnose motherboard faults quickly and effectively. Its design allows use in both desktop PCs and laptops, thanks to its multiple interfaces and included adapters.

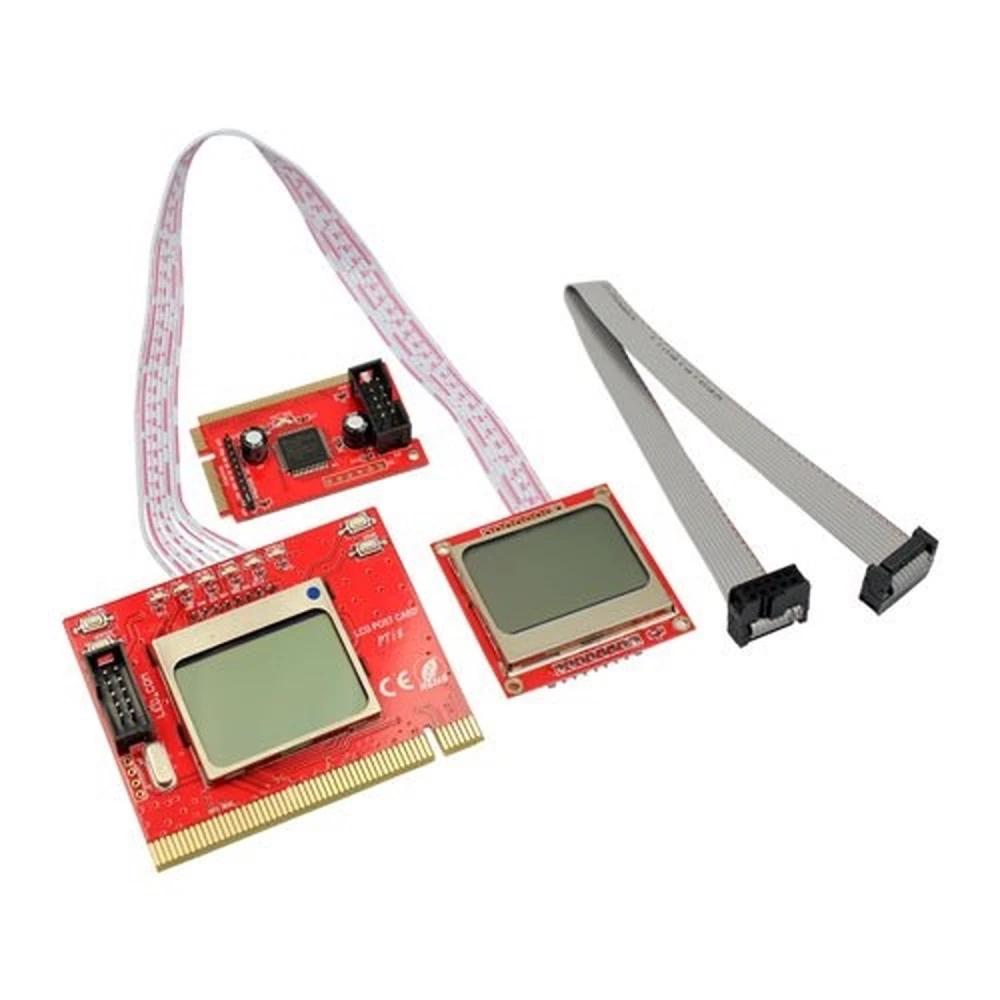

Package contents:
- 1 x PCI desktop diagnostic card with LCD screen extension.
- 1 x Mini PCI/Mini PCI-E/LPC laptop diagnostic card.
- 1 x Cable for the laptop diagnostic card.
- 1 x User manual.
Compatibility:
Compatible with most motherboards using PCI and Mini PCI interfaces, including strict testing with Asus boards and major Intel and AMD products. The card supports Intel 815, 845, 865, 915, 945, 965, ATI SB600, ATI Xpress 200, ATI Xpress 1100 and AMD 480X chipset.
Note: The product is currently out of stock. We recommend checking availability or alternative products in our store.
- Compatible with PCI, Mini PCI-E, Mini PCI and LPC interfaces.
- Dual LCD screen for easier code viewing.
- Real-time voltage monitoring with MultiPost technology.
- Wide support for motherboard diagnostic codes.
- Compatible with Asus, Intel, ATI and AMD boards.
- Includes desktop and laptop cards, cable and manual.
Customer Questions & Answers
What advantages does the PTI-8 diagnostic card offer over earlier models such as the PTI-6?
The PTI-8 features an updated chip solution, a three-level hierarchical operating menu, more than 100 additional diagnostic codes and the innovative MutiPost technology for key signal control. It also provides a dual LCD display and real-time voltage measurement, improving accuracy and ease of analysis compared with the PTI-6, which lacks these enhancements.
What are the dimensions, weight and main materials of the PTI-8 card, and what is included in the package?
The PTI-8 measures approximately 120 mm x 60 mm x 10 mm (depending on the format: PCI, Mini PCI or LPC), with an approximate weight of 70 g per card. It is mainly built from multilayer PCB with SMD components and an LCD display. The package includes: 1 desktop PCI card, 1 miniPCI/Mini PCI-E/LPC card for laptop, 1 laptop extension cable and 1 manual.
What compatibility requirements must the motherboard or device meet to use the PTI-8 for diagnostics?
The PTI-8 is compatible with motherboards that have a standard desktop PCI slot, or Mini PCI, Mini PCI-E or LPC connector in laptops. It has been tested on Intel chipsets (815, 845, 865, 915, 945, 965), ATI (SB600, Xpress 200, Xpress 1100), and AMD (480X), but it should work with most boards using these connectors. It is not compatible with systems that only use full PCIe ports or M.2 without adapters.
What maintenance does the card require, and what is its estimated service life under normal use?
Maintenance is limited to cleaning the contacts with isopropyl alcohol and storing it in a dry place. The absence of moving parts and the use of SMD electronic components suggest a service life of over 5 years under normal use, although factors such as electrical discharge or voltage spikes can shorten this period.
What limitations does the PTI-8 have when diagnosing faults, and how does it compare with software-based tools?
The PTI-8 is limited to POST code and electrical signal-based diagnostics, so it does not detect higher-level logic errors or software/operating system issues. However, it outperforms software tools when diagnosing motherboards that do not boot or where there is no audible POST, making it more suitable for severe hardware faults.
Which motherboard types is the PTI-8 card compatible with?
The PTI-8 card is compatible with most motherboards that use PCI, Mini PCI-E, Mini PCI and LPC interfaces, including brands such as Asus, Intel, ATI and AMD.
What is included in the PTI-8 diagnostic card package?
The package includes a PCI desktop diagnostic card with LCD screen, a Mini PCI/Mini PCI-E/LPC laptop card, a laptop cable and a user manual.
Can I use this card to diagnose laptops?
Yes, the PTI-8 card includes specific interfaces and adapters for laptops, such as Mini PCI-E, Mini PCI and LPC.
Is the PTI-8 card available for immediate purchase?
The product is currently out of stock. It is recommended to check availability or look for alternative products in the store.
How does the PTI-8 card help with computer repair?
The card shows diagnostic codes on its LCD screens that allow faults in the motherboard and other components to be identified, making quick and accurate diagnosis easier.
