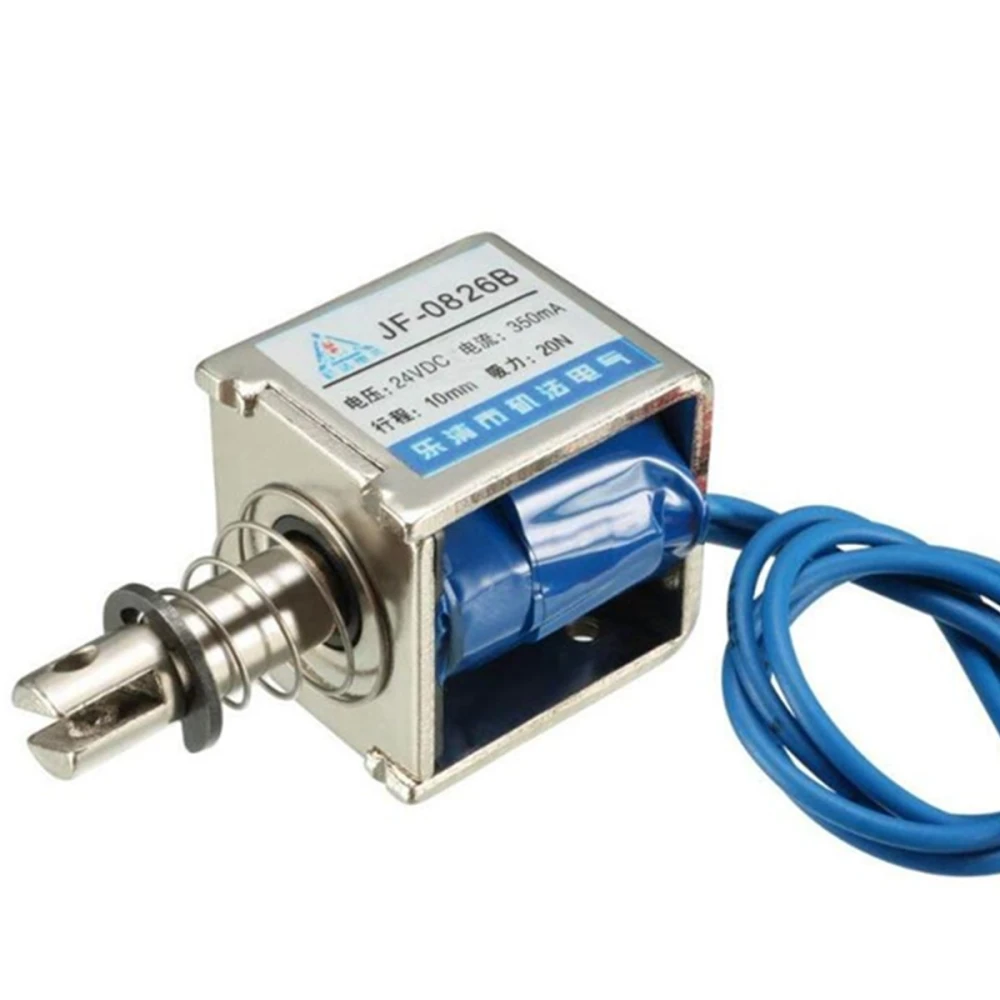

JF-0826B 24V Push Pull Solenoid with Spring Return
Brand: satkit
6.15€
VAT included (Ex VAT: 5.00 €)
Limited stock
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only

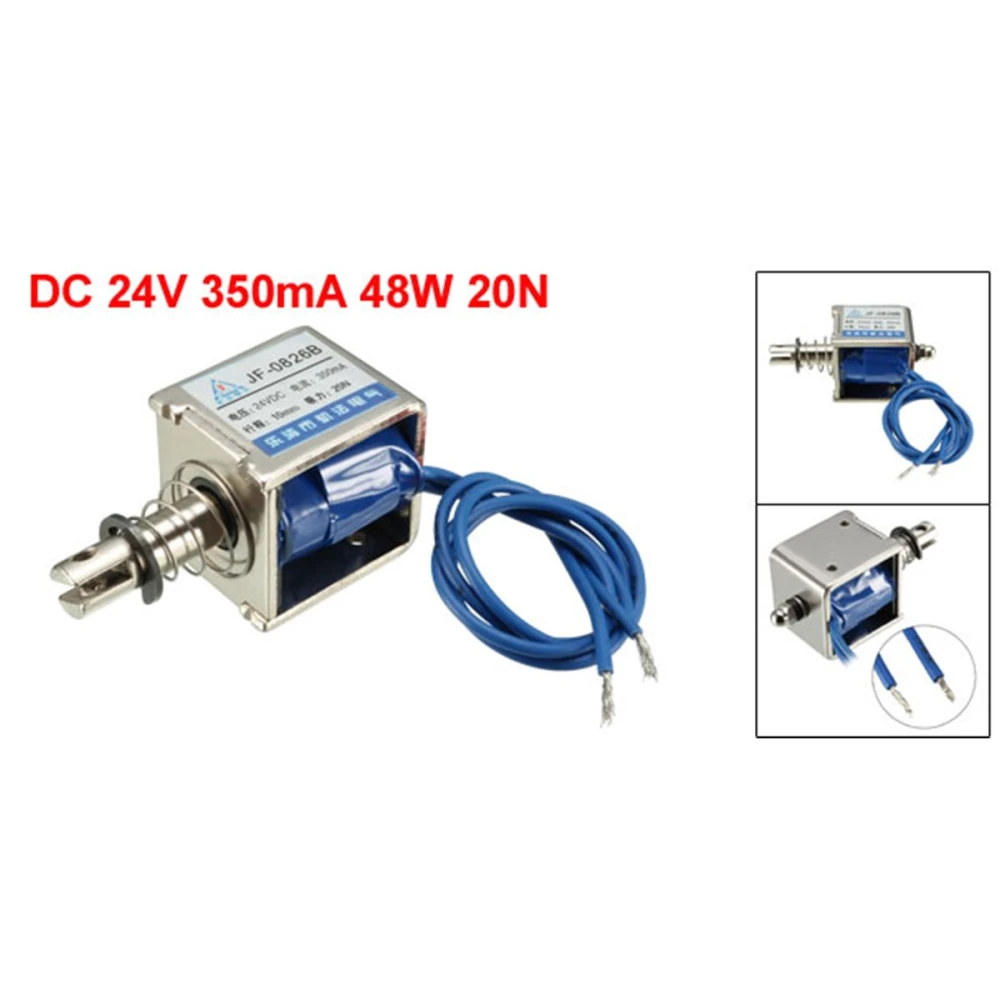

24V Push Pull Solenoid JF-0826B is a linear solenoid designed for automation and DIY applications that require a reliable and efficient mechanism. This solenoid operates at a rated DC 24V and a current of 350mA, providing a push and pull force of 20N with a 10mm linear stroke.
The design includes a spring return that keeps the mechanism normally open. This means the solenoid is extended when not energised and retracts when power is supplied, returning to its initial position thanks to the spring action when the power is disconnected.
This device is ideal for small automation systems that require precise and repetitive linear movements. Its compact size (26 x 22 x 25 mm) and light weight make it suitable for integration into DIY projects, machinery and electrical equipment.
- Push/pull force: 20N (2Kg)
- Linear stroke: 10mm
- Rated voltage: DC 24V
- Current: 350mA
- Cable length: 200mm
- Mounting hole diameter: M3

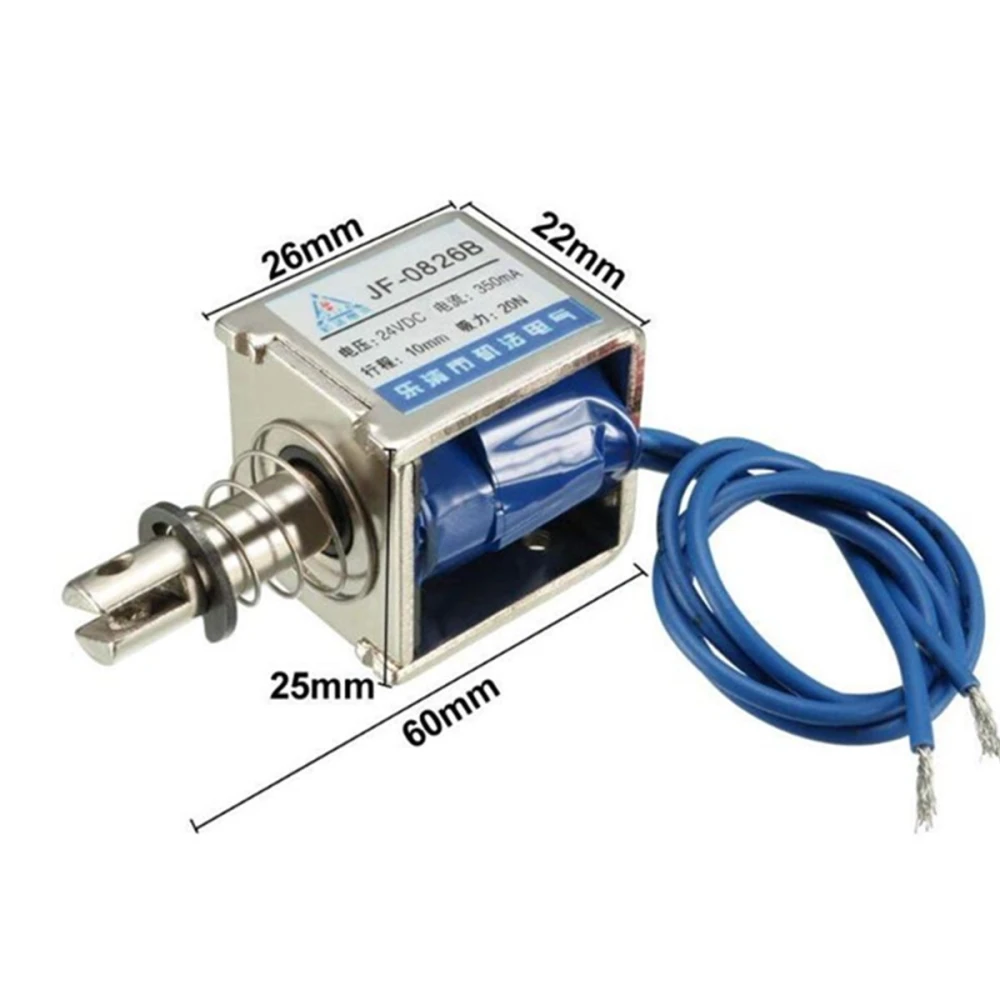

- Dimensions: 26 x 22 x 25 mm (L x W x H)
- Type: Push-Pull with spring return, normally open
On one side of the moving mechanism there are two M3 threaded holes that allow other mechanisms to be fixed for easy and secure movement.
This DC solenoid is compatible with systems operating at 24V and is a reliable option for those looking for a linear solenoid with spring return for automation, electrical equipment or DIY projects.
- 20N push and pull force for precise movement.
- 10mm linear stroke suitable for automation applications.
- DC 24V rated voltage with 350mA current for energy efficiency.
- Spring return keeps the solenoid normally open.
- Compact 26 x 22 x 25 mm dimensions for easy integration.
- M3 threaded holes for secure mounting of additional mechanisms.
- 200mm cable for flexible and convenient connections.
Customer Questions & Answers
What is the estimated service life under typical use, and what are the main maintenance points?
Under normal conditions (1 s on / 4 s off cycle), the estimated service life can exceed 100,000 cycles. It is recommended to keep the internal guide free of dust and to check the spring elasticity periodically. Avoid overheating caused by prolonged activation times.
What are the product dimensions and weight, and what is included in the package when purchased?
The electromagnet measures approximately 42 mm long, 23 mm wide and 20 mm high. It weighs about 130 g. The package generally includes 1 electromagnet with the return spring integrated and wiring for connection.
Which power supplies is this electromagnet compatible with, and what is the nominal current draw?
This model is designed to work with a 24 V DC power supply. The nominal current draw is around 350 mA, which means a power consumption of approximately 8.4 W. It is not compatible with AC or voltages other than 24 V DC.
What should I consider when assembling the moving mechanism using the M3 threaded holes?
The M3 threaded holes on the moving carriage allow additional parts or mechanisms to be attached. It is recommended not to exceed the weight of the accessories so as not to reduce the service life of the return spring. Make sure not to apply lateral forces, as these can misalign the mechanism.
What is the rated voltage of the JF-0826B solenoid?
The rated voltage of the JF-0826B solenoid is DC 24V.
What push and pull force does this solenoid provide?
It provides a push and pull force of 20N (2Kg).
What is the linear stroke of the solenoid?
The linear stroke is 10mm.
Is the solenoid normally open or normally closed?
It is normally open with spring return.
What applications is this solenoid ideal for?
It is ideal for small automation systems and DIY projects that require a reliable linear solenoid.
