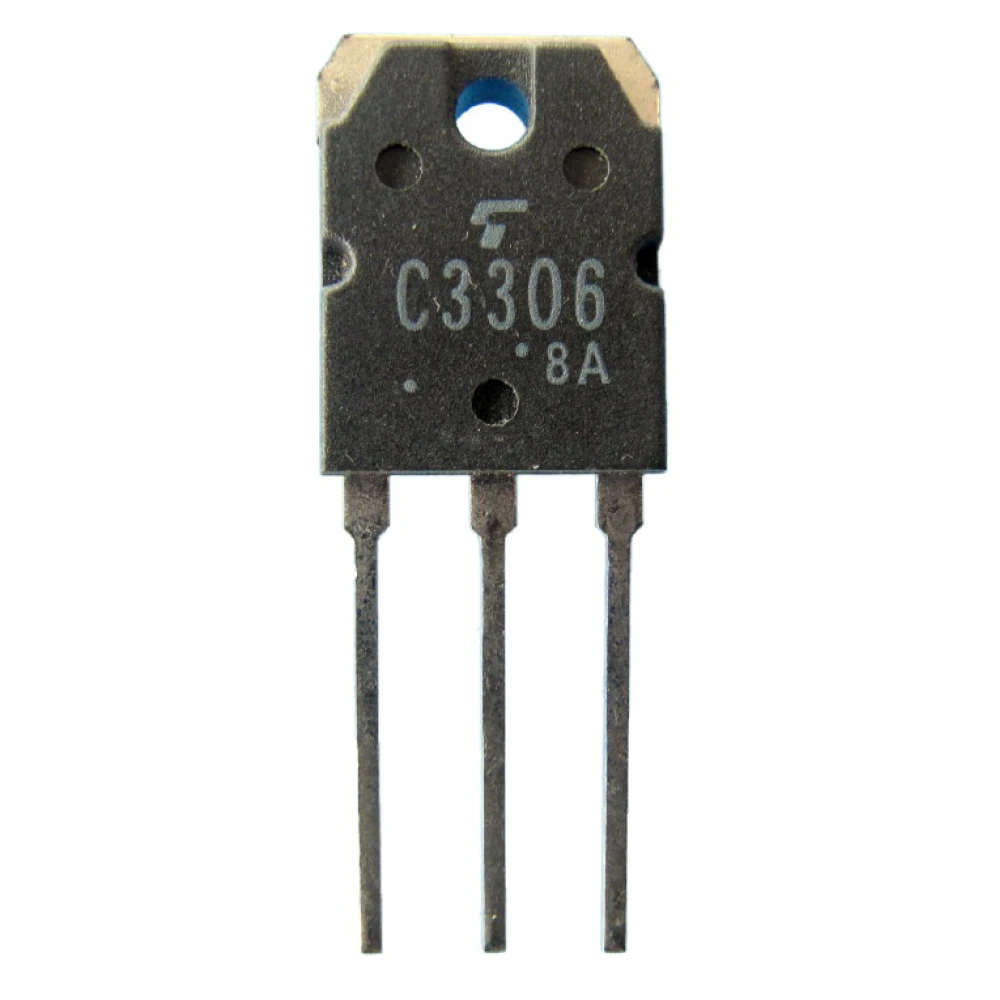

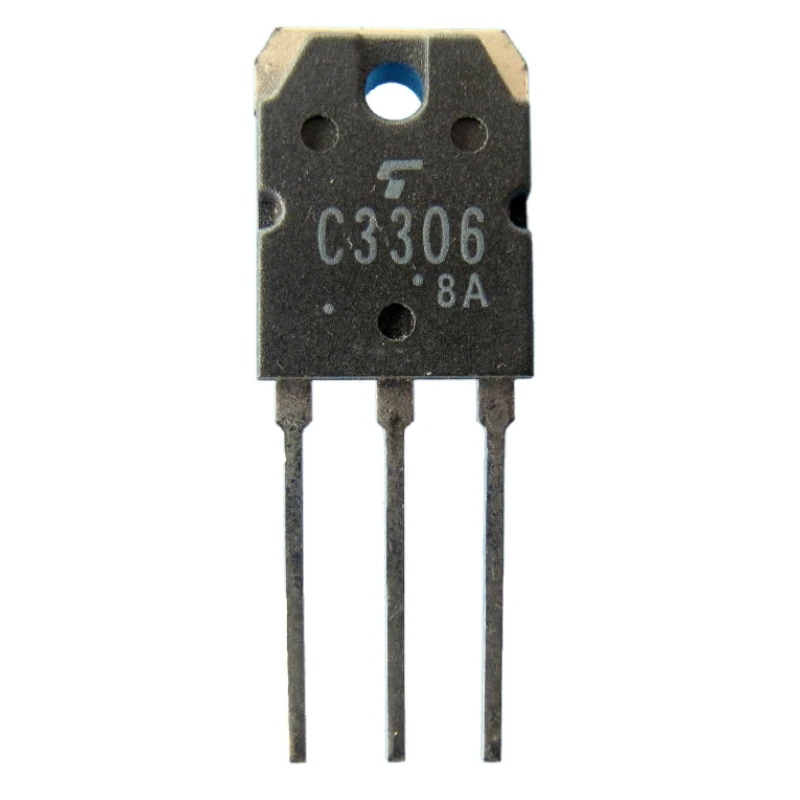

The 2sc3306 transistor is a Si-N semiconductor device designed for applications that require high voltage and current handling. With a maximum voltage of 500V, a maximum current of 10A and a maximum power of 100W, this transistor is suitable for power circuits and amplification.
Main features:
- Type: Si-N transistor
- Maximum voltage: 500V
- Maximum current: 10A
- Maximum power: 100W
- Package: TO-247 (SC3306 package)
The TO-247 package offers excellent thermal dissipation, making it easier to use in applications where high power is handled. This transistor is commonly used in power supplies, power amplifiers and other electronic devices that require control of high currents and voltages.
Typical uses:
- Power amplifiers
- Switched-mode power supplies
- Motor controllers
- Power electronics equipment
Compatibility: The 2sc3306 is compatible with circuits that require power transistors in TO-247 format, allowing easy integration into existing designs that use this type of package.
This transistor is a reliable option for projects and repairs that require a robust and efficient component for handling electrical power.
- Si-N transistor with high voltage and current handling
- Maximum voltage of 500V for demanding applications
- Maximum current of 10A for power control
- Maximum power of 100W for efficient power handling
- TO-247 package for easier thermal dissipation and mounting
Customer Questions & Answers
What are the dimensions and weight of the 2SC3306 transistor in TO-247 package?
The TO-247 package measures approximately 20 mm x 15 mm x 4.8 mm and the typical transistor weight is 4-5 g. These dimensions allow it to be mounted on standard heatsinks.
What precautions should be taken during installation to ensure proper heat dissipation?
It is crucial to mount the 2SC3306 on a suitable heatsink using the TO-247 back plate, applying thermal paste to minimise thermal resistance. Exceeding 100W dissipation without an adequate heatsink can cause failure due to overheating.
What is the recommended operating temperature range for this transistor, and what happens if it is exceeded?
The typical operating range is -55°C to +150°C. Exceeding 150°C at the junction compromises reliability and may cause irreversible destruction due to overheating.
Is the 2SC3306 compatible with equivalent transistors such as the 2SC2335 or 2SC2625?
Although they may be similar in function, the 2SC3306 has a higher voltage and maximum power rating than the 2SC2335 or 2SC2625. It is essential to compare key specifications (Vce, Ic, Pd) before substituting, as small differences can affect safety and performance.
What package does the 2SC3306 transistor use?
The 2SC3306 transistor uses a TO-247 package, known for its good thermal dissipation.
What maximum current can the 2SC3306 transistor handle?
This transistor can handle a maximum current of 10 amperes.
What applications is the 2SC3306 transistor recommended for?
It is recommended for power amplifiers, switched-mode power supplies, motor controllers and other power electronic equipment.
What is the maximum power the 2SC3306 transistor can handle?
It can handle a maximum power of 100 watts.
Is the 2SC3306 compatible with other transistors in TO-247 package?
Yes, the 2SC3306 is compatible with circuits that use transistors in TO-247 package, making integration easier.
