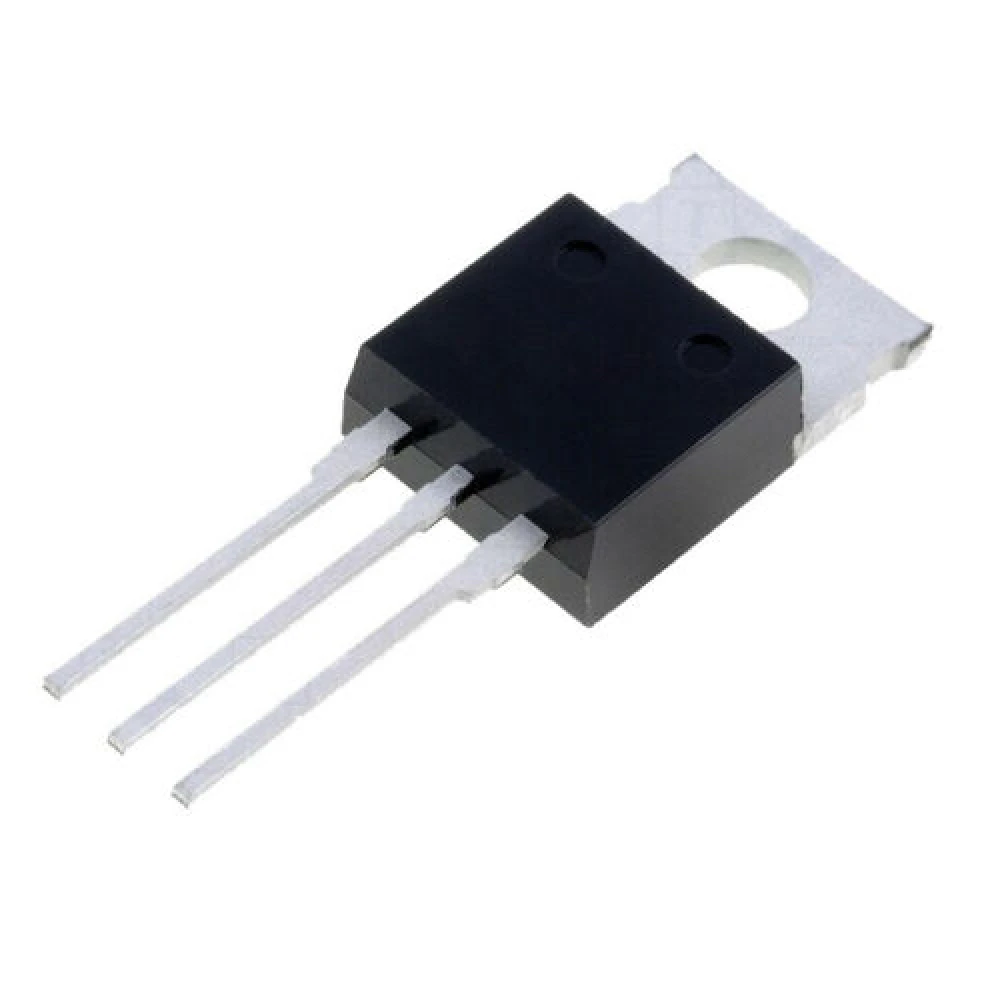

5pcs IRF540N MOSFET Transistor 100V 33A 130W TO220 - Pack of 5
Brand: satkit
1.72€
VAT included (Ex VAT: 1.40 €)
In Stock - Ships immediately
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The 5pcs IRF540N MOSFET Transistor 100V 33A 130W TO220 pack is a set of N-channel MOSFET transistors designed for electronic applications that require high efficiency and the ability to handle current and voltage.
Main features:
- Category: N-Channel MOSFET
- Maximum voltage: 100V
- Maximum current: 33A
- Internal resistance (Rds(on)): 44mΩ
- Gate voltage: 20V
- Switching time: 35ns (rise and fall)
- Power dissipation: 130W
- Package: TO-220
- Operating temperature range: -55°C to 175°C
Typical uses:
- Control of electric motors in DIY and professional projects.
- Power amplifiers and switched-mode power supplies.
- Electronic switches for high-current loads.
- Applications in robotics and embedded systems that require high efficiency.
Compatibility: This transistor is compatible with circuits operating within its electrical specifications, especially in projects that require an N-channel MOSFET with high current and voltage capability.
This pack of 5 units provides spares or allows several circuits to be implemented at the same time, ensuring reliable and long-lasting performance thanks to its TO-220 package, which helps with heat dissipation.
- Pack of 5 IRF540N N-channel MOSFET transistors
- Maximum voltage of 100V for demanding applications
- Maximum current of 33A for high loads
- Low internal resistance of 44mΩ for efficiency
- Power dissipation of 130W for extended use
- TO-220 package for better heat dissipation
- Fast switching time of 35ns
- Operating temperature from -55°C to 175°C
Customer Questions & Answers
What installation precautions are needed to avoid damage from overheating or overcurrent in the IRF540N?
To avoid damage, it is essential to ensure proper heat dissipation by using a suitable heatsink if dissipation exceeds 2 W, and to respect the limits: max 100 V drain-source, 33 A continuous and 130 W power. Also avoid spikes above the 20 V gate voltage and protect against electrostatic discharge before installation.
What types of control signals and logic circuits is the IRF540N gate compatible with?
The IRF540N typically needs a gate voltage of at least 10 V for efficient conduction, although it may begin to turn on from 2–4 V (Vgs(th)). It works well with MOSFET drivers or logic circuits with a matching stage; it is not recommended to connect it directly to 3.3 V microcontrollers without an intermediate driver.
What type of protection or safety standards should the installation of these MOSFETs comply with in industrial systems?
In industrial systems, installation should include overload protection (fuses or circuit breakers), transient suppression (flyback diodes or varistors), and compliance with standards such as IEC 60950 (electrical safety) and ESD (electrostatic discharge protection) to ensure safe operation and component durability.
What is the IRF540N MOSFET transistor used for?
The IRF540N is an N-channel MOSFET transistor used to control high-current and high-voltage electrical loads in electronic circuits, such as motors, amplifiers and power supplies.
How many units are included in this pack?
This pack includes 5 units of the IRF540N MOSFET transistor.
What package does the IRF540N come in?
The IRF540N comes in a TO-220 package, which helps with heat dissipation and mounting in circuits.
What is the maximum voltage and current this transistor can handle?
The transistor supports a maximum voltage of 100V and a maximum current of 33A.
Is it suitable for projects that require high power dissipation?
Yes, this transistor has a maximum power dissipation of 130W, ideal for applications that require high power handling.
