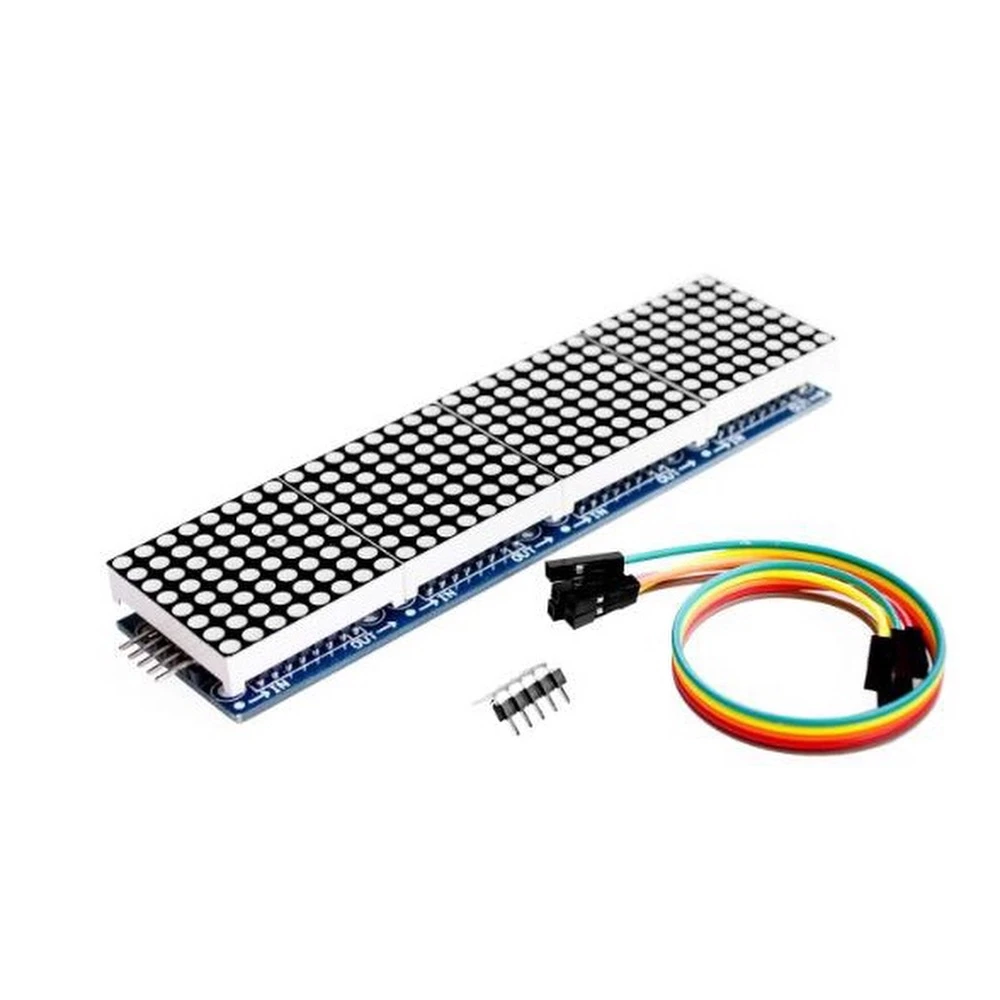

8x8 Dot Matrix Module MAX7219 for Arduino and Raspberry Pi

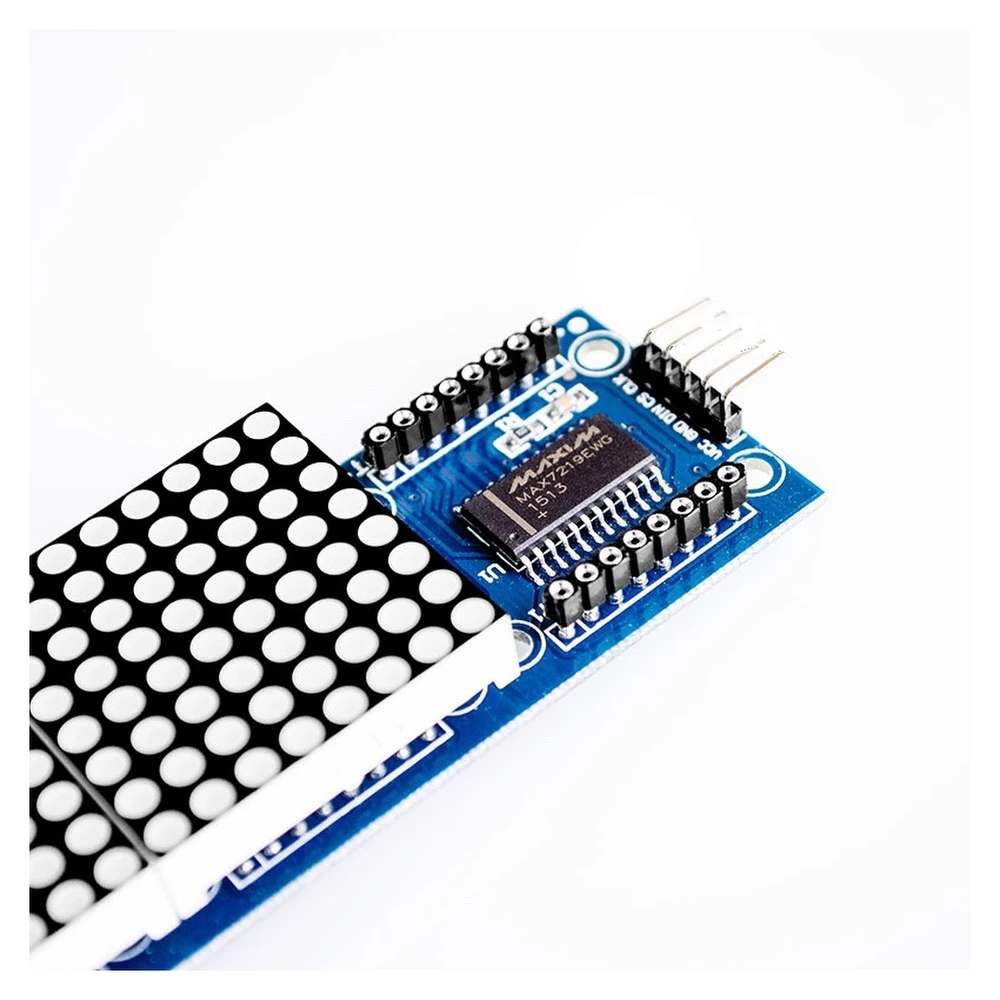

Vista lateral del módulo matriz de puntos 8x8 MAX7219 para Raspberry Pi

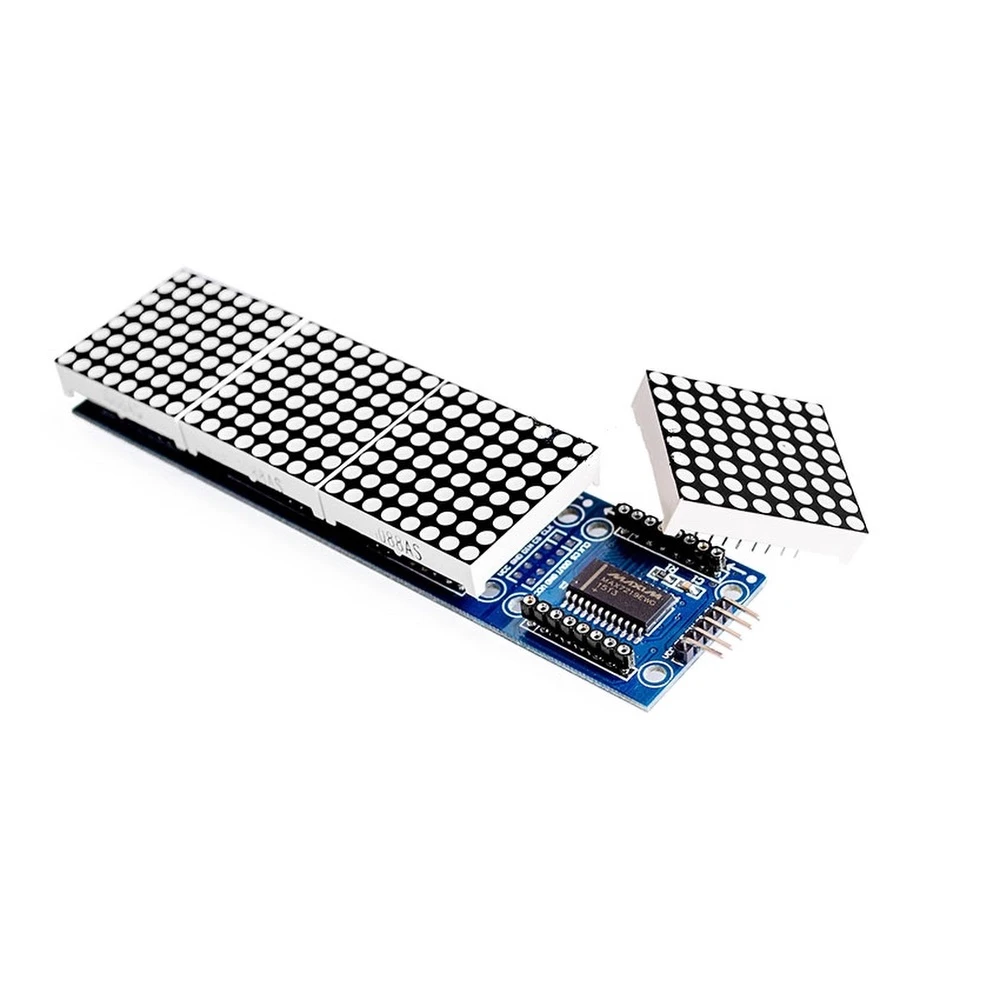

Conexiones del módulo matriz de puntos 8x8 MAX7219 para proyectos Arduino

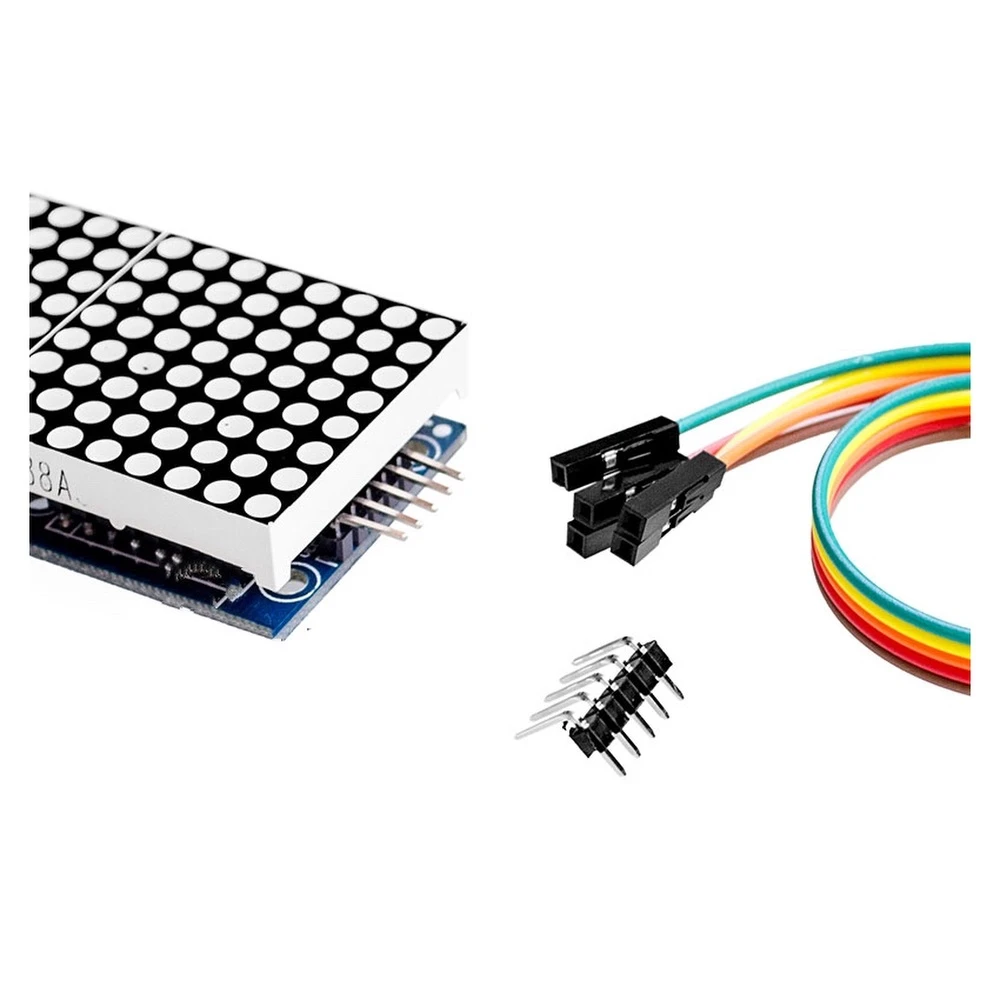

Display LED 8x32 del módulo matriz de puntos 8x8 MAX7219 para electrónica

8x8 Dot Matrix Module MAX7219 for Arduino and Raspberry Pi

Name: 8x8 Dot Matrix Module MAX7219 for Arduino and Raspberry Pi
Brand: satkit
SKU: 1c080505
Price: 6.77 EUR
Availability: InStock

Brand: satkit

Be the first to review this product

6.77€

VAT included (Ex VAT: 5.50 €)

Limited stock

Standard delivery Wed, Apr 29 - Fri, May 1

Express delivery Mon, Apr 27 - Tue, Apr 28

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

The 8x8 MAX7219 dot matrix module is an essential component for electronic projects with Arduino and Raspberry Pi. This LED display lets you show text, numbers and simple graphics using a dot matrix that makes it easy to create tickers, digital clocks, animated messages and other information displays.

This module is controlled by the MAX7219 chip, which simplifies LED matrix management and reduces the number of pins needed for connection. Its operating voltage is 5V, making it compatible with most Arduino boards and similar systems.

Key features:

Controller: MAX7219 for efficient LED matrix control.
Operating voltage: 5V, compatible with Arduino and Raspberry Pi.
Resolution: 8 x 32 pixels, with 3 mm red LED dots for high visibility.
Compact dimensions: 32 x 129 x 14 mm, easy to integrate into projects.
Standard connections: VCC, GND, DIN, CS and CLK for easy installation.

Typical uses:

Information displays for DIY projects with Arduino and Raspberry Pi.
Creating tickers to show dynamic messages or alerts.
Displaying numbers and text on electronic devices.
Educational projects to learn about LED matrices and MAX7219 controllers.

Compatibility: This module is compatible with Arduino boards and Raspberry Pi, making it easy to integrate into a wide range of electronic and hobby projects.

With this dot matrix module, developers and electronics enthusiasts can create custom, functional LED displays with ease, taking advantage of the power of the MAX7219 controller to simplify wiring and programming.

MAX7219 controller for efficient LED matrix control
Operating voltage: 5V compatible with Arduino and Raspberry Pi
8 x 32 pixel resolution with 3 mm red LEDs
Compact dimensions: 32 x 129 x 14 mm
Connections: VCC, GND, DIN, CS, CLK for easy integration

Customer Questions & Answers

What are the exact dimensions of the matrix and what is included in the box when you receive the product?

The module measures 32 mm high, 129 mm long and 14 mm deep. The box includes the assembled matrix and the pins/connectors needed for integration. Jumper wires and a physical manual are usually not included.

Is it compatible with 3.3V microcontrollers and which pins are required for connection?

The module is designed to operate at 5 V, so connecting 3.3 V signals directly may result in it not being recognised or in unstable operation. A logic level converter is recommended. The required pins are: VCC (5V), GND (ground), DIN (data), CS (chip select), CLK (clock).

How is it installed and what is the best practice to ensure the module is not damaged during use?

It is recommended to solder the pins carefully to avoid short circuits and to connect the power supply always at the specified voltage. Good practice is to add current-limiting resistors if several modules are combined and to avoid exposing the circuit to moisture or overcurrent. The light should be kept within the specified values to prevent overheating.

What performance can be expected in terms of refresh rate and visibility, and what are the typical operating limits?

The MAX7219 allows a refresh rate of up to 800 Hz, sufficient for stable images without visible flicker to the naked eye. The module works optimally between 0–50 °C and the 5V supply must not be exceeded, nor the total current recommended in the datasheet (generally around 320 mA for 32 LEDs lit simultaneously).

Which boards is this 8x8 dot matrix module compatible with?

This module is compatible with Arduino boards and Raspberry Pi, operating at 5V.

What type of controller does this module use?

It uses the MAX7219 controller, which makes LED matrix control easier by reducing the number of pins needed.

What are the module dimensions?

The module measures 32 x 129 x 14 mm, which makes it easy to integrate into compact projects.

What kind of information can be shown on this display?

Text, numbers and simple graphics can be shown, ideal for tickers and information displays.

How is the module connected to an Arduino or Raspberry Pi board?

It connects via the VCC, GND, DIN, CS and CLK pins, following the standard connections for this type of module.
