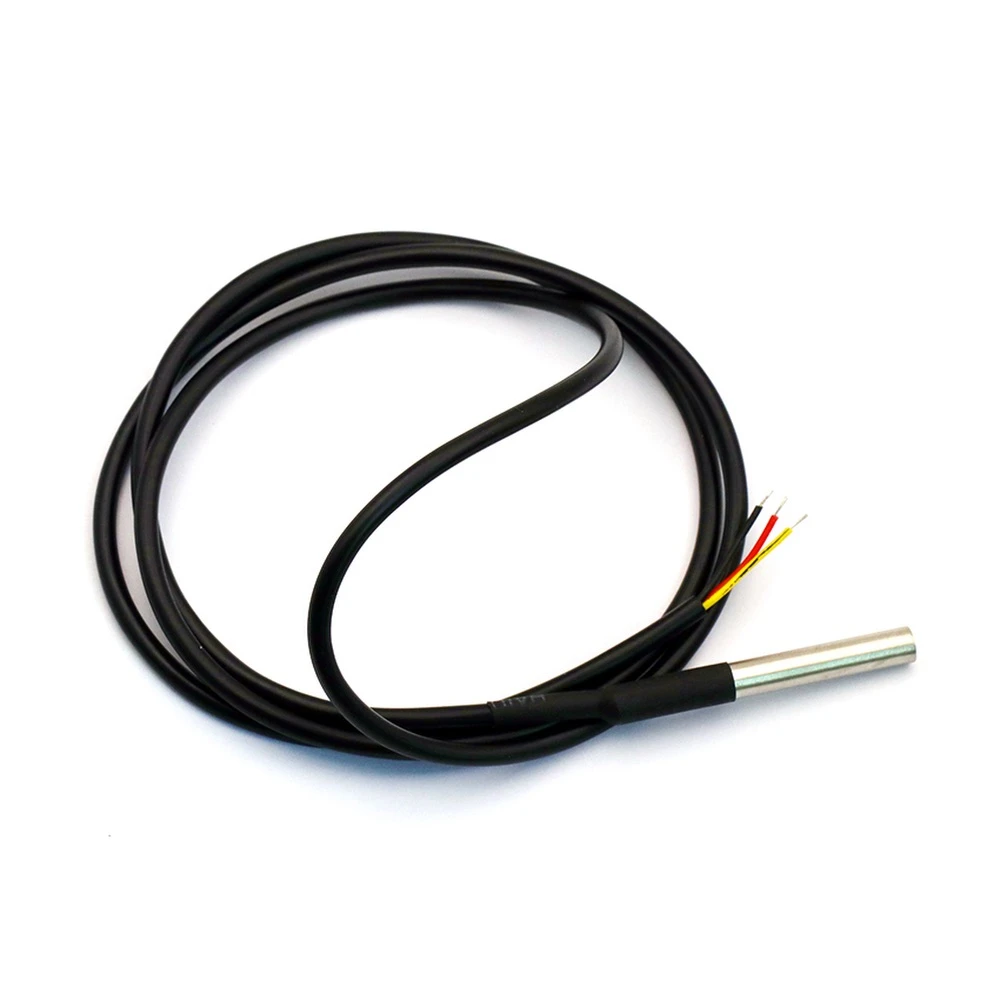

DS18B20 Waterproof Digital Temperature Sensor for Raspberry Pi and Arduino
Brand: satkit
VAT included (Ex VAT: 2.15 €)
DS18B20 Waterproof Digital Temperature Sensor
The DS18B20 sensor is a digital device designed to measure temperature with high accuracy and water resistance, making it perfect for use in liquids and outdoor environments. This sensor is fully compatible with popular platforms such as Raspberry Pi and Arduino, making it easy to integrate into electronics and automation projects.
Main features:
- Waterproof digital temperature sensor with cable of approximately 1 metre.
- Temperature range: from -50 °C to +110 °C, suitable for a wide range of applications.
- High measurement accuracy with a margin of error of only 0,5%.
- Sensor diameter: 6 mm; cable diameter: 3,5 mm, compact and easy to install.

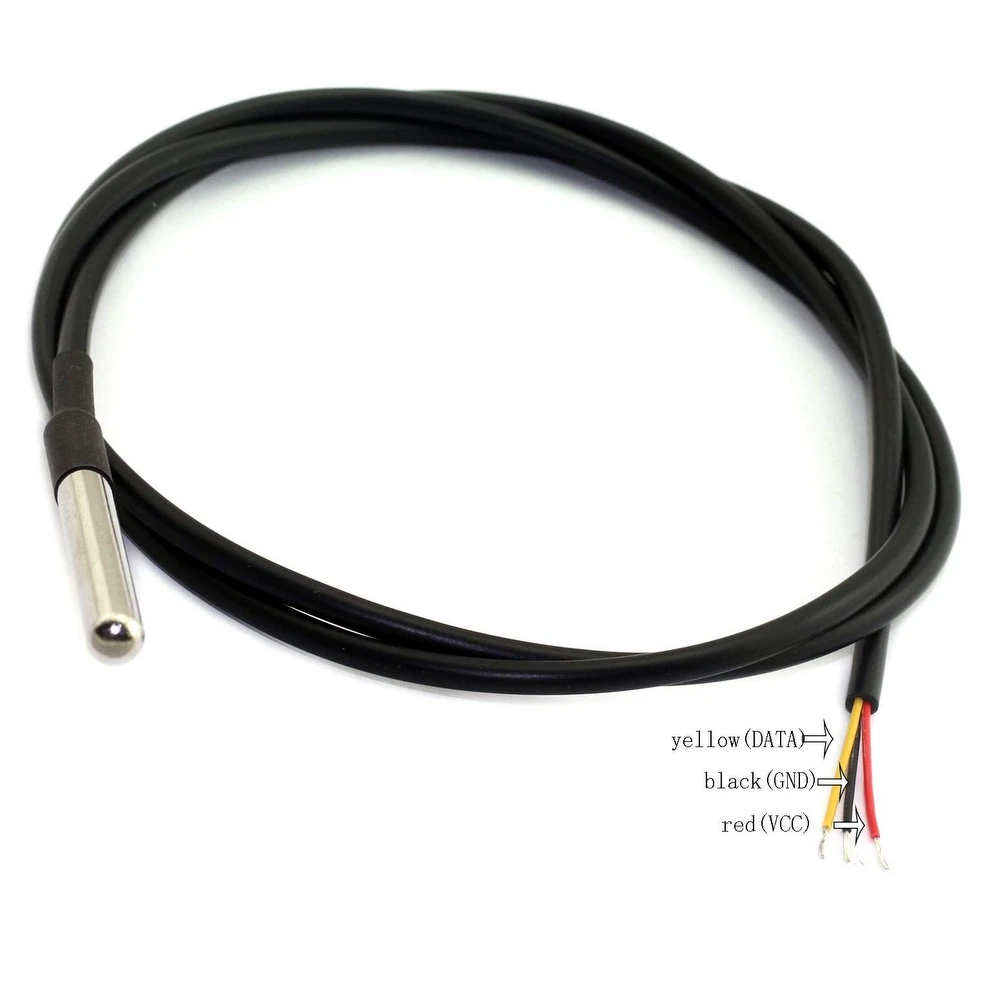

- Colour-coded connections: red wire for VCC, black wire for GND and yellow wire for data.
- Requires a 4.7 kOhm resistor for correct connection with Raspberry Pi or Arduino.
Typical uses:
- Temperature measurement in liquids, such as water or chemical solutions.
- Outdoor environmental monitoring where humidity can affect conventional sensors.
- Home automation and climate control projects with Arduino microcontrollers or Raspberry Pi boards.
Compatibility:
This sensor is 100% compatible with Raspberry Pi and Arduino systems, making it a reliable option for developers and hobbyists looking to measure temperature in damp or water-exposed environments.
Important note: For optimum operation, it is necessary to connect a 4.7 kOhm resistor between the data wire and the power supply (VCC) when using this sensor with Raspberry Pi or Arduino.
- Waterproof digital temperature sensor with 1 metre cable
- Temperature range from -50 °C to +110 °C
- 0,5% accuracy for reliable measurements
- Sensor diameter: 6 mm; cable diameter: 3,5 mm
- Compatible with Raspberry Pi and Arduino
- Requires a 4.7 kOhm resistor for correct connection
- Colour-coded wires: red (VCC), black (GND), yellow (data)
Customer Questions & Answers
Is the DS18B20 sensor compatible with Arduino and Raspberry Pi?
Yes, the DS18B20 sensor is 100% compatible with Arduino and Raspberry Pi for temperature measurement projects.
Is the DS18B20 sensor really waterproof?
Yes, this model is fully protected and suitable for measuring temperature in liquids and humid environments.
What resistor do I need to connect the DS18B20 sensor?
A 4.7 kOhm resistor is recommended between the data wire and VCC for correct operation.
What temperature range can the DS18B20 sensor measure?
The sensor can measure temperatures from -50 °C to +110 °C.
What is the cable length of the DS18B20 sensor?
The cable is approximately 1 metre long, making it easy to install in different environments.
