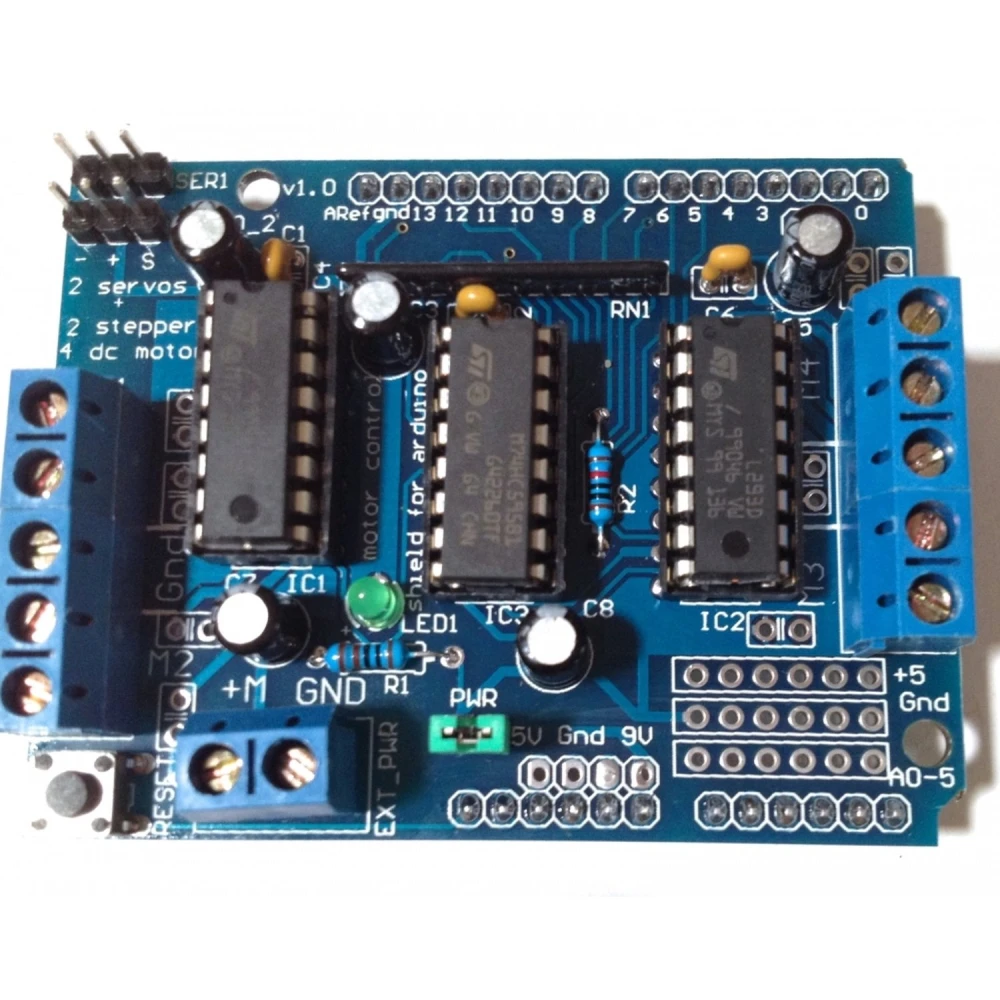

L293D Arduino Shield Driver for DC and Stepper Motor Control and Expansion

Product Description

The L293d Arduino Shield is an expansion board designed for efficient control of DC motors and stepper motors in Arduino-based projects. This shield lets you drive up to 4 DC motors or 2 stepper motors simultaneously, making it easier to build robotics and automation systems with great precision and reliability.

Main Features

• Controls up to 4 bidirectional DC motors with 8-digit speed regulation (0.5% resolution).
• Supports 2 stepper motors with positive and negative control, and single or double stepping control.
• Includes two 5V ports for servo motors, connected to Arduino's high-resolution timer for precise control.
• 4-channel H-bridge based on the L293D chip, capable of supplying up to 0.6A per channel with thermal overload protection.
• Motor power range from 4.5V to 35V DC, adapting to different types of motors.
• Terminal blocks for connecting thick cables (10-22 AWG), ensuring a secure and stable connection.
• Integrated reset button for Arduino, making quick system reinitialisation easier.
• Guaranteed compatibility with Arduino Mega, Diecimila, Duemilanove and Uno boards.
• Compact dimensions of 70 x 55 mm, ideal for projects with limited space.

Typical Applications

• Educational robotics and DIY projects that require motor control.
• Automation systems that need simultaneous control of multiple motors.
• Arduino-controlled vehicle prototypes, including robots with DC motors and stepper motors.
• Servo motor control for precision mechanisms.

Compatibility and Use

This shield is compatible with Arduino Mega, Diecimila, Duemilanove and Uno boards, making it easy to integrate into a wide range of projects. Its plug-and-play design lets you connect it directly to the Arduino board without the need for extra cables. In addition, its connection to Arduino's high-resolution timer allows advanced control of servo motors and stepper motors.

To use the L293d Arduino Shield, simply mount the shield onto your compatible Arduino board and connect the motors to the terminal blocks. You can control the motors through code in the Arduino IDE using standard libraries for motors and servo motors.

Technical Specifications

• Driver: L293D
• Motor power supply: 4.5 - 35V DC
• Maximum current per output: 0.6 Amperes
• Dimensions: 70 x 55 mm
• Connections: terminal blocks for 10-22 AWG cables

This shield is an efficient and cost-effective solution for anyone looking to expand motor control capabilities in their Arduino projects, offering robustness, compatibility and ease of use.

• Controls up to 4 DC motors or 2 stepper motors simultaneously
• 4-channel H-bridge with L293D chip and thermal protection
• Two 5V ports for servo motors with Arduino timer connection
• Compatible with Arduino Mega, Diecimila, Duemilanove and Uno
• Motor supply from 4.5V to 35V DC
• Maximum current of 0.6A per output
• Terminal blocks for thick cables (10-22 AWG)
• Integrated reset button for Arduino
• Compact 70x55 mm dimensions
