8-Model Diode Pack - 100 Assorted Units for Electronics

Name: 8-Model Diode Pack - 100 Assorted Units for Electronics
Brand: satkit
SKU: G0X0303-pack-diodos-8-model
Price: 3.69 EUR
Availability: InStock

Brand: satkit

Be the first to review this product

3.69€

VAT included (Ex VAT: 3.00 €)

Volume Discounts

Quantity	Price	Save
2+	3.54 €	-4%
10+	3.36 €	-9%
20+	2.95 €	-20%

In Stock - Ships immediately

Standard delivery Wed, Apr 29 - Fri, May 1

Express delivery Mon, Apr 27 - Tue, Apr 28

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

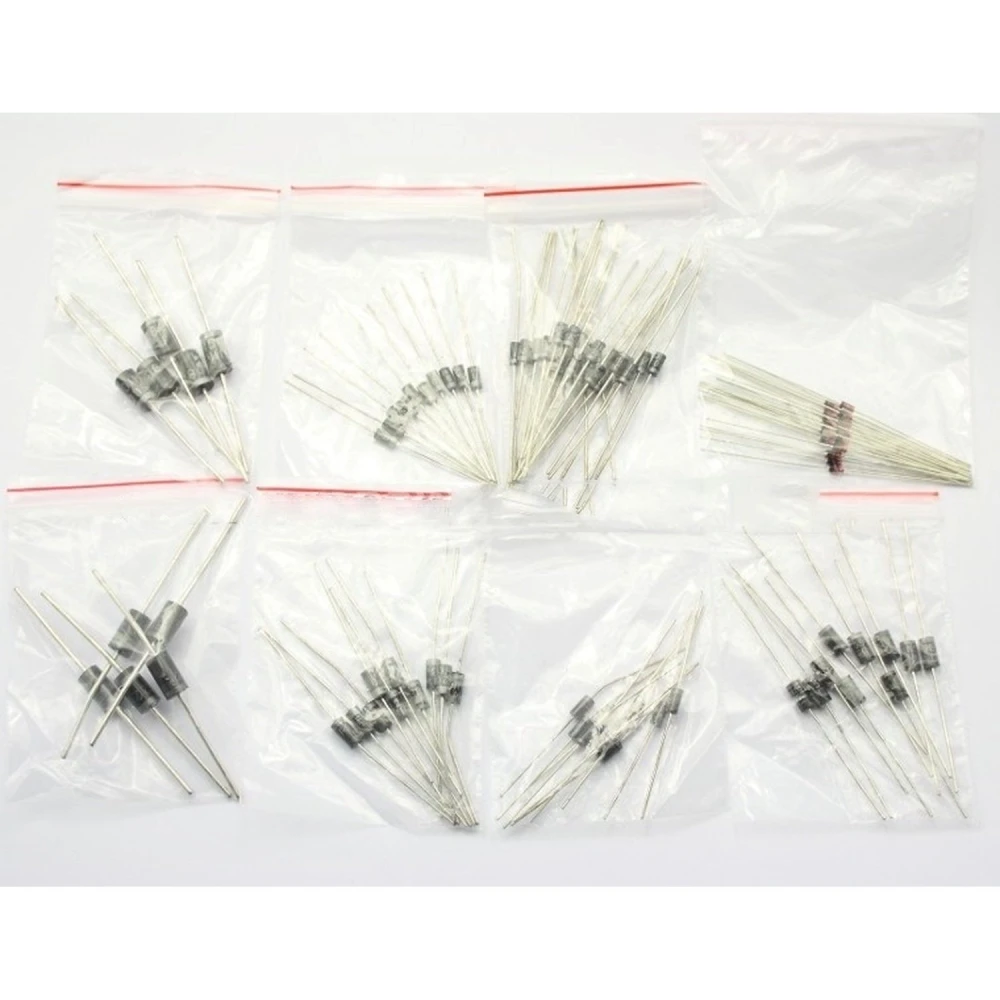

This diode pack offers a selection of 100 units across 8 different models, covering some of the most commonly used diodes in electronics. Each model comes in individual zip bags for easy storage and use.

Main features:

Total of 100 diodes in the pack.
8 different models included: 1N4148, 1N4007, 1N5819, 1N5399, FR107, FR207, 1N5408 and 1N5822.
Supplied in zip bags to keep everything organised.

Detailed contents:

25 units of 1N4148 diodes, known for fast switching.
25 units of 1N4007 diodes, ideal for rectification in power circuits.
10 units of 1N5819 Schottky diodes, with low voltage drop.
10 units of 1N5399 diodes, for high-current applications.
10 units of FR107 diodes and 10 units of FR207 diodes, used for protection and rectification.
5 units of 1N5408 diodes and 5 units of 1N5822, for high-voltage and high-current applications.

Typical uses:

Repair and maintenance of electronic equipment.
DIY projects and electronic prototypes.
Rectification and protection applications in circuits.
Ideal for technicians, hobbyists and electronics students.

Compatibility: These diodes are compatible with a wide range of electronic circuits and soldering stations. Their variety makes them suitable for a range of basic and advanced electronics needs.

Note: This product is currently out of stock. We recommend checking similar products in our store to find suitable alternatives.

Pack of 100 assorted electronic diodes.
Includes 8 different models widely used in electronics.
Diodes supplied in zip bags for easy handling.
Ideal for repairs, maintenance and DIY projects.
Included models: 1N4148, 1N4007, 1N5819, 1N5399, FR107, FR207, 1N5408, 1N5822.

Customer Questions & Answers

What are the maximum current and voltage ratings for each model?

Typical values: 1N4148 (100V, 300mA), 1N4007 (1000V, 1A), 1N5819 (40V, 1A), 1N5399 (600V, 1.5A), FR107 (1000V, 1A), FR207 (1000V, 2A), 1N5408 (1000V, 3A), 1N5822 (40V, 3A). It is advisable to consult the specific datasheets for extreme conditions or pulses.

Can these diodes be used in AC and DC circuits without special adaptations?

Yes, most are suitable for both types of signal, although the Schottky type is optimised for DC and low forward voltage drop. It is important to observe polarity and electrical limits to avoid damage. Their DO-41 or DO-201 package allows them to fit standard integration requirements.

What storage and handling care do these diodes require to avoid failures due to ESD or moisture?

It is advisable to keep the diodes in their resealable bags and handle them with anti-static tweezers; although most have glass or plastic packages, prolonged exposure to moisture or electrostatic discharge can reduce their service life. For professional use, storage below 60% RH and in low-static environments is ideal.

Do they offer any warranty or the possibility of replacing specific models in case of defects?

Usually these generic kits do not include an extended warranty, beyond the legal warranty for manufacturing or delivery defects (normally 14 days in e-commerce); there is no selective replacement of individual models, only full pack replacement in the event of issues. It is suggested to contact the seller for details according to the current policy.

How many diode models are included in the pack?

The pack includes 8 different models of electronic diodes.

What is the total quantity of diodes in the pack?

The pack contains a total of 100 diodes.

What can these diodes be used for?

They are ideal for electronic repairs, DIY projects, prototypes, and rectification and protection applications in circuits.

Are the diodes organised for easy use?

Yes, each model comes in individual zip bags to keep them organised.

Is this product available to buy now?

This product is currently out of stock, but you can check similar products in the store.
