E315 4LED Number Plate Frame with Night Vision Rear Camera
Brand: satkit
VAT included (Ex VAT: 15.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 17.71 € | -4% |
| 10+ | 17.16 € | -7% |
| 20+ | 15.31 € | -17% |
The E315 4LED Number Plate Frame with Night Vision Rear Camera is a device designed to offer a practical and safe solution when parking and manoeuvring your vehicle. This frame includes a high-quality camera with night vision, providing clear visibility even in low-light conditions.
Main features:
- Model: E315
- LED quantity: 4 LEDs for efficient night vision
- Image sensor: 1/3 colour CMOS
- Operating voltage: DC 12V
- Image device: OV7950/1030
- TV system: NTSC
- Definition level: 420 TV lines
- Resolution: 656 x 492 pixels
- Photosensitive area: 4,08 mm x 3,12 mm
- Shutter speed: 1/60-1/20000
- Video output: 1,0 el VP - P, 75 OHM
- Gamma factor: 0.45
- Water resistance: IP67-IP68, ideal for outdoor conditions
- White balance: Automatic
- Lens angle: 170º for a wide field of view
- Scanning system: Interlaced 2:1
- Minimum illumination: 0,1 Lux/F = 1,2 (0 Lux with IR activated)
- Colour: Black
- Operating temperature: -20°C a 75°C, 95% HR MAX
- Storage temperature: -40°C a 85°C, 95% RH MAX
- Compatibility: Compatible with cars, lorries, RVs, minibuses and other vehicles
Typical uses:
This rear camera frame is perfect for improving parking safety, especially in low light or at night. Its wide viewing angle and water resistance make it ideal for different types of vehicles and weather conditions.

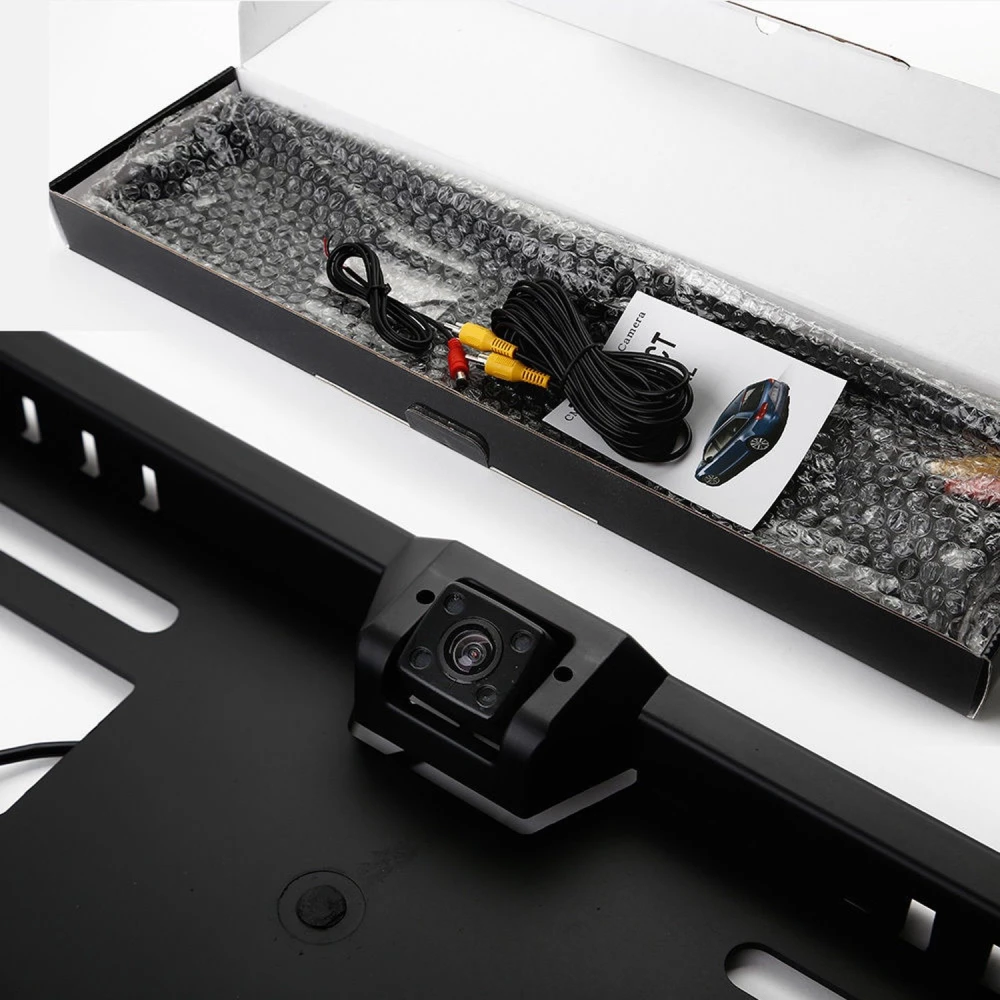

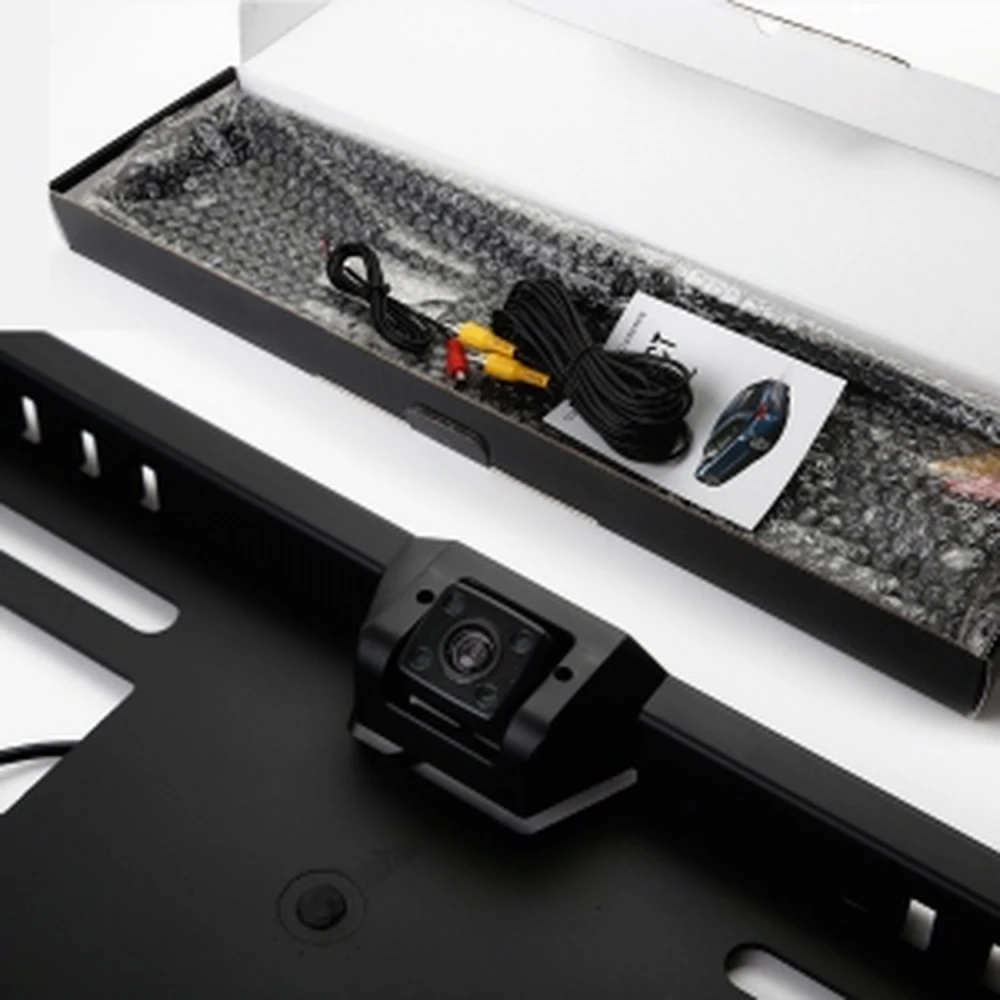

Package contents:
- 1 x E315 number plate night vision camera
- 1 x Power cable
- 1 x Video cable
- 1 x User manual
This product is designed for easy installation and long-lasting use, thanks to its durable, waterproof construction. The camera provides clear, sharp images that make parking easier and improve road safety.
- E315 number plate frame with rear camera and 4 LEDs for night vision
- 1/3 colour CMOS image sensor and OV7950/1030 device
- 656 x 492 pixel resolution with 420 TV lines for clear images
- Wide 170º lens angle for better rear visibility
- Water resistant with IP67-IP68 rating, ideal for outdoor use
- Compatible with cars, lorries, RVs, minibuses and more
- Includes power and video cables plus user manual
Customer Questions & Answers
Is the camera compatible with any screen or car stereo, and which connectors does it use?
The camera uses an analogue composite video output (RCA connector), compatible with most car stereos, portable monitors and screens that accept NTSC signal and RCA input. It requires 12 V DC power from the vehicle's electrical system. It is not compatible with digital or USB inputs without an adapter.
What are the operating limits in terms of temperature and humidity, and how well does it handle extreme conditions?
It operates in a range from -20°C to 75°C with a maximum relative humidity of 95%. For storage, it can withstand -40°C to 85°C. Thanks to its IP67/IP68 rating, it resists brief immersion and dust, making it suitable for most climate zones, although prolonged exposure to extreme temperatures or direct water pressure may affect longevity.
What maintenance does the camera require, and is it possible to get spare parts or make a warranty claim?
It does not require internal maintenance; it is recommended to clean the lens and check the seal regularly. If condensation or poor performance in the rain is detected, it may indicate that the seal has been damaged. The usual warranty is 1 year against manufacturing defects (please check with the seller), but spare connectors and wiring can be found in specialist shops.
Is this camera compatible with any type of vehicle?
Yes, the E315 camera frame is compatible with a range of vehicles such as cars, lorries, RVs and minibuses.
Does the camera work in low light or at night?
Yes, it has 4 LEDs for night vision and a minimum illumination of 0 Lux with IR activated, ensuring good visibility in the dark.
Is this rear camera waterproof?
Yes, it has an IP67-IP68 waterproof rating, making it water resistant and suitable for outdoor use.
What power supply does this camera require?
The camera operates with DC 12V, which is common in vehicles.
What is included in the package when buying this product?
It includes the night vision camera, power cable, video cable and a user manual.
