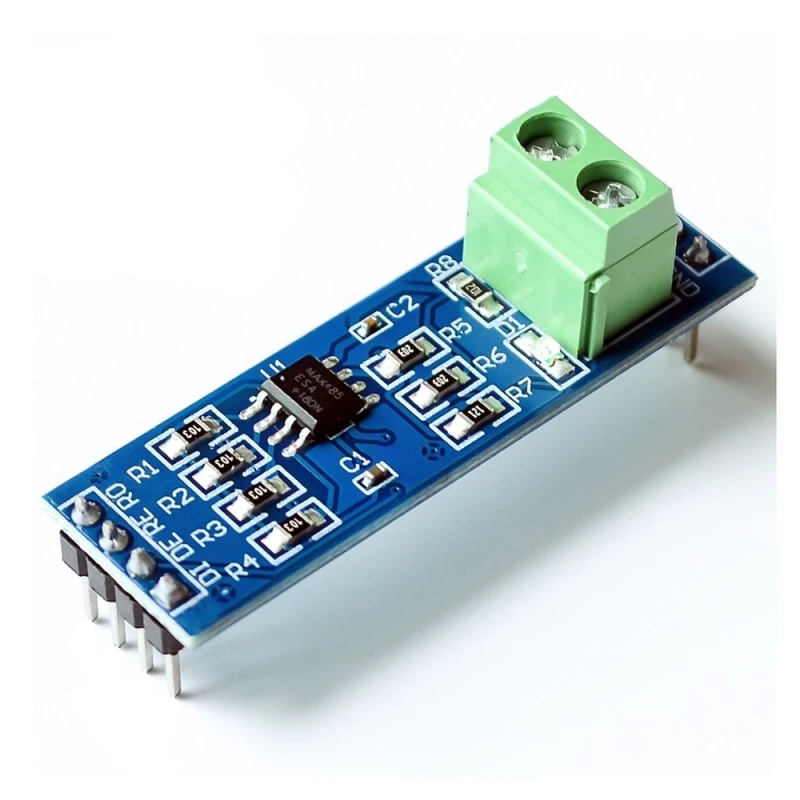

MAX485 TTL RS485 Adapter for Arduino and Raspberry Pi

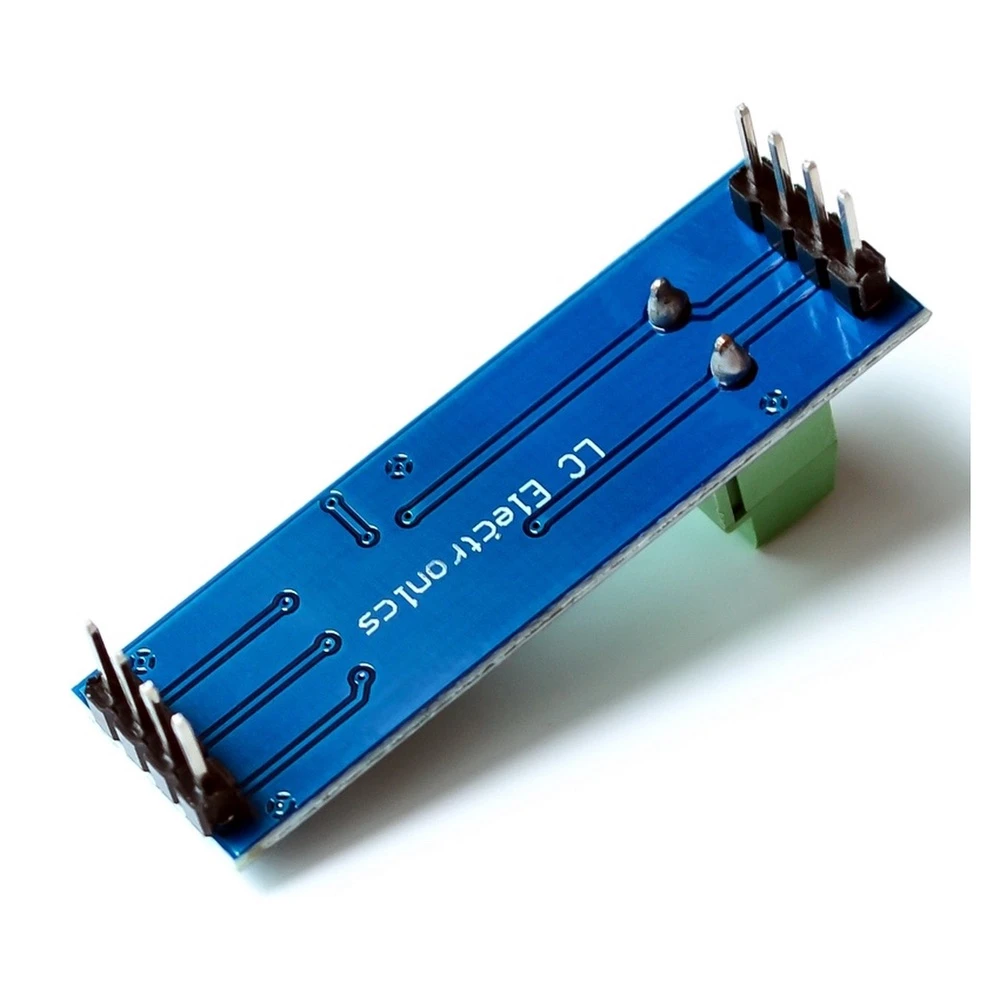

Módulo RS485 para Raspberry Pi con terminales de tornillo

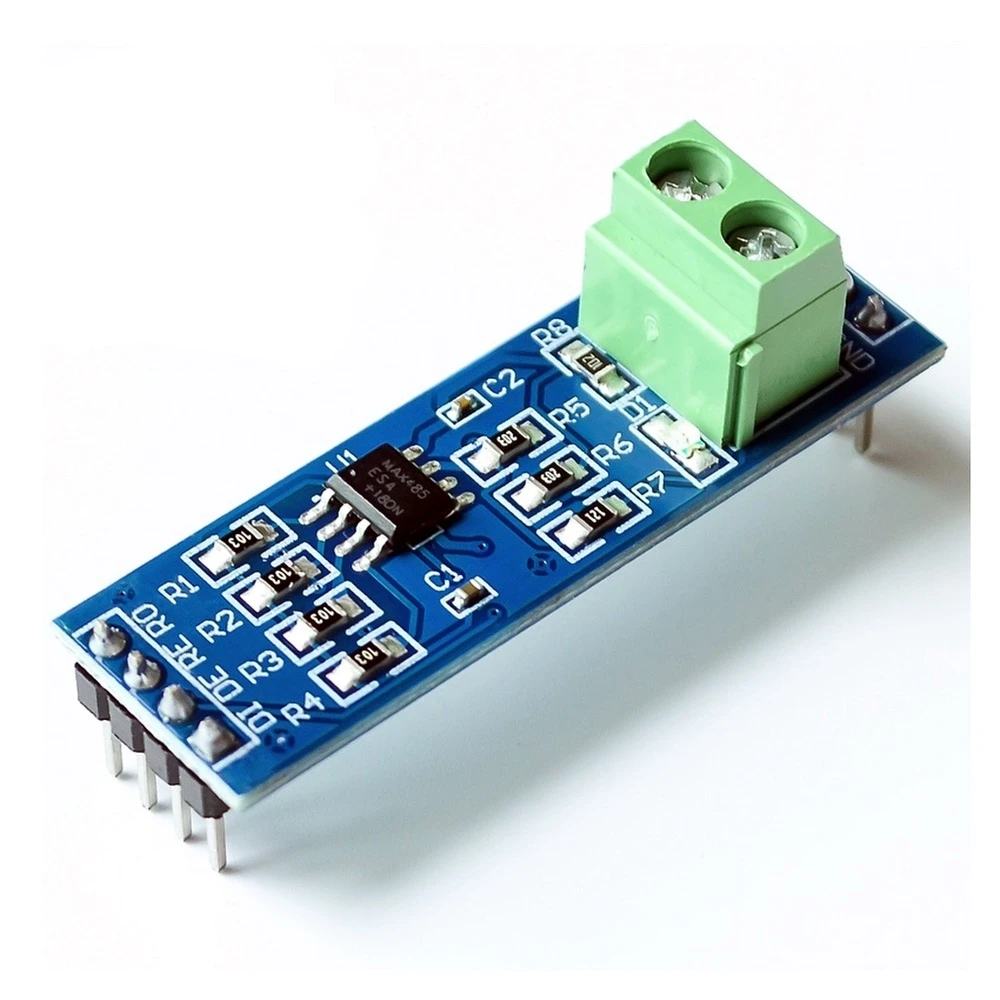

MAX485 TTL RS485 Adapter for Arduino and Raspberry Pi

Name: MAX485 TTL RS485 Adapter for Arduino and Raspberry Pi
Brand: satkit
SKU: 1c080406
Price: 2.35 EUR
Availability: InStock

Brand: satkit

Be the first to review this product

2.35€

VAT included (Ex VAT: 1.91 €)

Limited stock

Standard delivery Wed, Apr 29 - Fri, May 1

Express delivery Mon, Apr 27 - Tue, Apr 28

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

The MAX485 TTL RS-485 Interface Module Adapter is an essential component for electronic projects that require long-distance serial communication. Compatible with platforms such as Arduino and Raspberry Pi, this module makes it easy to implement the RS-485 protocol, known for its robustness and ability to communicate in industrial environments.

Main features:

IC: MAX485
Protocol: RS-485
Operating voltage: 5V
Dimensions: 14 mm x 44 mm
Connections: 2-pin screw terminals for AB connections and pins for breadboard or DuPont wires

This module allows you to easily add a serial interface to your projects, making it useful for extending the range of serial connections such as MCU UART/USART and for DMX applications. Its compact design and the inclusion of screw terminals make connection and mounting on breadboards easier.

Typical uses:

Serial communication in Arduino and Raspberry Pi projects
Implementation of RS-485 networks for industrial control
Extending serial communication range in embedded systems
Projects that require DMX communication

Compatibility: Compatible with Arduino boards, Raspberry Pi and other microcontrollers that support TTL and RS-485 serial communication.

Package contents:

1 x MAX485 module

This adapter is an economical and efficient solution for those looking to implement RS-485 communication in their electronic projects, providing a stable and reliable connection.

MAX485 IC for robust and reliable RS-485 communication
5V operating voltage compatible with Arduino and Raspberry Pi
Compact 14 mm x 44 mm dimensions for easy integration
Screw terminals for secure AB connections
Compatible with UART/USART protocols and DMX applications
Ideal for extending serial communication range in electronic projects

Customer Questions & Answers

What are the dimensions, weight and exact contents included in the package?

The module measures 44 mm long by 14 mm wide, with an approximate weight of 4 grams. The package includes exclusively 1 MAX485 module, with no cables or additional accessories.

Does it require any special maintenance or does the module have any notable operating limitations in industrial environments?

The module does not require periodic maintenance, but it should be protected from moisture and dust to prevent corrosion. It operates correctly between 0°C and 70°C; exceeding this range reduces service life and reliability. In industrial environments with high electromagnetic noise, shielding the cables is recommended to maximise stability.

What objective differences does it have compared with other TTL-RS485 conversion alternatives in terms of speed and distance?

The MAX485 supports transmission speeds of up to 2.5 Mbps and distances of up to 1.2 km with suitable wiring (twisted pair, 24 AWG), comparable to other standard RS-485 transceivers. Its low power consumption (less than 300 μA in standby) makes it efficient compared with older options such as the SN75176.

What is the MAX485 TTL RS485 adapter used for?

It is used to convert TTL signals to RS-485, allowing long-distance serial communication in Arduino and Raspberry Pi projects.

Is it compatible with Raspberry Pi?

Yes, this module is compatible with Raspberry Pi and Arduino, making RS-485 serial communication easier on both systems.

What voltage does the MAX485 module need?

The module operates with a 5V power supply.

What connections does the module have for easier use?

It has 2-pin screw terminals for AB connections and pins for a breadboard or DuPont wires.

Can I use it for DMX projects?

Yes, the module is useful for DMX applications and for extending the range of other serial connections.
