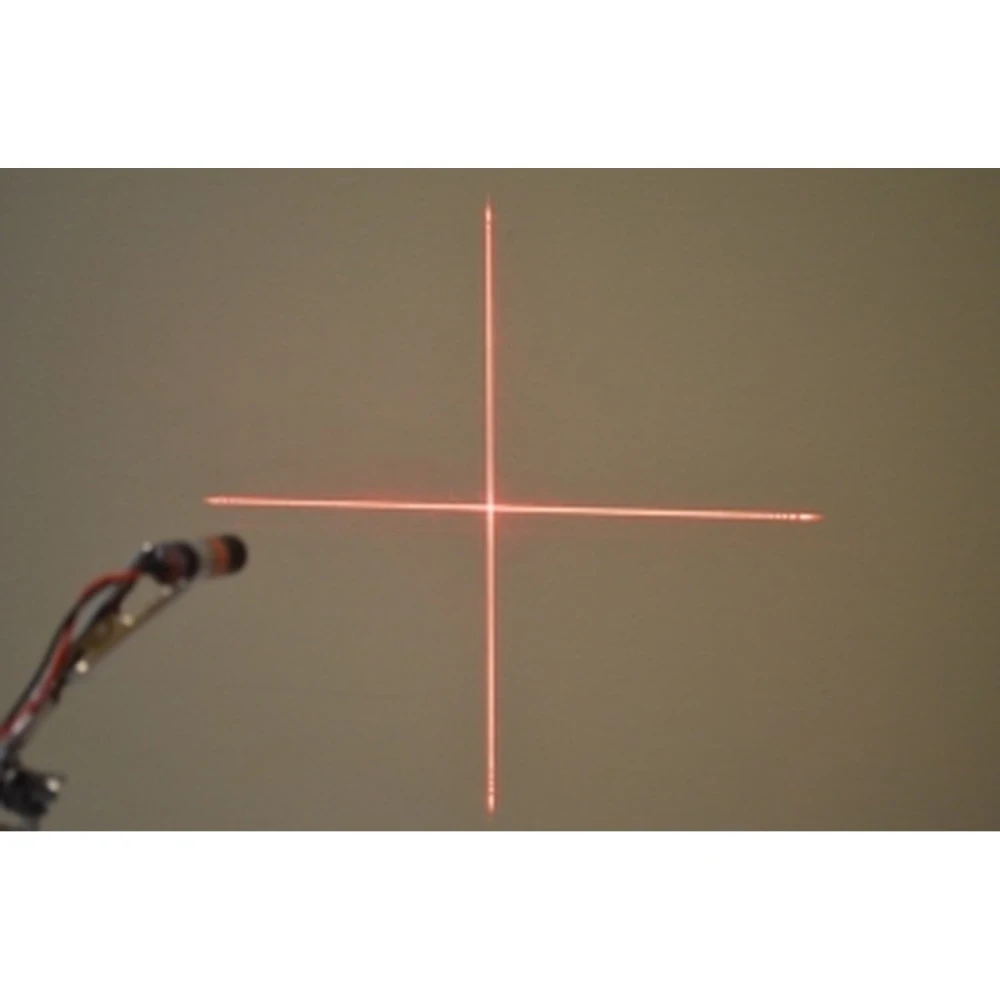

Red cross-line laser module 5mW 3V-5V for electronic measurement

Vista lateral del módulo láser rojo enfoque en cruz modelo LD-G650A23

Red cross-line laser module 5mW 3V-5V for electronic measurement

Name: Red cross-line laser module 5mW 3V-5V for electronic measurement
Brand: satkit
SKU: Y020205-Laser-cruz
Price: 4.92 EUR
Availability: InStock

Brand: satkit

Be the first to review this product

4.92€

VAT included (Ex VAT: 4.00 €)

Volume Discounts

Quantity	Price	Save
2+	4.72 €	-4%
10+	4.48 €	-9%
20+	3.94 €	-20%

In Stock - Ships immediately

Standard delivery Wed, Apr 29 - Fri, May 1

Express delivery Mon, Apr 27 - Tue, Apr 28

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

Product description

The 5mW 3V-5V red cross-line laser module, model LD-G650A23, is an electronic device designed for applications that require a precise and visible cross laser line. With a red 650nm light output, this module is ideal for electronic measuring equipment, soldering stations and other technical uses where accurate alignment is essential.

Main features

Model: LD-G650A23
Output: red cross line (650nm)
Compact size: F12.0 x 35 mm
Cable length: approximately 135 mm
Lightweight: 13,5 grams
Robust nickel-plated brass body
Operating voltage: 3.0V to 5V
Maximum current: 40 mA

Typical uses

This laser module is perfect for:

Electronic measuring equipment that requires cross reference lines.
Accessories for soldering stations, helping with precise component alignment.
Electronic projects that need a red cross-line laser for signalling or calibration.

Compatibility

Compatible with systems operating within a voltage range of 3V to 5V, this module integrates easily into standard electronic circuits and electronics kits.

Safety

This laser module emits light that may be harmful to the eyes. It is recommended not to expose your eyes directly to the laser or point it at other people. The use of special protective glasses for exposure to laser light is highly recommended.

Summary

The 5mW 3V-5V red cross-line laser module is an essential tool for electronics professionals and hobbyists looking for precision and quality in their projects and measuring equipment. Its compact and robust design, together with easy integration, makes it a versatile and reliable accessory.

LD-G650A23 model with red 650nm cross line
Operating voltage from 3V to 5V for flexibility
Durable nickel-plated brass body
Maximum current of 40 mA for energy efficiency
135 mm cable for easy project connection
Lightweight at 13,5 g for simple integration
Safety note: do not point the laser at eyes; use protective glasses

Customer Questions & Answers

What are the exact materials and dimensions of the laser module, and how do they affect its durability?

The module is made from nickel-plated brass, with dimensions of 12.0 mm in diameter by 35 mm in length, offering good corrosion resistance and mechanical strength for light industrial use. However, the nickel-plated finish may wear with continuous exposure to highly corrosive environments.

Is this laser module compatible with standard USB power supplies, and what are the recommended voltage and current values?

The module operates within a range of 3.0 V to 5.0 V DC, with a maximum consumption of 40 mA. It can be powered via USB ports (5 V); however, it is advisable to check that the supply can provide the required current steadily to avoid fluctuations or overheating.

What effective range and visibility does the laser cross have under different lighting conditions?

Under normal indoor lighting conditions, the cross pattern is clearly visible up to approximately 5–8 metres. Outdoors in full sunlight, visibility is significantly reduced and may require shading or use during low-light periods.

What specific applications is this module used for, and how does it compare with a continuous dot module?

This cross module is ideal for alignment in machining, carpentry or cutting marks, as it projects references on two axes. Compared with a dot laser, it provides greater control for tasks that require guidance on a plane, although the pattern may slightly disperse the light intensity compared with a single point.

What is the operating voltage of the red cross-line laser module?

The module works with an operating voltage between 3.0V and 5V.

What wavelength does the light emitted by this module have?

It emits red light with a wavelength of 650 nm.

What applications is this laser module suitable for?

It is ideal for electronic measurement, soldering stations and projects that require a precise cross-line laser.

What safety precautions should I take when using this module?

It should not be exposed directly to the eyes or pointed at other people. It is recommended to use special protective glasses for laser light.

What are the size and weight of the module?

The module measures approximately 12 mm in diameter by 35 mm long and weighs 13,5 grams.
