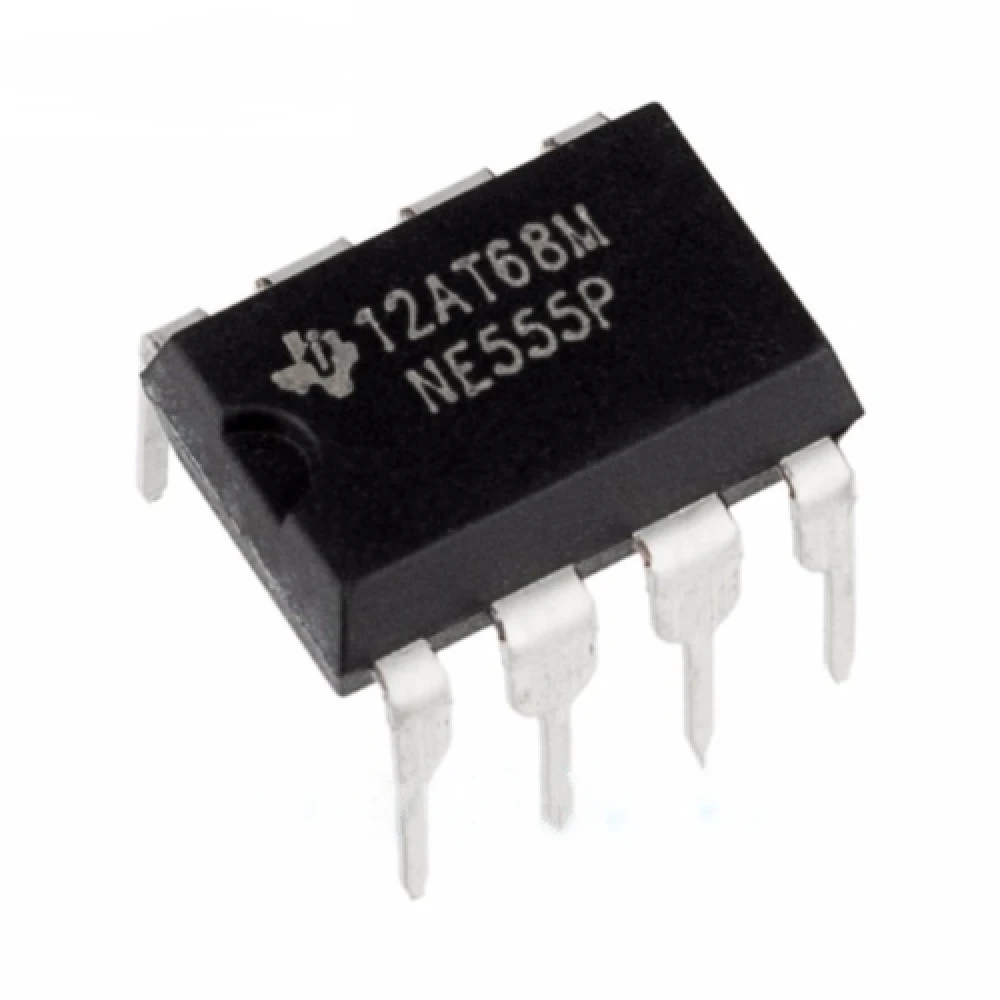

5pcs NE555P DIP8 Bipolar Timer for Precise, Reliable Electronics Projects
Brand: satkit
1.72€
VAT included (Ex VAT: 1.40 €)
In Stock - Ships immediately
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
5pcs NE555P DIP8 Bipolar Timer
This set of 5 NE555P timers in DIP8 format is an essential component for any electronics hobbyist or professional. Known for its low cost and high reliability, the NE555P is one of the most widely used integrated circuits in timing and oscillation applications.
Main features:
- Allows precise timing pulse generation in monostable mode.
- Also works as an oscillator in astable mode to produce continuous pulse trains.
- Internally composed of 23 transistors, 2 diodes and 12 resistors.
- Operates with a supply voltage range of 4.5V to 16V.
- Maximum output current capacity of 200mA, enough to drive TTL inputs, LEDs, buzzers, relay coils and other components.
- Maximum operating frequency of up to 500KHz.
- Operating temperature between 0ºC and 70ºC.
- Compact DIP8 format that makes it easy to mount on printed circuit boards.
Typical applications:
- Generation of timed signals for electronic event control.
- Oscillators for clock circuits or pulse width modulators (PWM).
- Timers in industrial and domestic control devices.
- Educational and experimental electronics projects.
The NE555P timer is easily configured with external resistors and capacitors to adjust pulse duration and frequency according to the specific needs of the project. In addition, its ability to work as a pulse width modulator through external voltage control expands its versatility in analogue and digital applications.
Package contents:
- 5 units of NE555P DIP8 Bipolar Timer.
This product is a reliable and economical solution for designers and enthusiasts looking for a versatile, high-performance timer for their electronic circuits.
- NE555P integrated circuit in DIP8 format, easy to mount.
- Operating voltage between 4.5V and 16V for a wide range of applications.
- Maximum output current of 200mA to control various devices.
- Maximum frequency of 500KHz for fast, precise signals.
- Includes 5 units for multiple projects or spares.
- Operating temperature of 0ºC to 70ºC, suitable for standard environments.
Customer Questions & Answers
What are the dimensions and physical format of the NE555P DIP8, and what exactly is included in the pack of 5?
Each NE555P comes in an 8-pin DIP8 package, with approximate dimensions of 9.4 mm x 6.35 mm x 4.57 mm. The pack includes 5 individual NE555P integrated circuits, with no additional accessories.
Is any special maintenance required for the NE555P DIP8 and what is its estimated service life under normal conditions?
It requires no periodic maintenance. When used within the specified electrical and thermal limits, service life can exceed several years, as it contains no moving parts or rapidly degrading materials. Frequent damage is usually associated with overheating or electrical overload.
How does the NE555P compare with other similar timers in terms of accuracy, tolerances and technical advantages?
The NE555P typically offers timing accuracy better than 1% with suitable external components, and acceptable tolerances for general applications. Unlike more advanced timers (for example CMOS types such as the TLC555), the NE555P consumes more current but can drive a higher output load. It is preferred where robustness and low cost are more important than power consumption or extreme precision.
What is the NE555P DIP8 bipolar timer used for?
The NE555P DIP8 bipolar timer is used to generate timed pulses and oscillating signals in electronics projects, operating in monostable and astable modes.
What is the NE555P supply voltage range?
The NE555P operates with a supply voltage between 4.5V and 16V.
How much current can the NE555P output handle?
It can handle a maximum output current of 200mA, enough to control LEDs, buzzers and relays.
What format does the NE555P timer come in?
The timer comes in DIP8 format, which makes it easy to mount on printed circuit boards.
How many units are included in this pack?
The pack includes 5 units of the NE555P DIP8 bipolar timer.
