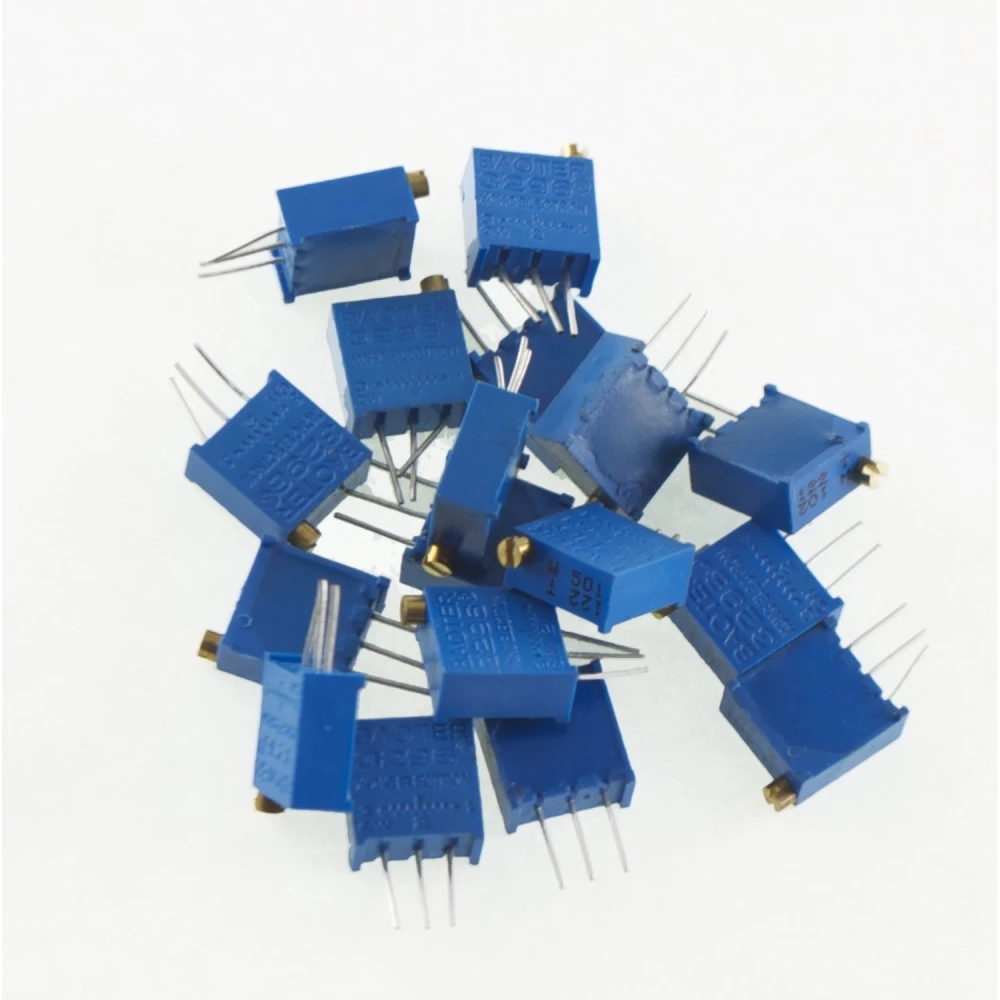

Pack of 17 Precision Multi-Turn Linear DIP Potentiometers

The Pack 17 Potenciometros Precision Multivuelta Lineal DIP is a complete set of high-quality potentiometers designed to provide precise control in electronic applications. Each unit in this pack has technical features that ensure reliable and long-lasting performance, suitable for projects that require fine and repeated adjustments.

Main features:

• Product type: Multi-turn potentiometer, which allows fine and repeatable adjustment thanks to its multiple turns.
• Taper: Linear, ideal for applications that require a proportional change in resistance.
• Rated power: 500 mW (1/2 W), suitable for low-power circuits.
• Connector type: Radial, making it easy to mount on PCB boards.
• Tolerance: 10%, a common standard for precision potentiometers.
• Dimensions: Compact, with 9.53 mm width and length, optimising space in circuit design.
• Core material: Cermet, which provides stability and durability in the variable resistor.
• Mounting: PCB Mount, ideal for direct integration into printed circuit boards.
• Temperature range: From -55°C to +150°C, ensuring operation in varied environmental conditions.

Pack contents: This set includes one unit of each of the following resistance values, covering a wide range for different needs:

• 10 ohm (100)
• 20 ohm (200)
• 50 ohm (500)
• 100 ohm (101)
• 200 ohm (201)
• 500 ohm (501)
• 1 kohm (102)
• 2 kohm (202)
• 5 kohm (502)
• 10 kohm (103)
• 20 kohm (203)
• 50 kohm (503)
• 100 kohm (104)
• 200 kohm (204)
• 500 kohm (504)
• 1 Mohm (105)
• 2 Mohm (205)

This pack is ideal for electronics professionals and hobbyists looking for a versatile solution for adjusting signal levels, calibrating circuits or carrying out tests with different variable resistance values.

Typical uses:

• Electronic prototyping projects.
• Equipment and sensor calibration.
• Volume adjustment and control in audio circuits.
• Experimentation and development in analogue electronics.

Compatibility: Designed for PCB mounting, these potentiometers are compatible with most standard printed circuit boards that accept DIP components with radial connection.

With this pack, you get a complete and practical selection covering a wide range of values, making it easier to choose the right potentiometer for each need in your electronics projects.

• Multi-turn potentiometers for precise, repeatable adjustment
• Linear taper for proportional resistance change
• Rated power of 500 mW (1/2 W)
• Radial connector for PCB mounting
• Standard 10% tolerance
• Compact dimensions: 9.53 mm x 9.53 mm
• Cermet core for greater stability
• Temperature range from -55°C to +150°C
• Includes 17 different values from 10 ohm to 2 Mohm
• Ideal for electronics projects and circuit calibration
