RS232 to TTL Converter MAX3232 - Serial and TTL Adapter
Brand: satkit
VAT included (Ex VAT: 3.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 3.54 € | -4% |
| 10+ | 3.36 € | -9% |
| 20+ | 2.95 € | -20% |

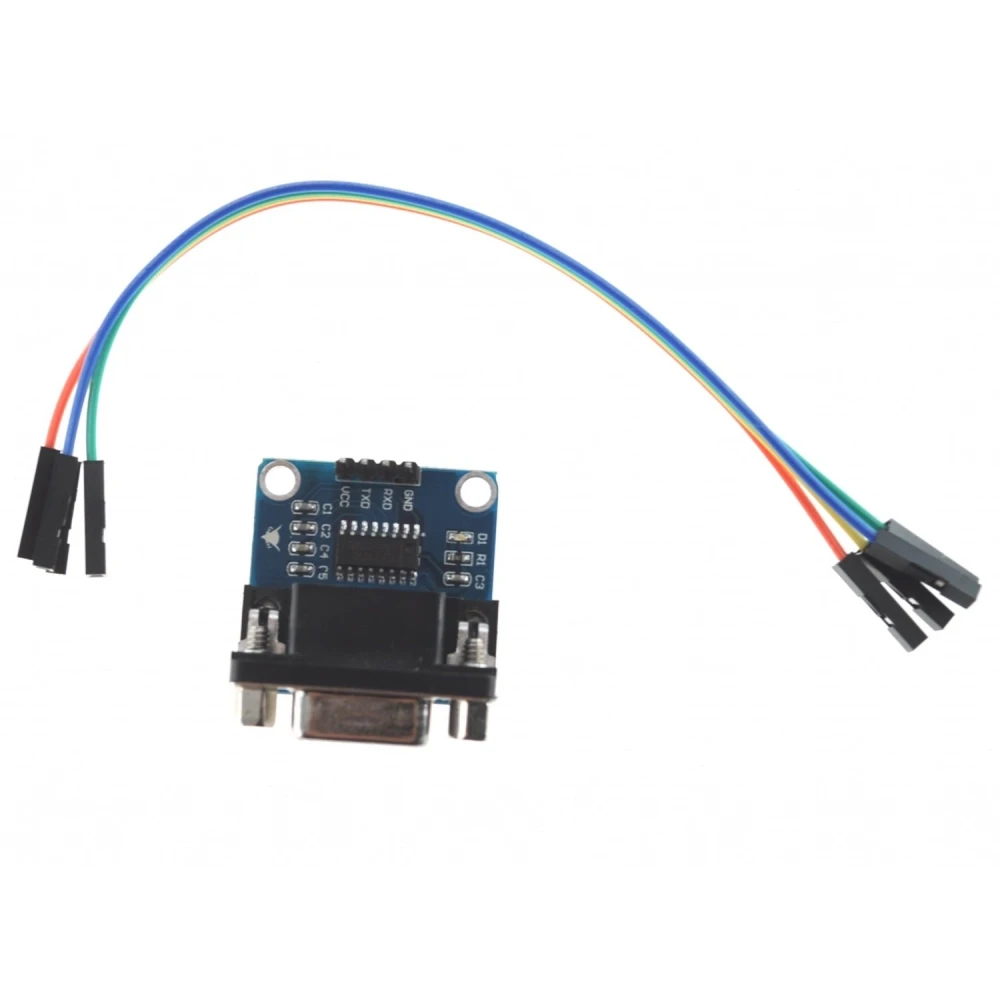

The RS232 to TTL Converter MAX3232 is an adapter module designed to make communication easier between devices that use the RS232 standard and those that operate with TTL levels, especially in electronics and Arduino projects.
Main features:
- RS232 to TTL level adapter module.
- Allows you to connect a device with an RS232 serial port to a device that works with TTL levels.
- Compatible with 3.3V TTL logic, ideal for microcontrollers and Arduino boards.
- Provides TX and RX signals, as well as power; no flow control included.
Technical specifications:
- RS232 interface for connection with traditional equipment.
- TTL output compatible with 3.3V logic.
- Signals transmitted: TX (transmission) and RX (reception).
- Power included for the TTL side.
Typical uses:
- Connect computers or devices with an RS232 serial port to microcontrollers or Arduino boards.
- Automation and control projects that require serial communication between different voltage levels.
- Signal adaptation for electronics development and testing.
Compatibility:
This converter is compatible with devices that operate with 3.3V TTL levels, such as many Arduino boards and other microcontrollers. It does not include flow control, so it is important to consider this limitation in applications that require it.
The MAX3232 RS232 to TTL converter is an essential tool for anyone working in electronics who needs to adapt serial signals between different voltage standards in a simple and efficient way.
- RS232 to TTL adapter module compatible with 3.3V logic
- Lets you connect RS232 serial port equipment to TTL devices
- Provides TX and RX signals and power, without flow control
- Ideal for Arduino projects and microcontrollers
- Makes serial communication between different voltage levels easier
Customer Questions & Answers
What supply voltage does the converter require, and what are its operating limits?
The RS232 to TTL converter with MAX3232 chip typically operates from a 3.3 V to 5.5 V supply, with 5 V being the most common. It works reliably within that range, both on the RS232 input side and when converting to TTL logic compatible with 3.3 V.
What are the physical dimensions of the adapter, and what is included in the box when purchased?
The module usually measures approximately 35 mm x 15 mm x 12 mm, with a weight of less than 10 g. The box normally contains only the assembled adapter; cables or other accessories are usually not included, so they must be purchased separately if needed.
How is the converter connected to a board such as Arduino, and what precautions should be taken?
The connection is made by linking the module’s TX pin to Arduino RX, and RX on the module to Arduino TX, as well as ground (GND). It is essential to ensure the supply is within the accepted parameters and to avoid reversing the connections to prevent electrical damage.
How does this converter compare with other USB to TTL adapters in terms of compatibility and use?
This model specifically converts RS232 signals (typically ±12 V) to 3.3 V TTL, making it useful for older equipment with a serial port. USB to TTL adapters also provide the USB interface, so they are preferable if the target PC does not have an RS232 port. This converter is simpler but less versatile in modern scenarios.
What is the MAX3232 RS232 to TTL converter used for?
It is used to adapt serial communication signals between a device with an RS232 port and devices that use TTL levels, making it easier to connect both.
Is it compatible with Arduino boards?
Yes, it is compatible with Arduino boards that work with 3.3V TTL logic, allowing serial communication between Arduino and RS232 devices.
Does it include flow control?
No, this module only provides TX and RX signals and power, but it does not have flow control.
What voltage levels does the TTL side support?
The TTL side is compatible with 3.3 volts logic, common in many microcontrollers and Arduino boards.
Is it available for immediate dispatch?
Currently, the product is out of stock and not available for immediate dispatch.
