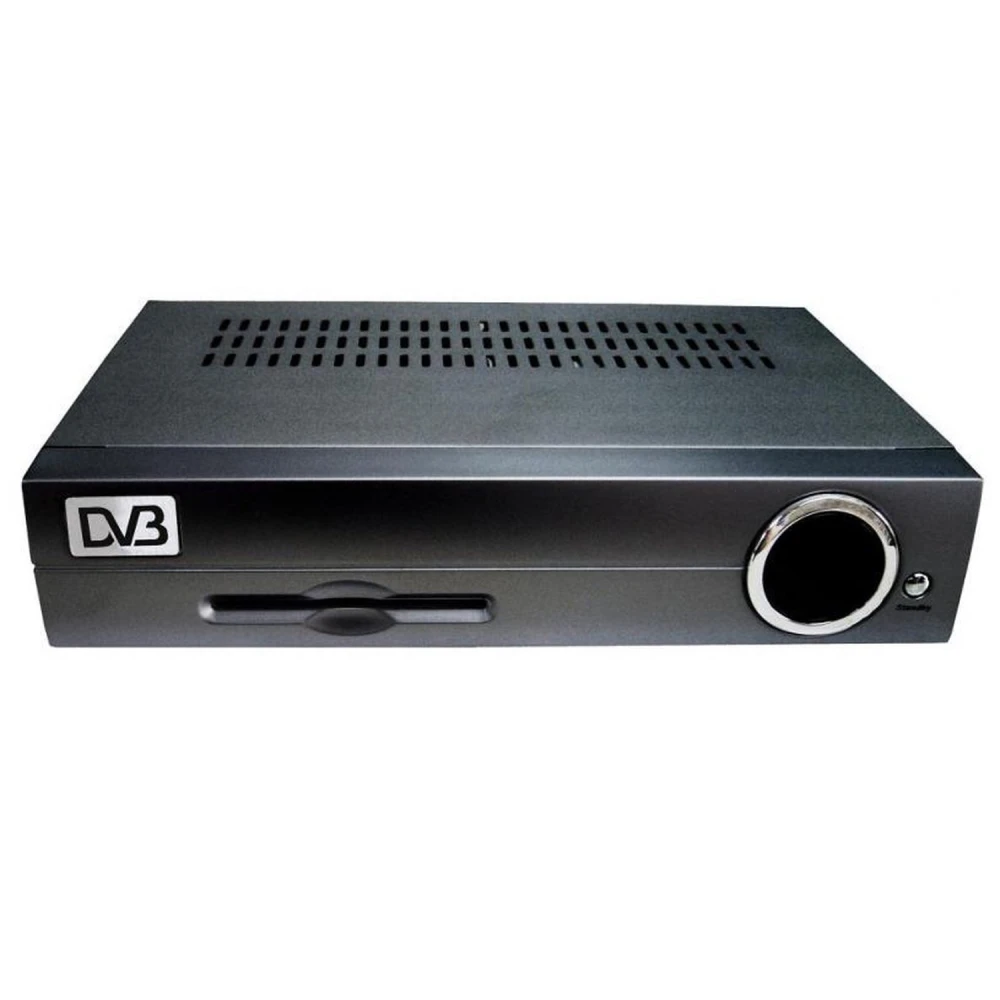

Blackbox DM 500-C cable receiver for satellite TV with advanced technology
Brand: satkit
VAT included (Ex VAT: 29.99 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 35.41 € | -4% |
| 10+ | 34.31 € | -7% |
| 20+ | 30.62 € | -17% |
Blackbox DM 500-C cable receiver: overview
The Blackbox DM 500-C cable receiver is designed to deliver an advanced experience in digital TV and satellite radio reception. Equipped with a powerful 300 MIPS processor and Linux operating system, this receiver supports the Linux TV API and lets you enjoy high-definition content with multiple connectivity options.
Main features
- Processor: 300 MIPS for optimal performance.
- Operating system: Linux, compatible with the TV API.
- Display: Bright OLED screen for clear information.
- Decoding: Hardware for MPEG-2 and H.264.
- Tuners: DVB-S with options for DVB-C and DVB-T.
- Connectivity: Ethernet 10/100Mbit, USB 2.0 (x2), DVI, Scart (RGB, FBAS, S-Video), RS232, optical S/PDIF.
- Storage: Support for internal 2.5" SATA hard drive or external eSATA.
- Additional functions: Unlimited channel lists, automatic scan, electronic programme guide (EPG), DiSEqC control for LNB and rotor.
Technical specifications
- Tuner frequency: 950 to 2150 MHz.
- Modulation: DVB-S (QPSK), DVB-S2 (8PSK, QPSK).
- Symbol rate: DVB-S: 2-45 Mbaud/s; DVB-S2: 10-31 Mbaud/s (8PSK), 10-30 Mbaud/s (QPSK).
- Video: Compatible with MPEG-1, MPEG-2, H.264; 4:3 and 16:9 formats.
- Audio: MPEG-1 and MPEG-2, MP3, stereo and dual mode.
- Analogue output: L/R level 0.5 Vss, THD > 60 dB.
- Digital output: Toslink optical S/PDIF.
- Interfaces: Bidirectional RS232, Ethernet 10/100Mbit, USB 2.0 (x2), SATA for 2.5" HDD.
- Power supply: External 12V, 3A.
- Power consumption: Less than 15W.
- Dimensions: 195 x 140 x 40 mm.
- Weight: 1.8 kg without hard drive.
Typical uses
This receiver is ideal for users who want to receive satellite TV signals with high quality and flexibility. It can be used at home to enjoy digital channels and radio stations, as well as in professional environments that require a reliable receiver with multiple input and output options. Its compatibility with SATA hard drives allows you to record programmes and manage multimedia content.
Compatibility
Compatible with DVB-S, DVB-C and DVB-T systems, this receiver integrates easily with satellite dishes and signal distribution systems. In addition, its support for the Linux TV API and multiple interfaces makes integration with other devices and software updates easier.
Important note: The Null-Modem cable is not included and must be purchased separately. The product is currently out of stock and not available for immediate purchase.
Warranty: Does not cover issues resulting from firmware changes.
- 300 MIPS processor for efficient performance
- Linux operating system with support for the Linux TV API
- Bright OLED display for clear viewing
- MPEG-2 and H.264 hardware decoding
- DVB-S tuner with DVB-C and DVB-T options
- Ethernet 10/100Mbit, USB 2.0, DVI, Scart, RS232 and S/PDIF connectivity
- Support for internal 2.5" SATA hard drive or external eSATA
- Unlimited channel lists and electronic programme guide (EPG)
- DiSEqC control for LNB and rotor
- External 12V power supply, consumption under 15W
Customer Questions & Answers
What signal types and video formats does the Blackbox DM 500-C receiver support?
The Blackbox DM 500-C receiver supports DVB-C signals (digital cable), as well as MPEG-1, MPEG-2 and H.264 video formats, and allows 4:3 and 16:9 output formats. This makes it compatible with both standard and widescreen TVs. The format selection depends on the content and the TV being used.
Is any specific software or operating system required to get the unit up and running and manage it?
The receiver uses a Linux-based operating system with support for the Linux TV API, which allows advanced device management. No additional software is needed for basic functions, although it can be customised with alternative community firmware to add features, at the user’s discretion.
What limitations does the unit have in terms of memory capacity and internal storage?
The Blackbox DM 500-C has 64 MB of flash memory and 256 MB of RAM, which are suitable for most standard functions. For recording storage, it supports internal or external 2.5" SATA hard drives via eSATA. It does not support IDE drives or USB storage as the main recording destination. The disk capacity limit will depend on the firmware’s partitioning support.
Is there a warranty, spare parts support, or easily replaceable components, especially the tuner?
The DM800 series tuner is modular and Plug&Play, which makes replacement easy in the event of a fault or a change of standard. Warranty coverage usually depends on the distributor and may vary from 1 to 2 years. It is advisable to check the availability of spare modules and technical support before purchase.
Is the Blackbox DM 500-C cable receiver available to buy?
The Blackbox DM 500-C cable receiver is currently out of stock and not available for immediate purchase.
What tuners does the Blackbox DM 500-C include?
It includes a DVB-S tuner with options for DVB-C and DVB-T, compatible with satellite and cable signals.
Can I connect an external hard drive to the receiver?
Yes, the receiver supports internal 2.5" SATA hard drives and can also be used with external drives via eSATA.
What connection interfaces does the receiver have?
It has Ethernet 10/100Mbit, USB 2.0 (x2), DVI, Scart (RGB, FBAS, S-Video), RS232 and optical S/PDIF digital output.
Is the Null-Modem cable included with the receiver?
No, the Null-Modem cable must be purchased separately.
