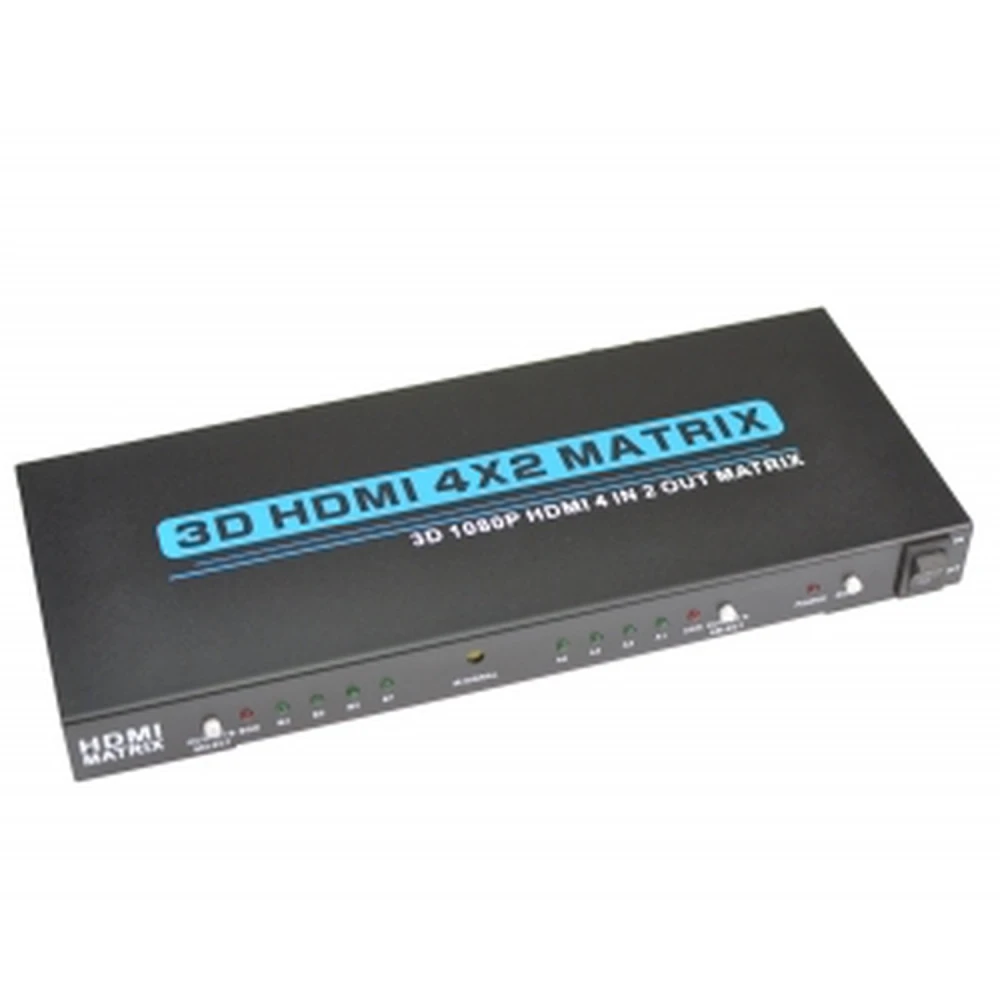

HDMI Matrix Switch 4x2 Full HD 1080p 3D with Remote
Brand: satkit
VAT included (Ex VAT: 32.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 37.79 € | -4% |
| 10+ | 36.60 € | -7% |
| 20+ | 33.46 € | -15% |
4 x 2 HDMI Full HD 1080p 3D Matrix Switch with Remote Control
This HDMI matrix switch has 4 HDMI inputs and 2 HDMI outputs, allowing you to route any of the four HDMI input sources to either of the two connected screens. It also works as a splitter to show the same signal on two screens at the same time, ideal for home cinema setups or multiple presentations.
Key features:
- Distributes one of 4 HDMI input signals to either of the 2 screens simultaneously.
- Compatible with Full HD resolutions 480p, 576p, 720p, 1080i and 1080p, plus 3D 1080p@24Hz source.
- Compatible with game consoles, Blu-ray players and other HDMI-enabled devices.
- Supports HDCP protocol for digital content protection.
- Supports audio formats such as Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS and LPCM.
- Allows easy switching between multiple HDMI sources using the remote control or buttons on the unit.
- LED indicator to show which input is in use.
- Built-in infrared receiver to extend the remote control signal (remote control included).

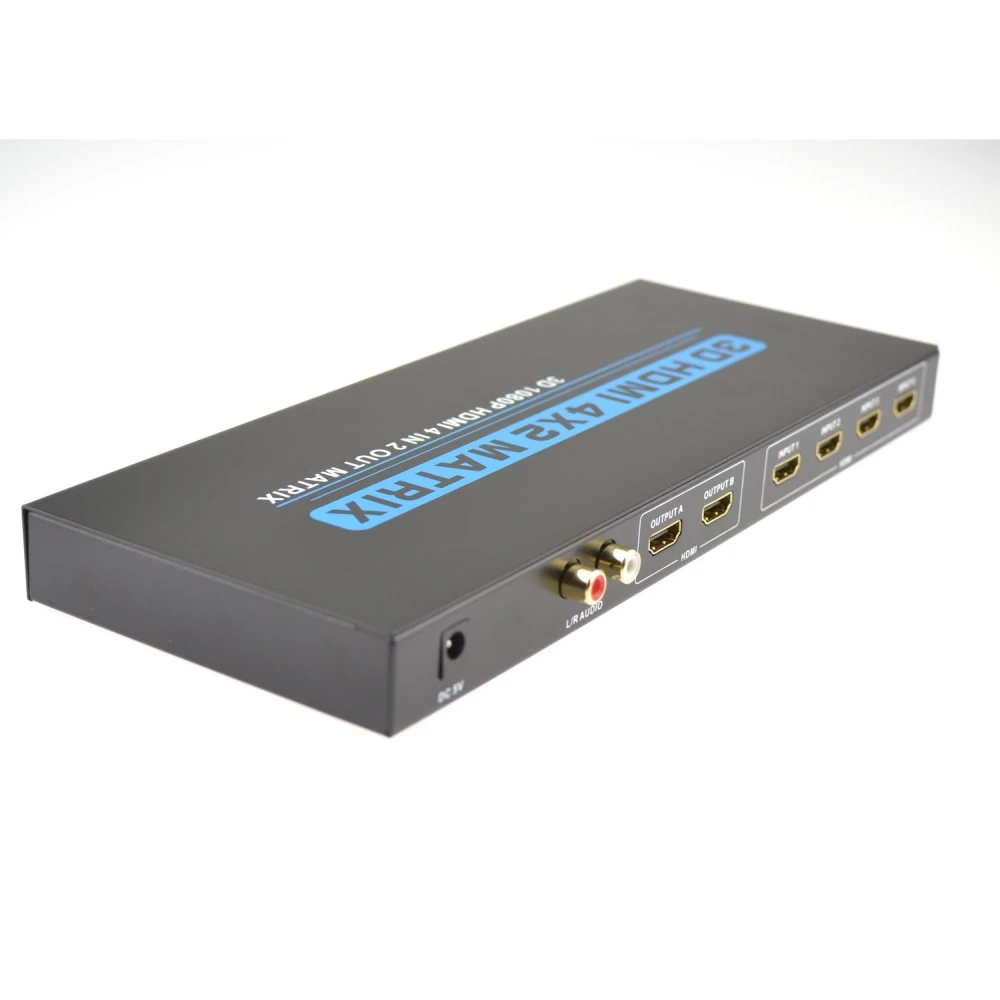

- Four HDMI input ports and two HDMI output ports.
- Maximum power of 5 watts.
- DC 5V - 2A power adapter included.
Typical uses:
- Distribute HDMI signal from multiple devices to several screens in homes or businesses.
- Home cinema setups for enjoying high-definition and 3D content.
- Presentations in offices or events where the same signal needs to be shown on more than one screen.
- Connect game consoles and switch easily between them without unplugging cables.
Compatibility:
Compatible with standard HDMI devices such as consoles, Blu-ray players, set-top boxes, and other multimedia equipment that support HDMI signals up to Full HD 1080p and 3D.
This matrix switch is an efficient solution for managing multiple HDMI sources and distributing them to several screens with exceptional picture and sound quality.
- 4 HDMI inputs and 2 HDMI outputs for flexible distribution
- Full HD 1080p and 3D 1080p@24Hz support for high picture quality
- Compatible with consoles, Blu-ray players and other HDMI devices
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS and LPCM audio formats
- Remote control included for easy switching between HDMI sources
- LED indicator shows the active input
- Built-in infrared receiver to extend the remote control signal
- Maximum power of 5 watts and DC 5V - 2A adapter included
Customer Questions & Answers
What advantages does using a 4x2 HDMI matrix switch offer compared with a simple HDMI splitter?
A 4x2 HDMI matrix switch lets you independently select any combination of four sources and two displays, giving you flexibility to manage multiple inputs and outputs at the same time. A simple splitter can only duplicate the same signal to several outputs, without allowing independent source switching on each screen.
What are the dimensions, weight and exact contents of the package when buying this 4x2 HDMI switch?
Generally, the switch measures approximately 220 mm x 71 mm x 25 mm and weighs around 380 g. The box usually includes: 1 x 4x2 HDMI matrix, 1 x IR remote control, 1 x DC 5V - 2A power adapter and 1 x user manual. This may vary depending on batch or supplier.
What resolutions and audio formats does this 4x2 HDMI switch support, and what are its limitations?
It supports video resolutions from 480p up to 1080p (1920 x 1080), including 3D at 1080p@24Hz. For audio, it is compatible with Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS and LPCM. It does not support resolutions above 1080p (for example, 4K), which is important to consider depending on your needs.
What compatibility and power requirements does it have for installation and continuous use?
The unit requires an external DC 5V - 2A power supply (included in the package) and is compatible with any source and display with a standard HDMI connector (Type A). It works with HDCP devices, consoles, Blu-ray players and PCs. It is not compatible with HDMI 2.0 or 4K signals.
Are there any common synchronisation or signal loss issues, and how can they be solved?
Issues may occur due to poor-quality HDMI cables or long cables (>10 m), as well as HDCP incompatibility between sources and displays. We recommend using certified cables with a maximum length of 5 m to avoid signal drops, and ensuring that all sources and outputs support the resolutions and standards required by the switch.
How many HDMI inputs and outputs does this matrix switch have?
This matrix switch has 4 HDMI inputs and 2 HDMI outputs.
Is it compatible with 3D and Full HD signals?
Yes, it supports Full HD 1080p and 3D 1080p@24Hz signals.
Can I control the switch remotely?
Yes, it includes a remote control and infrared receiver for easy operation.
Which devices are compatible with this matrix switch?
It is compatible with game consoles, Blu-ray players and other HDMI-enabled devices.
Which audio formats does it support?
It supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS and LPCM.
