PTI-9 PCI Diagnostic Card for PC with LCD Screen

Name: PTI-9 PCI Diagnostic Card for PC with LCD Screen
Brand: satkit
SKU: 1B020301-PTI9
Price: 12.30 EUR
Availability: InStock

Brand: satkit

Be the first to review this product

12.30€

VAT included (Ex VAT: 10.00 €)

Volume Discounts

Quantity	Price	Save
2+	11.81 €	-4%
10+	10.86 €	-12%
20+	10.09 €	-18%

Limited stock

Standard delivery Wed, Apr 29 - Fri, May 1

Express delivery Mon, Apr 27 - Tue, Apr 28

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

The PTI-9 PCI diagnostic card for PC with LCD screen is a professional tool designed to make it easier to identify problems in motherboards with PCI slots. This card is compatible with a wide range of motherboards from well-known manufacturers such as Lenovo, Asus, Toshiba and HP, among others.

Its compatibility has been tested with multiple chipsets and processors, including Intel 815, 845, 865, 915, 945, 965, and ATI Sb600, Xpress 200, Xpress 1100 chipsets, as well as the AMD 480X chipset. It is also compatible with Asus P7P55D motherboards (Core i7, Core i5, Intel P55), HP DC7100 915G (LGA775 Celeron D), Asus P6T (Intel LGA1156 Core i7, Intel X58), Lenovo 760G M3A760M (dual core AM3 with HDMI DDR3 support), Asus P5Q (Core 2 Duo, Celeron D, Intel P45), Asus P5N7 (Intel LGA775 Celeron, nVIDIA chipset), and Asus P6T (Core i5, Intel LGA1156, Intel X58).

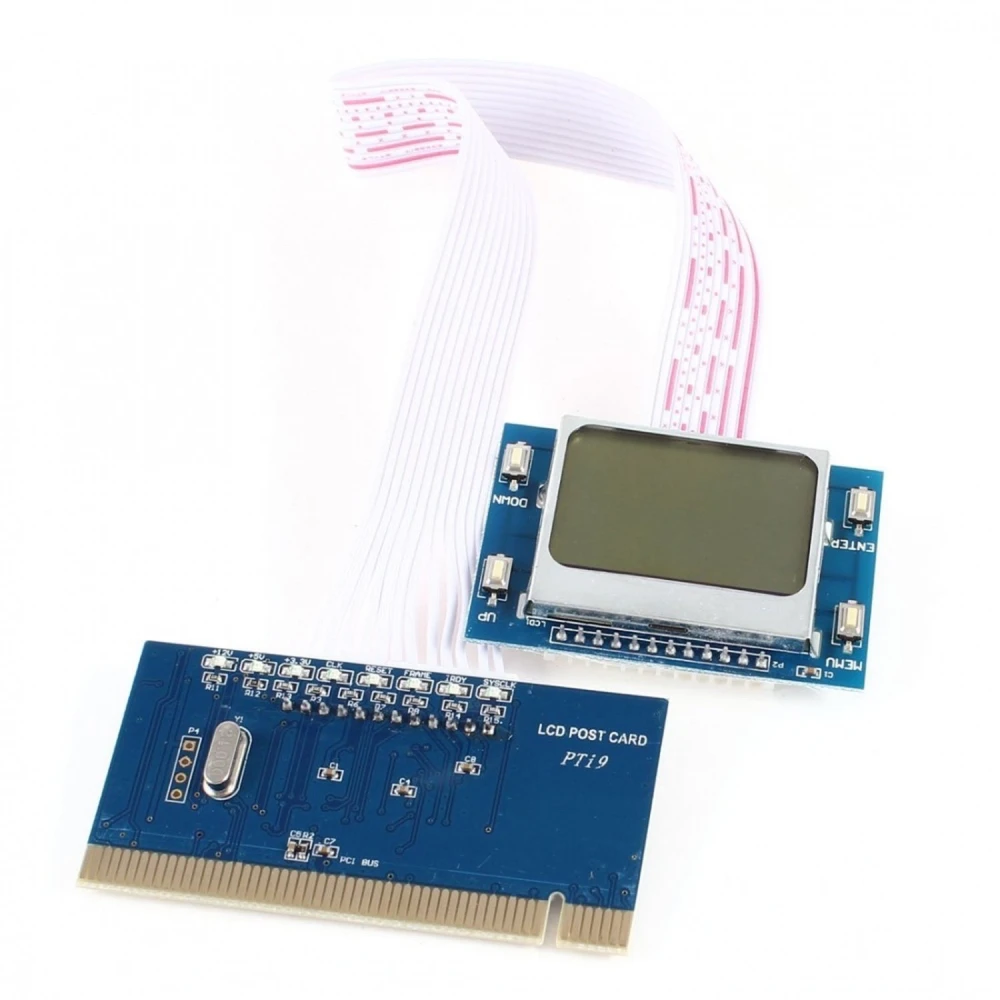

This PTI-9 model features an LCD screen that makes it easy to read diagnostic codes and four function keys: Menu, Enter, Up and Down, which allow you to navigate through the options and results. It also has eight LED lights that indicate different electrical states and signals, such as 12V, 5V, 3.3V, CLK, RESET, FRAME and IRDY, helping to identify specific problems on the motherboard.

Compatibility: Standard PCI slots in PCs, Intel and AMD boards.
Compatible chipsets: Intel 815/845/865/915/945/965, ATI Sb600, Xpress 200, Xpress 1100, AMD 480X.
Compatible processors: Core i7, Core i5, Core 2 Duo, Celeron D.
Compatible motherboards: Lenovo, Asus, Toshiba, HP and other major brands.
Card functions: LCD screen for code display, four navigation keys, eight indicator LED lights.
Typical use: Diagnosis and troubleshooting of PCI motherboards, identification of electrical and hardware faults.

This card is ideal for technicians and professionals who need a reliable tool for fast and accurate diagnosis of PCI motherboard problems. Its compact design and advanced functionality make it an economical and efficient option for PC maintenance and repair.

Compatible with standard PCI slots for PCs.
LCD screen for displaying diagnostic codes.
Four navigation keys: Menu, Enter, Up and Down.
Eight indicator LED lights: 12V, 5V, 3.3V, CLK, RESET, FRAME, IRDY.
Tested with Intel and AMD motherboards from brands such as Lenovo, Asus, Toshiba and HP.
Compatible with Intel 815/845/865/915/945/965 and AMD 480X chipsets.
Supports Core i7, Core i5, Core 2 Duo and Celeron D processors.
Ideal for professional diagnosis and repair of PCI motherboards.

Customer Questions & Answers

What are the approximate dimensions and weight of the PTI-9 card?

The typical PTI-9 model measures approximately 120 mm x 60 mm x 15 mm and weighs around 80 g. There may be slight variation depending on the production batch, but it is suitable for any enclosure compatible with standard PCI cards.

Does it require software installation or specific drivers, or does it work autonomously?

The PTI-9 card works completely autonomously. It does not require software or driver installation, as it monitors the motherboard's electrical signals directly and displays the POST codes automatically when the computer is switched on.

What maintenance does the card need and what is its estimated service life under frequent use?

Recommended maintenance consists of periodically cleaning the gold contacts with isopropanol to prevent poor contact and storing the card in a dry place. The LCD and LEDs typically offer more than 10,000 hours of use, while the PCB and components, with proper use, do not usually show significant wear.

Which motherboards is the PTI-9 PCI diagnostic card compatible with?

It is compatible with motherboards that have standard PCI slots, including models from Lenovo, Asus, Toshiba, HP and other brands, as well as the specified Intel and AMD chipsets.

What does the LCD screen on the PTI-9 card do?

The LCD screen displays diagnostic codes that help identify motherboard problems, making repair and maintenance easier.

What are the LED lights and what do they indicate?

The eight LED lights indicate different electrical signals and states: 12V, 5V, 3.3V, CLK, RESET, FRAME and IRDY, helping to detect specific faults.

Is it suitable for professional use?

Yes, it is a professional tool designed for technicians and hardware repair specialists who need accurate diagnostics on PCI motherboards.

Can it be used with Intel Core i7 and AMD processors?

Yes, it has been tested with Intel Core i7, Core i5, Core 2 Duo processors and with AMD motherboards with dual-core support.
