Satlink WS-6912 Satellite Finder for DVB-S/DVB-S2 - Portable Signal Meter
Brand: Satlink
VAT included (Ex VAT: 149.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 175.94 € | -4% |
| 10+ | 172.27 € | -6% |
| 20+ | 164.94 € | -10% |
The Satlink WS-6912 satellite finder is a handheld digital meter designed for quick and easy alignment of satellite dishes in DVB-S and DVB-S2 systems. Its rechargeable internal battery allows mobile use without the need for additional power sources, ideal for technicians and users who need mobility and precision.
This finder includes approximately 50 pre-programmed satellites, making selection and quick searching easier. In addition, thanks to USALS and DISEqC controllers, it is compatible with motorised satellite dishes, allowing automatic adjustments to optimise reception.
The device integrates an automatic detector that ensures the correct satellite is located, emitting visual and audible signals when the correct signal is found. Signal strength and quality are shown numerically and via a digital bar indicator, making the results easy to interpret.
Highlighted features include:

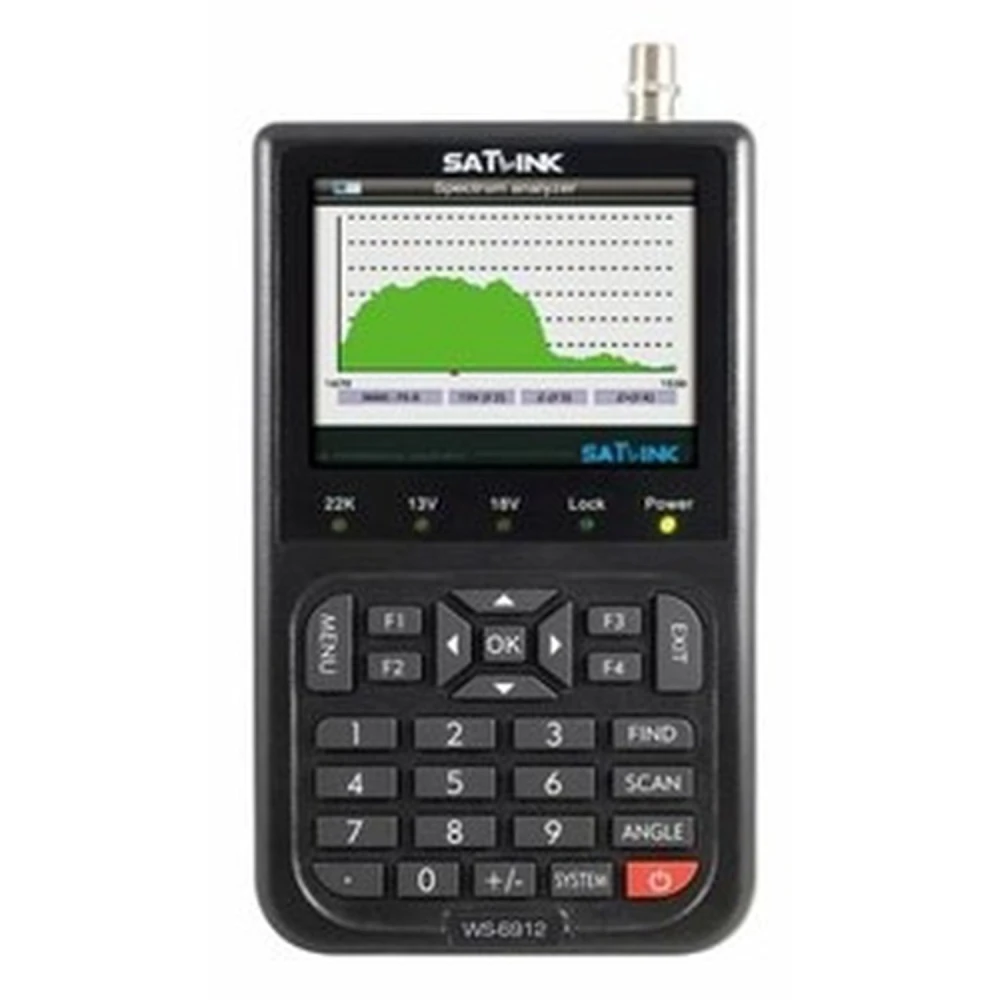

- 3.5" (8.9 cm) colour TFT LCD screen for viewing live channels.
- Measurement of signal-to-noise ratio (C/N) and bit error rate (BER).
- Light and sound alarm to confirm signal lock.
- Simple satellite management, including editing and deletion.
- Full user programming, with editing of transponders, frequency, LNB switch and Symbol Rate.
- Input frequency from 950 to 2150 MHz and input level from -65 to -25 dBm.
- Support for DiSEqC commands versions 1.0, 1.1, 1.2 and USALS.
- Fast-charging lithium-ion battery (1950mAh) with an approximate duration of 4 hours.
- USB port for software updates and PC connection.

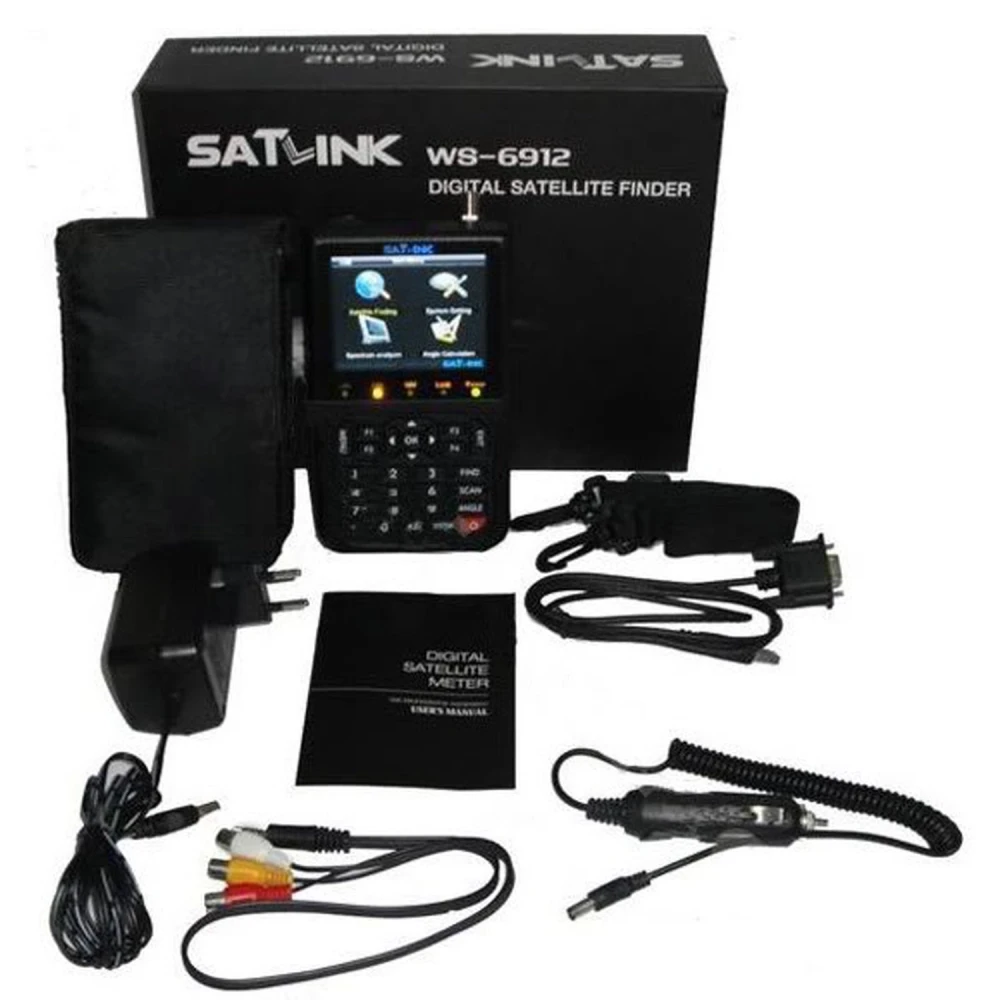

- Includes neck strap, carry case, 12V charger and USB cable.
This meter is compatible with multiple languages, including Spanish, German, English, French, Portuguese, Italian, among others, making it easy to use in different countries.
Technical specifications:
- LNB connection: F connector
- Frequency range: 950 - 2150 MHz
- Signal level: -65 dB/µV to -25 dB/µV
- LNB voltage: 13/18 V, maximum 400 mA
- Modes: 2K, 8K
- LNB control: 22 kHz
- Demodulator: QPSK and 8PSK
- Symbol rate: 2 Mbps to 45 Mbps
- Processor: 32 bit, 200 MHz
- SDRAM memory: 64 MB, FLASH: 16 MB, EEPROM: 8 KB
- Video resolution: 720x576 (PAL), 720x480 (NTSC)
- Audio: MPEG 1 layer 1 & 2, sampling frequency 32, 44.1 and 48 KHz
- Dimensions: 95 x 155 x 45 mm
- Weight: 500 grams
Typical use: Ideal for satellite dish installers, satellite TV technicians and users who need a portable tool to locate and adjust DVB-S/DVB-S2 satellites accurately and easily.
Compatibility: Compatible with fixed and motorised satellite dishes that support USALS and DiSEqC commands, as well as DVB-S and DVB-S2 systems.
- 3.5" colour TFT LCD screen for viewing live channels
- Digital signal strength and quality meter with visual and audible alarms
- Rechargeable lithium-ion battery with up to 4 hours of continuous use
- Supports USALS and DiSEqC controllers for motorised satellite dishes
- Approximately 50 pre-programmed satellites for quick searching
- USB port for updates and PC connection
- Includes carry case, 12V charger, USB cable and neck strap
- Input frequency: 950-2150 MHz, signal level: -65 to -25 dBm
- Measures signal-to-noise ratio (C/N) and bit error rate (BER)
- Compatible with 12 languages including Spanish and English
Customer Questions & Answers
What are the dimensions, weight and items included in the WS-6912 box?
The Satlink WS-6912 measures approximately 158 mm x 95 mm x 43 mm and weighs around 0.5 kg. The box includes the meter, internal rechargeable battery, power adapter, protective case and short coaxial cable. Please check with the supplier for the exact accessory list, as it may vary.
Is it compatible with Ku-band and C-band satellite systems? What frequency range does it support?
Yes, the WS-6912 supports Ku-band and C-band signals thanks to its 950 to 2150 MHz input frequency range. It is compatible with most standard LNBs for digital satellite television, provided the transponders are within that range.
Does the internal battery require any specific maintenance and what is its expected durability?
The internal battery is rechargeable and, under normal use, usually provides several hours of continuous operation. It is recommended to fully charge it before extended use and avoid storing it discharged to maximise its service life (typically 300-500 charge cycles). Batteries may need replacing after 2-3 years depending on use.
What should I do if the unit does not detect a signal or shows frequent quality errors?
It is recommended to check the coaxial cable connection, confirm the level and type of signal from the selected satellite, and verify the transponder data. Frequent errors usually indicate incorrect tuning parameters, dish alignment issues or a faulty LNB. Likewise, the input range must be between -65 and -25 dBm. Please refer to the manual for reset procedures and firmware updates.
What is the Satlink WS-6912 satellite finder used for?
It is used to align satellite dishes and locate DVB-S/DVB-S2 satellites accurately through digital signal measurement.
Is it portable and does it have a battery?
Yes, it has a rechargeable internal lithium-ion battery that allows up to 4 hours of use without an external power source.
What types of dishes can I adjust with this finder?
It is compatible with fixed and motorised satellite dishes that support USALS and DiSEqC commands.
Can I see the channel picture while adjusting the dish?
Yes, its TFT LCD screen allows live channel viewing to make adjustment easier.
Does it include accessories?
Yes, it includes a carry case, 12V charger, USB cable, neck strap and F connector.
