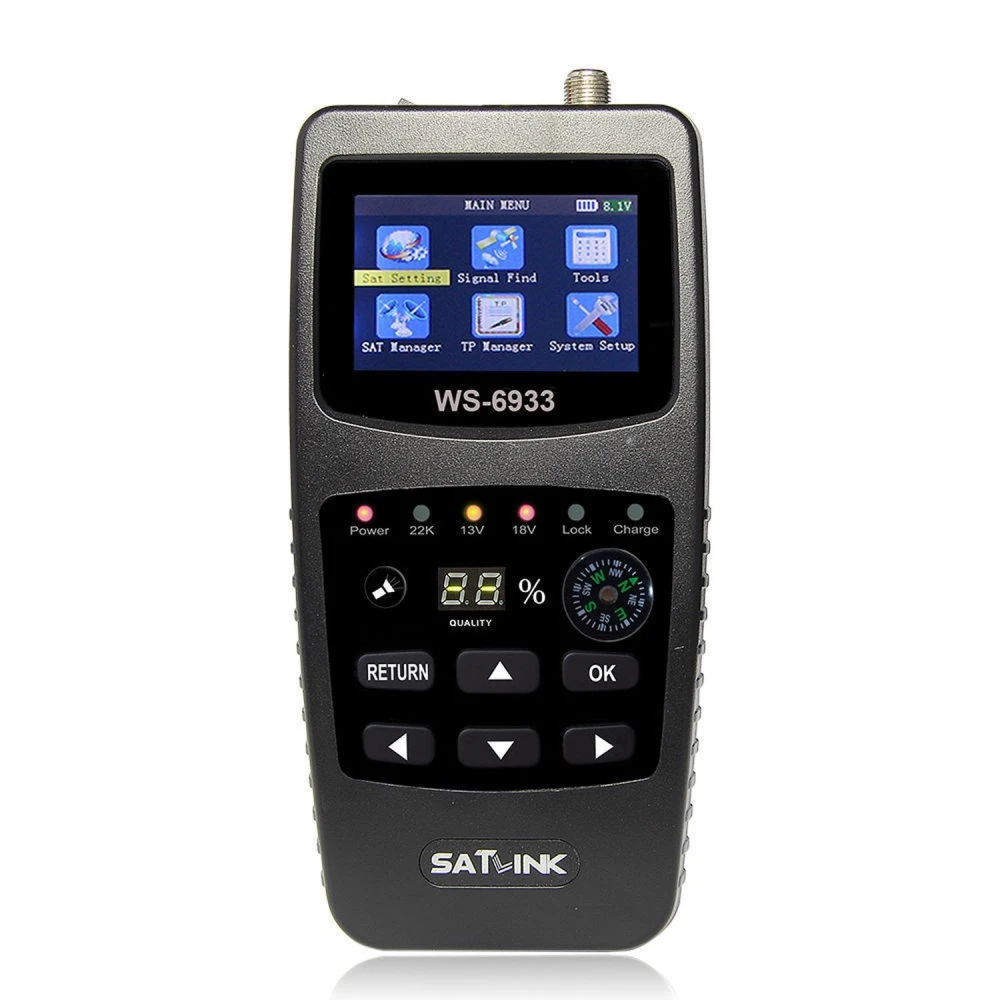

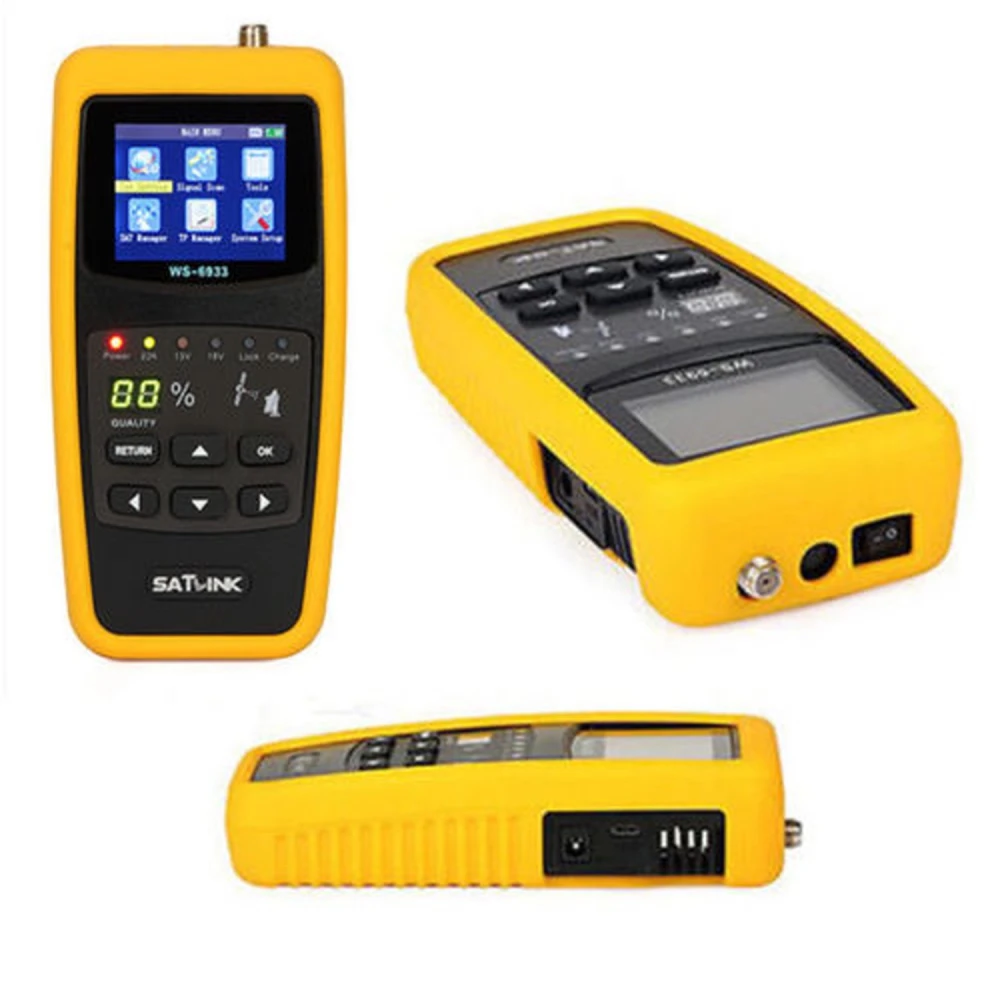

Satlink WS-6933 Satellite Signal Finder Ultra-Fast HD DVB-S2

The Satlink WS-6933 satellite signal finder is an essential tool for professionals and enthusiasts who need fast, accurate satellite dish setup. This finder combines advanced technology to measure DVB-S and DVB-S2 signals, including high-definition (HD) channels, making satellite alignment and reception optimisation easier.

Thanks to its intuitive, clear menus, any installer can make efficient and quick adjustments. The device includes a preconfigured list with more than ten popular satellites and their transponders, which can be customised according to the user's needs using the included PC software, allowing satellites and frequencies to be added, edited or deleted.

Key features:

• Accurate measurement of DVB-S and DVB-S2 signals, compatible with HD channels.
• LNB short-circuit protection for greater equipment safety.
• Visual and audible indicators for lock signal, making alignment easier.
• Built-in torch for use in low-light conditions.
• 7.4V / 800mAh Li-Ion battery that allows up to 3 hours of continuous operation.
• Support for DiSEqC 1.0, 1.1, 2.0 and 22 kHz tone protocols.
• USB-updatable software to keep the device up to date.
• Multilingual menus, including Spanish, English, French, German, Italian and more.

Technical specifications:

• Input frequency: 950-2150 MHz.
• Input level range: -65 to -25 dBm.
• LNB voltage: 13/18 V with maximum 300 mA.
• Maximum power consumption: 5W.
• Dimensions: 160 x 80 x 40 mm.
• Weight: 0.25 kg.
• LCD screen type: transflective positive TFT with 240x320 pixel resolution.
• USB service port compatible with USB to RS-232 protocol.

Typical uses:

Ideal for satellite dish installers who need a portable and effective tool for satellite signal finding and alignment. It is also useful for technicians working with multiswitch and amplifier systems, as it allows signal level and quality to be measured accurately.

Compatibility:

Compatible with DVB-S and DVB-S2 satellite TV systems, including HD channels. The PC software makes it easy to manage and update satellites and transponders, adapting to different configurations and needs.

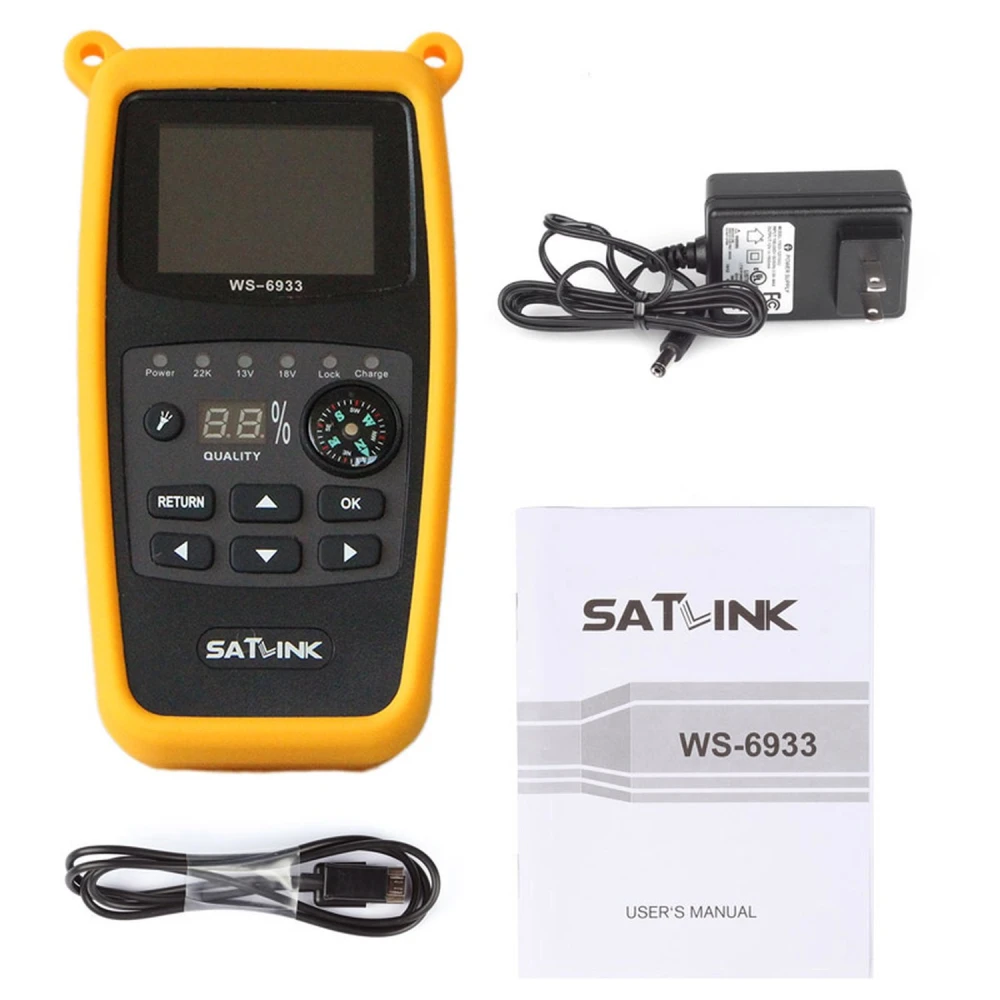

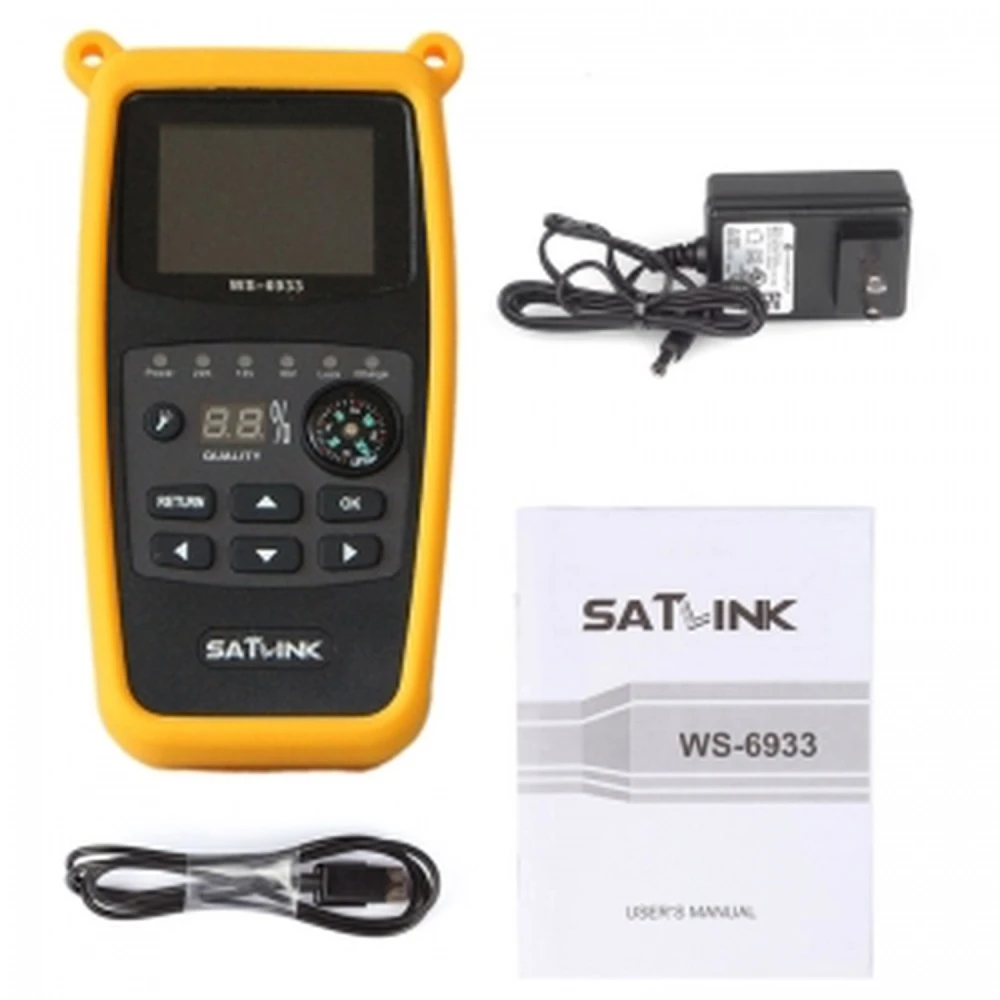

Package contents:

• Satlink WS-6933 HD finder.
• Protective rubber case.
• USB cable for updates.
• Power charger adapter.
• User manual in English.

• Accurate measurement of DVB-S and DVB-S2 signals with HD channel support.
• LNB short-circuit protection for added safety.
• Visual and audible indicators for lock signal and alignment.
• Built-in torch for use in low-light conditions.
• 7.4V / 800mAh Li-Ion battery with up to 3 hours of runtime.
• DiSEqC 1.0, 1.1, 2.0 and 22 kHz tone support for advanced control.
• USB-updatable software to keep the device updated.
• Multilingual menus including Spanish, English, French and more.
