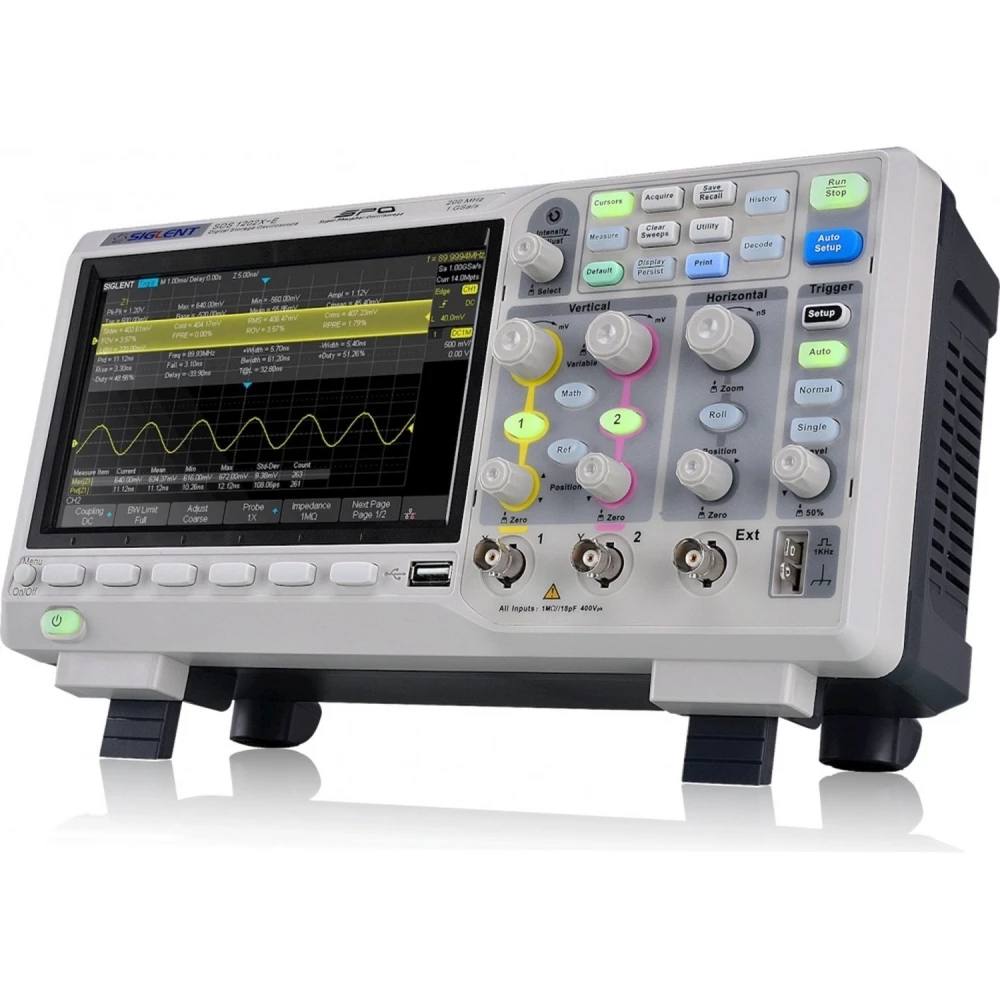

Siglent SDS1202X-E 200 MHz Digital Oscilloscope with 2 Channels

The Siglent SDS1202X-E 200 MHz Digital Oscilloscope is an advanced tool designed for electronics professionals and enthusiasts who require precision and performance in their measurements. This model features a 200 MHz bandwidth and a real-time sampling rate of up to 1 GSa/s, allowing fast signals to be captured in great detail.

It incorporates next-generation SPO (Super Phosphor Oscilloscope) technology, which provides excellent fidelity and low noise in measured signals. Its ergonomic design makes it easy to access the most commonly used functions via an intuitive front panel.

• Bandwidth: 200 MHz for accurate measurements of fast signals.
• Sampling rate: 1 GSa/s in real time to capture fine details.
• Memory depth: 7 Mpts per channel in dual-channel mode and 14 Mpts in single-channel mode, ideal for extended analysis.
• Waveform capture rate: up to 100.000 wfm/s in normal mode and 400.000 wfm/s in sequence mode to detect rare events.
• Advanced trigger modes: Edge, slope, pulse width, window, interval, pattern, video and more for precise capture.
• Serial bus decoding: IIC, SPI, UART/RS232, CAN and LIN for communication protocol analysis.
• Display: 7-inch TFT-LCD with 800x480 resolution for clear and comfortable viewing.
• Mathematical functions: 1 million-point FFT, add, subtract, integrate and more for detailed analysis.
• Interface: USB Host, USB device, LAN with VXI-11 support and SCPI commands for remote control.
• Accessories: includes 2 PP215 passive probes for immediate measurements.

This oscilloscope is ideal for electronics development, repair, education and laboratory testing. Its ability to decode multiple communication protocols makes it especially useful for engineers working with embedded systems and digital devices.

It is important to note that the product is currently out of stock, so we recommend checking availability or alternatives in our catalogue.

Summary technical specifications:

• 200 MHz bandwidth for fast, accurate signals.
• 1 GSa/s real-time sampling rate for high resolution.
• Memory depth of up to 14 Mpts for extended analysis.
• Standard decoding for IIC, SPI, UART, CAN and LIN buses.
• 7-inch TFT-LCD display with 800x480 resolution.
• Waveform capture rate of up to 400.000 wfm/s in sequence mode.
• Advanced mathematical functions including 1 million-point FFT.
• USB, LAN and SCPI remote control support.
• Includes 2 PP215 passive probes for immediate measurements.
• Ergonomic design with quick access to common functions.
