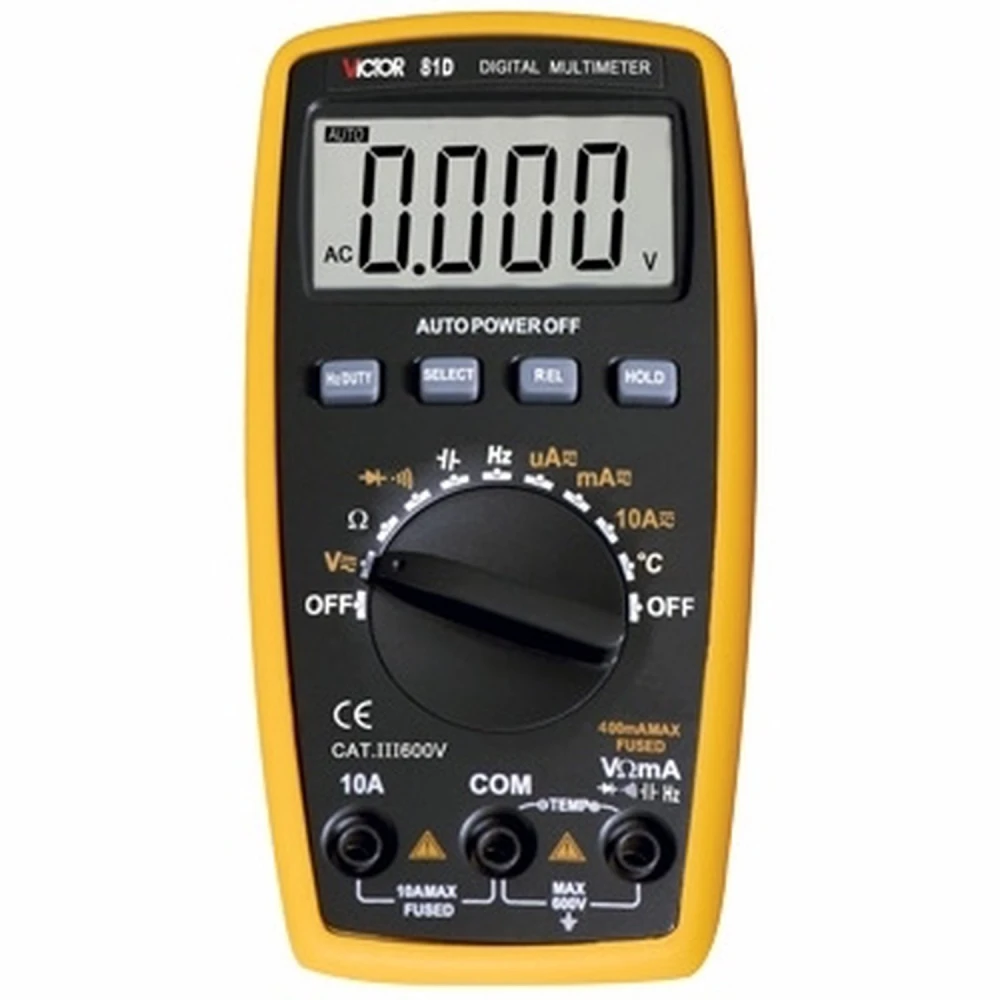

Victor 81D Auto-Ranging Digital Multimeter

The Victor 81D Auto-Ranging Digital Multimeter is an essential tool for technicians and electronics enthusiasts looking for accuracy and versatility in their measurements. This multimeter features a robust design and advanced functions that make it easy to measure different electrical and electronic parameters.

Key features and specifications:

• DC Voltage: Range from 400mV to 600V with accuracy of ± (0.5% + 4).
• AC Voltage: Range from 400mV to 600V with accuracy of ± (0.8% + 6).
• DC Current: Measurement from 400uA to 10A with accuracy of ± (1.0% + 10).
• AC Current: Measurement from 400uA to 10A with accuracy of ± (1.5% + 10).
• Resistance: Range from 400Ω to 40MΩ with accuracy of ± (0.8% + 4).
• Capacitance: From 4nF to 100μF with accuracy of ± (3.5% + 8).
• Frequency: From 1Hz to 30MHz with accuracy of ± (0.5% + 10).
• Temperature measurement: Range from -20 to 1000 °C with accuracy of ± (1.0% + 5), using the included TP01 K-style probe.
• Special functions: Diode test, continuity buzzer, data hold, auto power off, function protection and 10A fuse.
• Display: 57 × 33 mm LCD screen with 3 3/4 digits (3999) capacity.
• Dimensions and weight: 145 × 80 × 30 mm, approximate weight 200 g including battery.
• Power supply: 3V battery (2 x 1.5V batteries).
• Construction: Dark grey casing with yellow protective sleeve, shock-resistant.

Typical uses:

This multimeter is ideal for measuring and diagnosing electrical and electronic circuits in professional and hobby settings. It is especially useful for maintenance technicians, electronics engineers and hobbyists who need a reliable tool for measuring voltage, current, resistance, capacitance and temperature.

Compatibility:

Compatible with a wide range of electronic components and electrical circuits. It includes standard accessories such as test leads, instruction manual and TP01 K temperature probe for accurate thermal measurements.

The auto-ranging function makes it easy to use, automatically adjusting the measurement range to provide fast and accurate results without manual intervention.

It also features overload protection and safety fuses to ensure durability and safety during use.

• Measures DC and AC voltage up to 600V with high accuracy
• DC and AC current from 400uA to 10A
• Measures resistance up to 40MΩ and capacitance up to 100μF
• Frequency from 1Hz to 30MHz and temperature measurement from -20 to 1000 °C
• Special functions: diode test, continuity buzzer
• Large 57 × 33 mm LCD display with 3999 counts
• Auto power off and data hold for added convenience
• Function protection, 10A fuse and shock-resistant casing
• Includes test leads, battery and TP01 K temperature probe
• Compact dimensions (145 × 80 × 30 mm) and lightweight (200 g)
