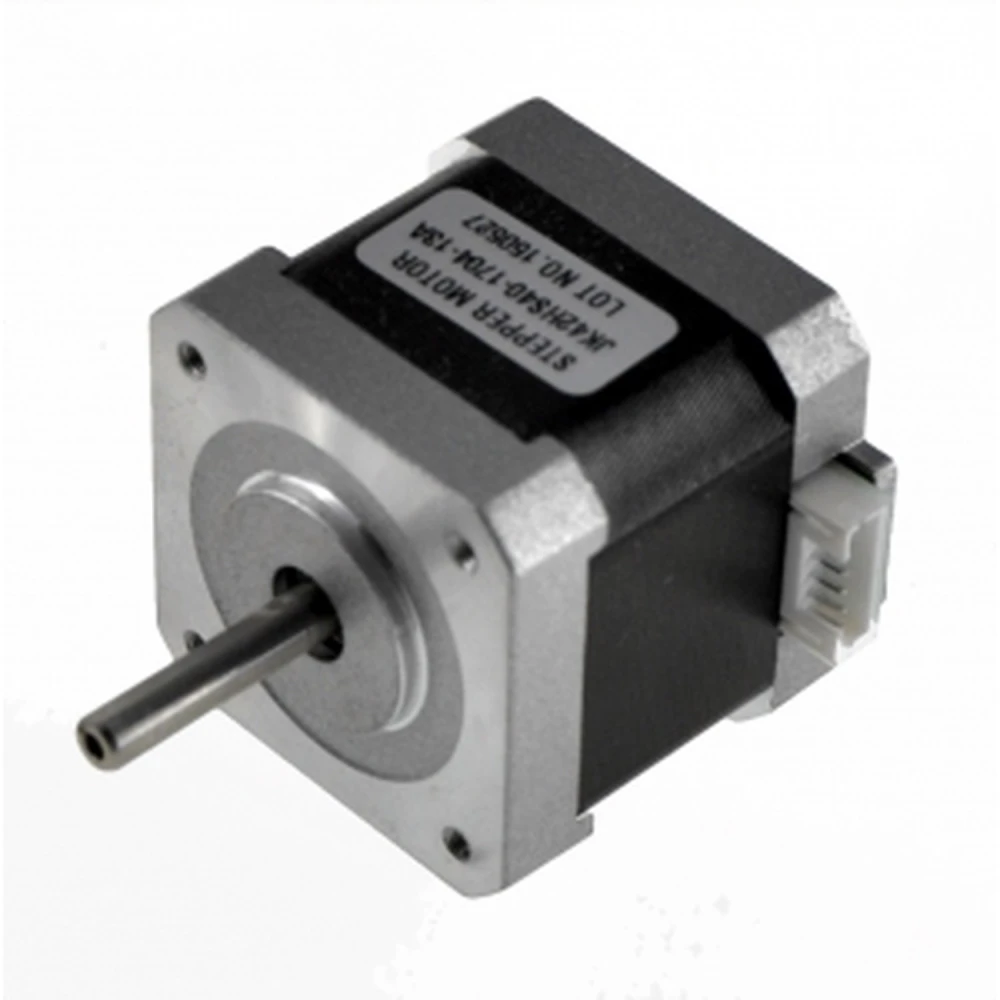

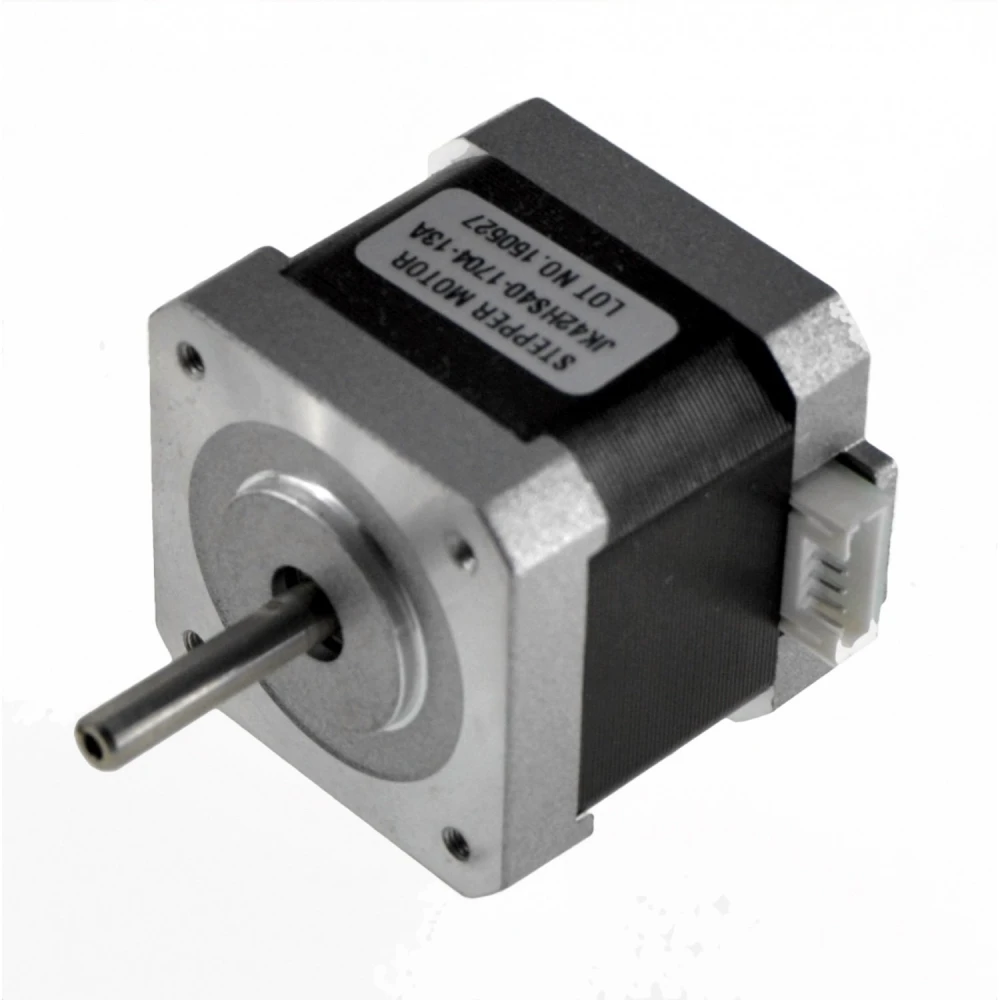

Nema 17 3D printer motor 58.30 Oz-In with flat shaft and 1 metre cable
Brand: satkit
12.18€
VAT included (Ex VAT: 9.90 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 11.07 € | -9% |
| 10+ | 10.46 € | -14% |
| 20+ | 9.99 € | -18% |
In Stock - Ships immediately
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The Nema 17 3D printer motor is an essential component for 3D printing and electronics projects, especially compatible with Arduino platforms. This stepper motor delivers 58.30 Oz-In of torque, ensuring precision and control in movement.
The pack includes:
- 1 Nema 17 PAP motor with flat shaft
- 1 1 metre cable with connectors for the motor
Technical specifications of the Nema 17 58.30 Oz-In stepper motor:
- Part number: JK42HS40-1704 13A
- Frame size: NEMA17
- Step angle: 1,8 degrees
- Voltage: 3.4V
- Current: 1,7 A per phase
- Resistance: 2,0 ohmios per phase
- Inductance: 3,0 mH per phase
- Torque: 4000 g-cm (58.30 Oz-In)
- Rotor inertia: 54 g-cm²
- Detent torque: 0,22 kilogramo-cm
- Number of wires: 4
- Weight: 0,29 kilogramos
- Total length: 40 mm
- Motor shaft: 5 mm
- Front shaft length: 20 mm
- Certifications: CE, ROHS, ISO9001
Typical uses: This motor is ideal for 3D printers, electronic soldering equipment, and Arduino projects that require precise and controlled movement. Its flat shaft design makes it easy to couple with pulleys and gears.
Compatibility: Compatible with most controllers and drivers for Nema 17 stepper motors, especially in 3D printing and DIY electronics applications.
Trust Satkit for quality electronic components that meet international certifications, ensuring durability and performance in your projects.
- Nema 17 stepper motor with 58.30 Oz-In torque for 3D printers
- Includes a 1 metre cable with connectors for easy connection
- 1,8 degree step angle for precise movement
- 3.4V operating voltage and 1.7 A current per phase
- 5 mm flat shaft with 20 mm front shaft length
- CE, ROHS and ISO9001 certifications for quality assurance
- Lightweight at 0,29 kg, ideal for equipment integration
- Compatible with Arduino and other stepper motor controllers
Customer Questions & Answers
What advantages does the 58.30 Oz-In NEMA 17 motor offer over a lower-torque NEMA 17 in 3D printers?
The 58.30 Oz-In NEMA 17 motor provides greater force for moving axes, allowing faster printing or the use of heavier direct-drive extruders without losing steps. Compared with lower-torque models (e.g. 42-45 Oz-In), it reduces the risk of layer shifts or missed steps during rapid movements, although it may increase power consumption and heat generation.
What are the exact motor dimensions, and what exactly is included in the package?

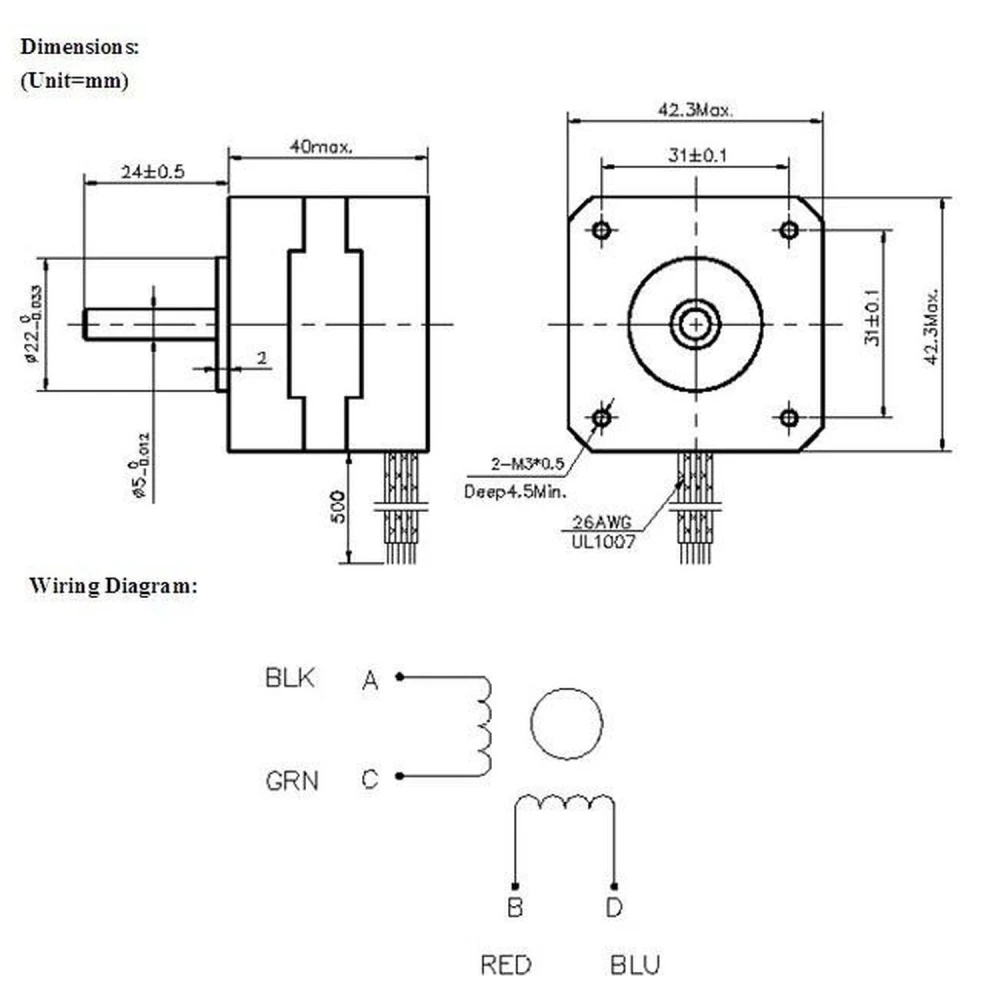

The motor has a NEMA 17 frame size (42 mm x 42 mm), a length of 40 mm, and a 5 mm diameter shaft with a length of 20 mm. The package includes: 1 x JK42HS40-1704 NEMA 17 motor with flat shaft and 1 x 1 metre connection cable with compatible connectors.
Is this motor compatible with 3D printer controllers such as A4988 or DRV8825? Are there any electrical requirements I should check?
Yes, the motor is compatible with popular drivers such as A4988 and DRV8825. Its main requirements are 1.7 A per phase and 3.4 V nominal. Make sure your power supply and controller can handle at least 1.7 A per phase and that you can set the driver output current to avoid overheating.
What maintenance does this motor require, and what is its estimated durability under typical 3D printer use?
Stepper motors like this NEMA 17 require minimal maintenance: clean the exterior to prevent dust build-up and check that the shaft turns freely. Its durability usually exceeds 10,000 hours in typical use (moderate duty cycles, ambient temperature below 50 °C) as long as the specified current is not exceeded.
Does this model have certifications and comply with relevant standards for use in electronic equipment?
Yes, the motor has CE, ROHS and ISO 9001 certifications, which ensures compliance with safety, hazardous substance content and manufacturing quality standards for electronic equipment in the European Union and international markets.
What type of 3D printers is this Nema 17 motor suitable for?
This Nema 17 motor is suitable for most 3D printers that require stepper motors with 58.30 Oz-In torque and a flat shaft for coupling.
Does it include the cable to connect the motor?
Yes, the pack includes a 1 metre cable with connectors to make connection to the motor easier.
Is it compatible with Arduino controllers?
Yes, this Nema 17 stepper motor is compatible with Arduino controllers and other systems that support Nema 17 motors.
What certifications does this motor have?
The motor has CE, ROHS and ISO9001 certifications, ensuring quality and compliance with regulations.
What is the operating voltage and current?
The motor operates at 3.4V and draws 1.7 A per phase, with 2.0 ohmios resistance per phase.
