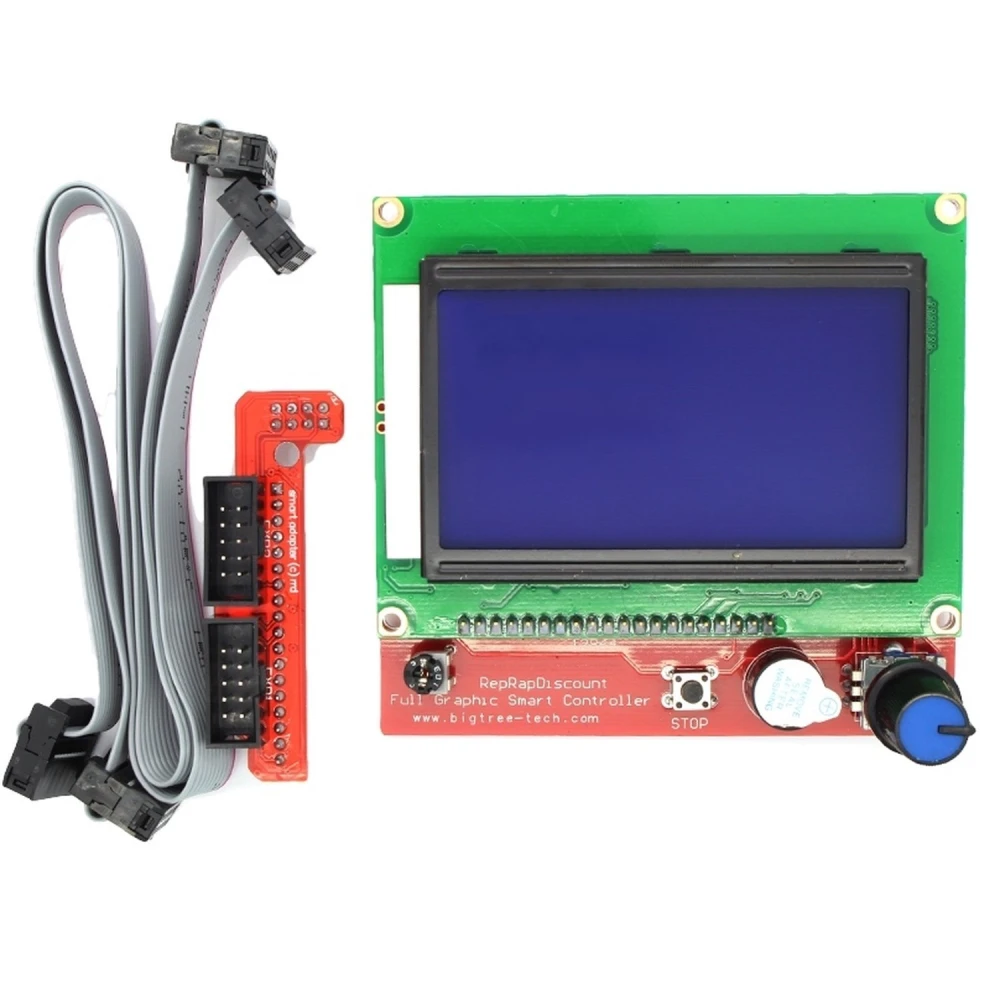

RAMPS Reprap LCD Controller with LCD/SD Panel for 3D Printer
Brand: satkit
Save 13% Was: 13.53 €
11.76€
VAT included (Ex VAT: 9.56 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 12.99 € | -4% |
| 10+ | 12.58 € | -7% |
| 20+ | 11.23 € | -17% |
Only 5 left in stock - order soon!
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The RAMPS Reprap LCD controller is an essential accessory for 3D printer users looking for a practical standalone solution to run their machine without relying on a computer. This smart panel integrates an SD card reader, a rotary encoder and a 128x64 character LCD screen, offering an intuitive interface and full functionality to control your 3D printer compatible with the RAMPS 1.4 board.
Main features:
- SD card reader for loading G-code designs directly from the card.
- 128x64 character LCD screen that displays clear and accurate information.
- Rotary encoder that makes menu navigation and settings easier.
- Compatible with the RAMPS 1.4 board via the included adapter.
- Allows the printer to operate without a computer, powering the SD card.
- Marlin-based firmware, with the option for future updates.
Package contents:
- 1 x RAMPS LCD controller panel with SD reader.
- 1 x Connector for the RAMPS 1.4 board.
- 2 x 10-pin flat cables for connection.
Typical uses:
This controller is ideal for 3D printer users who want greater independence and ease of use. It allows calibration, axis movement and printing files stored on the SD card without needing to connect the printer to a PC, helping create a more convenient and efficient workflow.
Compatibility:
Designed specifically for RAMPS 1.4 boards and Reprap systems, this panel is compatible with Marlin firmware, ensuring straightforward and stable integration.
With this controller, the 3D printing experience becomes more accessible and standalone, ideal for makers and enthusiasts looking to optimise their equipment.
- Integrated SD card reader for printing without a PC
- 128x64 character LCD screen for clear display
- Rotary encoder for easy navigation and control
- Compatible with RAMPS 1.4 board with included adapter
- Marlin firmware with update potential
- Includes 10-pin flat cables and connector for connection
Customer Questions & Answers
What are the physical dimensions of the LCD panel and included cables, and how much space do I need to allow in my printer?
The LCD panel measures approximately 93 mm x 87 mm x 15 mm. The included ribbon cables are 300 mm long each and have standard 10-pin connectors. You should allow at least a clear front space of 100 mm x 90 mm x 30 mm to ensure correct mounting and access to the panel and SD card.
What installation procedure should I follow and what precautions should I take to avoid electrical damage when connecting the panel?
Installation involves connecting the ribbon cables between the LCD controller and the RAMPS board using the 10-pin connectors; it is essential to follow the correct orientation shown by the connector guides to avoid short circuits or damage to the panel. It is recommended to always make the connection with the printer disconnected from the mains and to respect the cable alignment (pin 1 to pin 1).
Can the panel display special characters or graphics correctly, and what is the screen resolution?
The screen is a graphic LCD with a resolution of 128x64 pixels. It supports standard characters and some simple graphic symbols, depending on what the firmware allows. It cannot display complex graphics or multiple languages beyond the predefined Marlin set, and special characters may require firmware customisation.
What happens if my 3D printer operates in environments with high humidity or dust, and are there recommended protection measures for the panel?
The controller does not have a sealed enclosure against moisture or dust; its electronic board is exposed to external agents. For harsh environments, it is recommended to install it inside a protective enclosure with ventilation, avoiding dust build-up that could damage the screen or the SD reader contacts. The standard safe operating range for similar components is 0 to 50°C and relative humidity below 60%.
Is this controller compatible with the RAMPS 1.4 board?
Yes, this controller is designed to work with the RAMPS 1.4 board and includes an adapter to make connection easier.
Can I use this panel without connecting a computer?
Yes, the controller allows the 3D printer to operate independently using an SD card with the print files.
What type of screen does the controller have?
It has a 128x64 character LCD screen that shows clear information for the user.
Does it include cables for connection?
Yes, the package includes two 10-pin flat cables and a connector to connect the panel to the RAMPS board.
Can the controller firmware be updated?
Yes, the controller uses Marlin firmware and it can be updated in the future to improve functionality.
