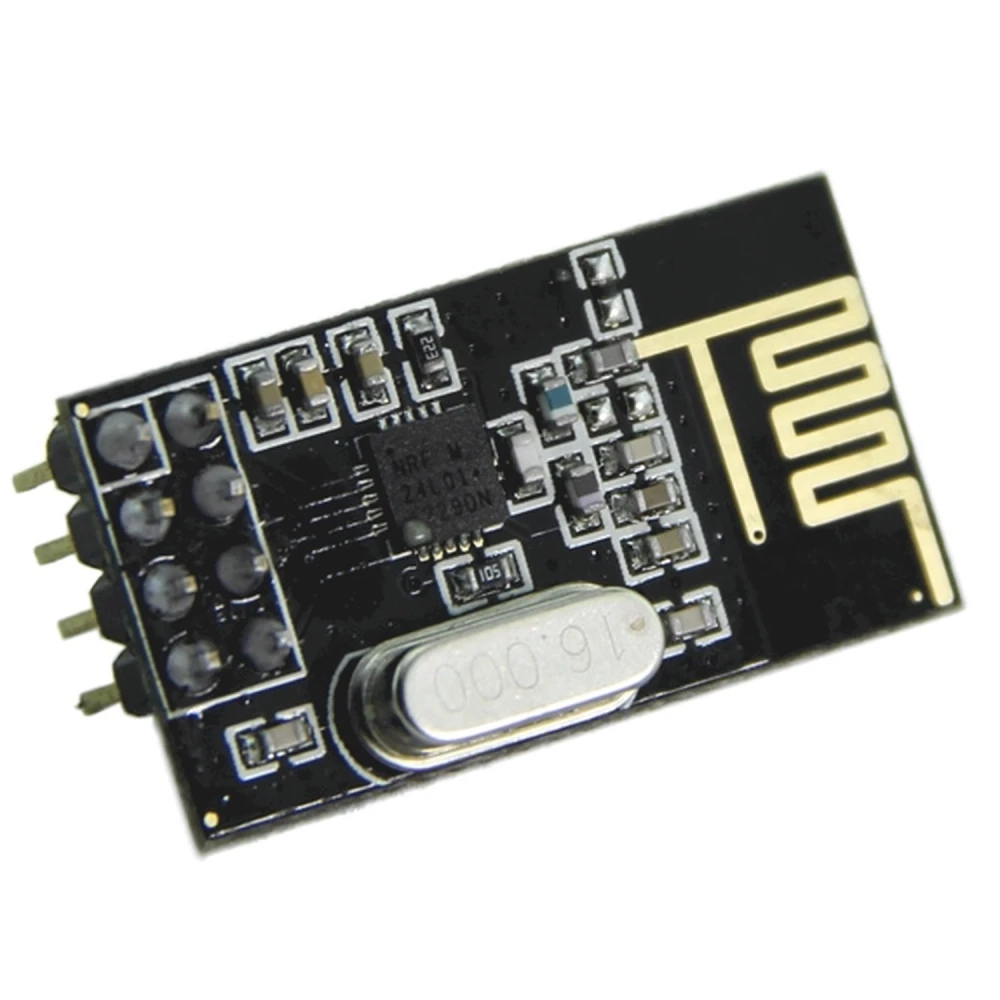

NRF24L01+ Wireless Transceiver for Arduino - Efficient Wireless Communication

The NRF24L01+ wireless transceiver for Arduino is a wireless communication module that allows two or more Arduino boards to communicate over distance using a wireless network in the 2,4 GHz band. This module opens up a wide range of possibilities for electronics and automation projects where a wired connection is not practical or desirable.

This module is perfect for handling remote temperature sensors, pressure sensors, alarms and other devices, as well as controlling surveillance robots and monitoring systems at distances ranging between 10 and 50 meters indoors. It is also useful for remote control and supervision of nearby buildings and machinery, as well as for autonomous vehicles of different types.

The NRF24L01+ transceivers are based on the Nordic Semiconductor nRF24L01+ chip, which integrates a complete 2,4 GHz RF transceiver, an RF synthesiser and all baseband logic, including a hardware Enhanced ShockBurst™ protocol accelerator and a high-speed SPI interface for communication with the Arduino controller.

• Operation in licence-free 2.4 GHz ISM band
• Transmission speeds: 250 kbps, 1 Mbps and 2 Mbps
• Enhanced ShockBurst™ protocol for efficient and reliable communication
• Low power consumption: allows months or even years of operation on batteries
• Power supply: 1.9 to 3.6 V
• IO port operating voltage: 0 to 3.3 V / 5 V compatible
• Transmission power: +7 dB
• Receiving sensitivity: -90 dB
• Transmission range: up to 50 meters indoors and 200 meters in open area
• Dimensions: 15 x 29 mm

This module is ideal for Arduino projects that require stable and efficient wireless communication, such as sensor networks, remote control systems, robotics and automation. Its SPI interface makes integration with Arduino boards and other compatible microcontrollers easy.

In addition, the low power consumption of the NRF24L01+ makes it suitable for battery-powered applications, extending service life without the need for frequent recharging.

To connect the NRF24L01+ module to Arduino, it is recommended to use the SPI interface and specific libraries that make it easier to set up and manage wireless communication.

• Wireless communication between Arduinos in the 2.4 GHz band
• Transmission speeds of 250 kbps, 1 Mbps and 2 Mbps
• Enhanced ShockBurst™ protocol for greater efficiency
• Low power consumption for long battery life
• Range of up to 50 meters indoors and 200 meters outdoors
• Compatible with 3.3V and 5V IO voltages
• Compact 15x29 mm size for easy integration
