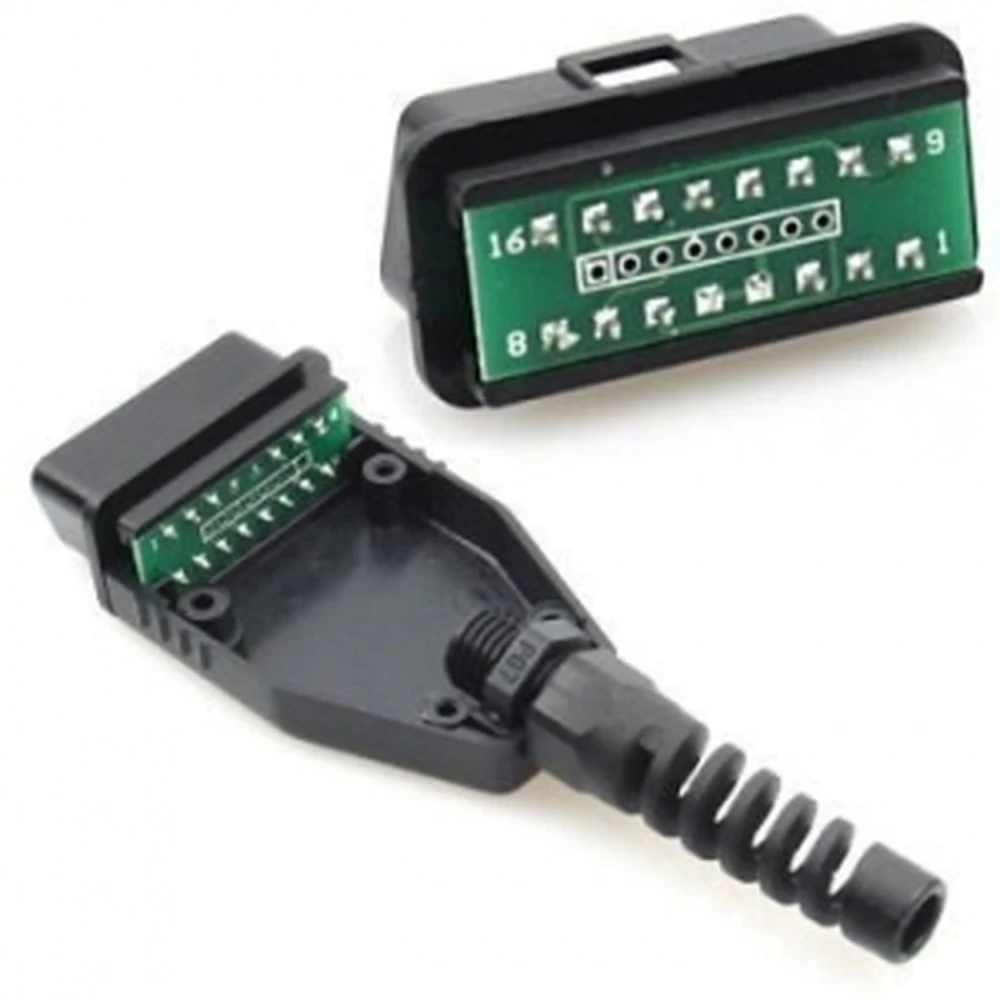

Konnwei 16 Pin OBD2 Male Connector for Vehicle Diagnostics

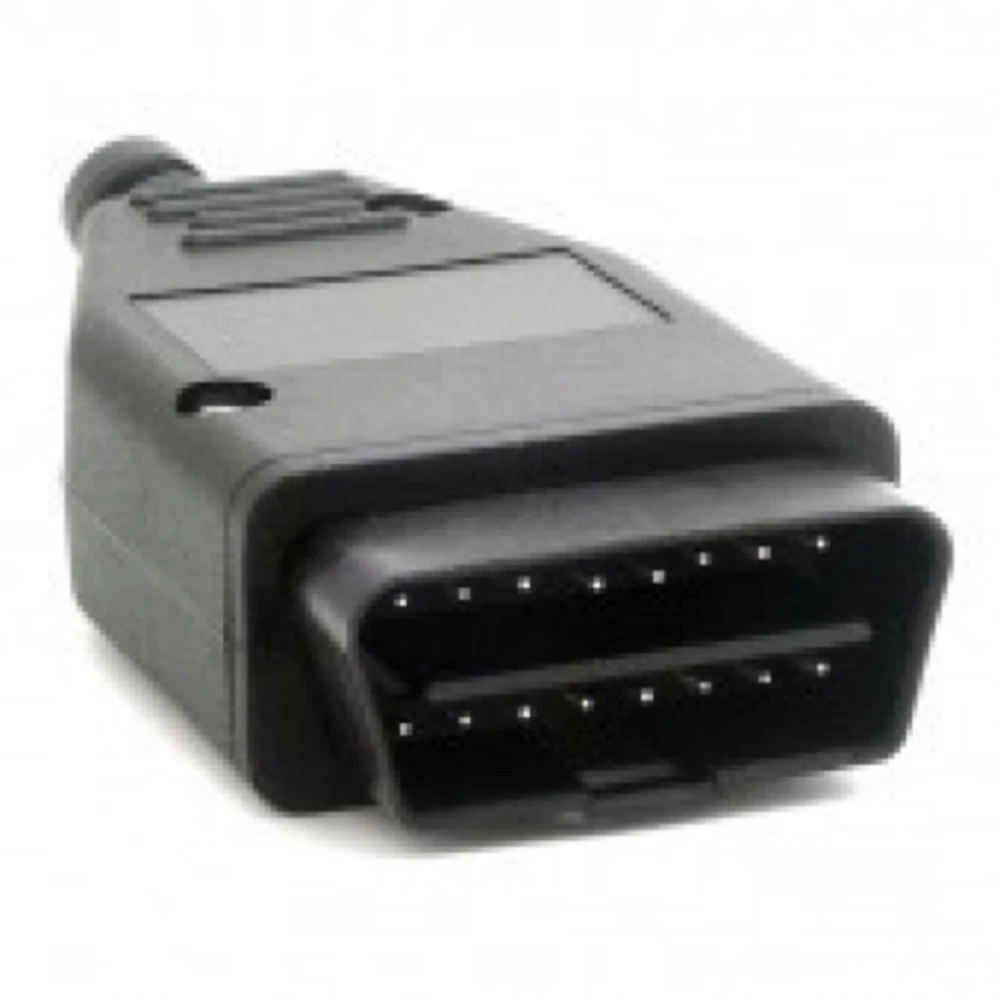

Conector OBD2 macho 16 pines para reparación y fabricación de cables

Accesorio Konnwei conector macho OBD II 16 pin para diagnóstico automotriz

Konnwei 16 Pin OBD2 Male Connector for Vehicle Diagnostics

Name: Konnwei 16 Pin OBD2 Male Connector for Vehicle Diagnostics
Brand: Konnwei
SKU: a050301-OBD2-CONEC
Price: 2.71 EUR
Availability: InStock

Brand: Konnwei

Be the first to review this product

2.71€

VAT included (Ex VAT: 2.20 €)

Volume Discounts

Quantity	Price	Save
2+	2.40 €	-11%
10+	2.21 €	-18%
20+	2.09 €	-23%

Limited stock

Standard delivery Fri, May 1 - Tue, May 5

Express delivery Wed, Apr 29 - Thu, Apr 30

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

OBD II 16 Pin Male Diagnostic Connector from the Konnwei brand is an essential component for the manufacture and repair of OBD2 cables in automotive applications. This connector allows direct connection to the standard OBD II diagnostic port found in most modern vehicles, making it easier to access engine diagnostic data and codes and other vehicle systems.

This 16-pin male connector is designed to provide a secure and reliable connection, ideal for technicians, workshops and enthusiasts who need to make their own cables or repair damaged cables without losing functionality.

Compatibility: Compatible with most vehicles that use the OBD II standard, including most cars manufactured from 1996 onwards.
Main use: Repair of damaged OBD2 cables, manufacture of custom cables for vehicle diagnostics.
Quality: Original Konnwei product, recognised for its durability and precision in electrical connections.
Design: Male connector with standard 16 pins, easy to install and connect.
Applications: Compatible with diagnostic tools, OBD2 scanners, and other automotive measuring devices.

This connector is an essential accessory for those working in vehicle maintenance, repair and diagnostics, allowing OBD2 cable functionality to be restored without needing to replace the entire wiring. Its standard design ensures a perfect connection with any 16-pin male OBD II port.

Technical specifications:

Connector type: Male
Number of pins: 16
Standard: OBD II
Brand: Konnwei
Use: Repair and manufacture of OBD2 cables

For installation, it is recommended to have suitable tools for crimping or soldering the cables to the connector, ensuring an optimal and safe electrical connection. This connector is ideal for professionals and automotive diagnostics enthusiasts looking for an economical and effective solution to keep their equipment working.

16-pin standard OBD2 male connector for vehicle diagnostics
Compatible with vehicles using the OBD II standard from 1996 onwards
Ideal for making or repairing damaged OBD2 cables
Original Konnwei product, with quality and durability assured
Compatible with OBD2 diagnostic tools and scanners

Customer Questions & Answers

What are the main materials of this 16-pin male OBD II connector, and what advantages does each one provide?

This connector is mainly made from ABS plastic for the housing, offering resistance to knocks and moderate temperatures, while the internal contacts are made from brass with nickel plating, ensuring good electrical conductivity and corrosion resistance.

Which protocols and vehicle models is this 16-pin OBD II connector compatible with?

The connector complies with the 16-pin OBD II standard, so it is physically compatible with most vehicles manufactured from 1996 onwards that use protocols such as ISO9141, CAN, J1850 VPW/PWM and KWP2000. However, final compatibility will depend on the wiring and associated electronics.

What are the dimensions and weight of the bare connector, and what exactly is included in the box?

The connector measures approximately 48 mm × 24 mm × 16 mm and weighs around 18 g without wiring. The package usually includes the dismantled male connector (housing and terminals), without cable or soldering, ready for assembly.

Is there any recommended current or operating voltage limit for the OBD II connector pins?

It is recommended not to exceed 5 A per pin and a maximum operating voltage of 24 V DC, in line with typical automotive use. Exceeding these values may compromise the integrity of the connector and the safety of the system.

What installation or soldering precautions are recommended to ensure a durable and safe connection?

It is recommended to pre-tin the cables and use lead-free solder to avoid premature corrosion. Also ensure correct pin alignment and use heat-shrink tubing on the joints to protect against vibration and short circuits.

What is the 16 pin OBD II male diagnostic connector used for?

It is used to connect automotive diagnostic devices to the vehicle's OBD II port to read engine and associated system codes and data.

Is this connector compatible with all vehicles?

It is compatible with most vehicles that use the OBD II standard, common in cars manufactured from 1996 onwards.

Can I use this connector to repair damaged OBD2 cables?

Yes, it is specifically designed to make or repair OBD2 cables, restoring the cable's functionality.

Do I need special tools to install the connector?

It is recommended to use tools to crimp or solder the cables to the connector to ensure a secure and stable connection.

Is this connector original Konnwei?

Yes, it is an original Konnwei product, recognised for its quality in automotive diagnostic accessories.
