OBDII Breakout Box Protocol Detector - Professional Diagnostic Tool

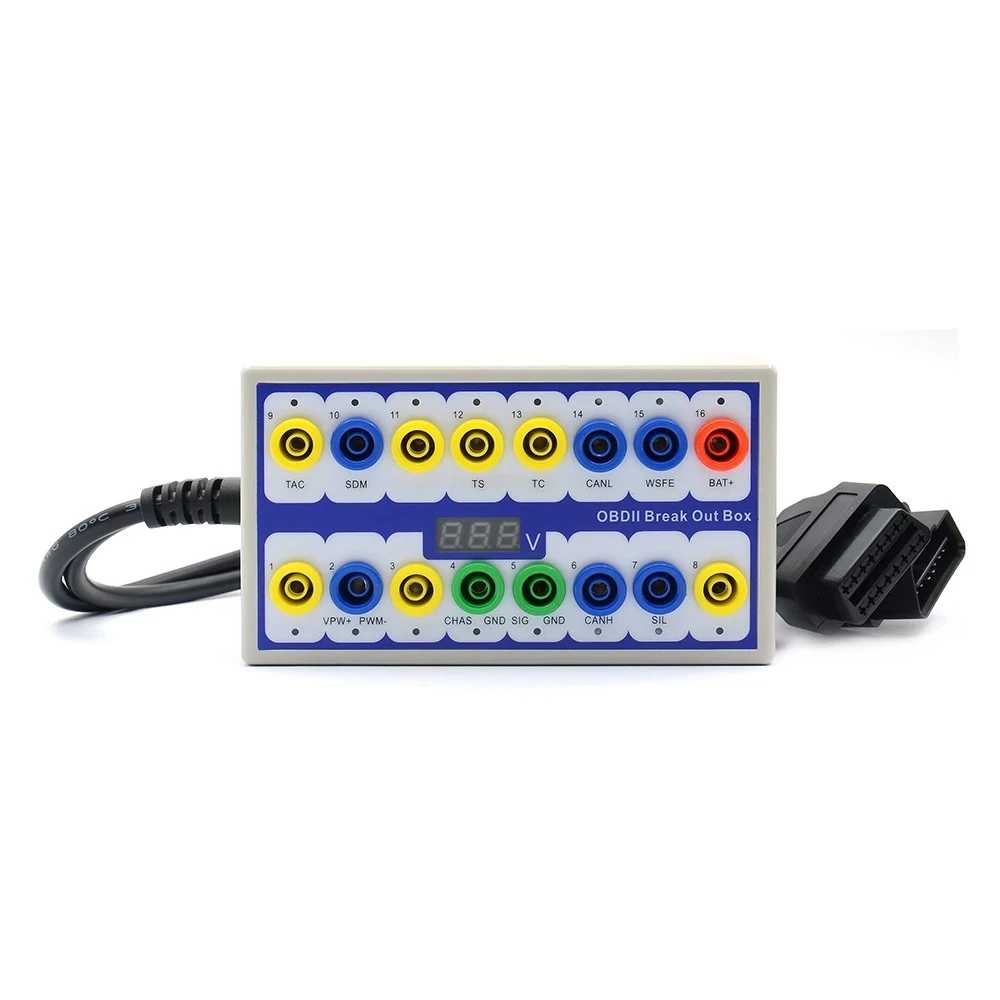

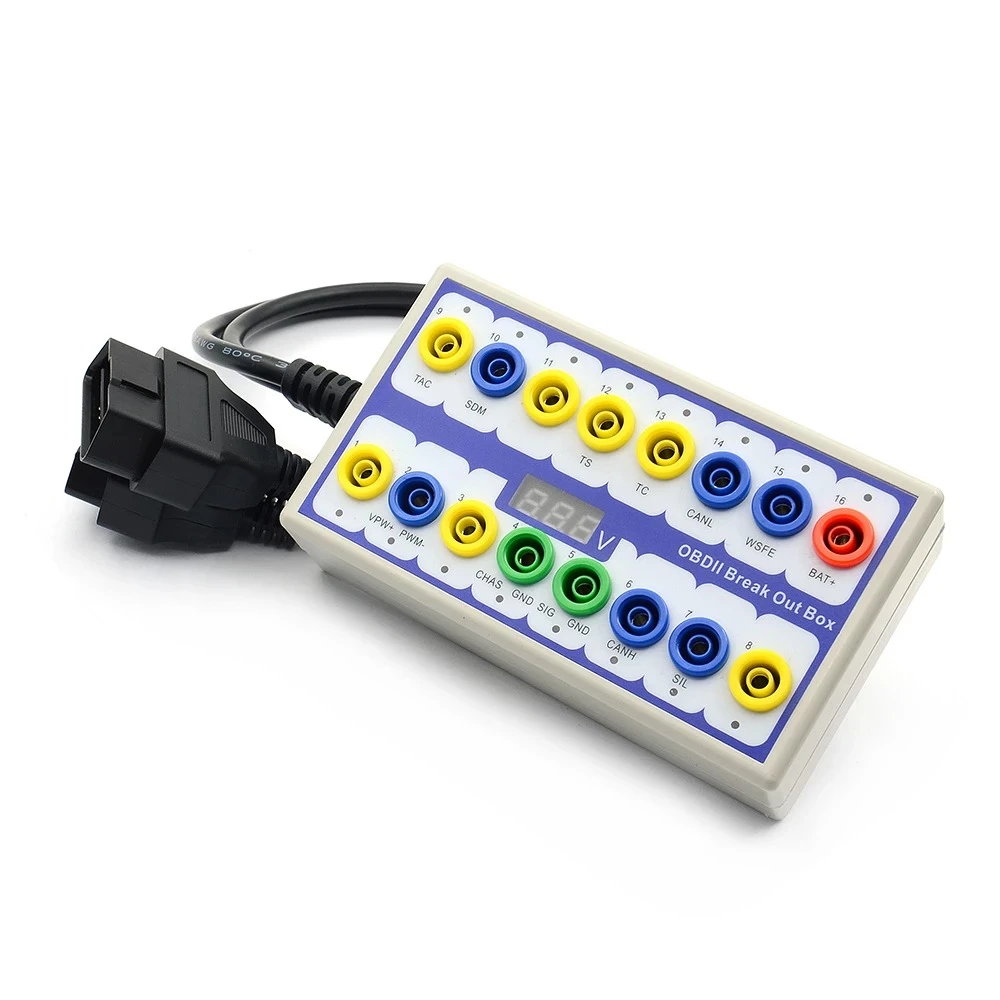

OBDII Breakout Box Protocol Detector - Diagnostic Tool

This professional tool is essential for workshops and automotive technicians who require accurate and efficient diagnostics on vehicles with an OBDII system. Its design allows for a wide range of applications, from diagnostics to programming and adjustment of vehicle electronic components.

Key features

• Real-time monitoring of data flow during vehicle testing.
• Displays test voltage in cars and trucks, with voltage and ground control of the OBD interface.
• Indicates the communication pin number to make identification and diagnostics easier.

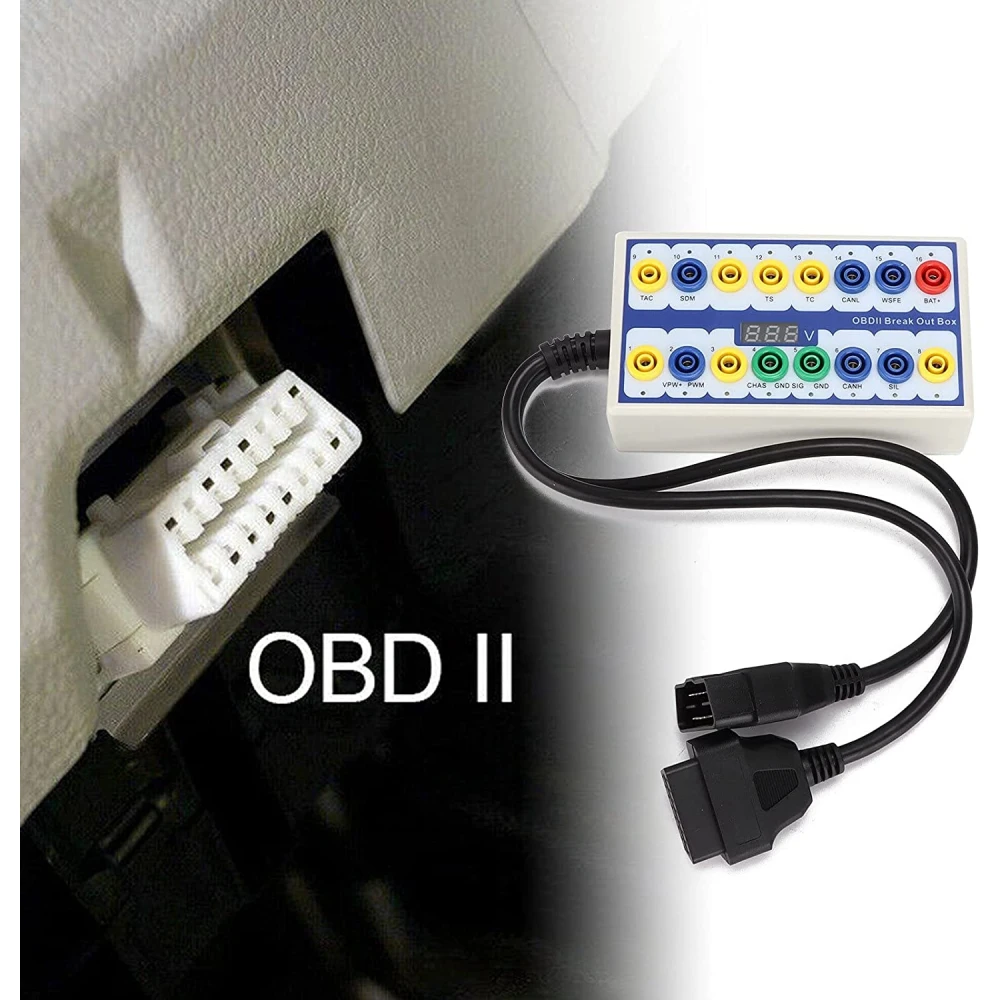

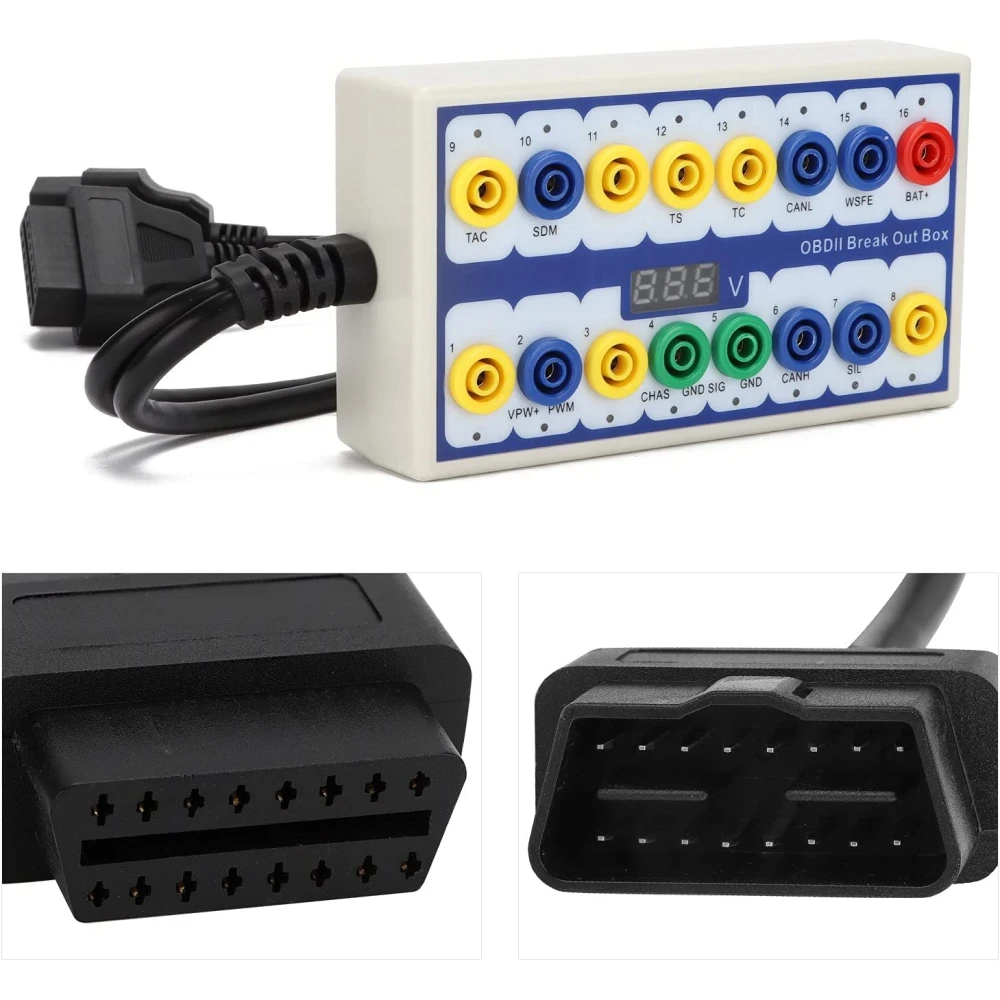

• Works as an extension of the OBD Diagnostic Link Connector (DLC).
• Allows pin shorting for specific tests.
• Detects problems in isolated circuits, making it easier to locate electrical faults.
• Includes a power extension cable for small DC testers, with support for an external power supply up to 1,2 Amperios.
• Compatible with meters and oscilloscopes for detailed circuit testing.
• Checks power (pin 16), chassis ground (pin 4) and signal ground (pin 5).
• Function to save ECU data when replacing the battery, preventing information loss.
• Quick diagnostics and fault detection in the OBD connector link.
• Signal transfer for OBD interface, compatible with decoders for 7 to 15 vehicles in line.
• Ensures vehicle data is preserved during battery replacement by connecting additional power at the same time.

Typical uses

This diagnostic box is ideal for technicians who need to monitor and analyse the OBDII system during testing, key programming, chip tuning and general vehicle maintenance. It helps detect electrical faults and ensures data integrity when carrying out critical operations such as battery replacement.

Compatibility

Designed for vehicles equipped with an OBDII system, this tool is compatible with a wide range of cars and trucks that use this standard for diagnostics and electronic communication.

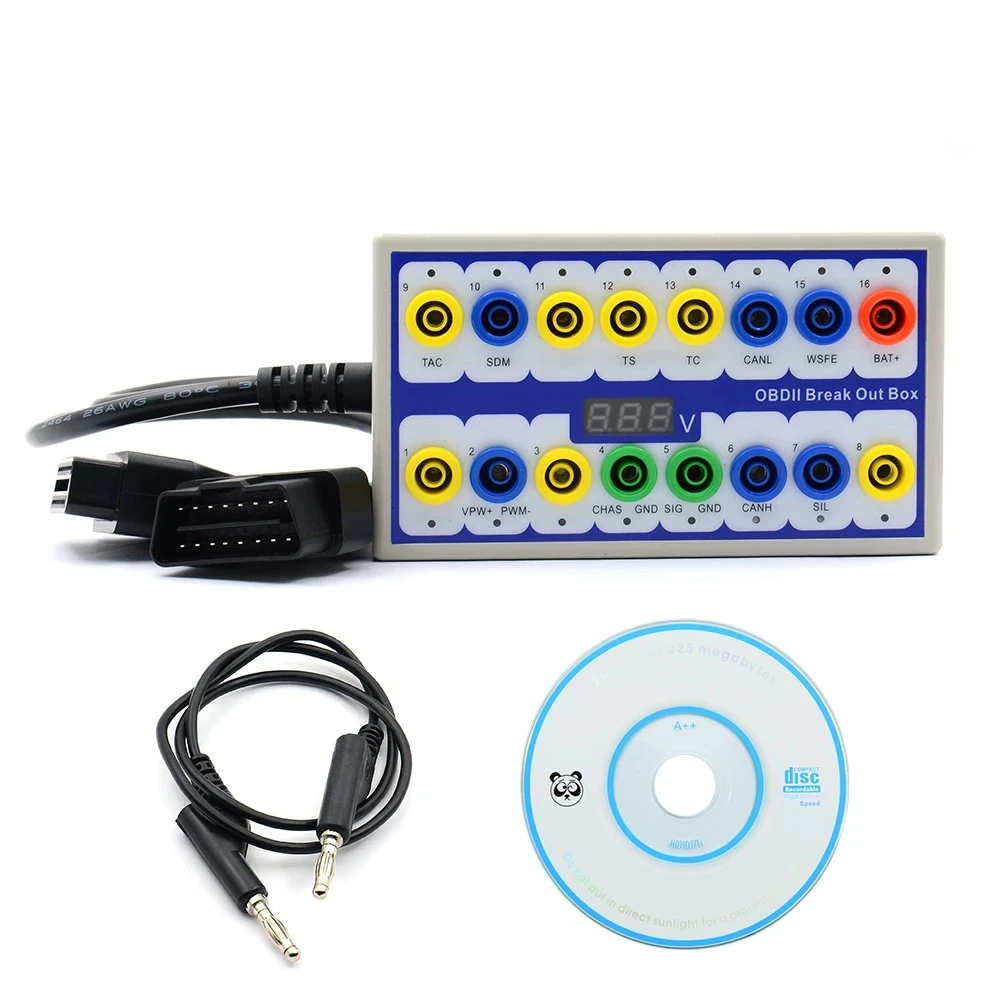

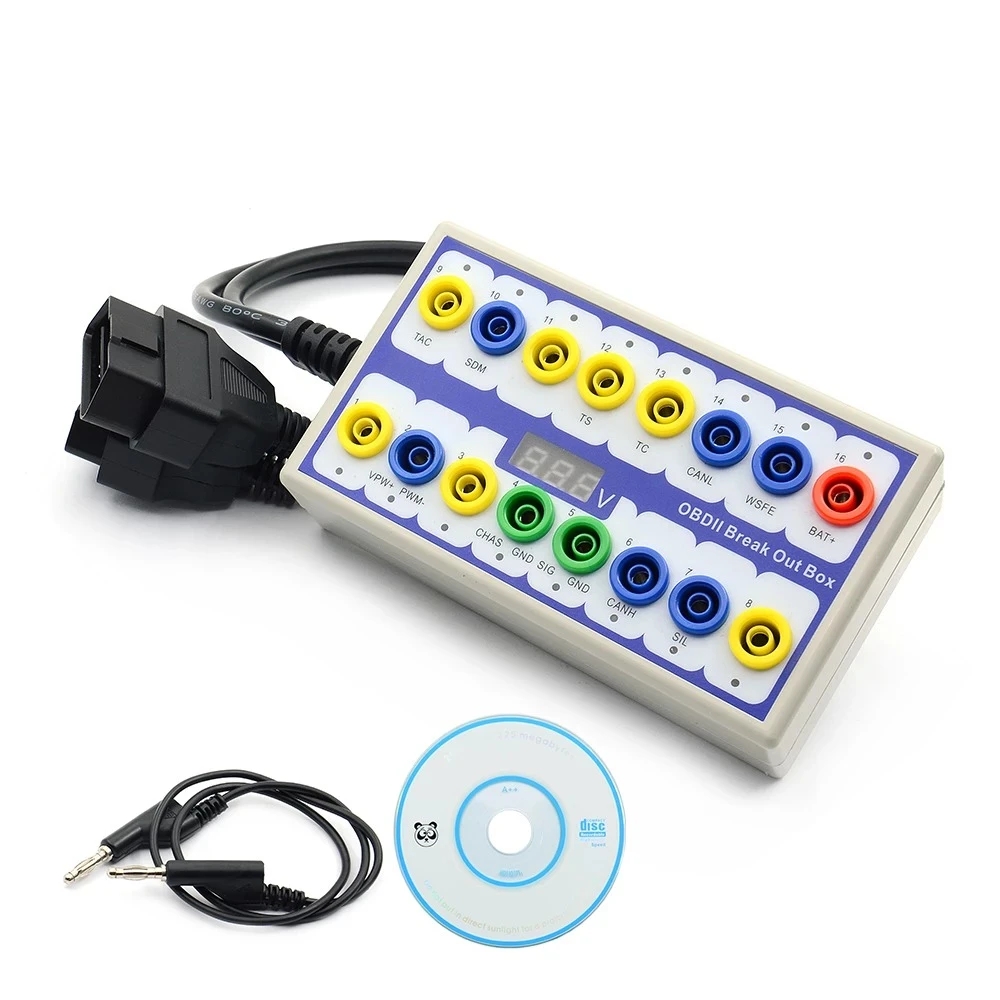

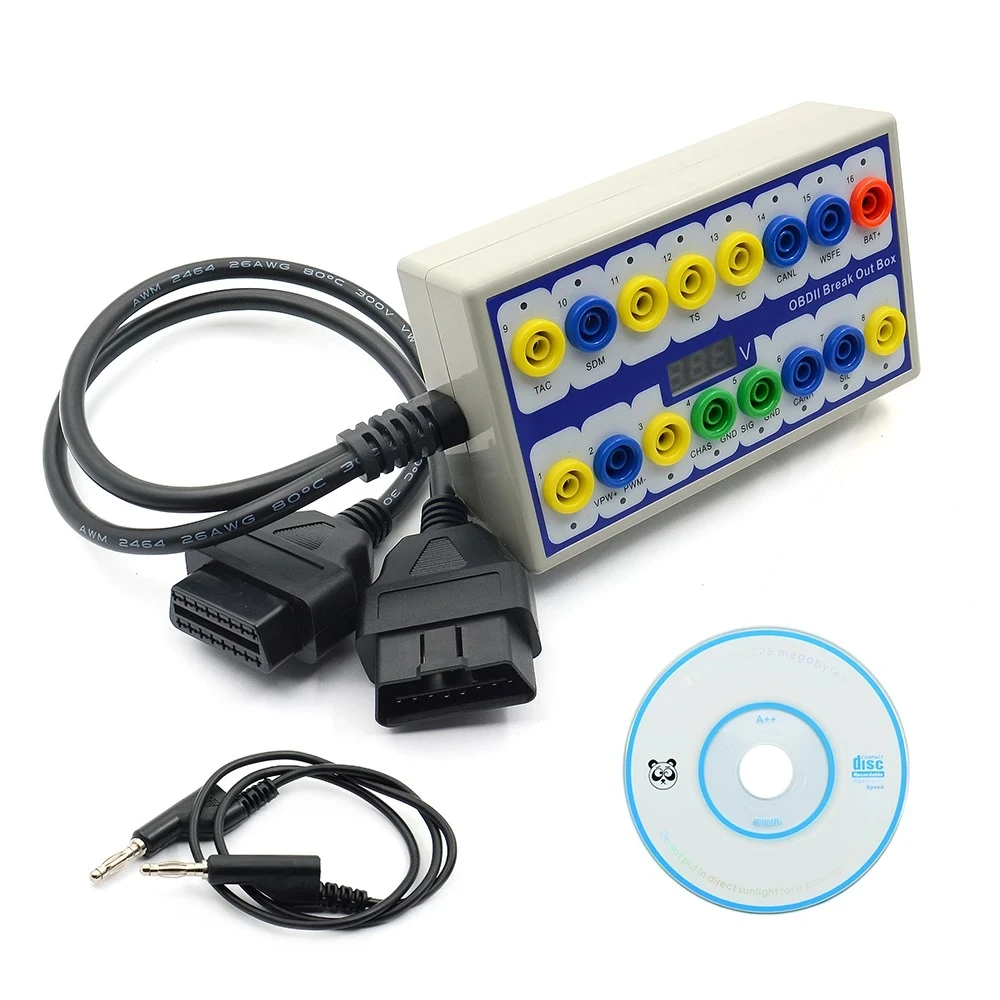

Package contents

• 1 x OBDII Breakout Box diagnostic detector

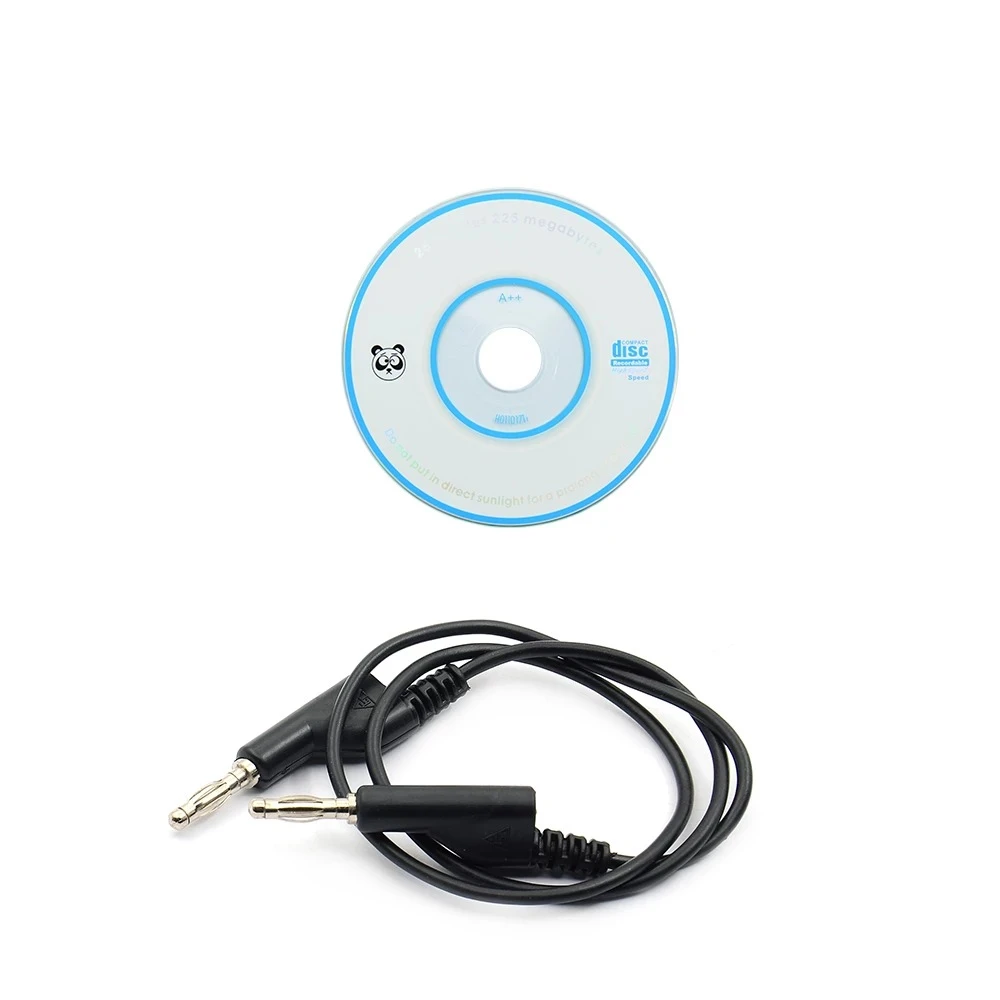

• 1 x Power lead for external power supply
• 1 x CD with manual and support software

• Real-time monitoring of OBDII data flow during testing.
• Displays and controls voltage and ground at the OBD connector.
• Extension for OBD Diagnostic Link Connector (DLC).
• Detects short circuits and problems in isolated circuits.
• Function to save ECU data when changing the vehicle battery.
• Compatible with meters and oscilloscopes for advanced testing.
• Includes a power lead for external power supply up to 1,2 Amperios.
• Signal transfer for decoders for 7 to 15 vehicles in line.
