PCF8591 Analogue to Digital Converter for Arduino Projects

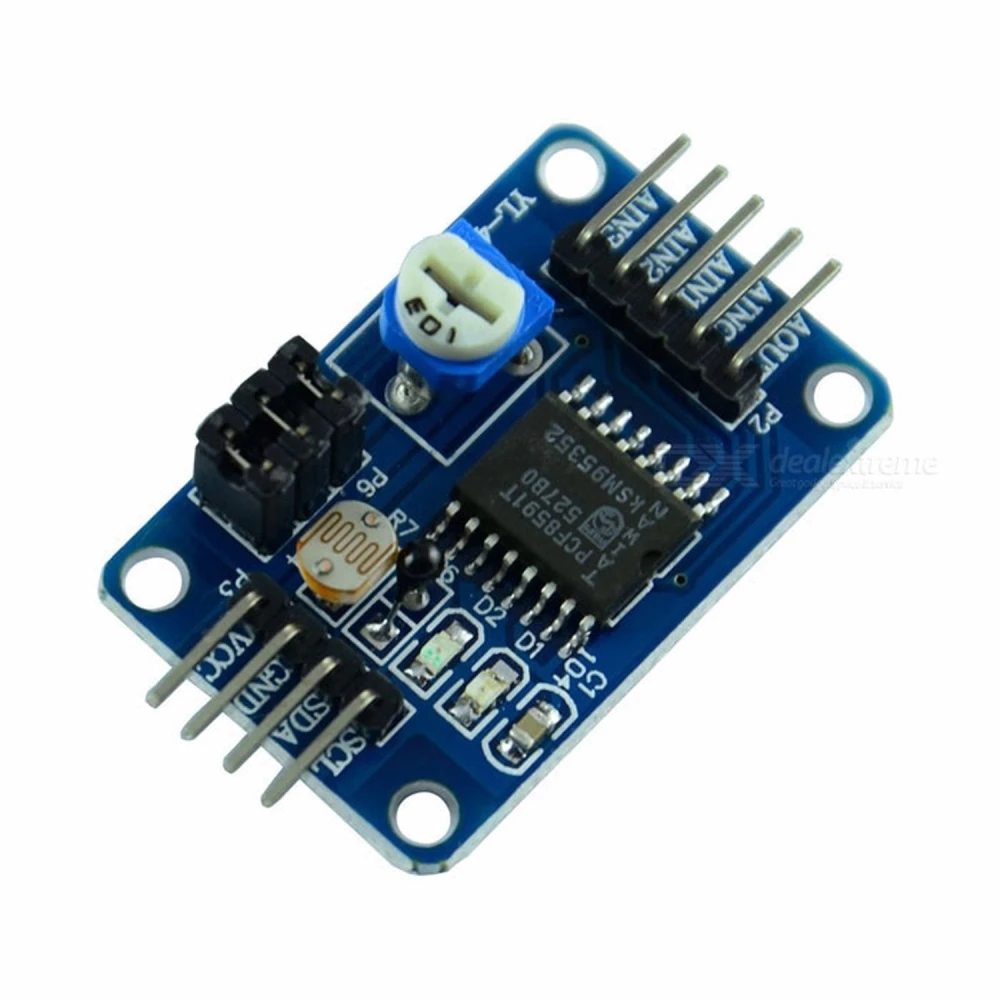

The PCF8591 analogue to digital converter compatible with Arduino is an essential module for anyone working with microcontrollers and needing to convert analogue signals to digital and vice versa efficiently and reliably. This module uses the PCF8591 chip, which offers 8-bit AD/DA conversion with multiple advanced features to make integration into electronic projects easier.

Main features:

• Operating voltage: 2.5V to 6V, suitable for various working environments.
• Low standby current consumption: efficient for projects that require energy saving.
• I2C communication: serial interface for input and output, making connection with Arduino and other microcontrollers easier.
• Hardware addressing: 3 pins to configure the I2C address and avoid bus conflicts.
• Sampling frequency: determined by the I2C bus speed to suit different needs.
• Analogue inputs: 4 programmable inputs that can be configured as single-ended or differential inputs.
• Automatic channel selection: automatic increment to make sequential signal reading easier.
• Analogue voltage range: from VSS to VDD, allowing flexibility in input signals.
• Built-in hold circuit: to keep the signal stable during conversion.
• 8-bit AD/DA conversion: with successive approximation for greater accuracy.
• DAC gain: adjustable analogue output for applications that require analogue control signals.

Technical specifications and module contents:

• Module based on PCF8591 chip.
• Supports four external voltage capture inputs (0-5V).
• Includes an integrated light sensor to measure ambient light intensity accurately.
• Incorporates a thermistor for accurate ambient temperature measurement.
• Features a blue potentiometer to adjust the input voltage from 0-5V.
• LED indicators for power and DA output, making it easy to visually monitor the module status and output.
• PCB size: 3.6 cm x 2.3 cm, with a standard double-panel design and 3 mm mounting holes for easy installation.
• Includes 1 light sensor and 4 x 20 cm DuPont wires for quick connection.

Typical uses:

• Arduino projects that require reading and generating analogue signals.
• Measuring analogue sensors such as temperature, light or voltage.
• Electronic automation and control with analogue and digital signals.
• Prototype development that needs efficient and compact AD/DA conversion.

Compatibility: This module is compatible with Arduino boards and other microcontrollers that support I2C communication, making it easy to integrate into a wide range of electronic projects.

The PCF8591 analogue to digital converter for Arduino is an economical and functional solution for those looking for accuracy and ease of use in signal conversion. Its compact design and advanced features make it an essential accessory for electronics developers and enthusiasts.

• Operating voltage: 2.5V to 6V for project flexibility.
• Low standby current consumption for energy efficiency.
• I2C interface for simple communication with Arduino and microcontrollers.
• Four configurable analogue inputs for different signal types.
• Automatic channel selection for straightforward sequential readings.
• Includes a light sensor and thermistor for accurate environmental measurements.
• LED indicators for power status and DA output for easy monitoring.
• Compact 3.6cm x 2.3cm size with mounting holes for secure installation.
• Includes DuPont wires for quick and easy connection.
