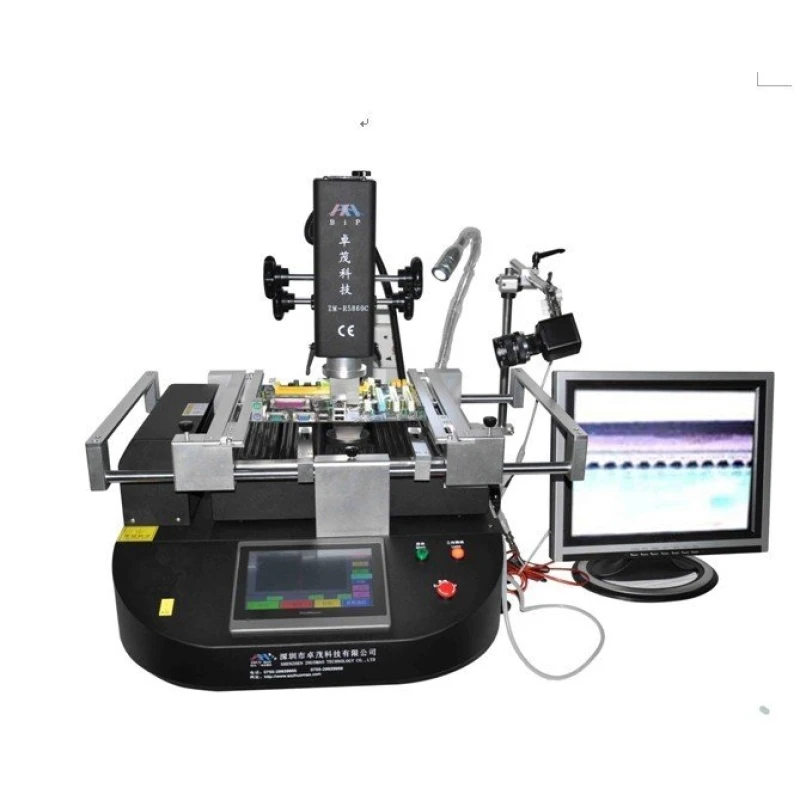

Zhuomao ZM-R5860C reballing station: precision and advanced BGA technology
Brand: Zhuomao
VAT included (Ex VAT: 1,900.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 2,243.52 € | -4% |
| 10+ | 2,196.78 € | -6% |
| 20+ | 2,103.30 € | -10% |
The Zhuomao ZM-R5860C reballing station is a professional tool designed for high-precision and efficient BGA soldering and desoldering work. Equipped with advanced technology, this unit makes electronic component rework on PCB boards easier, ensuring optimum and safe results.
Main features:
- Precise X, Y and Z axis adjustment: Thanks to its linear sliding system, it allows accurate and fast positioning, improving manoeuvrability and precision during work.
- High-definition touchscreen: Made in Taiwan, with PLC control that allows multiple temperature profiles to be saved, password protection, and instant thermal curve analysis.
- Three independent heating zones: Two hot air heaters and one infrared (IR) heater for preheating, with temperature control within ±3 °C. The upper heater is freely adjustable, the second can move vertically, and the IR heater has adjustable power for even board heating.
- 360° rotating hot air nozzles: Fitted with a magnet for easy installation and replacement, with custom options available.
- High-precision K-type thermocouple: Closed-loop temperature control system with automatic compensation and PLC module for exact control.
- V-groove positioning system: Flexible PCB support that protects against deformation during heating or cooling, suitable for any BGA package size.
- Powerful cross-flow fan: Cools the board quickly to improve efficiency. Includes built-in vacuum pump and suction pen for fast chip handling.
- Alarms and safety: Signal at the end of soldering and desoldering processes, CE certified, emergency stop button, automatic shut-off in case of accident, and double overheating protection.
- CCD vision system: Allows precise visual control of the melting process during BGA soldering and desoldering.
Technical specifications:
| Parameter | Detail |
|---|---|
| Total power | 4800W |
| Top heater | 800W |
| Lower heaters | Second heater 1200W, third IR heater 2700W |
| Power supply | AC220V ±10%, 50/60Hz |
| Dimensions | 635 × 600 × 560 mm |
| Positioning | V-groove with universal adjustable PCB support |
| Temperature control | K-type sensor, closed loop, accuracy ±3°C |
| Maximum PCB size | 410 × 370 mm |
| Minimum PCB size | 20 × 20 mm |
| Electrical module | Sensitive temperature control module + touchscreen (Taiwan) + Delta PLC |
| Net weight | 50 kg |
Typical uses:
Ideal for electronic repair workshops, development labs and production environments where BGA chip repair or reballing on PCB boards is required. Its advanced thermal control and positioning system allows soldering and desoldering with high precision, minimising the risk of damage to components.
Compatibility: Compatible with a wide range of PCB board sizes and BGA packages, thanks to its adjustable support and independent temperature control in multiple zones.
Product status: Currently out of stock. Please check availability with our customer service team.
- Precise X-Y-Z axis adjustment with linear sliding system
- High-definition touchscreen with PLC control and savable profiles
- Three independent heating zones with ±3 °C control
- 360° rotating hot air nozzles with magnet for easy changing
- K-type thermocouple with closed-loop control and automatic compensation
- V-groove support for protection and universal PCB adjustment
- Cross-flow fan and built-in vacuum pump for efficiency
- Process alarms, CE certification and double overheating protection
- CCD vision system for visual control during soldering and desoldering
- Compact dimensions and 50 kg weight for stability and mobility
Customer Questions & Answers
What advantages does the touchscreen control system on the Zhuomao Zm-R5860c offer compared with models with conventional manual controls?
The high-definition touchscreen allows multiple temperature profiles to be saved, offers password protection and makes instant thermal curve analysis easier. This optimises configuration changes, speeds up repetitive workflows and reduces the likelihood of human error compared with manual operation. In addition, digital programme storage is an advantage in standardised production processes.
What are the dimensions and total weight of the Zm-R5860c station, and what is included in the box?
According to the manufacturer, the station measures approximately 740 mm long x 670 mm wide x 570 mm high and weighs an estimated 70 kg. The box includes the main unit, a set of hot-air nozzles, a basic accessory set (such as tweezers and rods), user manual and power cables. It is recommended to check the exact list with the distributor.
What range of electronic components or chips can the station handle in terms of size and type with acceptable accuracy?
The Zhuomao Zm-R5860c can work with a wide range of BGA, CSP, QFP and SMD ICs. It normally supports components from around 2 mm up to boards measuring 410 x 370 mm, with high-precision X, Y and Z fine adjustment. The exact minimum and maximum size may depend on the nozzle and fixtures used.
What thermal and control accuracy can the heating system guarantee, and what are the safe operating limits?
The Zm-R5860c system controls the temperature across the 3 heating zones with a tolerance of ±3 °C during the process. The recommended upper limit for hot air is 400°C, which is suitable for most lead-free soldering jobs. The IR preheater is adjustable and helps to prevent localised overheating. It is essential to follow the recommended profiles for each chip and solder type.
What preventive maintenance does the station require, and which parts are most prone to wear?
Basic maintenance includes regular cleaning of the nozzles and filters, checking electrical connections, and inspecting the X-Y-Z movement system to prevent dirt build-up. Nozzles, air filters and heating elements may need replacing after prolonged use. Zhuomao and distributors usually stock spare parts.
What is the total power of the Zhuomao ZM-R5860C reballing station?
The total power is 4800W, distributed across three heating zones for efficient thermal control.
What is the maximum PCB size this station can handle?
It can handle PCB boards up to 410×370 mm, with a minimum size of 20×20 mm.
Does the station have overheating protection?
Yes, it has double overheating protection and an automatic shut-off device in case of accident.
Is it possible to save temperature profiles?
Yes, the touchscreen and PLC control allow multiple groups of temperature profiles to be saved for different processes.
What positioning systems does it include?
It includes a V-groove system with universal adjustable support to prevent PCB deformation during heating.
