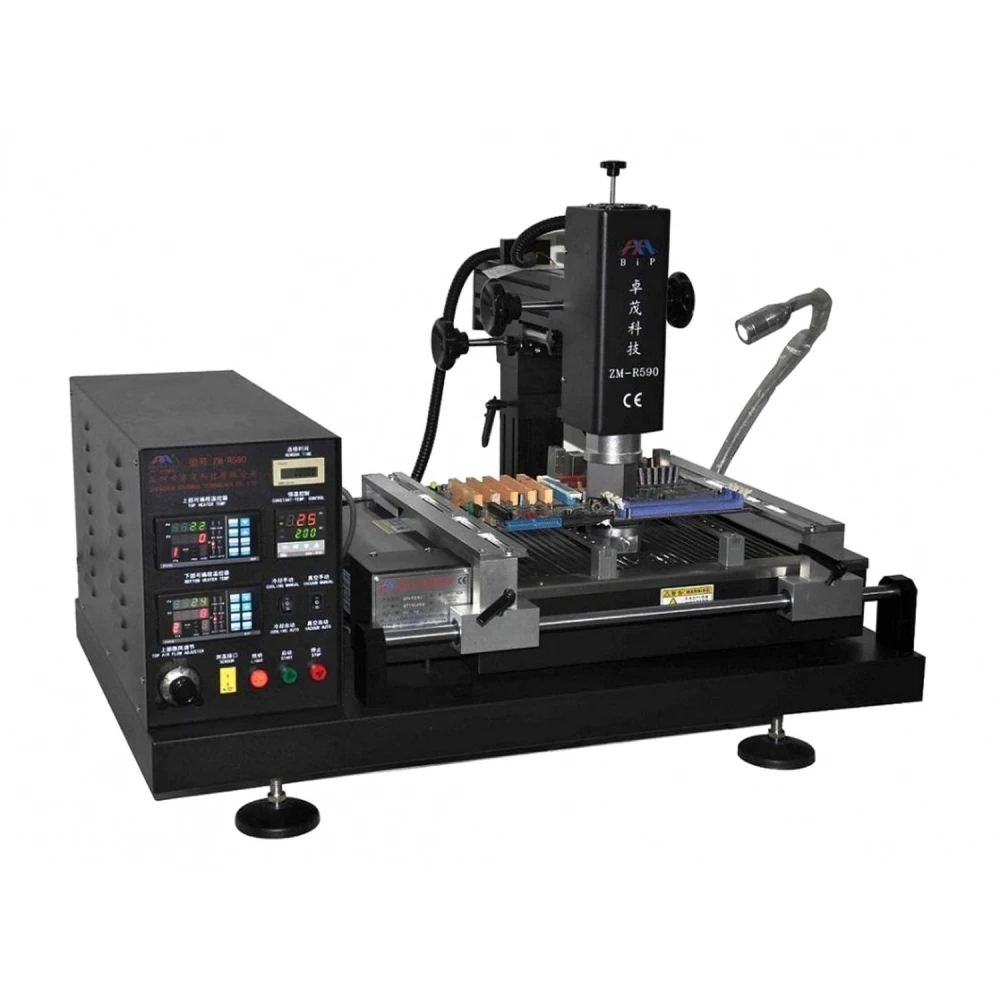

Zhuomao ZM-R590 station for high-precision soldering and BGA reballing
Brand: Zhuomao
VAT included (Ex VAT: 1,500.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 1,771.20 € | -4% |
| 10+ | 1,734.30 € | -6% |
| 20+ | 1,660.50 € | -10% |
The Zhuomao ZM-R590 Station is an advanced tool designed for professionals in soldering and electronic device repair. This station stands out for its precision and versatility, combining cutting-edge technology to deliver optimal results in BGA reballing and fine soldering work.
It features a linear sliding system that allows precise adjustments and fast positioning on the X, Y and Z axes, ensuring efficient and accurate operation. Its high-precision temperature controller includes a serial port for PC and an external sensor, allowing connection with proprietary software for detailed and customised control.
The station has three independent heating zones: two hot air heaters and one infrared (IR) preheating zone, with temperature control within ±3 °C. The upper heater is freely adjustable, while the second can move vertically. In addition, the IR area allows power consumption to be adjusted to suit different soldering needs.
Among its accessories, it offers various hot air nozzles that can rotate 360° and feature magnets for easy installation and replacement, including custom options. The station uses an imported high-precision K-type thermocouple with closed-loop control and an automatic temperature compensation system.
To protect PCB boards during the process, the station includes a V-slot support with a flexible accessory that prevents deformation caused by heating or cooling. It is compatible with any BGA package size, from 20×20 mm up to a maximum of 420×390 mm.
Efficiency is improved thanks to a powerful cross-flow fan that cools the PCB board quickly. It also incorporates an internal vacuum pump and an external suction pen to pick up chips quickly and accurately. At the end of desoldering and soldering processes, the station emits early alerts for greater safety and control.
This equipment is CE certified, includes an emergency stop button and an automatic protection device against shutdown in the event of abnormal accidents, as well as dual overheat protection to ensure the safety of the user and the equipment.
Main technical specifications
- Total power: 4700W
- Upper heater: 800W
- Lower heaters: Second heater 1200W, IR heater 2700W
- Power supply: AC220V±10%, 50/60Hz
- Dimensions: 810×500×690 mm
- Positioning: V-slot with adjustable support and external universal accessory
- Temperature control: K-type sensor, closed loop, accuracy ±3°
- Compatible PCB size: From 20×20 mm to 420×390 mm
- Weight: 45 kg
Uses and compatibility
The Zhuomao ZM-R590 Station is ideal for electronics workshops that require precision in soldering and BGA component repair. Its design allows work with a wide variety of board and package sizes, making reballing, desoldering and soldering tasks easier with advanced thermal control. It is compatible with proprietary software for detailed control and adapts to the needs of professionals looking for efficiency and safety in their processes.
- High-precision temperature control with K-type sensor and closed-loop system
- Three independent heating zones: two hot air and one infrared
- Fast, precise positioning on X, Y, Z axes with linear sliding system
- Adjustable V support to protect PCBs and fit different sizes
- Powerful cross-flow fan for rapid cooling
- Integrated vacuum pump and external suction pen for chip handling
- 360° rotating hot air nozzles with easy magnetic installation
- CE certified with emergency stop and overheat protection
Customer Questions & Answers
What advantages does the triple heating zone (two air and one IR) offer compared with conventional BGA stations?
The Zhuomao Zm-R590 Station features two air heating zones and one infrared (IR) zone, allowing optimised, segmented control of the thermal profile. This makes BGA rework easier across different sizes and helps prevent localised overheating of the PCB. Compared with air-only models, PCB warping is reduced and the success rate for soldering and desoldering is improved.
What are the station dimensions and weight? What is included in the box?
The station measures approximately 880 mm (length) x 600 mm (width) x 620 mm (height) and weighs 65 kg. The box contents normally include the main station, sets of interchangeable nozzles, a vacuum pump, suction pen, PCB holding accessories and the user manual. This may vary slightly depending on the supplier.
What power requirements and compatibility does the Zm-R590 have for correct installation?
The Zm-R590 requires a 230 V AC, 50/60 Hz input, with a maximum power consumption of 5500 W. It is compatible with a PC for monitoring and control via a serial port. It is crucial to ensure proper earthing and suitable electrical protection; check serial port compatibility with the operating system before installation.
What type of preventive maintenance is recommended to extend its service life and avoid common faults?
It is recommended to inspect and clean the filters regularly, check the condition of the nozzles, and verify the calibration of thermocouples and sensors. Dust build-up in ventilation areas should be avoided, and the vacuum system should be checked annually. Proper maintenance reduces issues such as temperature errors or suction failures.
What safety systems are included, and what standards does the station comply with for use in professional workshops?
The unit includes an emergency stop button, automatic shut-off in the event of incidents, a dual overheat protection system, and visual/audible alarms. It is CE certified, complying with European standards for electrical equipment used in laboratories and workshops (electrical safety and electromagnetic compatibility).
What PCB sizes does the Zhuomao ZM-R590 Station support?
It supports PCB boards from a minimum size of 20×20 mm up to a maximum of 420×390 mm.
Does the station allow temperature control via software?
Yes, it has a serial port for PC and can connect to proprietary software for precise temperature control.
What safety protection does the station include?
It includes an emergency stop, automatic shutdown in abnormal cases and dual overheat protection.
What is the total power of the station and the heating zones?
The total power is 4700W, with 800W in the upper heater, 1200W in the second heater and 2700W in the infrared heater.
Is the Zhuomao ZM-R590 Station currently available?
The product is currently out of stock. Please check for future restocks.
