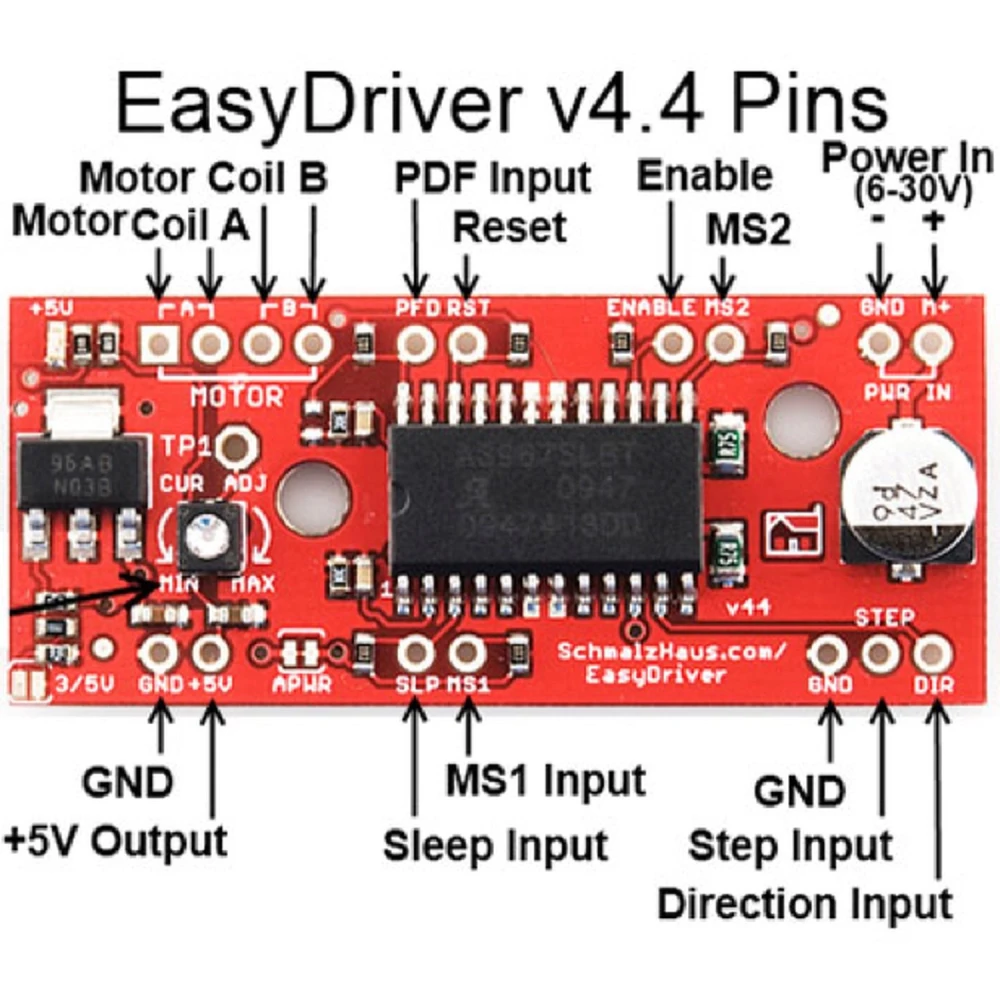

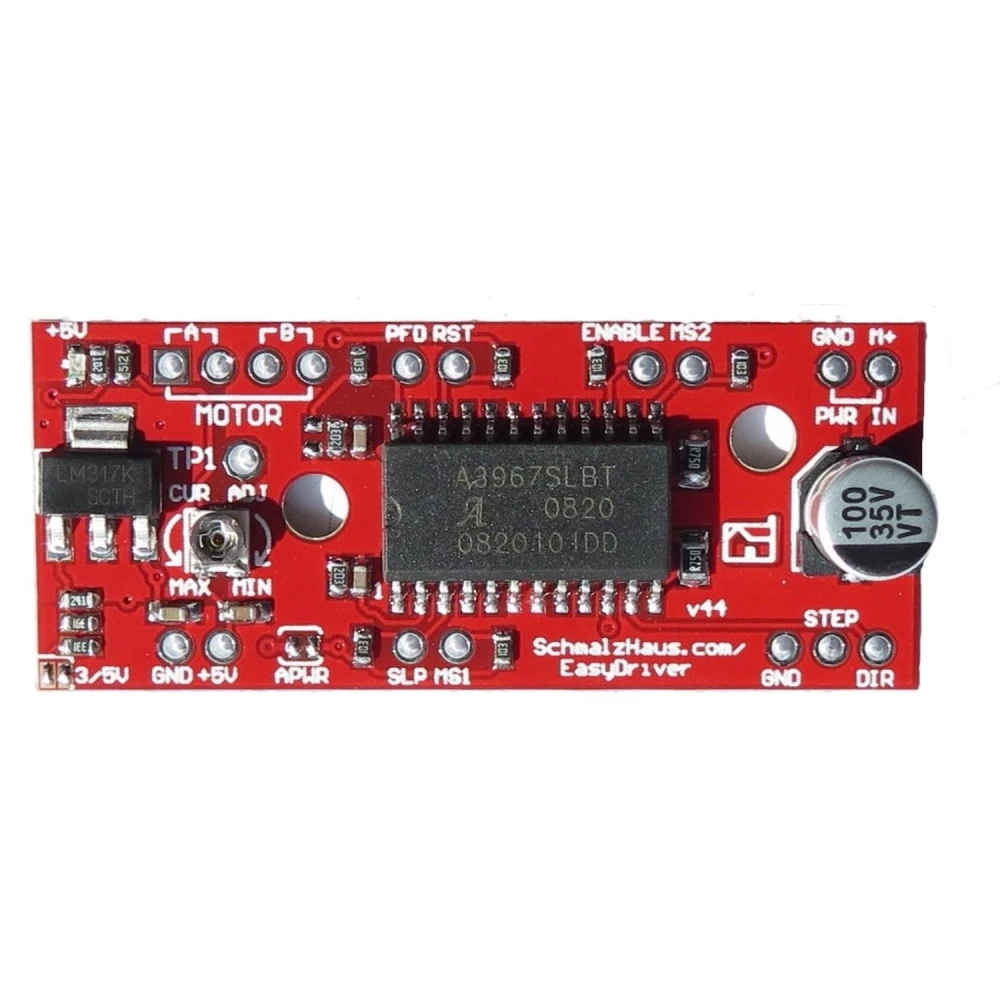

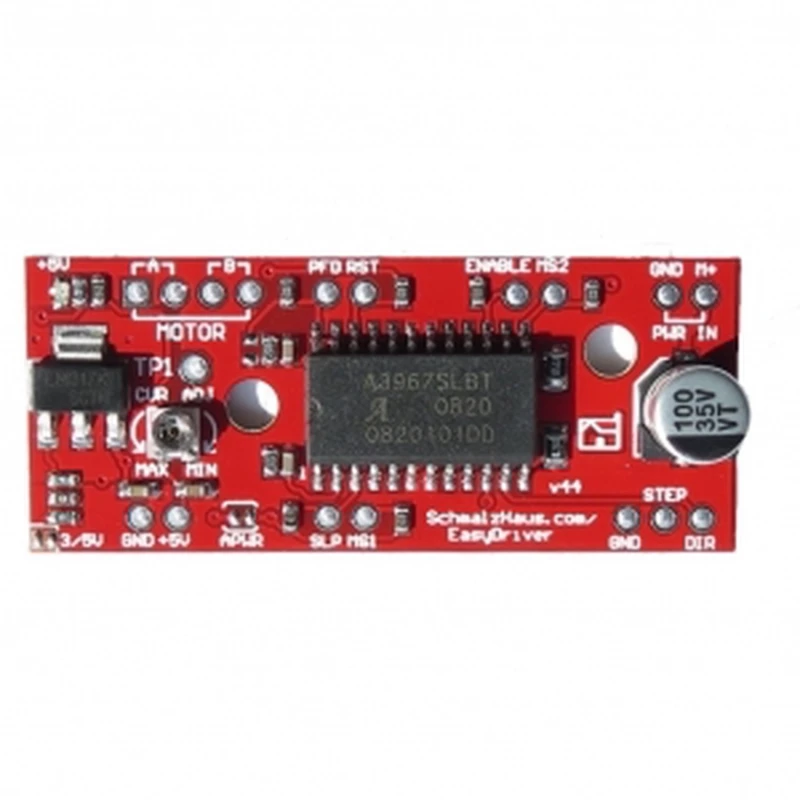

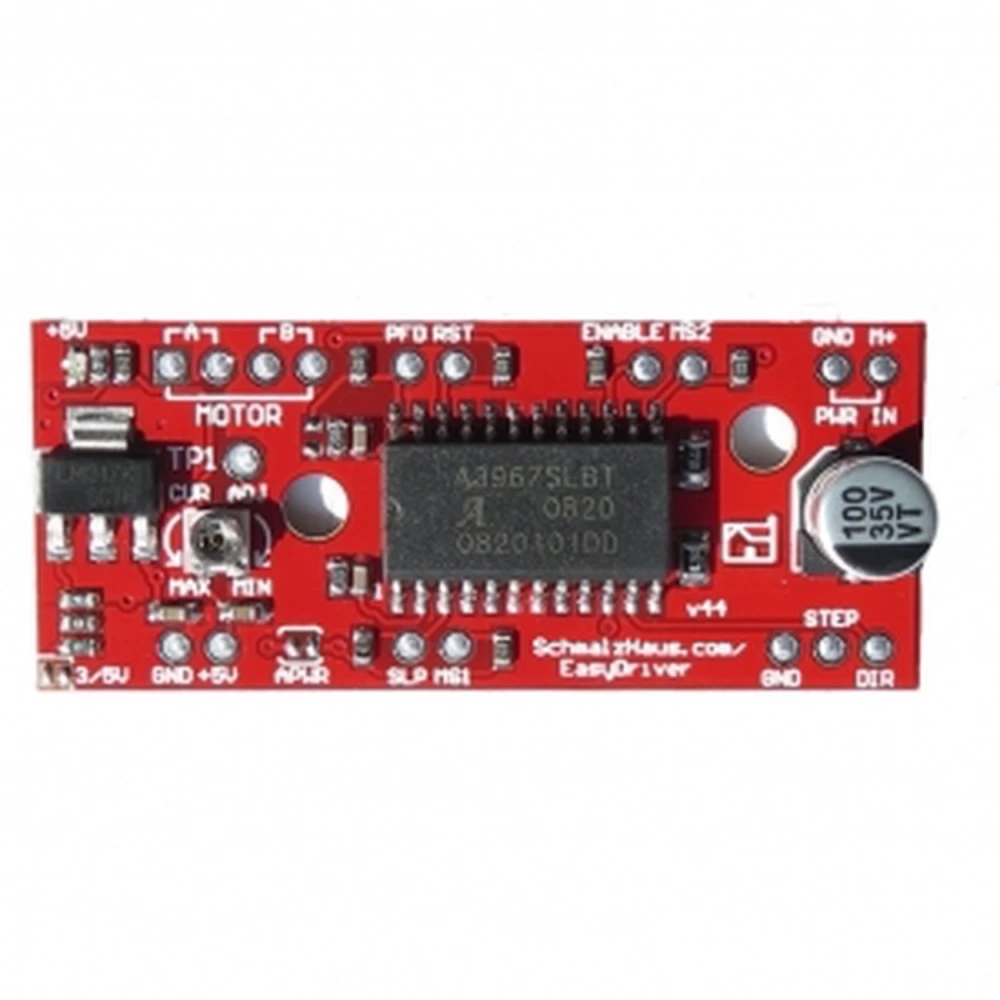

Easydriver V4.4 A3967 Stepper Motor Driver for Arduino

Easydriver V4.4 A3967 Stepper Motor Driver for Arduino

The Easydriver V4.4 driver is a device designed to control stepper motors, especially bipolar motors. This driver is widely used in Arduino projects, although it is compatible with any development system that can generate 0 to 5 V pulses.

Key features

• Compatible with bipolar stepper motors or motors wired as bipolar.
• Motor supply between 7 and 30 V DC, adjustable according to the motor used.
• Integrated voltage regulator that allows selection between 5 V or 3.3 V for logic.
• Control via 0 to 5 V digital pulses to step the motor.
• Designed for use with Arduino and other board development systems.

Technical specifications

• Model: Easydriver V4.4
• Driver: A3967
• Motor type: Bipolar stepper motor
• Motor supply voltage: 7 - 30 V DC
• Logic voltage: 3.3 V or 5 V (adjustable)
• Control interface: 0-5 V digital pulses

Typical uses

This driver is ideal for robotics, automation, 3D printing and any application that requires precise control of stepper motors. Its compatibility with Arduino makes integration easy in DIY systems and prototypes.

Compatibility

Compatible with Arduino boards and other microcontrollers that can generate 0 to 5 V control signals. No specific software is required, only pulse control for motor movement.

Precautions

• Do not connect or disconnect the motor while the driver is powered to avoid damage.

This driver offers an efficient and cost-effective solution for controlling stepper motors, ensuring precision and ease of use in electronics and automation projects.

• Compatible with bipolar stepper motors or motors wired as bipolar.
• Motor supply from 7 to 30 V DC, adjustable according to the motor.
• Integrated voltage regulator for 3.3 V or 5 V logic.
• Control via 0 to 5 V digital pulses.
• Compatible with Arduino and other development systems.
