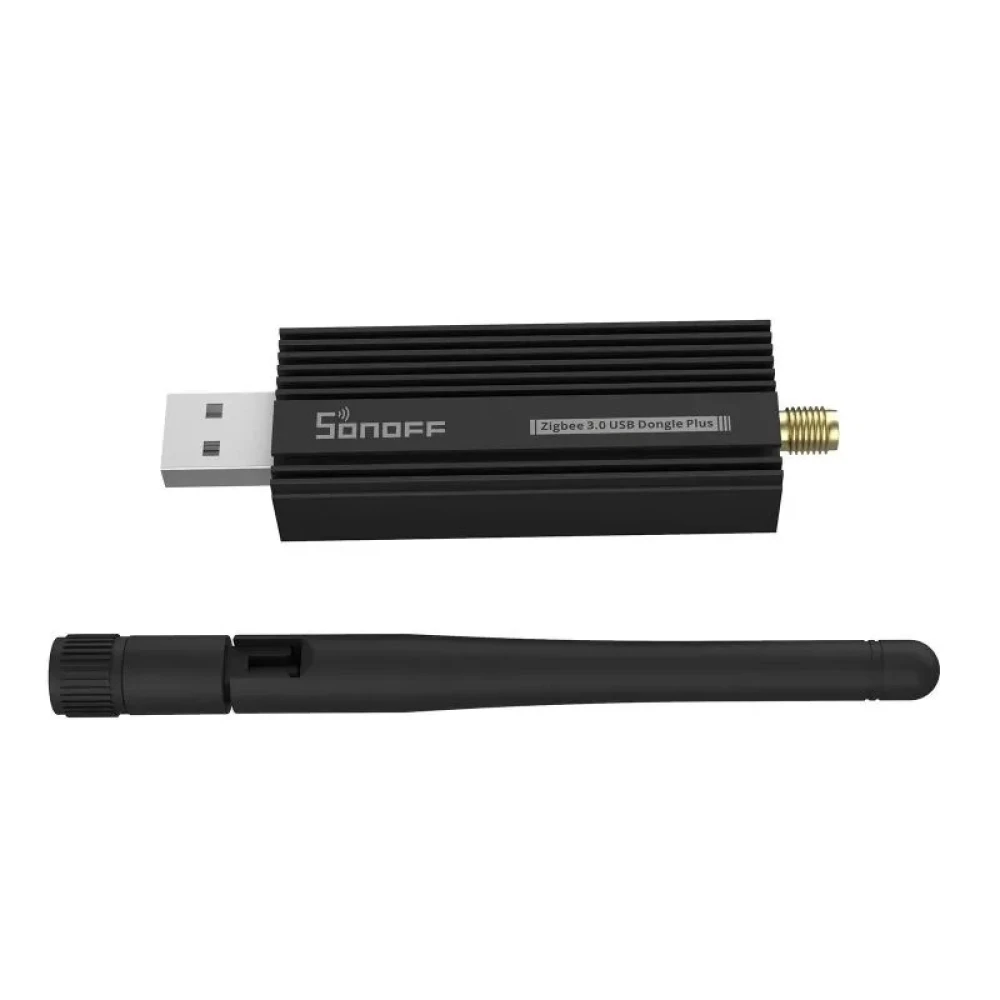

SONOFF ZBDongle-P Zigbee 3.0 USB Plus gateway with antenna for Home Assistant and Open HAB
Brand: SONOFF
Save 20% Was: 23.37 €
18.71€
VAT included (Ex VAT: 15.21 €)
Only 3 left in stock - order soon!
Standard delivery
Thu, Apr 30 - Mon, May 4
Express delivery
Tue, Apr 28 - Wed, Apr 29
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only

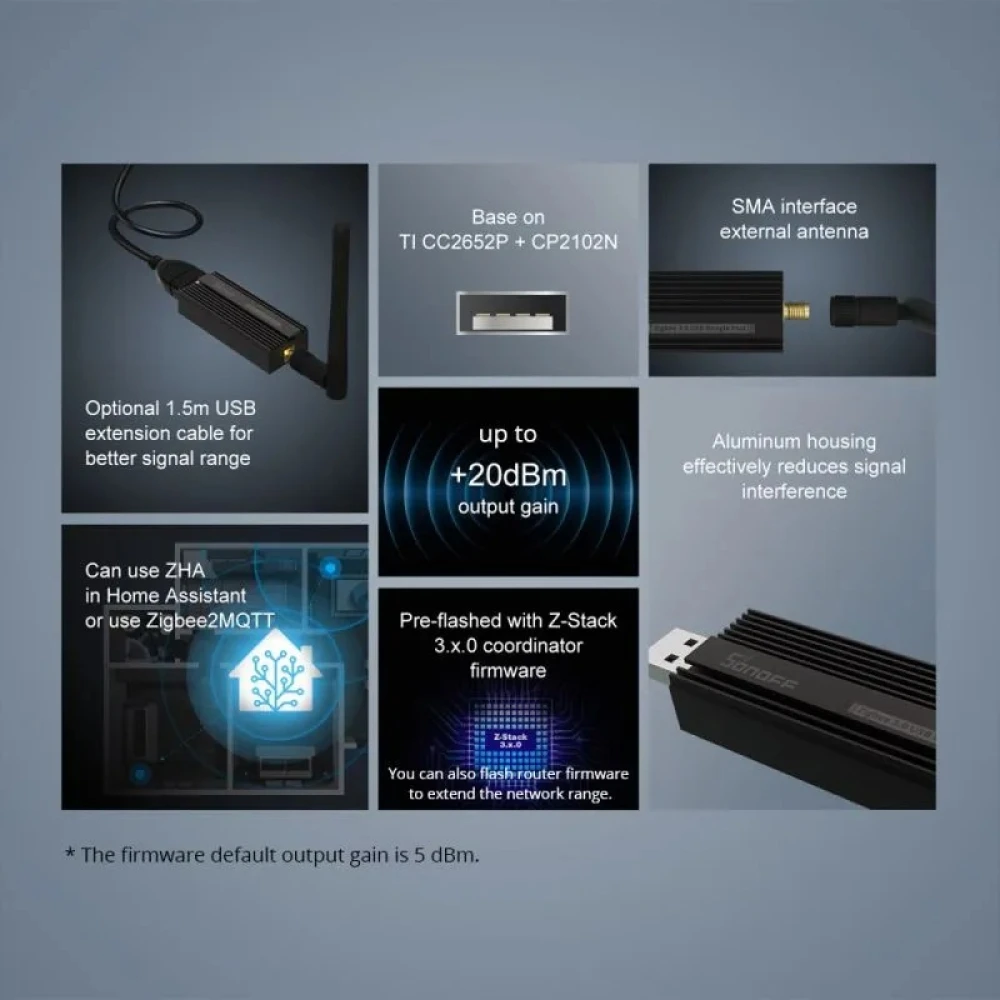

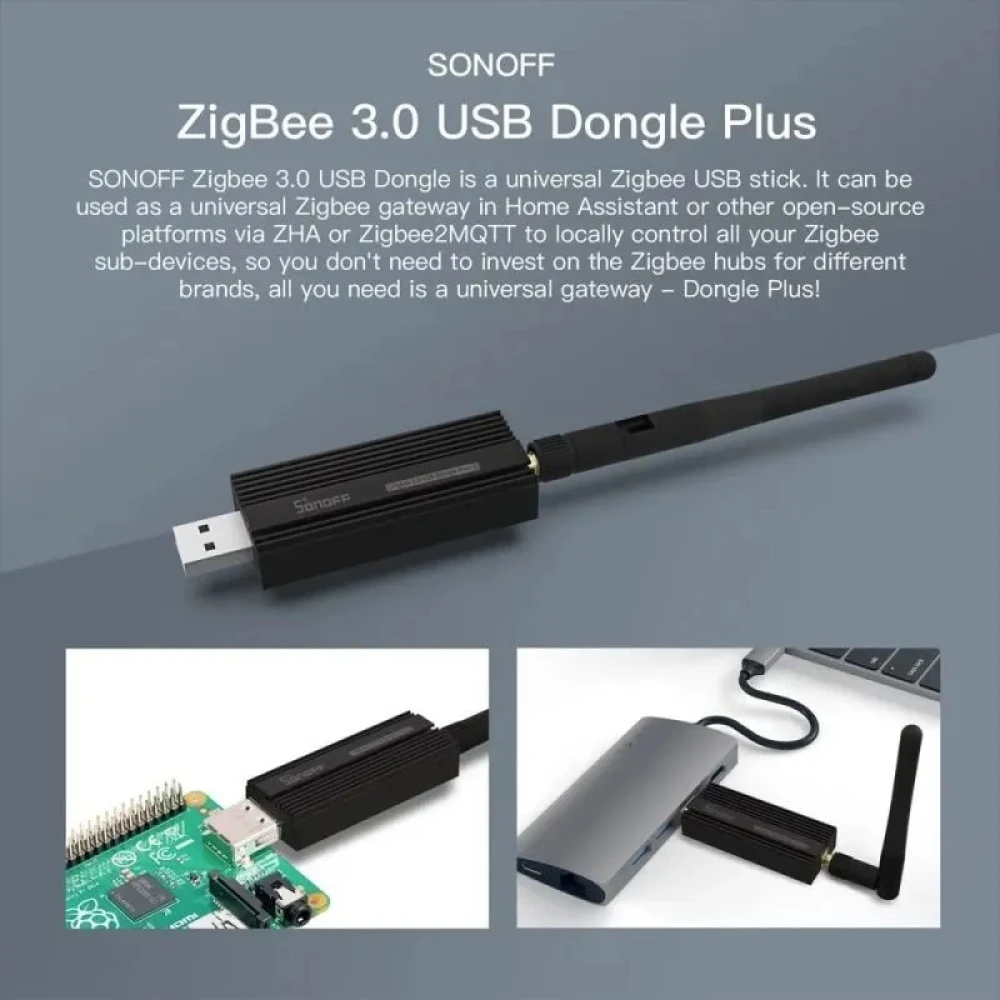

SONOFF ZBDongle-P Zigbee 3.0 USB Plus is a Zigbee gateway with antenna designed to integrate easily with smart home platforms such as Home Assistant and Open HAB. This device lets you control all your Zigbee sub-devices locally, removing the need for multiple hubs for different brands and simplifying home automation.
Product description

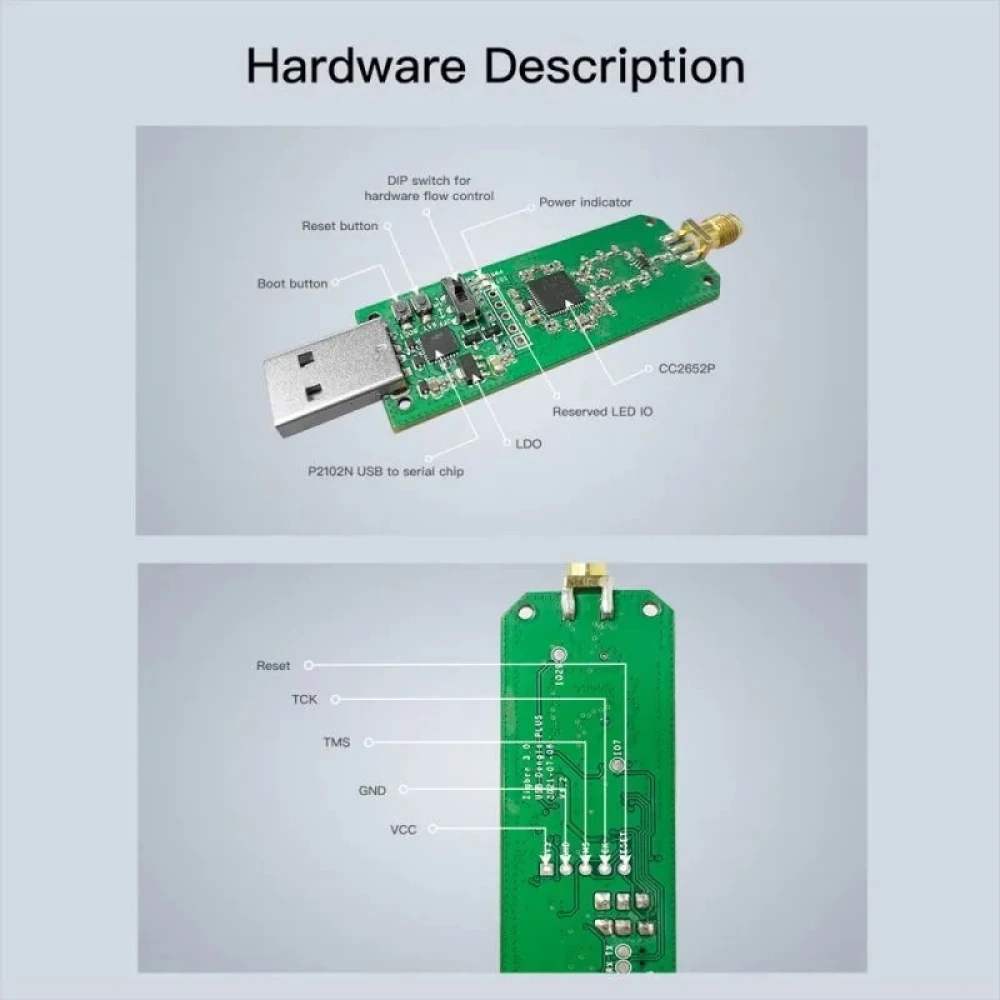

The dongle is based on the TI Cc2652P+CP2102N chipset and comes pre-flashed with the Z-Stack 3.x.0 coordinator firmware, ensuring optimal compatibility and stable performance. Thanks to its USB 3.0 Plus design, it offers a fast and reliable connection for managing your Zigbee network.
Main features
- Compatible with Home Assistant, Open HAB and other open-source platforms via ZHA or Zigbee2MQTT.
- Wide compatibility with Zigbee devices such as BASICZBR3, S31 Lite zb, SNZB01, SNZB02, SNZB03, SNZB04, ZBMINI, S26R2ZB and other sub-devices from various brands.
- Can manage up to 21 direct child devices and up to 40 devices in total with official firmware, expandable to 200 with updated versions.
- Aluminium housing reduces signal interference and improves stability.
- External antenna with SMA interface and +20dBm output gain for better coverage.
Typical uses
This gateway is ideal for users who want to centralise control of their Zigbee devices in one system, making smart home automation and management easier without relying on brand-specific hubs. It is especially useful for integrators and smart home enthusiasts using Home Assistant or Open HAB.
Compatibility
Compatible with a wide range of Zigbee devices and open-source platforms that support ZHA or Zigbee2MQTT. No additional hubs are required, reducing costs and installation complexity.
Technical specifications
- Chipset: TI Cc2652P+CP2102N
- Firmware: Z-Stack 3.x.0 pre-flashed
- Interface: USB 3.0 Plus
- Antenna: External with SMA interface
- Output gain: +20dBm
- Housing: Aluminium for interference reduction
- Device limits: 21 direct children, up to 40 children (expandable to 200 with update)
Installation video
To make setup easier, you can watch the following YouTube tutorial showing how to install and configure the SONOFF ZigBee 3.0 USB Dongle Plus in Home Assistant:
- Compatible with Home Assistant and Open HAB via ZHA or Zigbee2MQTT
- Wide compatibility with Zigbee devices from various brands
- Local control of up to 21 direct child devices and up to 40 in total
- Aluminium housing for reduced interference and greater stability
- External antenna with SMA interface and +20dBm output gain
- USB 3.0 Plus connector for fast and reliable connection
- Pre-flashed with Z-Stack 3.x.0 coordinator firmware
Customer Questions & Answers
Which home automation systems is the SONOFF ZBDongle-P compatible with, and what advantages does it have over using a proprietary hub?
The SONOFF ZBDongle-P is compatible with platforms such as Home Assistant, OpenHAB and Zigbee2MQTT, allowing integration with multiple brands and Zigbee 3.0 devices. Compared with proprietary hubs, it offers greater flexibility, frequent updates and support for a wider range of products, although it may require more technical setup.
What are the technical specifications of the dongle in terms of physical dimensions, weight and the type of antenna included?
The dongle has approximate dimensions of 75 mm x 25 mm x 13 mm and a weight of 13 g. It includes an external 2 dBi SMA antenna, designed to improve ZigBee coverage indoors. It may vary slightly depending on the production batch.
What range limitations and number of ZigBee devices can be expected under normal use conditions?
With the included antenna, the typical indoor range is 10 to 30 m, depending on obstacles and materials. ZigBee 3.0 supports up to 40-60 direct connections, which can be expanded through mesh nodes (routers). Performance may be affected by WiFi interference (2.4 GHz).
Is it necessary to install additional drivers on Windows, Mac or Linux for the dongle to work correctly?
The dongle uses a Silicon Labs-based chipset, so on most modern Linux and Mac systems it is detected automatically. On Windows (especially versions earlier than Windows 10), manual installation of the CP210X driver may be required for recognition as a USB serial port.
What care or maintenance recommendations should be followed to maximise the dongle's service life?
It is recommended to avoid exposure to temperatures above 50°C and high humidity. Do not force the antenna or expose the USB connector to twisting or physical stress. Update the firmware only with the recommended software to prevent damage. Clean only with a dry cloth.
Which platforms is the SONOFF ZBDongle-P compatible with?
It is compatible with open-source platforms such as Home Assistant and Open HAB via ZHA or Zigbee2MQTT.
How many Zigbee devices can the dongle control?
By default, it can control up to 21 direct child devices and up to 40 devices in total, expandable to 200 with firmware updates.
Do I need an additional Zigbee hub to use this dongle?
No, the dongle works as a universal gateway, removing the need for brand-specific hubs.
What type of antenna does the SONOFF ZBDongle-P have?
It has an external antenna with an SMA interface that improves coverage and signal quality.
Is the SONOFF ZBDongle-P easy to install in Home Assistant?
Yes, the device is plug and play and there are tutorials available to help with setup.
