THC15A 220V DIN digital timer relay 16A for DIN rail

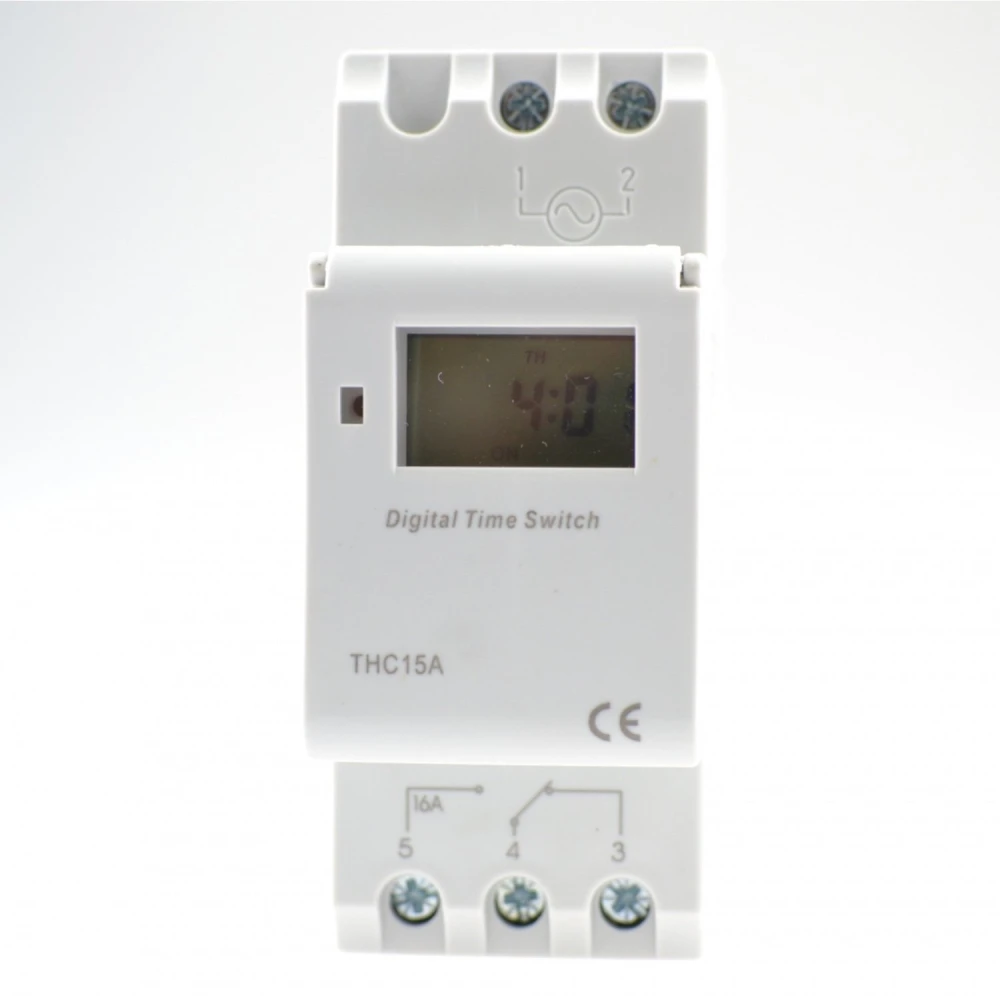

Vista frontal del programador temporizador digital THC15A con pantalla LCD

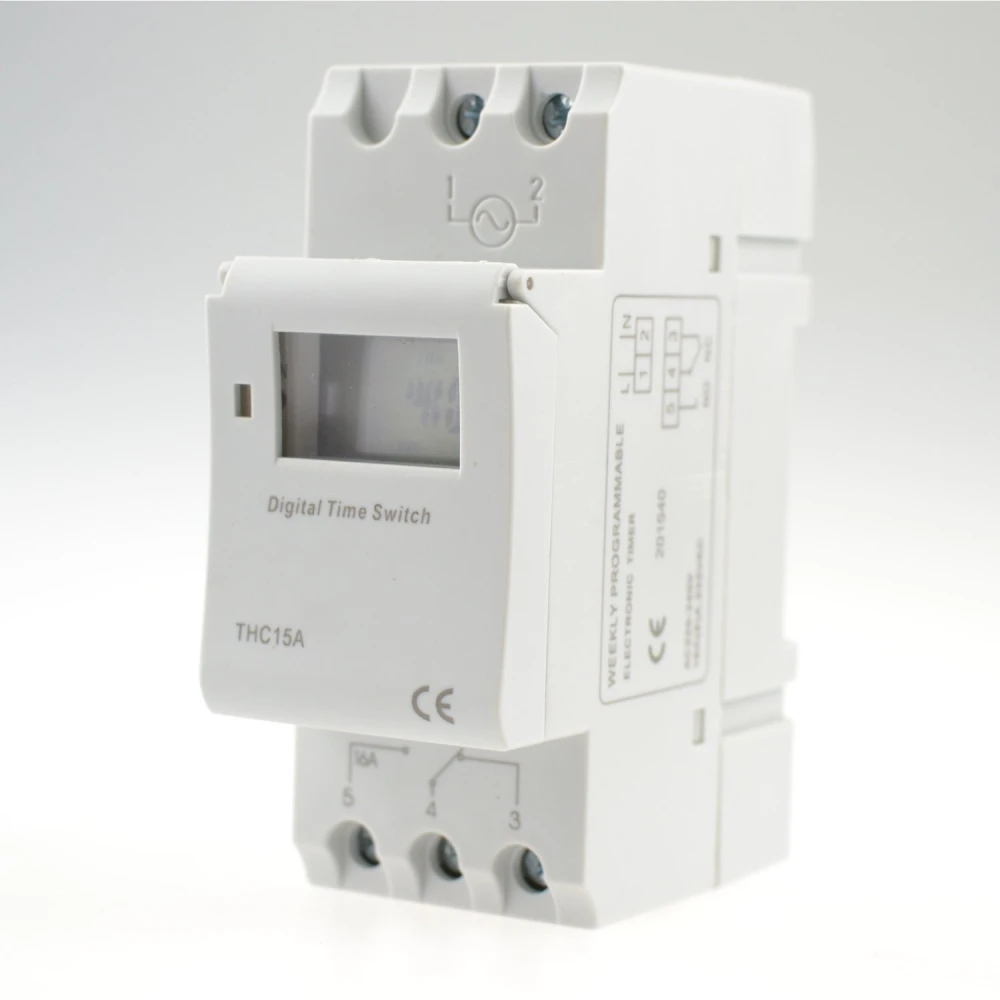

Detalle del relé digital THC15A para carril DIN con conexiones eléctricas

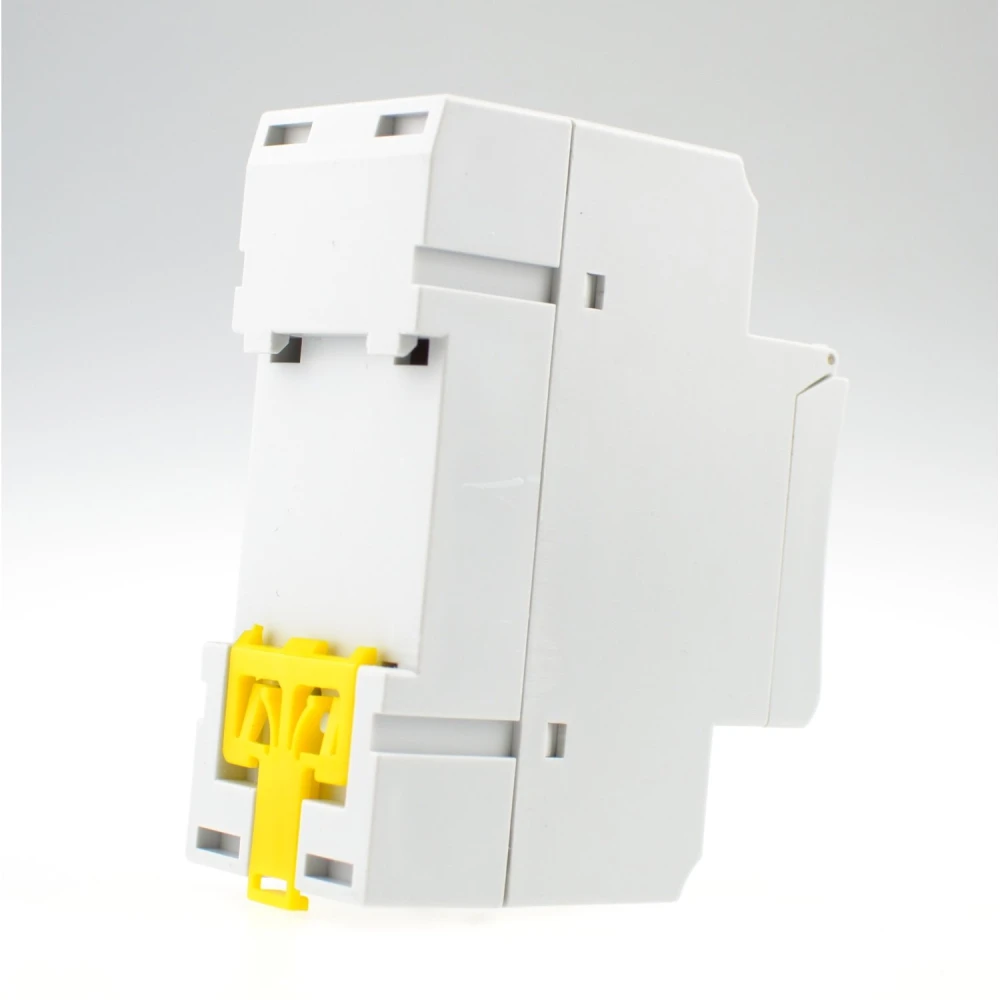

Programador temporizador digital THC15A mostrando configuración semanal en pantalla LCD

THC15A 220V DIN digital timer relay 16A for DIN rail

Name: THC15A 220V DIN digital timer relay 16A for DIN rail
Brand: satkit
SKU: Y040303-thc15a-timer
Price: 12.05 EUR
Availability: InStock

Brand: satkit

Be the first to review this product

12.05€

VAT included (Ex VAT: 9.80 €)

Volume Discounts

Quantity	Price	Save
2+	11.57 €	-4%
10+	10.65 €	-12%
20+	9.88 €	-18%

Limited stock

Standard delivery Thu, Apr 30 - Mon, May 4

Express delivery Tue, Apr 28 - Wed, Apr 29

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

The THC15A 220V DIN digital timer relay is a device designed to make it easier to automate repetitive tasks that do not necessarily need to happen at the same time every day. This makes it a better solution than traditional mechanical timers.

This digital timer includes an LCD display that shows the current day and time, allowing clear and simple programming. It also features an internal lithium backup battery that keeps the settings saved even during power cuts, ensuring continuous operation.

Main features

Easy and quick installation on DIN rail, ideal for integration into electrical panels.
Advanced weekly programming with the option to pre-set up to one week in advance.
Allows programmes to be repeated with up to 17 on/17 off settings for maximum flexibility.
Internal lithium battery with an approximate lifespan of 3 years for data backup.
Automatic timer error correction with an accuracy of ± 30 seconds weekly.
Maximum power consumption of 7.5 VA, efficient for continuous use.
Clear and easy-to-read LCD display.
Minimum programming interval of 1 minute.
Adjustable countdown from 1 second to 99 minutes and 56 seconds.
Pulse options from 1 second to 59 minutes and 59 seconds.
Resistive load capacity of 16A at 250V AC and inductive load of 10A at 250V AC.
Switching via a changeover switch.
Recommended operating temperature between -10 and 40 degrees centigrade.
Recommended ambient humidity between 35% and 85% relative humidity.
Approximate compact size of 65mm x 87mm.

Typical uses

This timer is ideal for automating irrigation systems, controlling electric motors, and managing any action that requires weekly scheduling with multiple on and off cycles. Its DIN rail installation makes it easy to integrate into industrial or domestic electrical systems.

Compatibility

Compatible with electrical installations operating at 220V AC, with a voltage range of 180V to 250V AC. Its 16A digital relay can handle resistive and inductive loads within its technical specifications, making it suitable for a wide range of applications.

Easy DIN rail installation for quick integration
Weekly programming with up to 17 on/off cycles
Internal lithium battery to retain programming during power cuts
LCD display showing day and time for easy setup
16A resistive load capacity and 10A inductive load capacity
Maximum power consumption of 7.5 VA
Automatic error correction with weekly accuracy of ±30 seconds
Minimum programming interval of 1 minute
Adjustable countdown and pulse functions
Recommended operating temperature of -10 to 40°C

Customer Questions & Answers

What advantages does the THC15A digital timer offer over a traditional mechanical timer?

The THC15A allows up to 17 on/off programmes with minimum intervals of 1 minute and flexible weekly scheduling, outperforming the limited accuracy and few settings of mechanical timers. It also retains its programme even without power thanks to its internal battery, reducing the need to reconfigure it after a power cut.

How is the THC15A physically installed in an electrical panel, and does it require any special tools?

The THC15A is designed to be fitted directly onto a standard 35 mm DIN rail, commonly used in electrical panels. No special tools are required, just a screwdriver to secure the wires in the terminals. It is recommended to switch off the power before installation and follow local electrical safety regulations.

Does the THC15A comply with electrical safety regulations, and what protection should be considered when using it?

The THC15A should be installed in accordance with IEC standards for home automation equipment, although the original documentation should be checked for CE marking or equivalent. For safe use, it is advisable to add overload and short-circuit protection upstream of the timer.

How do you install the THC15A timer?

The THC15A timer is easily installed on a standard DIN rail, making it simple to integrate into electrical panels without the need for special tools.

What type of load can the THC15A digital relay handle?

The THC15A digital relay can handle resistive loads up to 16A and inductive loads up to 10A at 250V AC, suitable for motors and irrigation systems.

What happens if there is a power cut?

The timer has an internal lithium battery that keeps the programming saved during power cuts, ensuring the timer continues to work correctly.

How many on and off cycles can it be programmed for?

It allows up to 17 on cycles and 17 off cycles per week, offering great flexibility for repetitive tasks.

What is the timer's accuracy?

The timer has automatic error correction with an accuracy of ±30 seconds per week, ensuring reliable operation.
