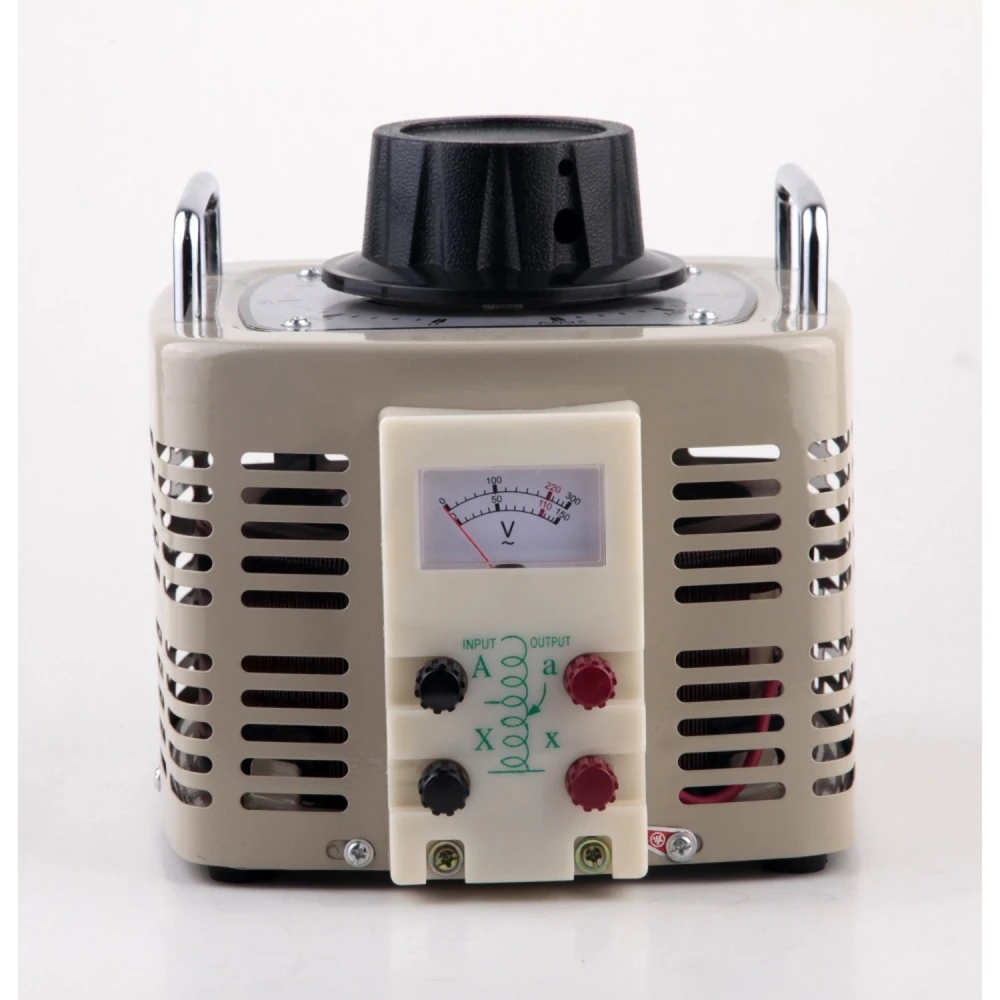

Variac variable output transformer 12 Amp 0-250V TDGC2-3KVA satkit

The Variac variable output transformer 12 Amp 0-250V TDGC2-3KVA from satkit is a transformer designed for industrial and laboratory applications that require precise and safe control of output voltage. This variac offers a maximum current of 12 amps and an adjustable voltage range from 0 to 250 VAC, ideal for testing and control in various electrical equipment.

On the front panel, the unit features an analogue voltmeter that allows real-time monitoring of the output voltage, as well as two sets of terminals for easy connection of both the power supply and the equipment under test. It is important to note that the variac does not include power or connection cables, so these must be purchased separately according to the user's needs.

Main features:

• Maximum output of 12 Amperes for demanding loads.
• Rated power of 3KVA, suitable for multiple applications.
• Standard input voltage of 220VAC and variable output from 0 to 250VAC.
• Operating frequency of 50Hz.
• Integrated analogue voltmeter for visual voltage control.
• On/Off switch with LED indicator for ease of use.
• Compact dimensions of approximately 210mm x 180mm x 180mm and weight of 11 kg for easy installation.

Typical applications:

• Power supply testing in laboratory and industrial environments.
• Speed control in electric motors.
• Automation and process control.
• Testing telecommunications and satellite equipment.
• Evaluation and testing of transformers.
• Use in vacuum tube guitar amplifiers and hi-fi audio equipment.
• Lighting control, including dim lighting stages.
• Equipment for coffee grinders and other specific applications.

This variac is an essential tool for professionals who require reliable and adjustable voltage control in their projects and tests. Its robust construction and technical features make it suitable for both laboratory use and demanding industrial environments.

Compatibility: Compatible with equipment operating at 220VAC and requiring variable voltage control up to 250VAC. Ideal for integration into test systems, motor control and audio applications.

• Maximum output of 12 Amperes for heavy loads
• Rated power of 3KVA suitable for industrial and laboratory use
• 220VAC input voltage and variable output 0-250VAC
• Operating frequency 50Hz
• Integrated analogue voltmeter for voltage monitoring
• On/Off switch with LED indicator
• Compact dimensions 210mm x 180mm x 180mm and weight 11 kg
