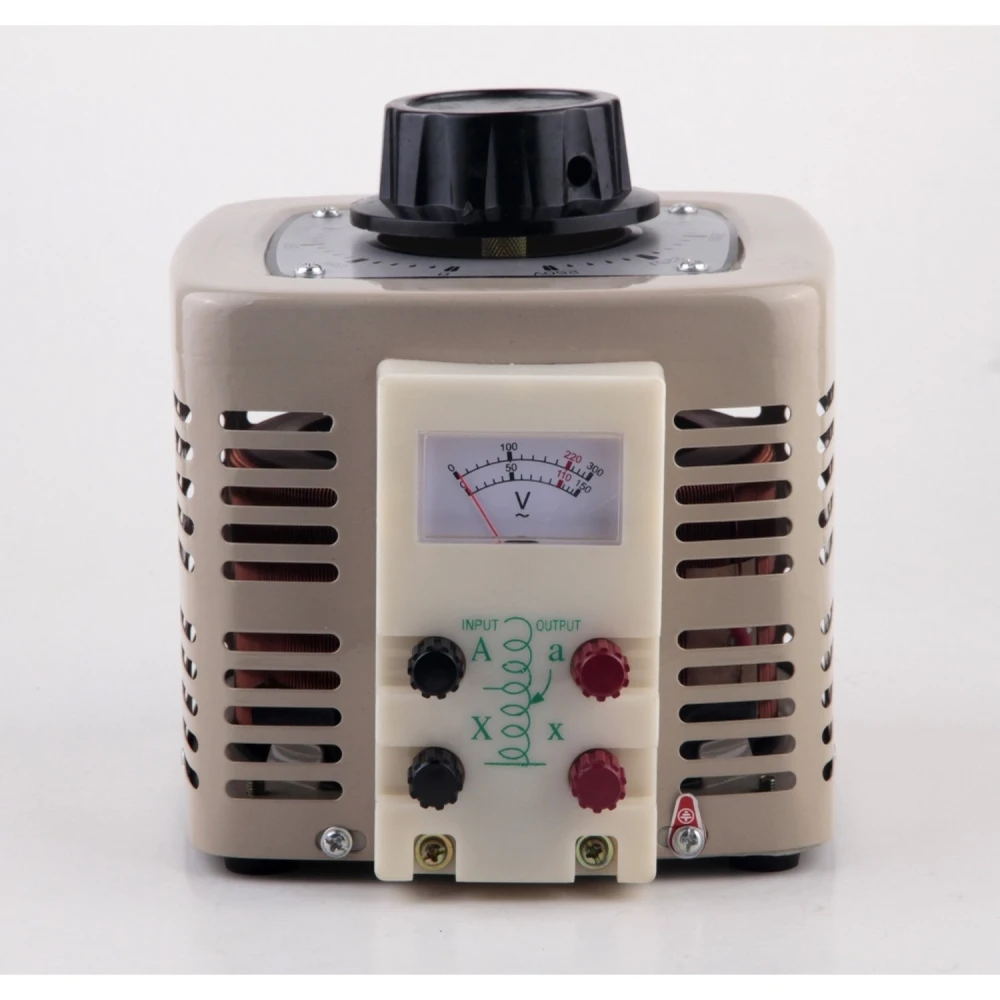

Variable output variac transformer 8 Amp 0-250V (TDGC2-2KVA) for lab and industry

The Variable output variac transformer 8 Amp 0-250V (TDGC2-2KVA) is a unit designed for industrial and laboratory applications that require precise control of output voltage. This variable transformer provides a maximum current of 8 amperes with an adjustable voltage range from 0 to 250 VAC, allowing flexible and safe handling of electrical power in different environments.

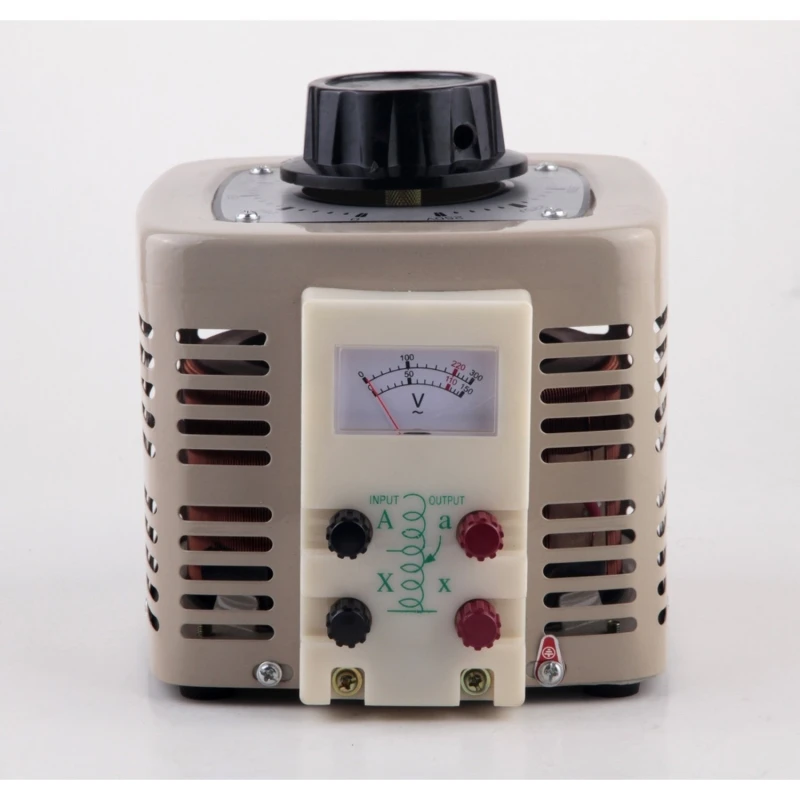

The front panel of the variac includes an analogue voltmeter that makes continuous monitoring of the output voltage easy, as well as two sets of terminals compatible with spade connectors for simple and secure connection to the power supply and the equipment under test. It is important to note that the product does not include power or connection cables.

Key features

• Maximum output: 8 Amperes
• Rated power: 2 KVA
• Input voltage: 220 VAC
• Variable output voltage: 0-250 VAC
• Frequency: 50 Hz
• Integrated analogue voltmeter
• On/off switch with LED indicator
• Approximate weight: 9 kg
• Dimensions: 190 mm x 160 mm x 160 mm

Typical applications

This variac is ideal for a wide range of uses in industrial and laboratory environments, such as:

• Electrical power testing
• Motor speed control
• Process automation
• Testing telecommunications and satellite equipment
• Transformer testing
• Use in laboratories for experimentation and development
• Vacuum tube guitar amplifiers
• High-fidelity tube amplifiers
• Coffee grinders
• Lighting stages and dimming control

Compatibility and use

The variac is compatible with any equipment that requires variable voltage control within its electrical specifications. Its robust and reliable design makes it suitable for demanding environments where precision and stability in power supply are needed.

This variable transformer is an essential tool for technicians, engineers and hobbyists who require safe and efficient voltage control in their projects and tests.

• Maximum output of 8 Amperes for industrial and laboratory applications
• 2 KVA variable transformer with 0-250 VAC output range
• Integrated analogue voltmeter for accurate monitoring
• On/Off switch with LED indicator for easy control
• Compact dimensions: 190mm x 160mm x 160mm and weight of 9 kg
• Ideal for power testing, motor control and automation
• Compatible with telecommunications, satellite and tube amplifier equipment
