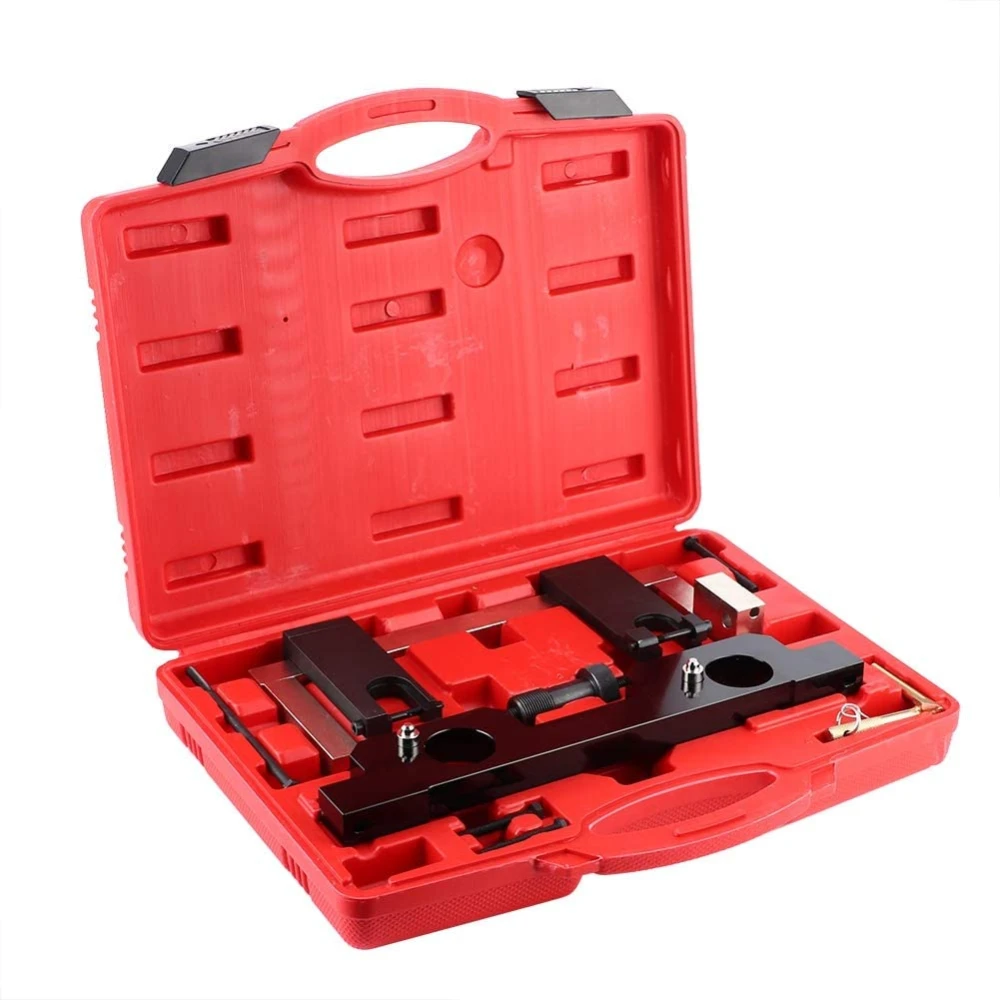

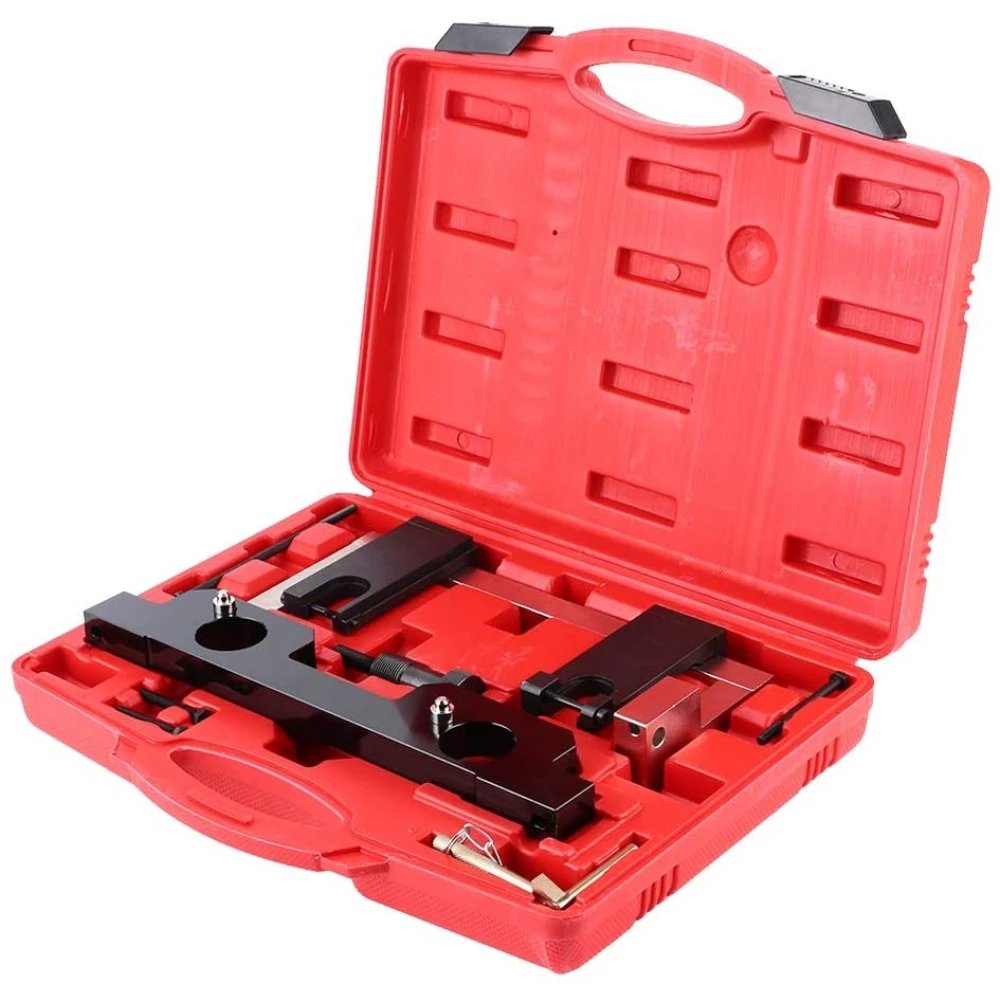

BMW N20 N26 engine timing tool for camshaft locking
Brand: TSX TOOL
60.89€
VAT included (Ex VAT: 49.50 €)
Only 1 left in stock - order soon!
Standard delivery
Mon, May 4 - Wed, May 6
Express delivery
Thu, Apr 30 - Fri, May 1
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
BMW N20 N26 engine timing tool designed for camshaft alignment and locking, ensuring correct engine alignment and timing in specific BMW vehicles.
This tool is essential for mechanics and automotive maintenance specialists working with BMW N20 and N26 engines, allowing precise checking and adjustment of camshaft timing, especially useful when carrying out valve train work or replacing the cylinder head gasket.
Main features:
- Compatible with BMW N20 and N26 engines (4-cylinder turbo).
- Allows precise camshaft locking and alignment.
- Makes engine adjustment easier to ensure optimal performance.
- Includes specific tools for different models and applications.
- Replaces OEM parts: 83302212831, 83302212830, 83302219548, 119340.
Compatible models:
- BMW 1 Series (F20/21): 125i (2012-2015)
- BMW 2 Series (F22): 228i, 220i Coupé, 228i Coupé, 220i Cabriolet (2014-2016)
- BMW 3 Series (F30/31): 320i xDrive (2012-2016), 328i, 328i xDrive (2012-2015)
- BMW 4 Series (F32/33): 420i xDrive Coupé, Gran Coupé, Cabriolet (2013-2016)
- BMW 5 Series (F10/11): 520i (2011-2017), 528i, 528i/xDrive (2011-2017)
- BMW X1 (E84): xDrive 20i, sDrive 20i, xDrive 28i (2011-2015)
- BMW X3 (F25): xDrive 20i (2011-2017)
- BMW X4 (F26): xDrive 40i (2014-2016)
- BMW Z4 (E89): sDrive 20i (2011-2017), sDrive 28i (2011-2016)
Kit contents:

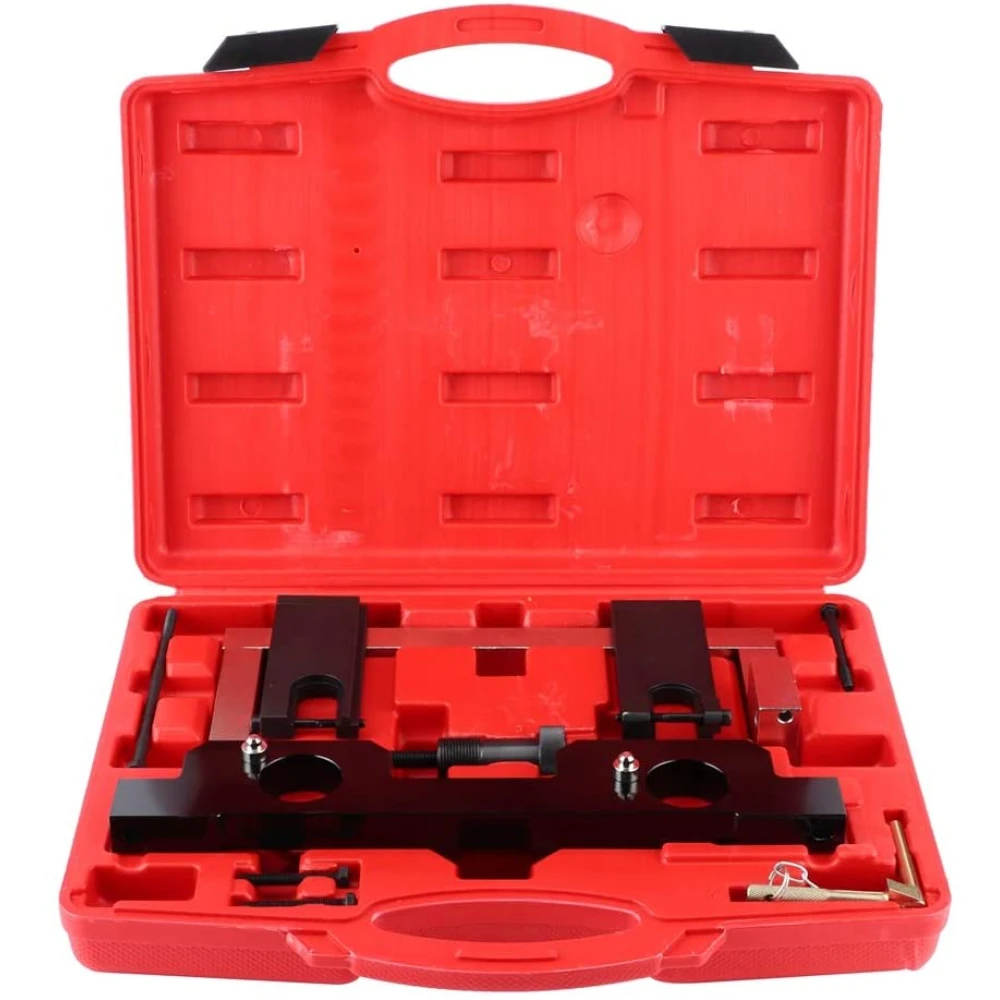

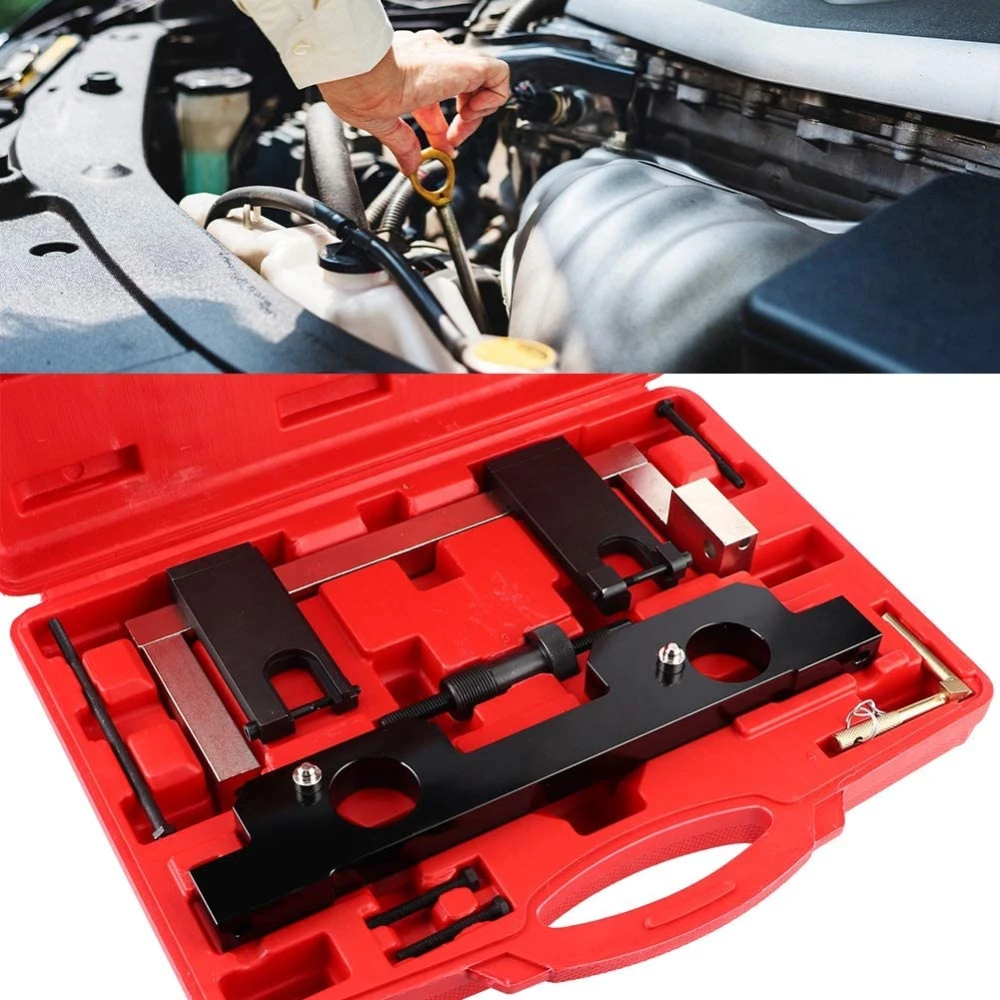

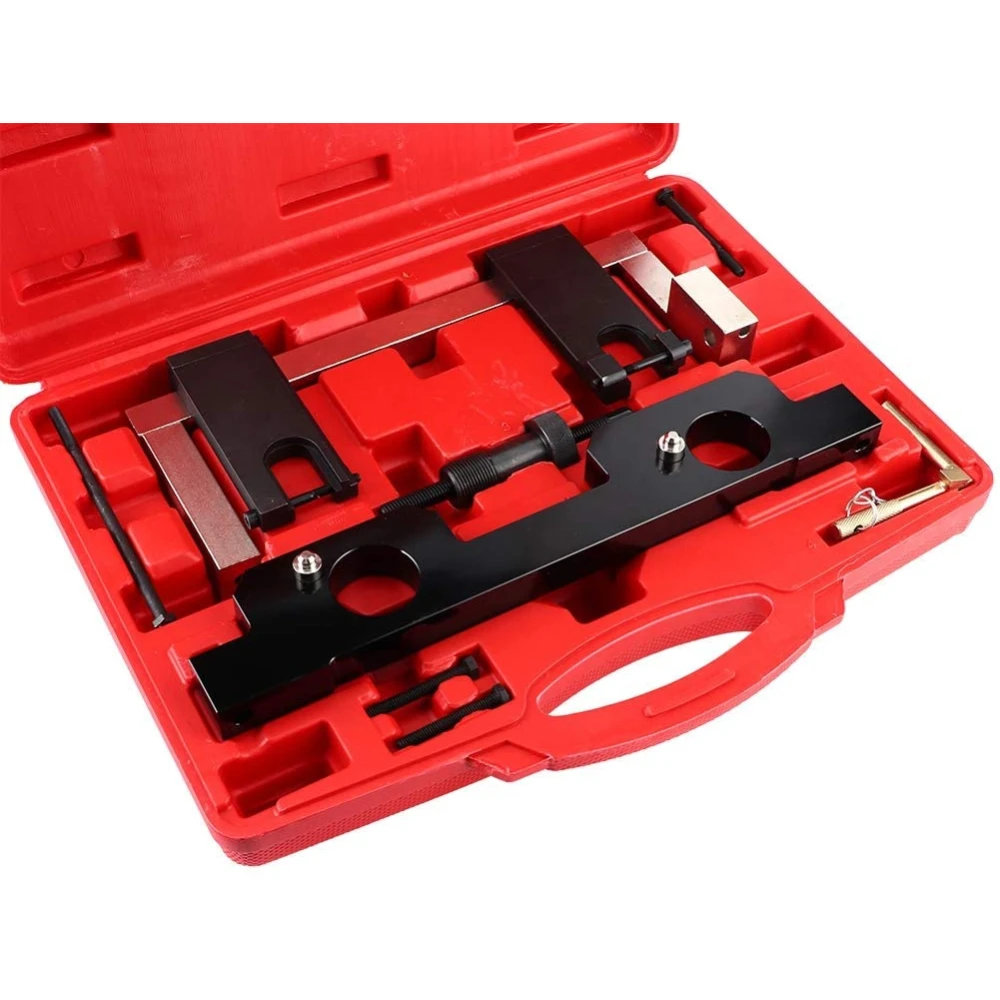

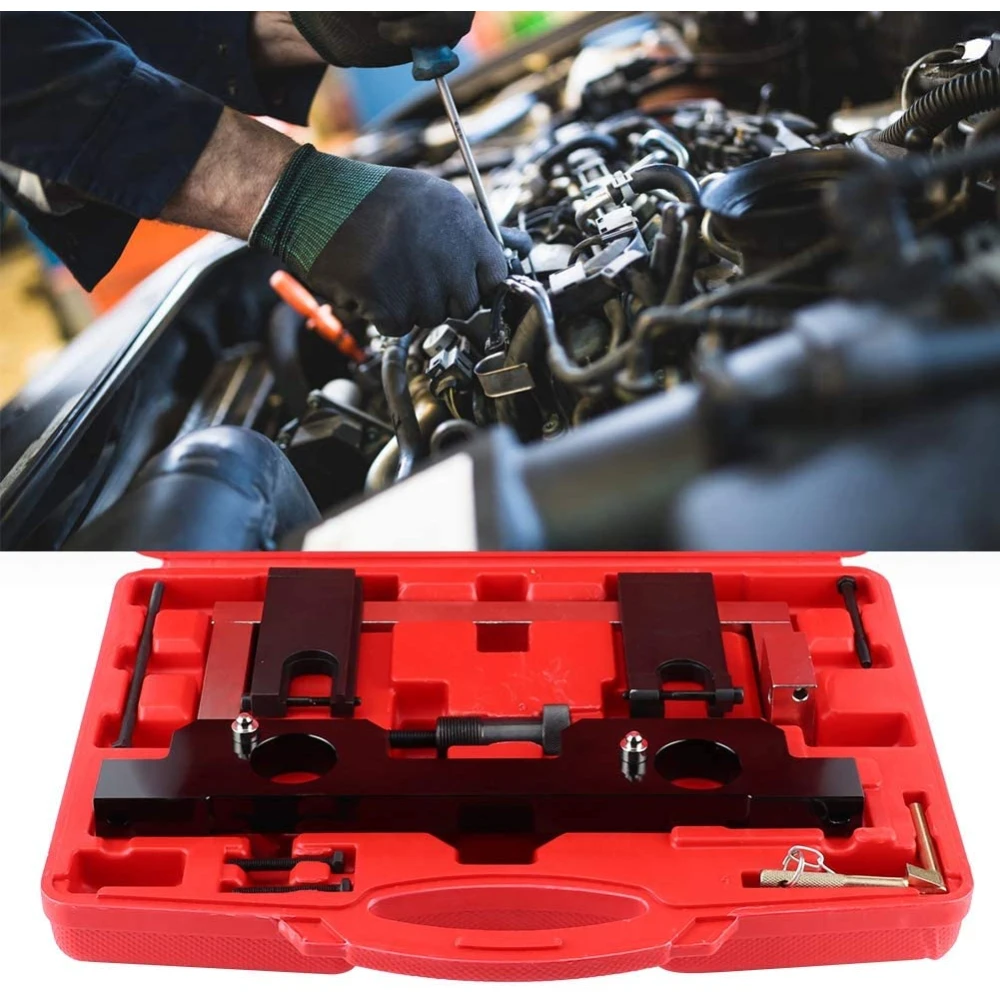

- Complete engine timing tool set for BMW N20/N26.

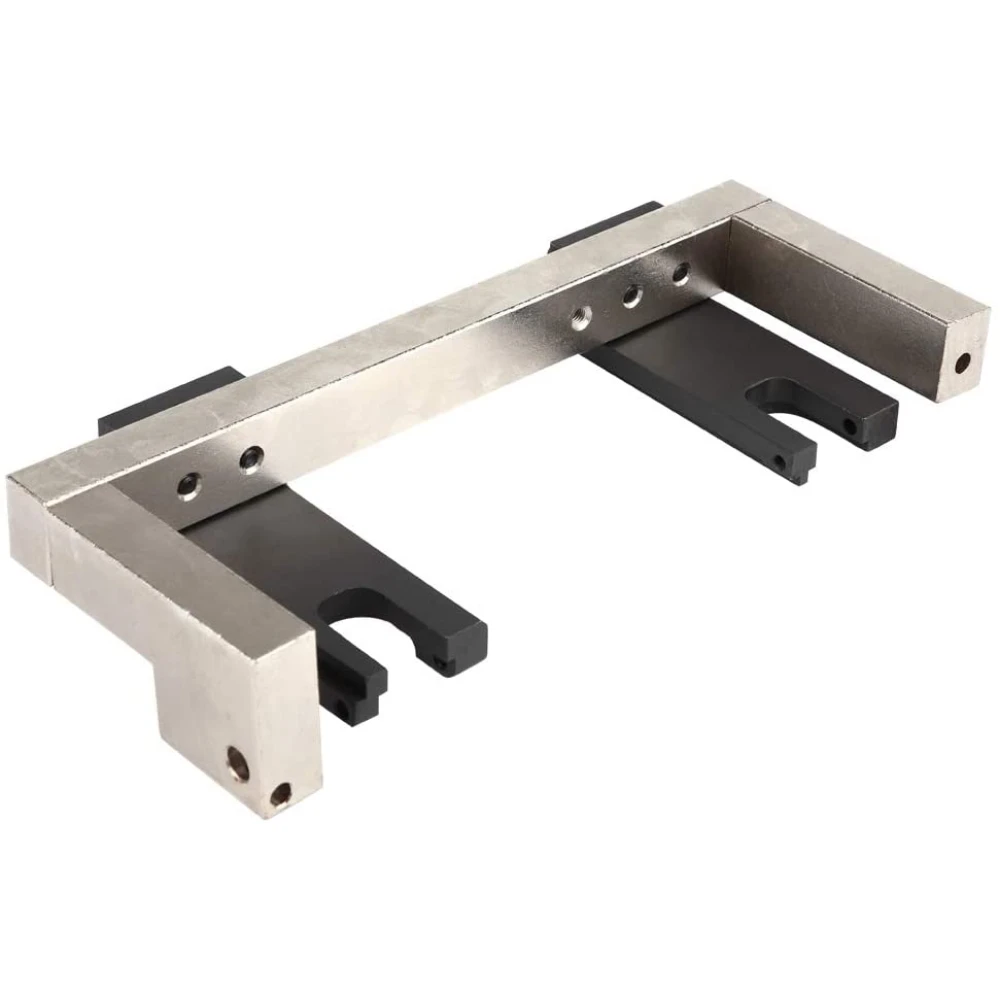

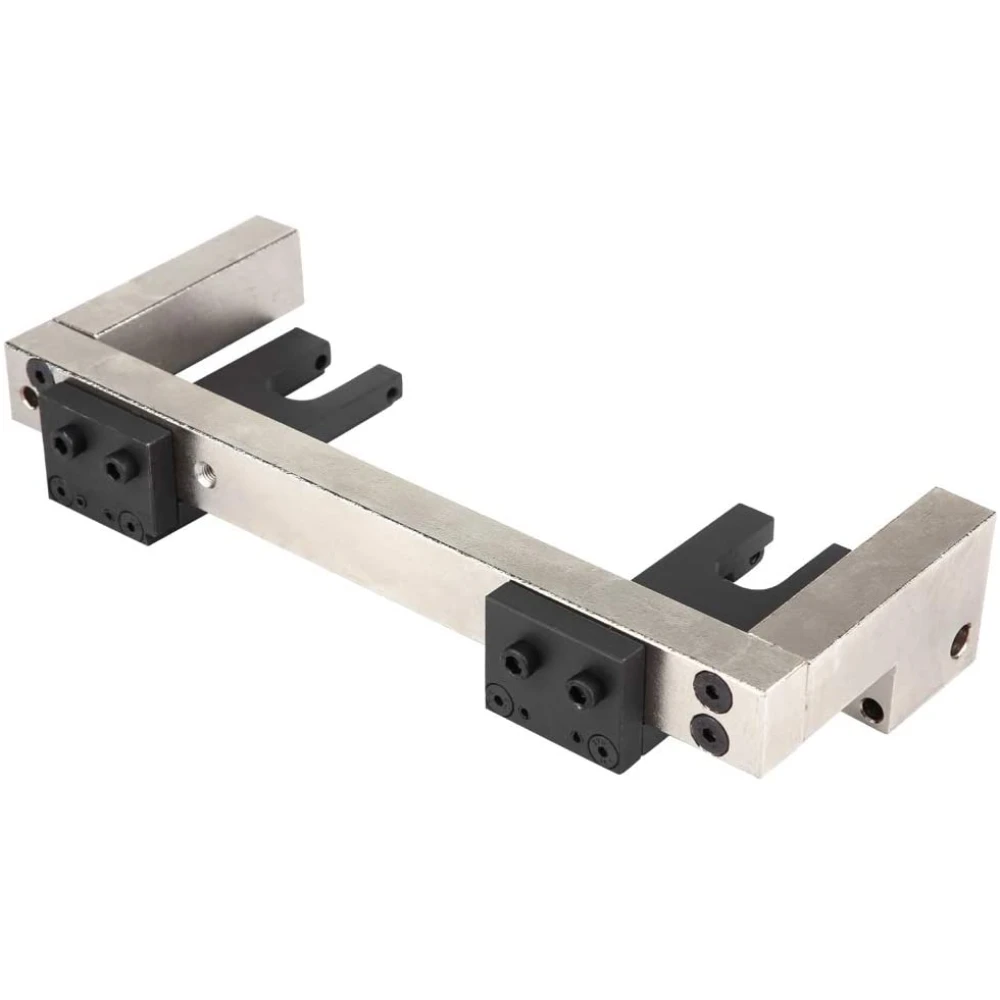

- Camshaft locking tool.
- Camshaft fixing base.
- Alignment pin.
- Chain tensioner compatible with N40, N42, N45, N46, N52, N55, N62 engines.
Typical applications:
- Engine adjustment and timing during valve train repairs.
- Professional maintenance to ensure correct camshaft timing.
- Cylinder head gasket replacement and related cylinder head work.
Note: No instructions for use are included; professional installation is recommended. Box colour may vary.
- Compatible with BMW N20 and N26 engines (4-cylinder turbo).
- Allows precise camshaft locking and alignment.
- Includes locking tool, fixing base, alignment pin and chain tensioner.
- Compatible with BMW 125i, 228i, 320i, 328i, 420i, 520i, 528i, X1, X3, X4 and Z4 models.
- Replaces OEM parts 83302212831, 83302212830, 83302219548, 119340.
Customer Questions & Answers
What are the main functions of this timing tool kit for BMW N20/N26 engines, and what are its advantages over traditional methods?
This kit allows precise alignment and locking of the camshaft in BMW N20/N26 engines during jobs such as cylinder head gasket replacement or valve train adjustment. Its main advantage over traditional methods (generic tools or manual marking) is fast, accurate fixing to OEM specifications, reducing the risk of timing errors and making professional repairs easier.
What materials is the kit made from, and what are its approximate dimensions and weight per piece?
The kit is typically made from high-strength hardened steel with an anti-corrosion coating. The main tools usually measure between 100 mm and 200 mm in length depending on the part, with thicknesses between 10 mm and 30 mm. The total kit weight ranges from 1.5 kg to 2 kg, ensuring the robustness and durability required for automotive applications.
Is this kit compatible with all BMW N20 and N26 engines, including xDrive variants and the different model years mentioned?
Yes, it is specifically designed for BMW N20 and N26 engines, including both xDrive and sDrive variants, and models manufactured between 2011 and 2017 according to the BMW catalogue. It is not compatible with other BMW engines outside these series, or with engines with more or fewer cylinders. It is recommended to verify the exact engine code before use.
What safety precautions or standards should be observed when using these tools during engine timing?
Make sure the engine is completely cold and the electrical system is disconnected before fitting the tools. It is vital to follow the manufacturer’s instructions and always use the tightening torque specified by BMW. No special certification is required, but use by trained technicians is recommended. The steel in the kit meets common automotive tool standards, however the kit is not certified as safety equipment.
Compared with other universal timing kits, what precision and durability does this BMW-specific kit offer?
Unlike universal kits, this set is designed with tight tolerances to match the geometries of BMW N20/N26 engines (typical maximum deviation: ±0.1 mm on the reference surfaces). This improves fitting accuracy and reduces the risk of play or damage during installation, resulting in greater durability for both the tools and the engine being worked on.
Which BMW models is this tool compatible with?
It is compatible with BMW N20 and N26 engines in models such as 125i, 228i, 320i, 328i, 420i, 520i, 528i, X1, X3, X4 and Z4 manufactured between 2011 and 2017.
What does the tool kit include?
It includes a camshaft locking tool, fixing base, alignment pin and chain tensioner for various BMW engines.
Are installation instructions included?
No, instructions are not included; installation is recommended to be carried out by a professional.
Is it compatible with engines other than N20 and N26?
The included chain tensioner is compatible with N40, N42, N45, N46, N52, N55 and N62 engines, but the main tool is designed for N20 and N26.
