12V 20A 240W Transformer - AC to DC Power Supply YourLed

Fuente de alimentación AC a DC 12v 20 amperios para tiras LED

Transformador metálico 12v 20a para equipos electrónicos

Alimentador 12v 20a con protección contra cortocircuitos y sobrecargas

Transformador 12v 20a 240w regulable para sistemas de seguridad

12V 20A 240W Transformer - AC to DC Power Supply YourLed

Name: 12V 20A 240W Transformer - AC to DC Power Supply YourLed
Brand: YourLed
SKU: X020106-12V-20A
Price: 20.91 EUR
Availability: InStock

Brand: YourLed

Be the first to review this product

20.91€

VAT included (Ex VAT: 17.00 €)

In Stock - Ships immediately

Standard delivery Wed, Apr 29 - Fri, May 1

Express delivery Mon, Apr 27 - Tue, Apr 28

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

The 12V 20A 240W transformer from YourLed is an AC to DC power supply designed to provide a stable and safe power supply to various electronic devices that require 12V with a maximum consumption of 240W.

Common applications:

Electronic equipment powered at 12V
LED strips
Wireless and ADSL router
Security camera power supply
Audio and video equipment
Security systems

This power supply is ideal for any device that needs a 12V source and up to 20 amps, provided the consumption does not exceed 240W. For LED strips, it is recommended that the power supply output be higher than the total consumption of the strips. For example, for 4 metres of LED strip with a consumption of 12W per metre, a power supply of at least 48W will be needed.

Technical features:

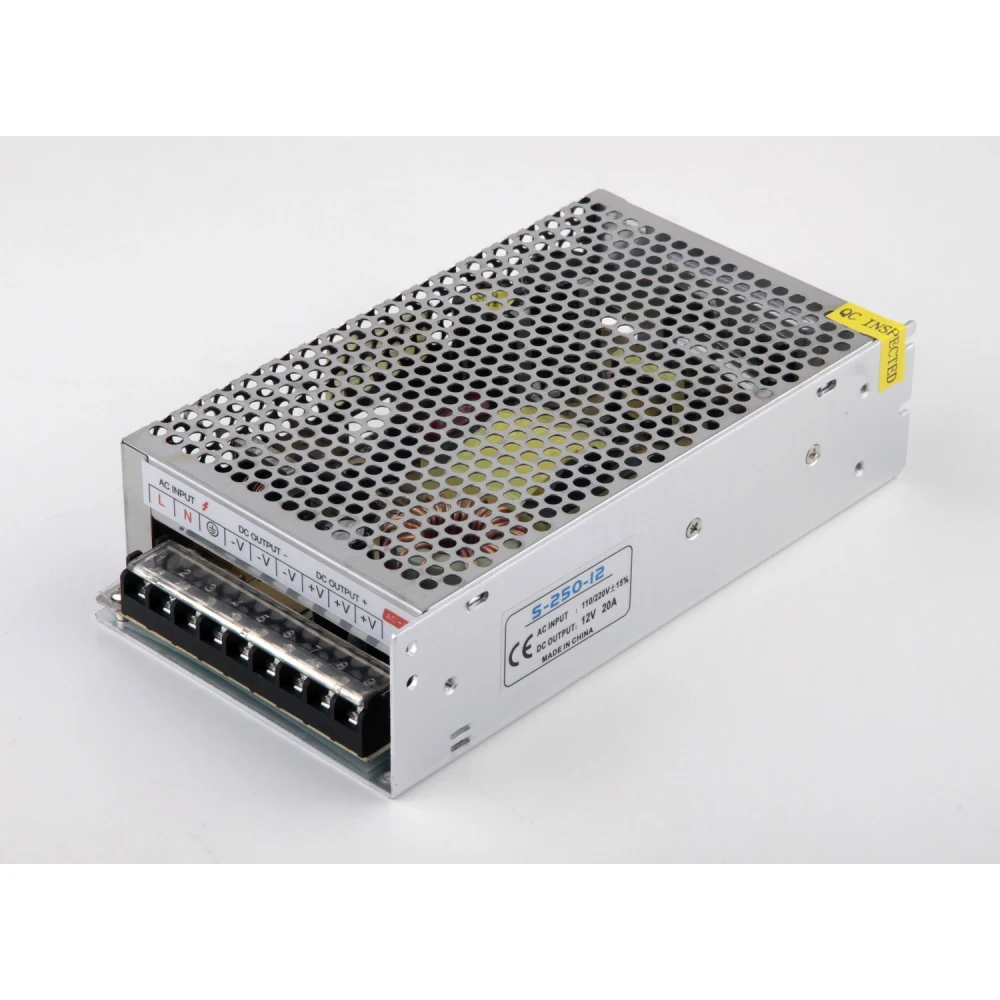

Model: S-250-12
Power supply: 100-120V AC or 200-220V AC
Output voltage: 12V DC adjustable between 10V and 13,2V by potentiometer
Maximum output current: 20A
Maximum output power: 240W (continuous use at maximum is not recommended)
Number of outputs: 3
Operating temperature range: -20°C to 60°C

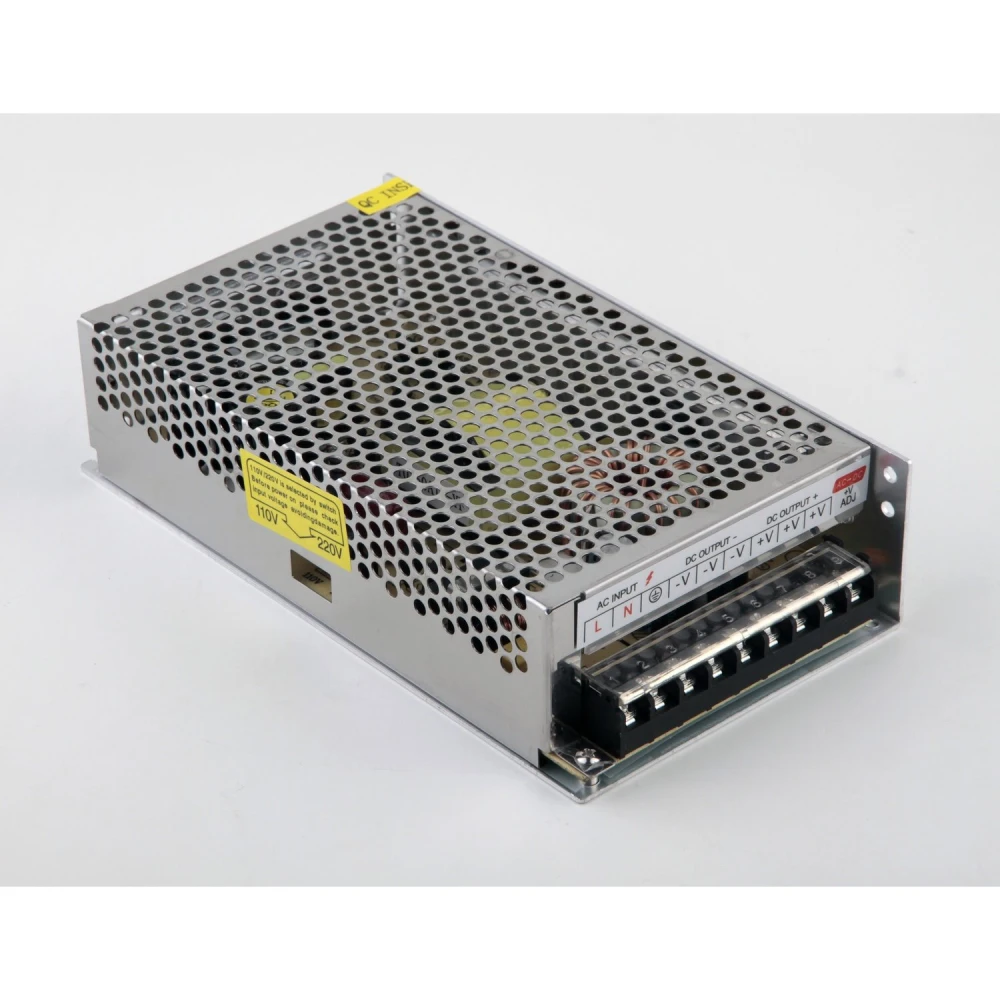

Output connector: Screw Terminal Block
Metal housing for better heat dissipation and greater durability
Protection against short circuits, overloads and overvoltage

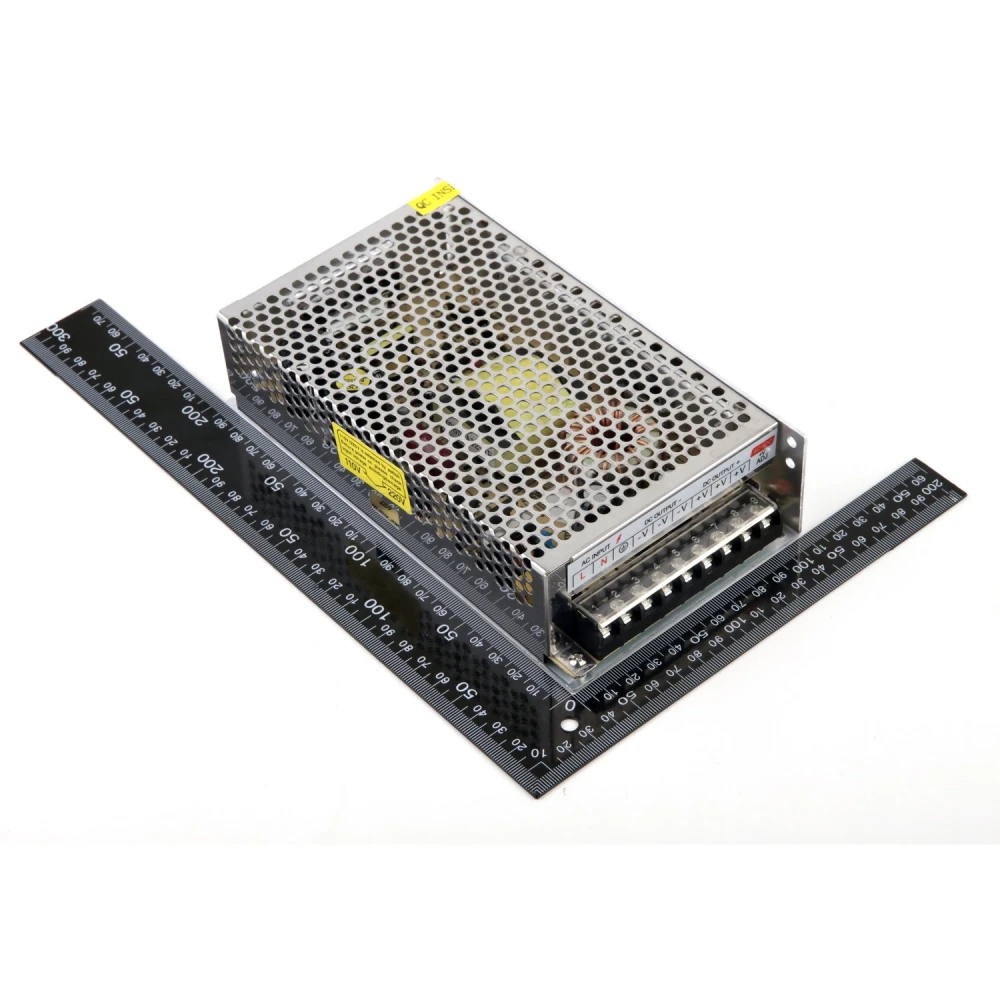

Dimensions: 49mm x 200mm x 110mm (height x length x width)
Weight: 710 grams

Thanks to its metal housing, this transformer offers efficient heat dissipation, extending its service life compared with models with a plastic housing. In addition, voltage adjustment allows it to be adapted to different specific needs within the indicated range.

This product is compatible with a wide range of electronic devices and is especially recommended for LED lighting projects, security systems and equipment that require a stable and reliable power supply.

Adjustable output voltage from 10V to 13,2V with potentiometer
Maximum output current of 20A and maximum power of 240W
Metal housing for better heat dissipation and greater durability
Protection against short circuits, overloads and overvoltage
Screw terminal output connector for secure connections
Compatible with electronic equipment, LED strips, routers, cameras and security systems
Compact dimensions: 49mm x 200mm x 110mm and lightweight at 710g

Customer Questions & Answers

What are the exact dimensions and weight of the power supply, and what is included in the box when buying this product?

The power supply measures 49 mm in height, 200 mm in length and 110 mm in width; it weighs 710 g. Normally, the box includes only the transformer power supply; input cables or mounting accessories are not supplied unless explicitly stated by the seller.

Is the power supply compatible with any mains input voltage in homes and commercial premises in Latin America and Europe?

It supports two input ranges: 100–120 V AC and 200–220 V AC, selectable, covering most residential and commercial standards in Latin America and Europe. However, for countries with unusual frequencies or voltage variations outside the specified range, it is recommended to check before installation.

Is it safe to run the power supply at its maximum load (240 W) continuously?

It is not recommended to keep the maximum load (20 A/240 W) continuously, as operating at the limit reduces service life and may cause overheating in the long term. For prolonged use, it is advisable not to exceed 80% of the rated power, i.e. approximately 192 W or 16 A.

What protection mechanisms does the power supply include against electrical faults, and under what standards does it operate?

It includes protection against short circuits, overload and overvoltage. These functions help prevent damage to the equipment and connected devices. It is designed in accordance with general CE and RoHS standards for low-voltage equipment, although it is recommended to check specific certifications if strict compliance is required for critical applications.

What devices is this 12V 20A 240W transformer suitable for?

It is suitable for electronic equipment that requires 12V power and up to 20 amps, including LED strips, wireless routers, security cameras, audio and video equipment, and security systems.

Can I use this transformer to power LED strips?

Yes, it is ideal for LED strips. It is recommended that the power supply output be higher than the total consumption of the strips to avoid overloads.

Does it have short-circuit and overload protection?

Yes, it has built-in protection against short circuits, overloads and overvoltage to ensure the safety of the equipment and the transformer.

Can the output voltage be adjusted?

Yes, it includes a potentiometer that allows the output voltage to be adjusted between 10V and 13,2V, although it is mainly designed to operate at 12V.

What is the advantage of the metal housing?

The metal housing improves heat dissipation, which extends the transformer’s service life compared with models with a plastic housing.
