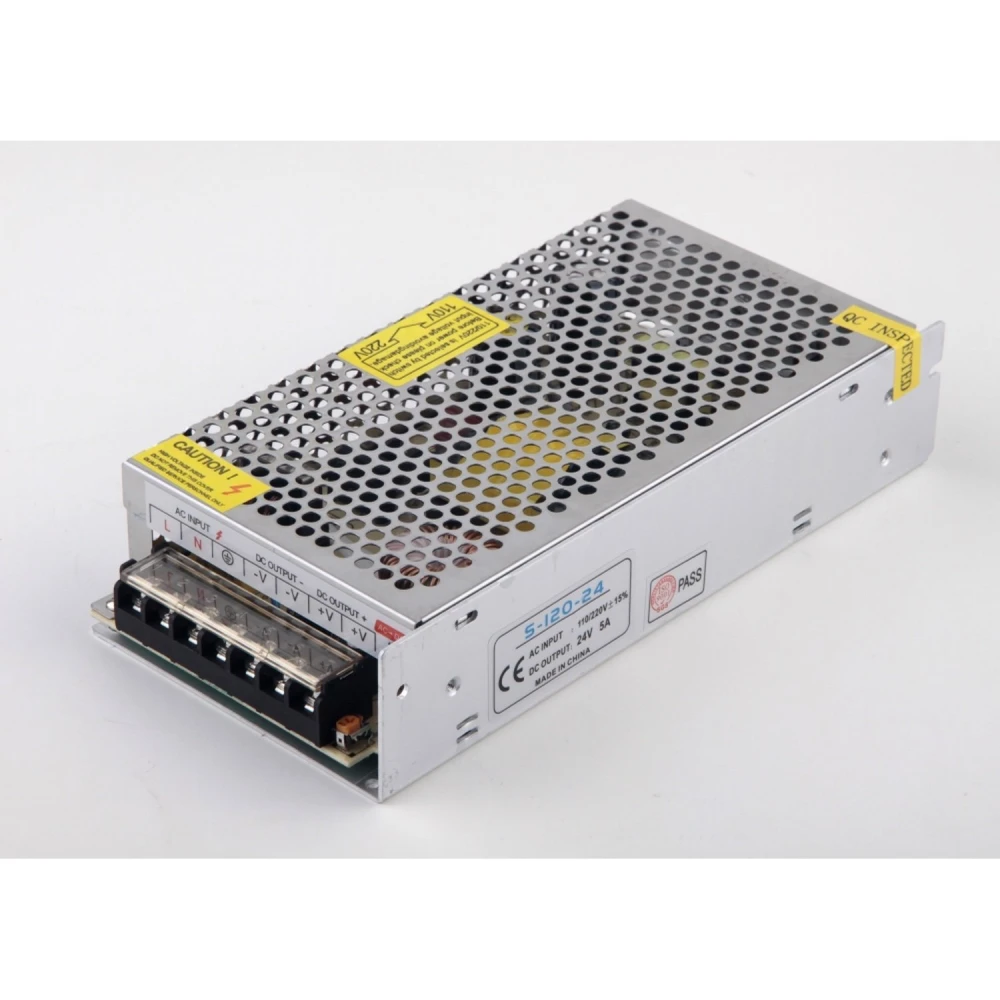

Fuente de alimentación 24V 5A 120W YourLed para equipos electrónicos

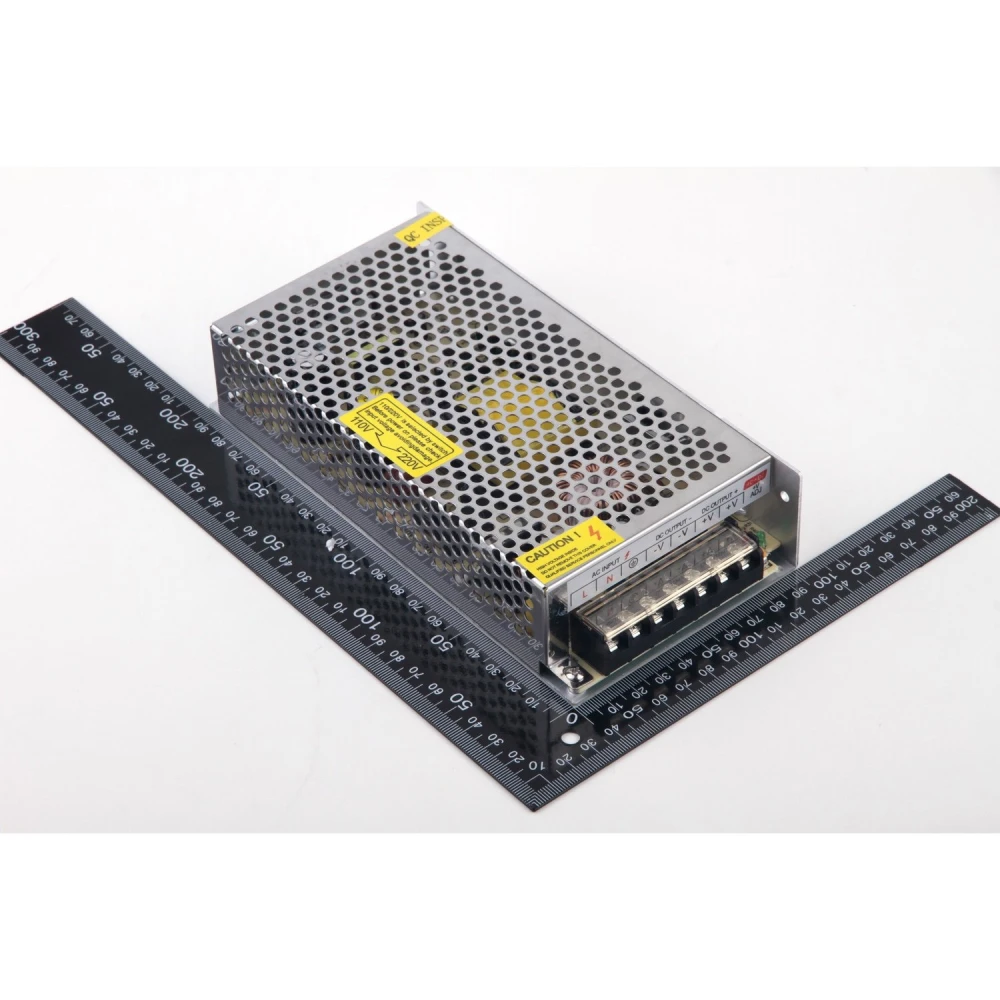

Vista frontal del transformador 220V a 24V 5A con carcasa metálica

Detalle del conector de salida tipo terminal de tornillo del transformador YourLed

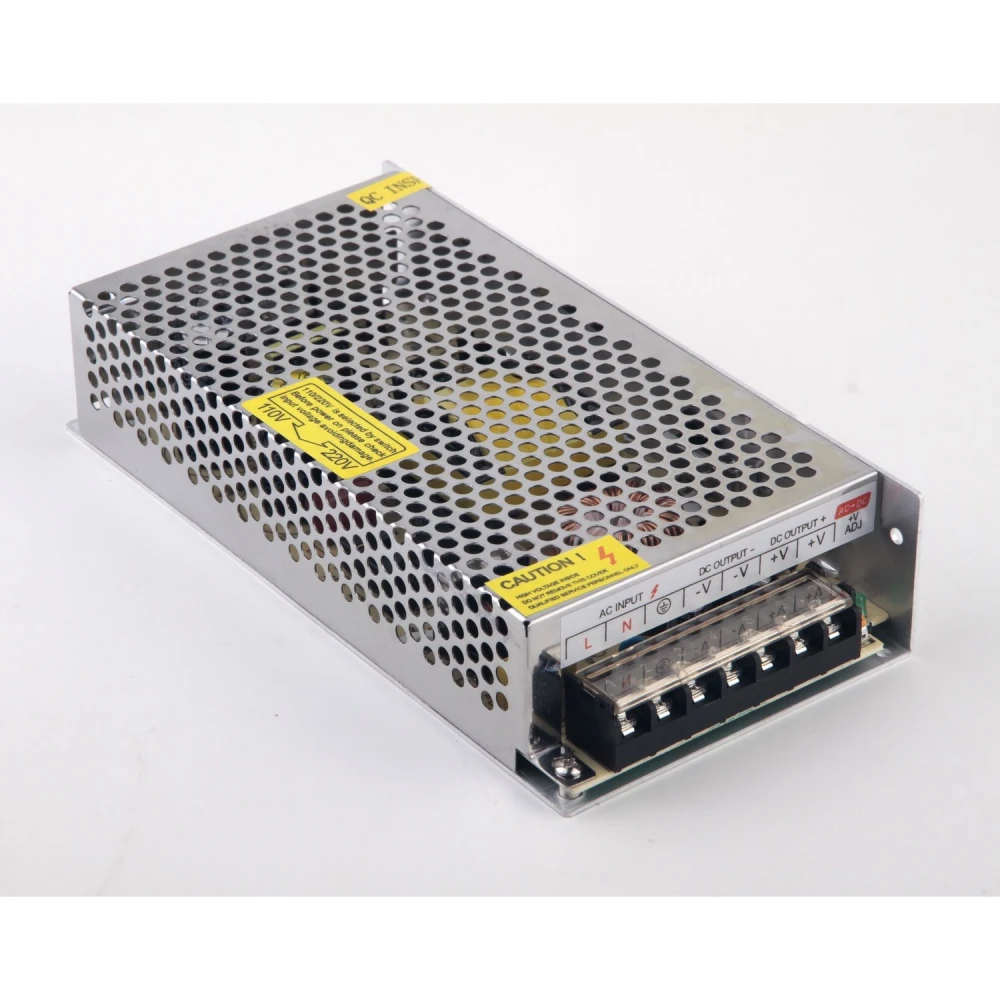

Transformador YourLed 24V 5A ideal para estaciones de soldadura e iluminación LED

220V to 24V 5A Transformer - YourLed 120W Power Supply

Name: 220V to 24V 5A Transformer - YourLed 120W Power Supply
Brand: YourLed
SKU: X020103-24V-5A
Price: 13.78 EUR
Availability: InStock

Brand: YourLed

Be the first to review this product

13.78€

VAT included (Ex VAT: 11.20 €)

Limited stock

Standard delivery Fri, May 1 - Tue, May 5

Express delivery Wed, Apr 29 - Thu, Apr 30

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

The 220V to 24V 5A transformer YourLed is an AC to DC power supply designed to provide stable and safe power to electronic devices that require 24V DC and up to 5 amperes of current, with a maximum power of 120W.

This power supply is ideal for applications in electronic equipment that demand a constant voltage and protection against overloads, short circuits and overvoltage, thus ensuring the integrity of your devices.

Key features

Model: S-120-24
Power supply: Compatible with 100-120V AC or 200-220V AC
Output voltage: 24V DC adjustable between 21 and 27V via integrated potentiometer
Maximum output current: 5 amperes
Maximum power: 120W (continuous use at maximum not recommended)
Number of outputs: 2
Output connector: Screw terminal block (Type Screw Terminal Block)
Housing material: Metal for better heat dissipation and greater durability
Protections: Against short circuits, overloads and overvoltage
Dimensions: 41mm x 200mm x 96mm (height x length x width)
Weight: 510 grams
Operating temperature range: -20°C to 60°C

Typical uses

This transformer is suitable for powering soldering stations, LED lighting equipment, reballing station replacements, and other electronic devices that require a stable 24V DC supply and up to 5A. Its metal casing ensures better heat dissipation, extending the product's service life compared with models with a plastic casing.

Compatibility

Compatible with equipment operating with 100-120V or 200-220V AC power and requiring regulated 24V DC output. Ideal for electronic projects, soldering stations and LED systems that require up to 120W of power.

Adjustable 21 to 27V output voltage for precise setting
5A maximum current for loads up to 120W
Metal casing that improves heat dissipation and extends service life
Built-in protection against short circuits, overloads and overvoltage
Screw terminal output connector for easy installation
Compatible with 100-120V AC or 200-220V AC power supply
Compact dimensions and lightweight design for easy integration into equipment

Customer Questions & Answers

What advantages does the metal casing of the transformer offer over a plastic casing?

The metal casing provides better heat dissipation, helping to keep operating temperatures lower. This contributes to greater longevity and stability of the internal components compared with plastic-cased models, where heat retention can affect performance and reduce service life.

Which devices or applications are compatible with this power supply, and are there limitations due to current spikes or start-up surges?

This power supply is compatible with electronic equipment requiring 24 V DC and continuous consumption below 120 W (5 A). However, inductive devices or loads with high start-up surges (motors, some high-power LEDs) may briefly exceed the current limit, which can trigger overload protection.

What maintenance does it require and how is protection against short circuits or overloads ensured?

It requires no regular maintenance other than keeping the ventilation openings clean for heat dissipation. It incorporates automatic electronic protection against short circuit, overload and overvoltage; once the abnormal condition is removed, normal operation is restored.

How does this model compare with similar alternatives in terms of operating temperature range and durability?

Compared with standard alternatives, this model operates over a wide range of -20°C to 60°C. Thanks to the metal casing, it offers greater thermal and mechanical resistance, which usually translates into a longer service life, especially in demanding environments or where ventilation is limited.

What is this 220V to 24V 5A transformer used for?

It is used to power electronic equipment that requires a stable 24V DC supply and up to 5 amperes, such as soldering stations, LED lighting and similar devices.

Can the output voltage be adjusted?

Yes, it includes a potentiometer that allows the output voltage to be adjusted between 21 and 27 volts to suit different needs.

What type of protection does this transformer offer?

It has protection against short circuits, overloads and overvoltage to protect both the transformer and the connected devices.

What is the maximum power it can handle?

It can handle up to 120W of maximum power, although continuous use at maximum is not recommended to avoid overheating.

What type of output connector does it have?

It uses a screw terminal block connector (Screw Terminal Block) that makes secure cable connection easier.
