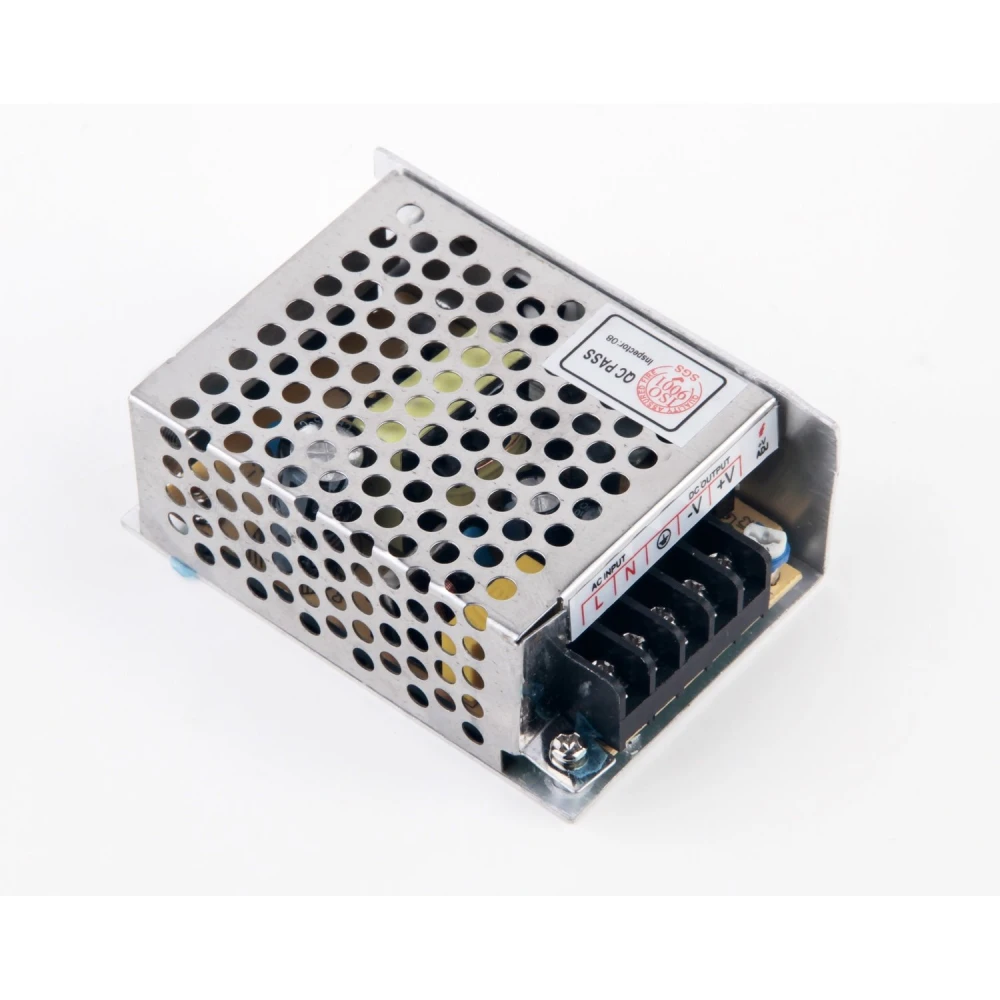

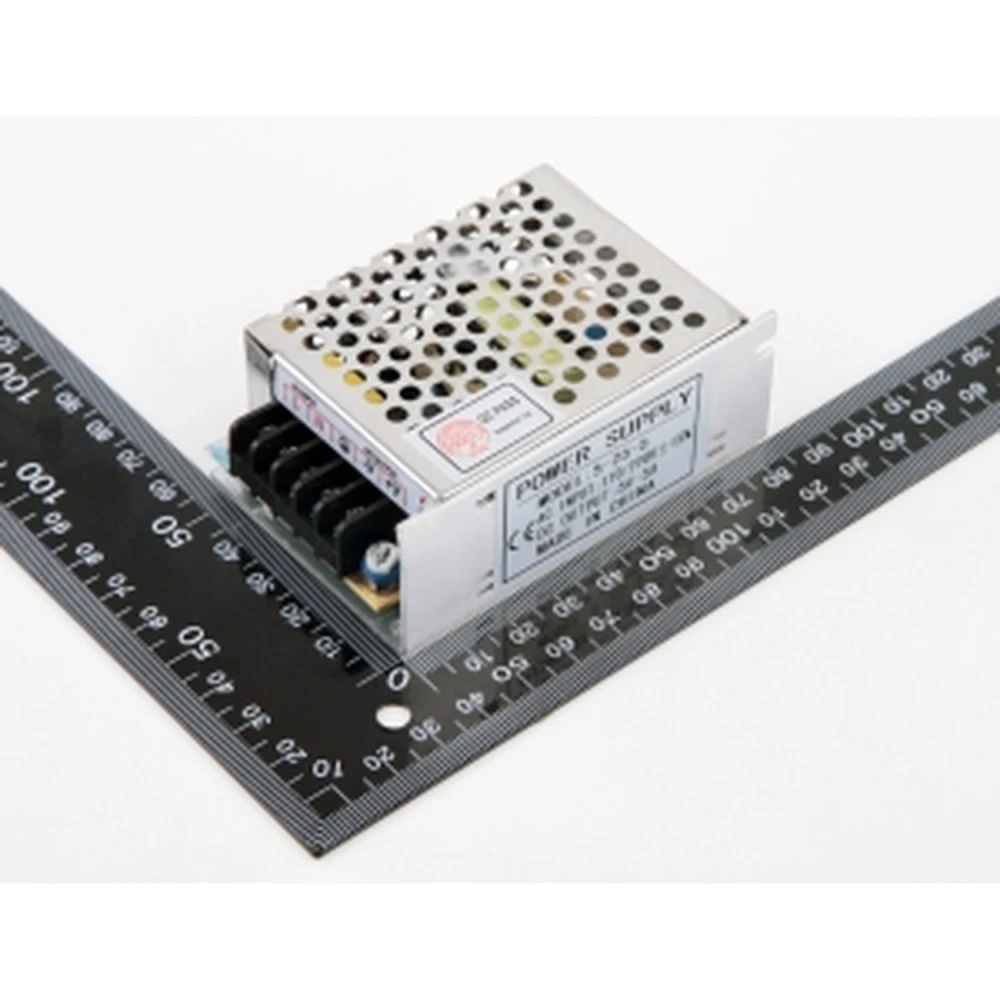

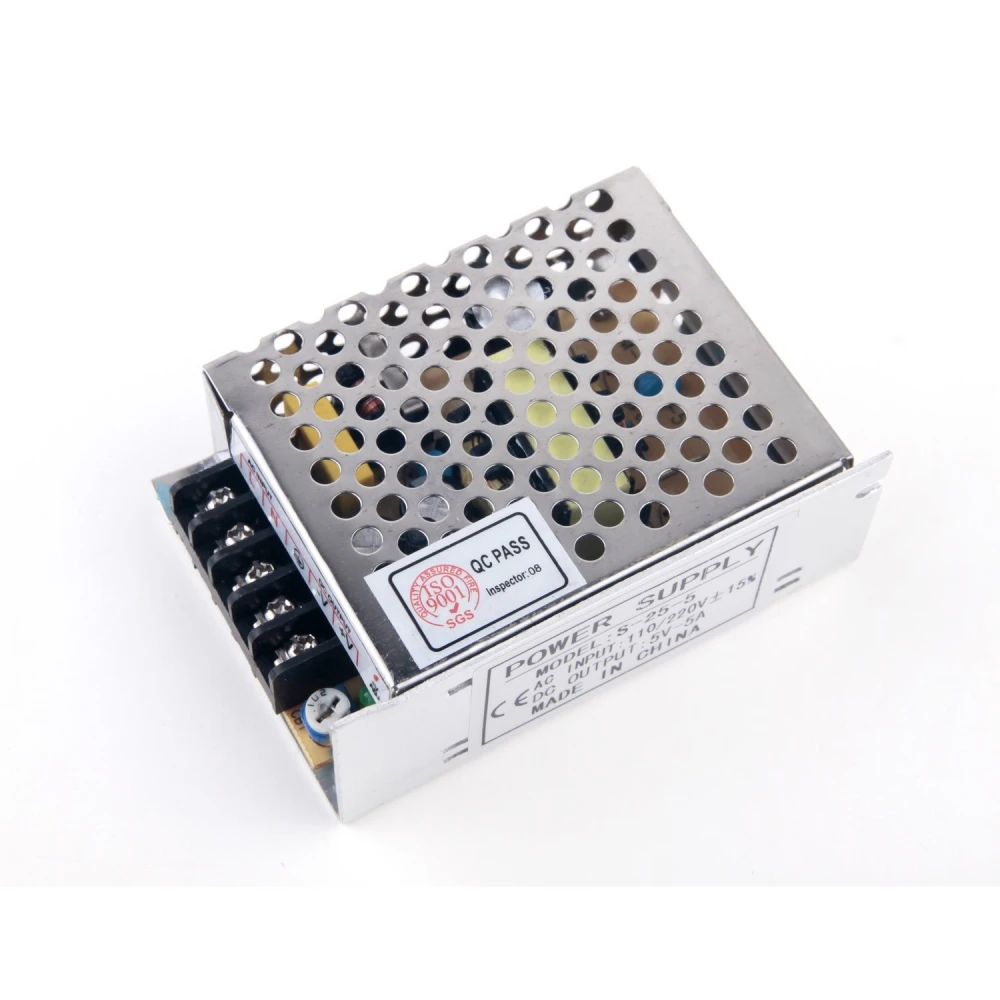

220V to 5V 5A Transformer with 25W AC to DC Power Supply

The 220V to 5V 5A transformer is an AC to DC power supply ideal for electronic devices that require a stable 5V voltage with a maximum current of 5 amperes and power of up to 25W.

This transformer features a metal case that significantly improves heat dissipation, extending the device's service life compared with models with a plastic case. It also includes protection against short circuits, overloads and overvoltage, ensuring safe and reliable operation.

Main technical features:

• Model: S-25-5
• Power supply: 100-120V AC or 200-220V AC
• Output voltage: 5V DC adjustable between 4,5 and 5,5V via potentiometer
• Maximum output current: 5A
• Maximum output power: 25W (continuous use at maximum not recommended)
• Number of outputs: 1
• Operating temperature range: -20°C to 60°C
• Output connector: Screw terminal block (Type Screw Terminal Block)
• Case material: Metal
• Weight: 140 grams

Typical applications:

• Power supply for electronic equipment requiring 5V DC with consumption below 25W.
• Use in soldering stations, reballing station replacement parts and other electronic equipment.
• LED lighting projects and electronic devices that need a stable and safe power supply.

This transformer is compatible with a wide range of electronic devices that operate on 5V DC power and provides adjustable regulation to suit specific voltage needs. Its robust design and built-in protection make it ideal for industrial and laboratory environments.

• Input voltage: 100-120V AC or 200-220V AC
• Regulated 5V DC output with adjustable potentiometer from 4,5 to 5,5V
• Maximum output current: 5 amperes
• Maximum power: 25W (continuous use recommended below maximum)
• Metal case for better heat dissipation and durability
• Protection against short circuits, overloads and overvoltage
• Screw terminal output connector
• Operating temperature range: -20°C to 60°C
• Lightweight at 140 grams
